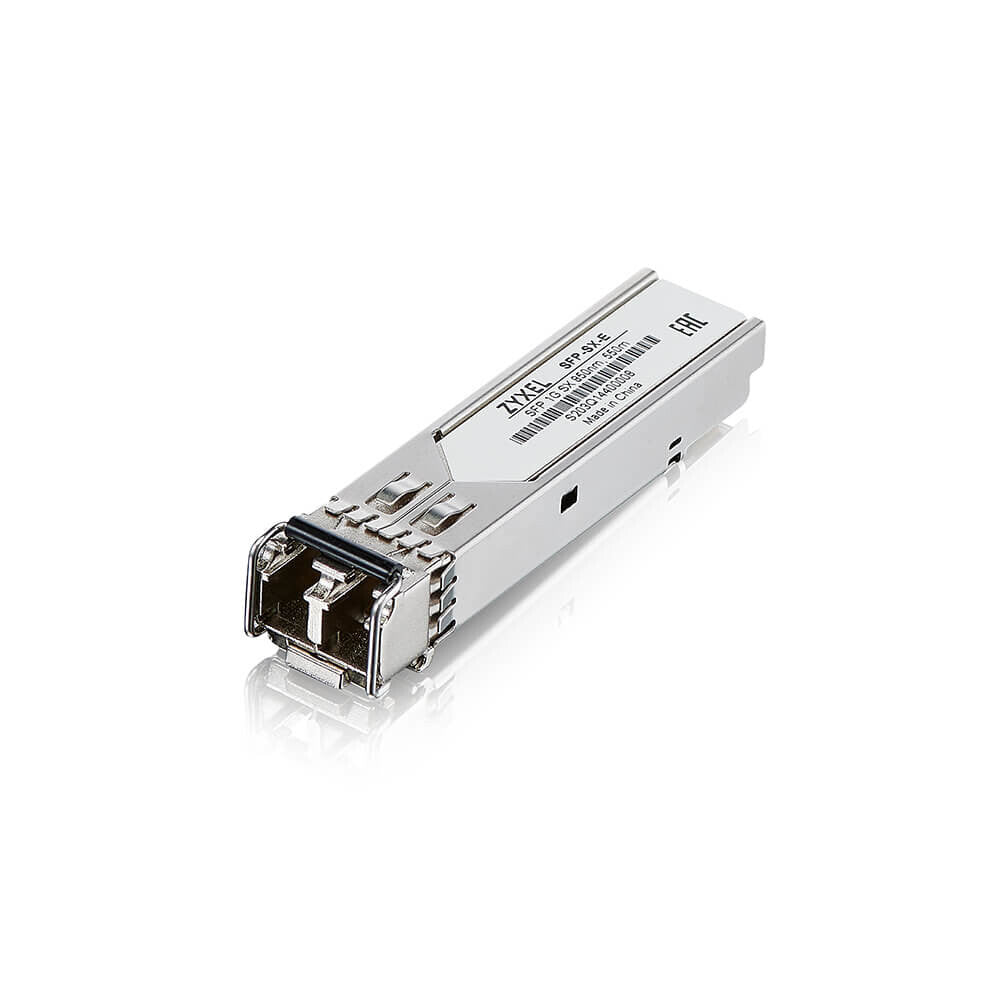

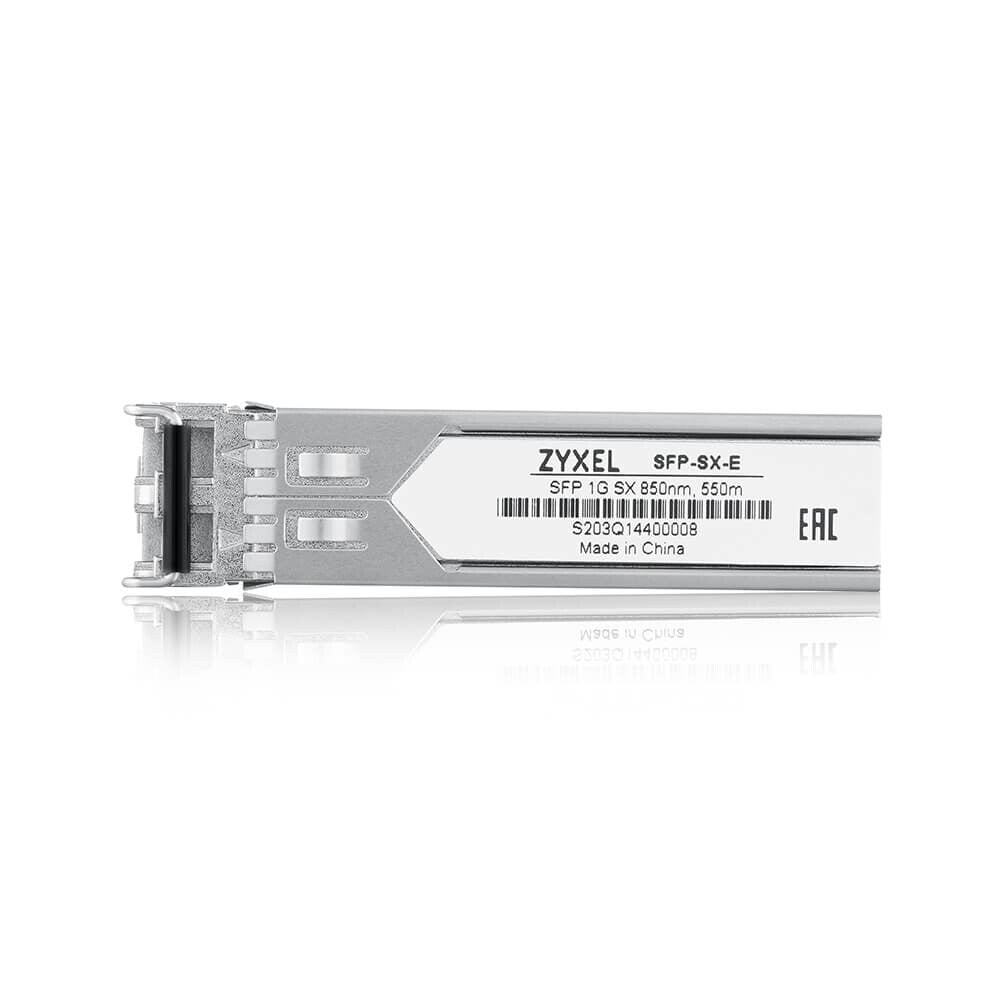

Zyxel SFP-SX-E network transceiver module Fiber optic 1000 Mbit/s 850 nm
Zyxel SFP-SX-E network transceiver module Fiber optic 1000 Mbit/s 850 nm
Couldn't load pickup availability
SKU:SFP-SX-E-ZZBD01F
Low stock: 3 left
- SFP Fiber optic 1000 Mbit/s
- Wavelength: 850 nm
- Input voltage: 3.1-3.5 V
Hot-pluggable with maximum flexibility
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.
No extra cabling cost to upgrade the fiber plant
Traditional fiber optic networking requires two strands of fiber for sending and receiving signals to accomplish communications.
The bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber. Transmission capacity can be expanded immediately without additional cost laying new fiber.
Supports digital diagnostics monitoring interface (DDMI)
DDMI enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings.
Complete fiber accessory portfolio
We provide multiple options including 1G SFP, 10G SFP+ and 10G DAC cables for different installation requirements.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Tx power (min) | -3 dBmW |
| Tx power (max) | -9.5 dBmW |
| Rx power (min) | -3 dBmW |
| Rx power (max) | -17 dBmW |
| Features | |
|---|---|
| Product colour | Steel |
| Country of origin | China |
| Brand compatibility | Zyxel |
| Power | |
|---|---|
| Input voltage | 3.1-3.5 V |
| Maximum current | 0.3 A |
| Weight & dimensions | |
|---|---|
| Width | 13.4 mm |
| Depth | 56 mm |
| Height | 12.4 mm |
| Weight | 20 g |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85369010 |
