Maximum printing width: 3.02 cm Print speed: 102 mm/sec
Connectivity technology: Wired
USB port Ethernet LAN
1.4 kg
12 dots/mm (300 dpi), RTC, USB, Ethernet, ZPLII

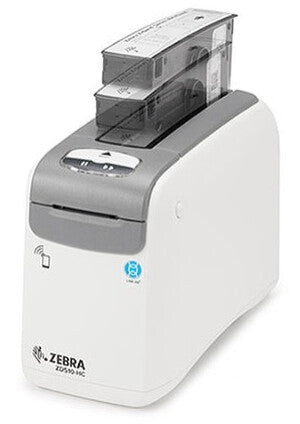

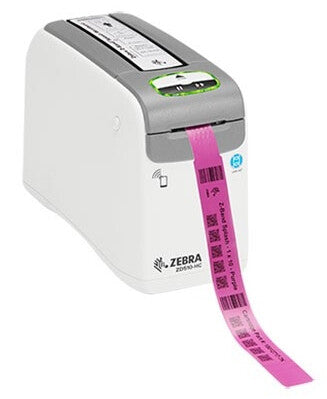

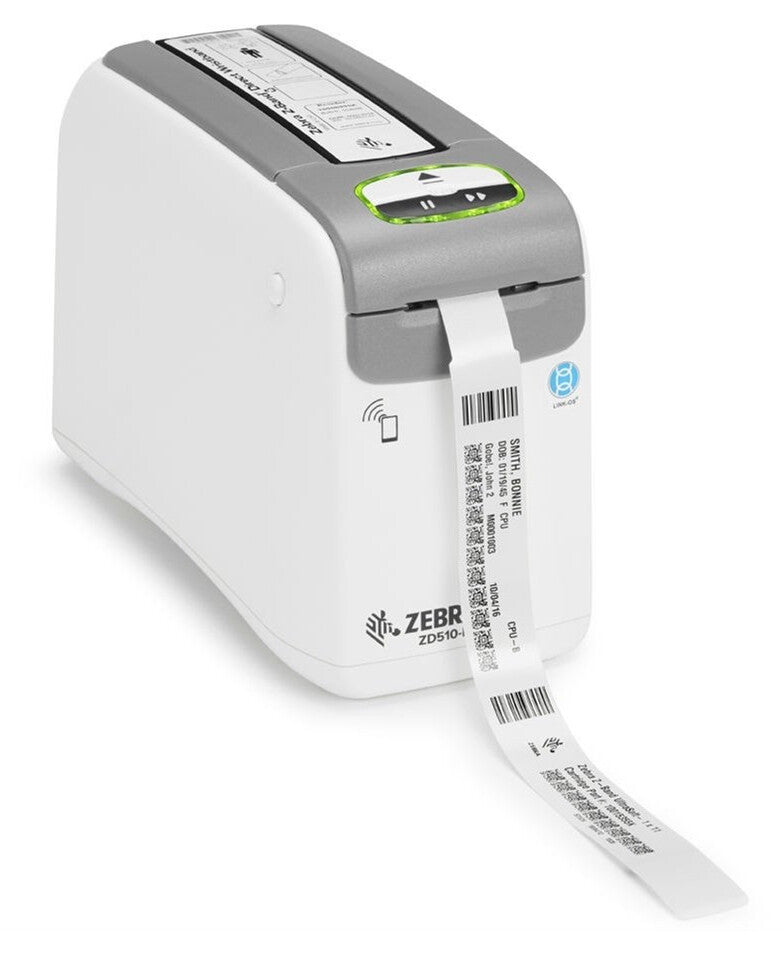

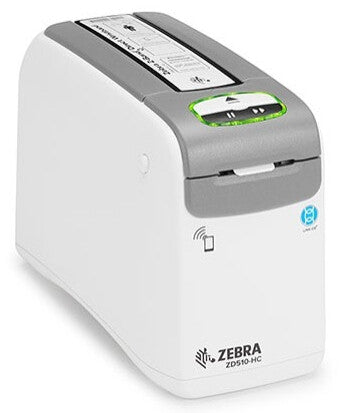

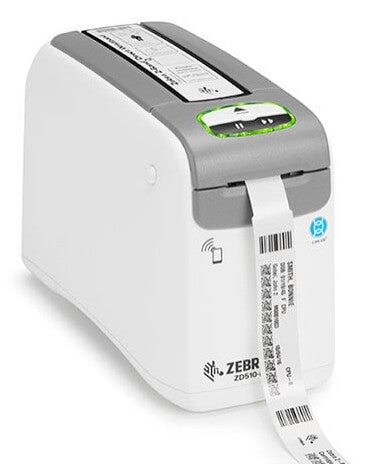

A WRISTBAND PRINTER THAT SPECIALIZES IN HEALTHCARE Patient wristbands are the foundation for a safer, more efficient process for delivering care. The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market - Zebra's Z-Band® wristbands. Offering comprehensive connectivity options, a disinfectant-ready UV-resistant housing and the powerful Print DNA suite of applications, utilities and developer tools, the ZD510-HC increases staff productivity and patient safety. Also capable of printing wristbands for amusement, water-park and entertainment applications, the ZD510-HC is the industry's easiest to use and most dependable wristband printing solution.
VIRTUALLY NO TRAINING REQUIRED The ZD510-HC is the easiest wristband printer to use on the market. Just insert the wristband cartridge containing Zebra Z-Band wristbands and print. The printer instantly identifies the wristband size and automatically configures darkness and speed settings for optimal print quality.
EXCEPTIONAL QUALITY WITH ZEBRA Z-BANDS Designed, produced and rigorously pre-tested, you get optimum image durability and scanning performance with Z-Band wristbands. They are resistant to hand sanitizers and are available in a variety of sizes, softness levels and colors.
EASY TO CLEAN The ZD510-HC printer's disinfectant ready UV-resistant housing is designed to handle regular sanitizing with harsh chemicals and UV light, helping prevent the spread of germs and increase patient safety.
TRUST YOUR WRISTBAND PRINTING TO A SPECIALIST The ZD510-HC Wristband Printing solution combines the reliable ZD510-HC direct thermal printer with easy-to-load cartridges containing the only antimicrobial-coated wristbands on the market - Zebra's Z-Band® wristbands. Also capable of printing wristbands for amusement, water-park and entertainment applications, you get dependable wristband printing that increases patient safety and staff productivity.
Printing
Print technology
Direct thermal
Colour
No
Maximum resolution
300 x 300 DPI
Print speed
102 mm/sec
Maximum printing width
3.02 cm
Minimum print length
7.6 cm
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN
Yes
Wi-Fi
No
Bluetooth
No
USB port
Yes
USB 2.0 ports quantity
2
Optional connectivity
Wireless LAN
Performance
Page description languages
ZBI, ZPL, ZPL II
Certification
FCC Part 15, Subpart B, VCCI, RCMCE: EN 55032:2012 B, EN 55024:2010, EN61000-3-2, EN 61000-3-3, CISPR 32:2015CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTLIEC 60601-1:2012
