Zebra

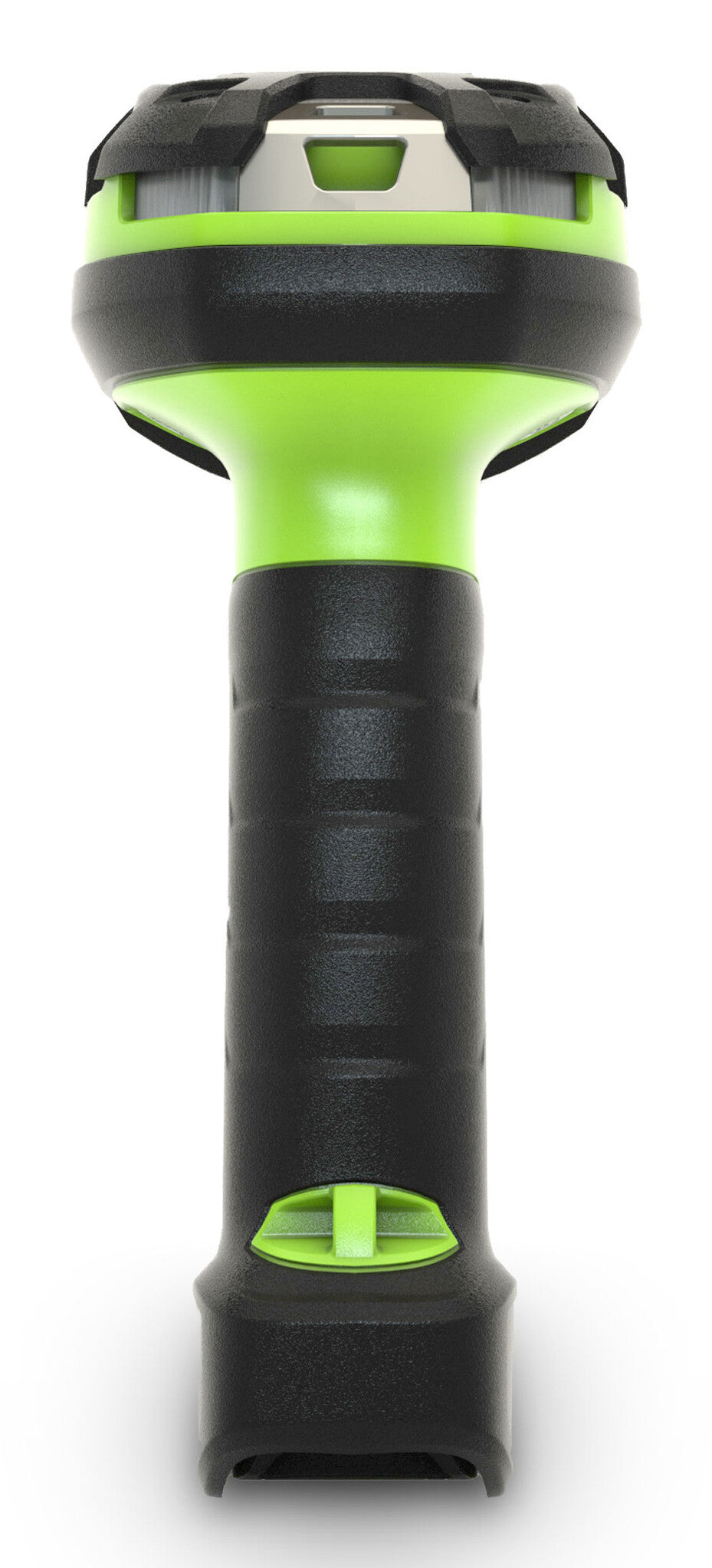

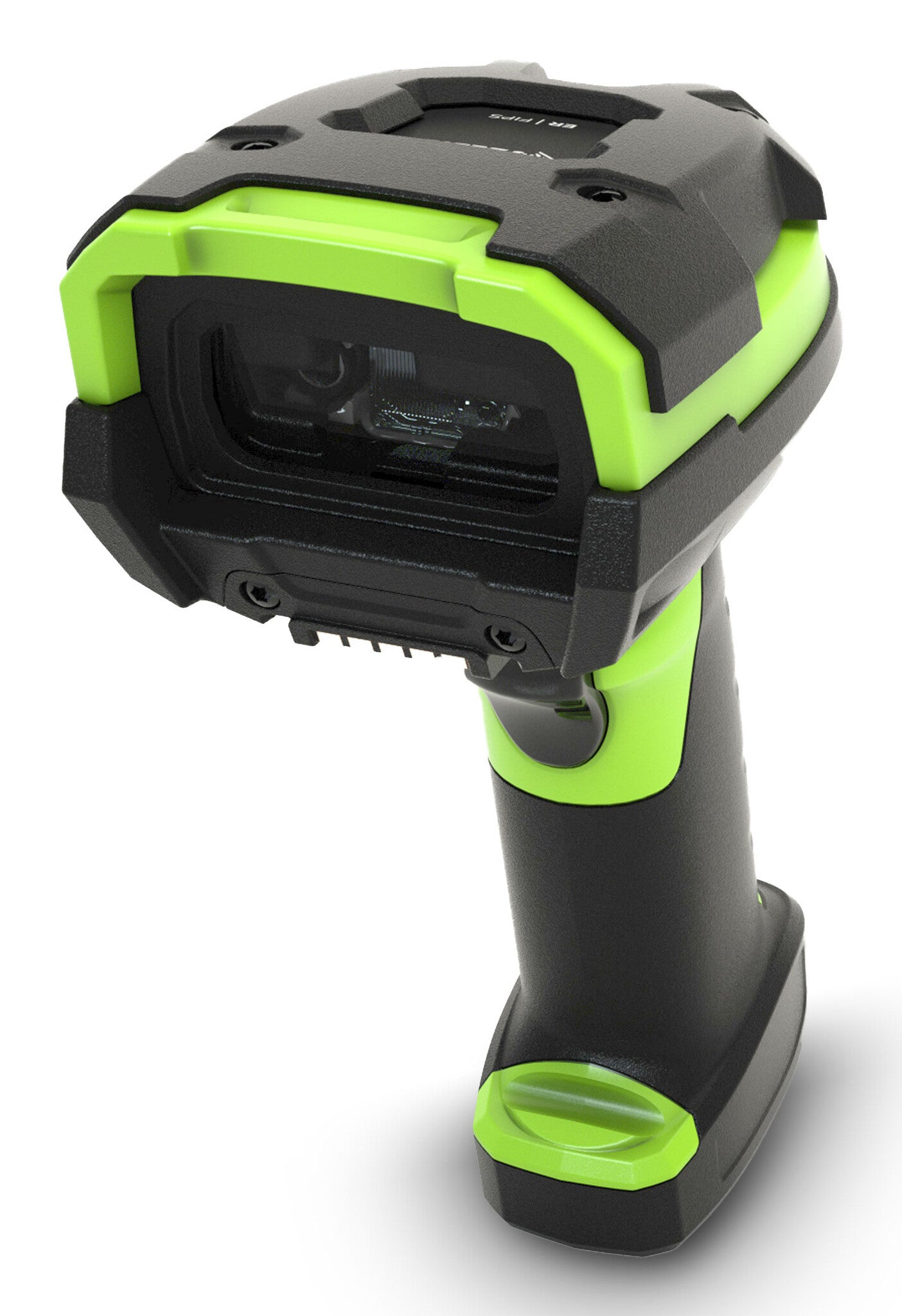

Zebra LI3678-ER Handheld bar code reader 1D Black, Green
Zebra LI3678-ER Handheld bar code reader 1D Black, Green
SKU:LI3678-ER3U42A0S1W
36 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Handheld bar code reader Black, Green
- Scanner type: 1D
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI
- Working distance: 17.1 m
- Wired & Wireless Standard interfaces: Keyboard wedge, RS-232, USB
- Bluetooth Low Energy (BLE)
- Power source type: USB 3100 mAh
UNSTOPPABLE PERFORMANCE FOR EXTENDED-RANGE 1D BARCODE CAPTURE
"As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world’s toughest environments — the warehouse." Designed to capture virtually any 1D barcode from as close as 2 in./5,1 cm to as far as 56 ft./17,1 m away, these scanners provide the ultimate in versatility — workers can capture codes in hand as well as on the top of your warehouse racks. And these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity to drive throughput, accuracy and customer service to a new level.
In addition to superior scanning performance, an ultra-rugged design and unparalleled manageability, you get more features that make this scanner easier than ever for your workers to use, including the crispest aiming pattern for first-time accurate capture of barcodes on pick lists; mix-and-match feedback modes so workers can see, hear or feel successful scans; an extreme temperature rating for freezer use and more. And Zebra’s Network Connect for Automation delivers a seamless connection between LI3608-ER/LI3678-ER scanners and your Industrial Ethernet network without additional third party equipment, reducing complexity, and eliminating a point of failure.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI |
| Working distance | 17.1 m |
| Light levels (direct sunlight) | 0 - 107639 lx |
| Wavelength | 655 nm |
| Pitch reading angle | -65 - 65° |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired & Wireless |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Data transfer rate | 3 Mbit/s |
| Wireless range | 100 m |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 4.0 |
| Performance | |
|---|---|
| Product colour | Black, Green |
| International Protection (IP) code | IP65, IP67 |
| Protection features | Dust resistant, Water resistant |
| LED indicators | Yes |
| Buzzer | Yes |
| Programming function | Yes |
| Power | |
|---|---|
| Power source type | USB |
| Battery capacity | 3100 mAh |
| Weight & dimensions | |
|---|---|
| Width | 76 mm |
| Depth | 132 mm |
| Height | 185 mm |
| Weight | 327 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
