Zebra

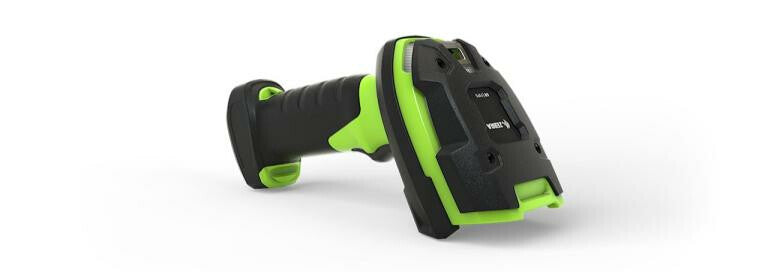

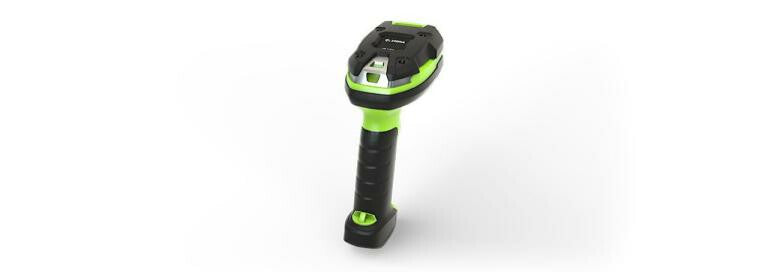

Zebra LI3608 Handheld bar code reader 1D Black, Green

Zebra LI3608 Handheld bar code reader 1D Black, Green

Regular price £675.82 GBP
Regular price Sale price £675.82 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:LI3608-ER20003VZWW

23 in stock

  • Handheld bar code reader Black, Green
  • Scanner type: 1D
  • Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI, Plessey, U.P.C.
  • Working distance: 17.1 m
  • Wired Standard interfaces: RS-232, USB, Keyboard wedge
  • Power source type: DC
LI3608-ER 1D Ultra-Rugged Scanner, 2496 pixels, Corded, 660nm LED, Industrial Green, IP 67

Unstoppable performance for extended-range 1D barcode capture
"As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world’s toughest environments — the warehouse." Designed to capture virtually any 1D barcode from as close as 2 in./5,1 cm to as far as 56 ft./17,1 m away, these scanners provide the ultimate in versatility — workers can capture codes in hand as well as on the top of your warehouse racks. And these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity to drive throughput, accuracy and customer service to a new level.

In addition to superior scanning performance, an ultra-rugged design and unparalleled manageability, you get more features that make this scanner easier than ever for your workers to use, including the crispest aiming pattern for first-time accurate capture of barcodes on pick lists; mix-and-match feedback modes so workers can see, hear or feel successful scans; an extreme temperature rating for freezer use and more. And Zebra’s Network Connect for Automation delivers a seamless connection between LI3608-ER/LI3678-ER scanners and your Industrial Ethernet network without additional third party equipment, reducing complexity, and eliminating a point of failure.

Scanning
Type Handheld bar code reader
Scanner type 1D
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported Not supported
Working distance 17.1 m
Light levels (direct sunlight) 0 - 108000 lx
Wavelength 660 nm
Pitch reading angle -65 - 65°
Ports & interfaces
Connectivity technology Wired
Standard interfaces RS-232, USB, Keyboard wedge
Data transfer rate 3 Mbit/s
Performance
Product colour Black, Green
International Protection (IP) code IP65, IP67
Protection features Dust resistant, Water resistant
LED indicators Yes
Programming function Yes
Power
Power source type DC
Number of reads per charge 100000
Input voltage 4.5 - 12.6 V
Weight & dimensions
Width 77 mm
Depth 132 mm
Height 185 mm
Weight 327 g
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -30 - 50 °C
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84716070
