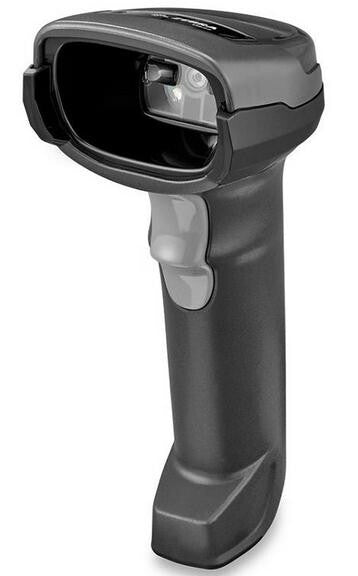

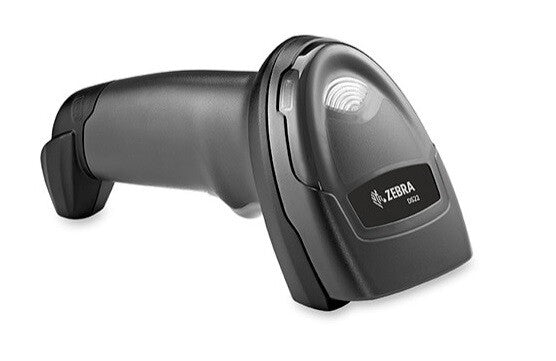

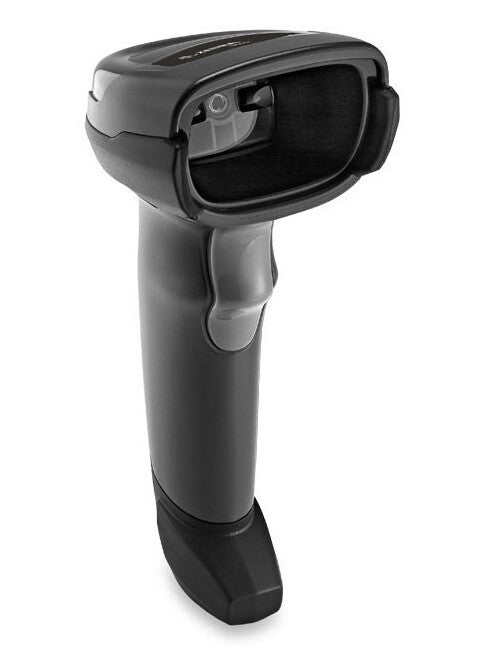

Zebra DS2208-SR7U3200SGW barcode reader Handheld bar code reader 1D/2D LED Black
Zebra DS2208-SR7U3200SGW barcode reader Handheld bar code reader 1D/2D LED Black
SKU:DS2208-SR7U3200SGW
11 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Handheld bar code reader Black
- Scanner type: 1D/2D Sensor type: LED
- Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
- 640 x 480 pixels
- Working distance: 36.8 cm
- Tilt reading angle: -65 - 65°
- Wired Standard interfaces: USB, RS-232, RS-485, Keyboard wedge
- Power source type: DC Lithium-Ion (Li-Ion) 2400 mAh
AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39 |
| Sensor type | LED |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Working distance | 36.8 cm |
| Wavelength | 645 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -65 - 65° |
| Motion tolerance (cm/s) | 13 |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | USB, RS-232, RS-485, Keyboard wedge |
| Performance | |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP42 |
| LED indicators | Yes |
| Certification | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07IEC 62471EN 55022 (Class B); EN 55032 (Class B)EN 55024EN 61000-3-2EN 61000-3-347 CFR Part 15, Subpart B, Class BICES-003 Issue 6, Class B |
| Power | |
|---|---|
| Power source type | DC |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2400 mAh |
| Battery life | 100 h |
| AC adapter output voltage | 5 V |
| Power consumption | 250 mA |
| Weight & dimensions | |
|---|---|
| Width | 66 mm |
| Depth | 99 mm |
| Height | 165 mm |
| Weight | 161.6 g |
| Packaging data | |
|---|---|
| Cables included | Micro-USB |
| Charging base | No |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
