Zebra

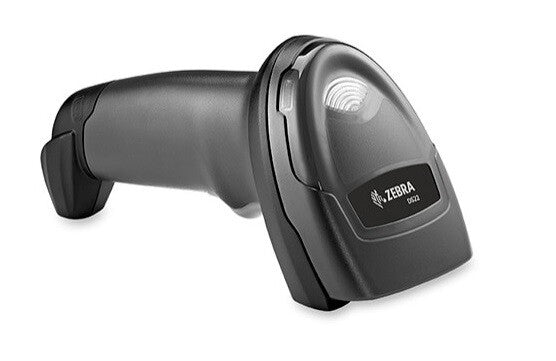

Zebra DS2208 Handheld bar code reader 1D/2D LED Black

Zebra DS2208 Handheld bar code reader 1D/2D LED Black

Regular price £98.18 GBP
Regular price Sale price £98.18 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:DS2208-SR7U2100AZW

172 in stock

  • Handheld bar code reader Black
  • Scanner type: 1D/2D Sensor type: LED
  • Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
  • 640 x 480 pixels
  • Working distance: 36.8 cm
  • Tilt reading angle: -65 - 65°
  • Wired Standard interfaces: USB, RS-232, RS-485, Keyboard wedge
  • Power source type: DC
DS2208, USB-kit, SR, 1D/2D, 645nm, Roll 0-360°, Skew ± 65°, Pitch ± 65°, IP42, 161.6g, Black, Wired, USB/RS-232/RS-485/Keyboard Wedge

AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.

Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.

But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

Scanning
Type Handheld bar code reader
Scanner type 1D/2D
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
Sensor type LED
Optical sensor resolution (W x H) 640 x 480 pixels
Working distance 36.8 cm
Wavelength 645 nm
Tilt reading angle -65 - 65°
Pitch reading angle -65 - 65°
Yaw reading angle -65 - 65°
Motion tolerance (cm/s) 13
Ports & interfaces
Connectivity technology Wired
Standard interfaces USB, RS-232, RS-485, Keyboard wedge
Performance
Product colour Black
International Protection (IP) code IP42
LED indicators Yes
Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
IEC 62471
EN 55022 (Class B); EN 55032 (Class B)
EN 55024
EN 61000-3-2
EN 61000-3-3
47 CFR Part 15, Subpart B, Class B
ICES-003 Issue 6, Class B
Power
Power source type DC
AC adapter output voltage 5 V
Power consumption 250 mA
Weight & dimensions
Width 66 mm
Depth 99 mm
Height 165 mm
Weight 161.6 g
Packaging data
Cables included Micro-USB
Charging base No
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84716070
