Zebra

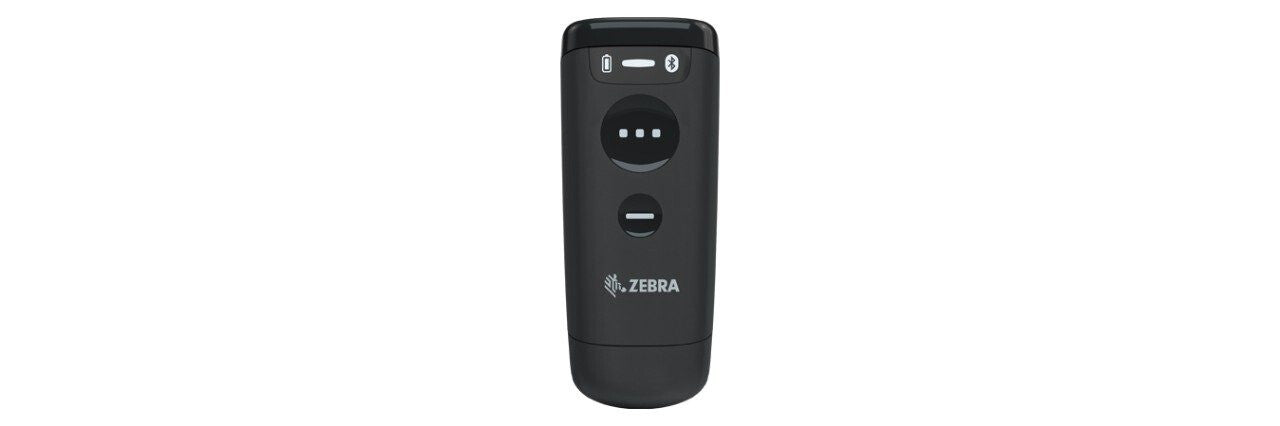

Zebra CS60 Handheld bar code reader 1D/2D LED Black

Zebra CS60 Handheld bar code reader 1D/2D LED Black

Regular price £656.16 GBP
Regular price Sale price £656.16 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:CS6080-SR400004SVW

81 in stock

  • Handheld bar code reader Black
  • Scanner type: 1D/2D Sensor type: LED
  • Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
  • 1280 x 960 pixels
  • Tilt reading angle: -60 - 60°
  • Wireless Standard interfaces: Bluetooth, USB
  • Bluetooth Low Energy (BLE)
  • Power source type: AC, Battery, DC, USB Lithium Polymer (LiPo) 735 mAh

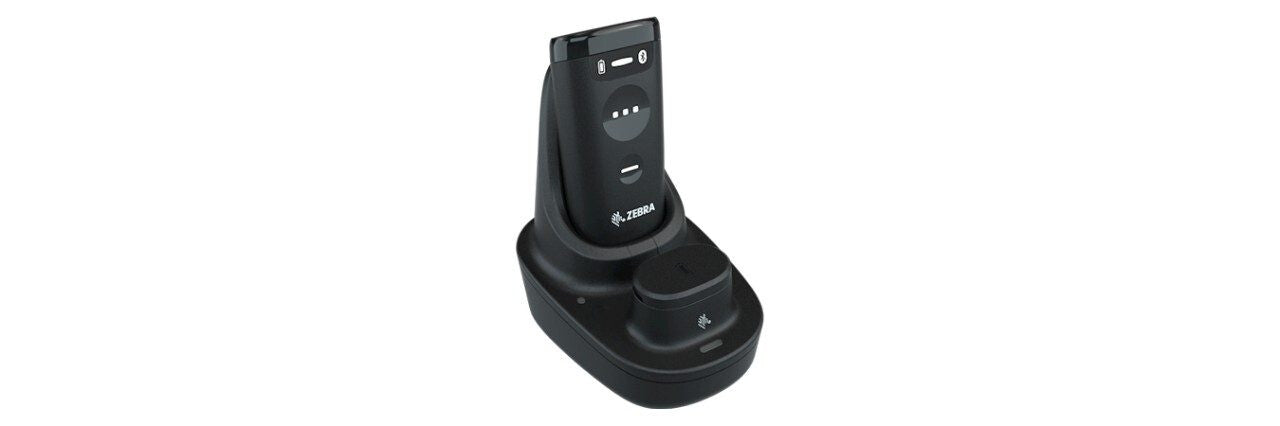

Cordless CS60 Companion Scanner, Circular 525nm true green LED, 1280 x 960 pixels, Bluetooth 5.0 BLE, cradle

ULTRA-VERSATILE WITH A FIRST-OF-ITS-KIND CONVERTIBLE DESIGN
The ultra-versatile CS60 Series Companion Scanner adapts to any workflow. Its groundbreaking design easily converts between corded and cordless operation, handheld and hands-free, as your needs change for superior investment protection.

ADAPTS TO ANY WORKFLOW
As a cordless companion scanner, the CS60 is small enough to tuck in a pocket or wear on a lanyard. And as a corded scanner, the CS60 offers compact handheld or hands-free scanning for the checkout counter, self-service kiosk and more. Whether you purchase a corded or cordless model up front, you can change modes at any time.

CUTTING-EDGE MOBILITY
With Qi inductive charging, split-second NFC tap-to-pair, Bluetooth 5.0 with Wi-Fi friendly mode, an 18-hour battery and Virtual Tether anti-loss functionality, the cordless CS60 is pocketable and wearable when mobility is essential.

EASY TO CONFIGURE AND MANAGE
DataCapture DNA is a unique collection of value-add tools that make it easier to deploy, update, troubleshoot, manage and develop applications for your business.

Scanning
Type Handheld bar code reader
Scanner type 1D/2D
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Sensor type LED
Optical sensor resolution (W x H) 1280 x 960 pixels
Light levels (direct sunlight) 0 - 108000 lx
Wavelength 525 nm
Tilt reading angle -60 - 60°
Pitch reading angle -60 - 60°
Yaw reading angle 0 - 360°
Ports & interfaces
Connectivity technology Wireless
Standard interfaces Bluetooth, USB
Wireless range 100 m
Bluetooth Low Energy (BLE) Yes
Bluetooth version 5.0
Performance
Product colour Black
International Protection (IP) code IP65
LED indicators Yes
Power
Power source type AC, Battery, DC, USB
Battery technology Lithium Polymer (LiPo)
Battery type Built-in battery
Battery capacity 735 mAh
Number of reads per charge 13000
Battery life 18 h
Charging time 6 h
Power consumption 400 mA
Weight & dimensions
Width 46 mm
Depth 109 mm
Height 23 mm
Base dimensions 113 x 78 x 107 mm
Base weight 138 g
Weight 83 g
Packaging data
Charging base Yes
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84716070
