Yealink
Yealink Windows OPS for MeetingBoard Series - Mcore-OPS
Yealink Windows OPS for MeetingBoard Series - Mcore-OPS
Regular price
£1,286.70 GBP
Regular price
Sale price
£1,286.70 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:1303085
Low stock: 2 left
- Support TPM2.0
- Support CEC
Modular Compute Solution for MeetingBoard

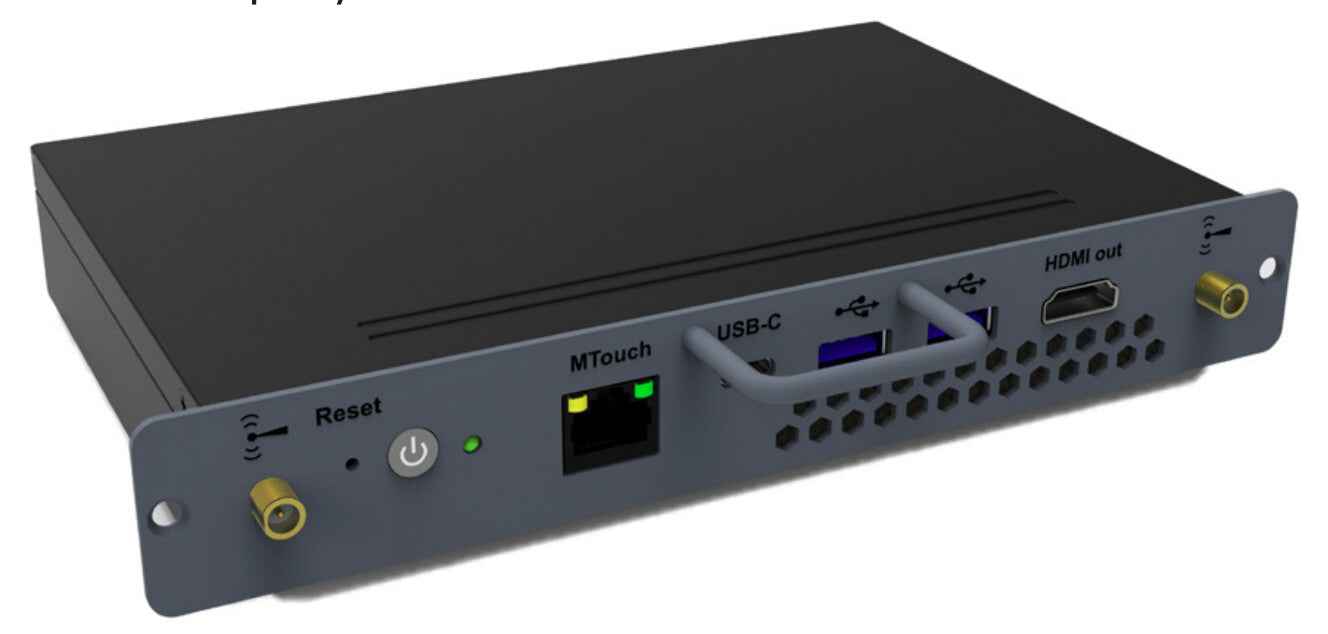

Yealink MCore-OPS is a modular computing solution specially designed for interactive whiteboards. Pluggable computing module (Windows) with a built-in customized Teams Rooms image, can be connected to the OPS interface of MB65/86 as a secondary system for MB65/86.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor model | i5-1135G7 |
| Processor cores | 4 |
| Processor boost frequency | 4.2 GHz |
| Processor socket | BGA 1449 |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| System bus rate | 4 GT/s |
| Processor lithography | 10 nm |
| Processor operating modes | 64-bit |
| Configurable TDP-up frequency | 2.4 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down frequency | 0.9 GHz |
| Configurable TDP-down | 12 W |
| Tjunction | 100 °C |
| Memory | |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 4 GB |
| Storage | |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card dynamic frequency (max) | 1300 MHz |
| Discrete graphics card | No |
| Network | |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Software | |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
| Operating system architecture | 64-bit |
| Compatible operating systems | • Windows 11 loT Enterprise x64 operating system• Windows 11 loT Enterprise Lisence• Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings• Yealink RoomConnect |
| Power | |
|---|---|
| DC input voltage | 12 - 19 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 180 mm |
| Depth | 119 mm |
| Height | 30 mm |
| Weight | 700 g |
| Package width | 267 mm |
| Package depth | 215 mm |
| Package height | 65 mm |
| Package weight | 890 g |
