Applicable to most popular video conferencing Platforms
8 MP, 1/2.8" CMOS, e-PTZ, 100-20kHz, USB 2.0, RJ-45, Wi-Fi, Bluetooth, 380x55x55 mm
Impress Everyone in Every Meeting Yealink UVC34 enables you to impress everyone in video meetings no matter where work happens. UVC34 integrates with a 4K AI-driven camera, microphone arrays, and speaker into a single device, bringing stunning video and audio experiences for small and huddle rooms. Moreover, the all-in-one and plug-and-play design make it portable and simple to set up, no matter where you're working.
Immersive Video Experience By automatically framing participants, the 4K ultra-HD camera delivers a crystal-clear and engaging video experience to remote participants. Featuring a 120° super-wide-angle len with 5x digital zoom, UVC34 captures tiny details in the room.
Superior Audio Performance With Yealink Noise Proof Technology, dereverberation and full-duplex features, the built-in 8 microphone array, and 5W high fidelity speaker allow users to hear and to be heard clearly without distraction.
All-in-one Design, Plug and Play Easy And Effective UVC34 integrates with a 4K AI-driven camera, microphone arrays, and speaker into a single device. Thanks to the compact design, admins save a lot of effort in deploying and maintaining devices. With the plug-and-play feature, you can simply walk into your next meeting with everything you need at your fingertips. No extra drivers and software are needed. Just an easy and effective solution for you to start a meeting no matter where you want.
Performance
Product type
Personal video conferencing system
Number of cameras
1
Bluetooth
Yes
Bluetooth version
4.2
Product colour
Black
Auto framing
Yes
Video
HD type
4K Ultra HD
Supported video modes
2160p
Supported graphics resolutions
3840 x 2160
Maximum frame rate
30 fps
Aspect ratio
16:9
Resolution at capture speed
3840x2160@30fps
Audio
Built-in speaker(s)
Yes
Frequency range
100 - 20000 Hz
Microphone pick-up range
4.5 m
Echo cancellation
Yes
Noise reduction
Yes
Speaker power
5 W

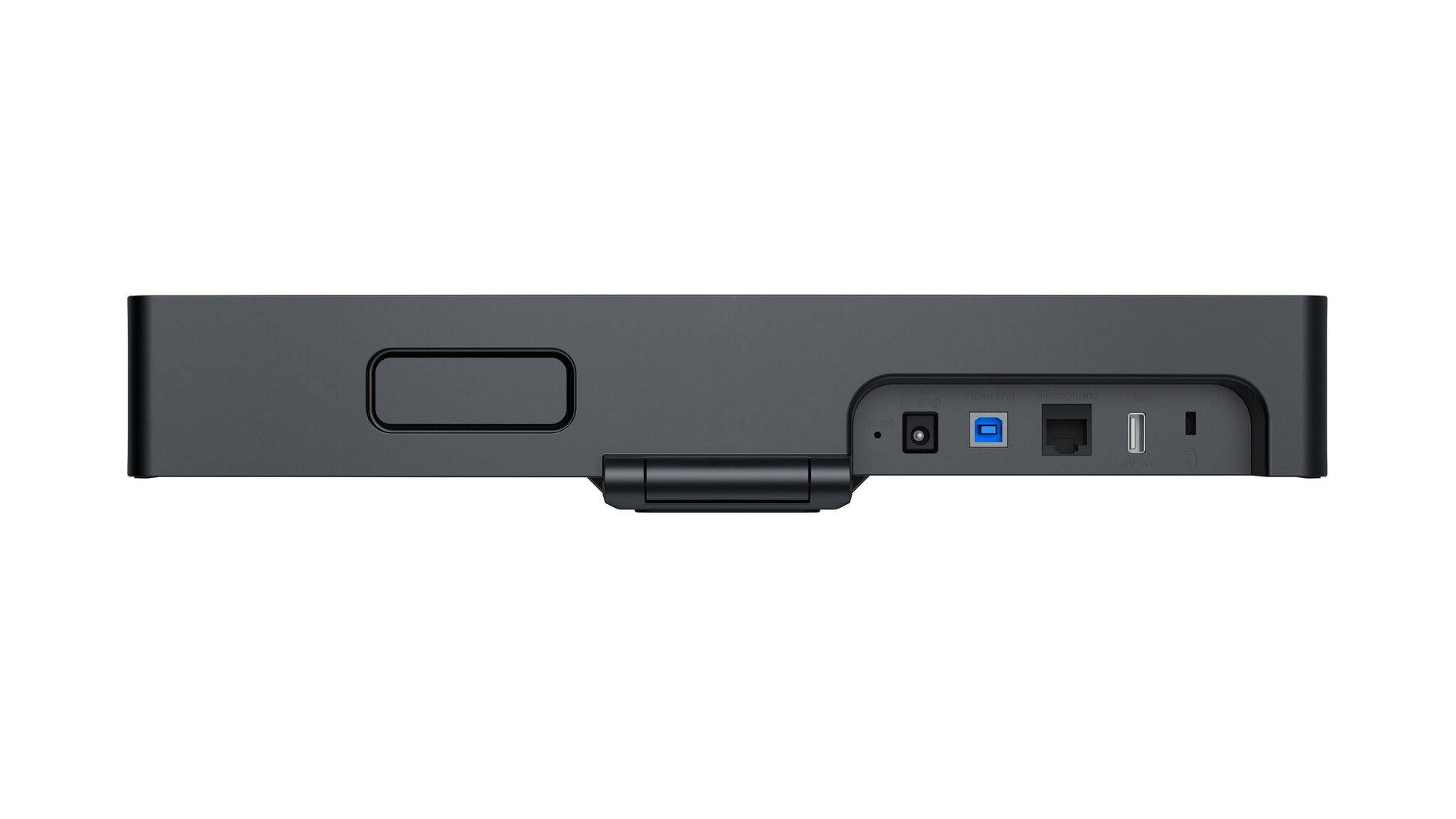

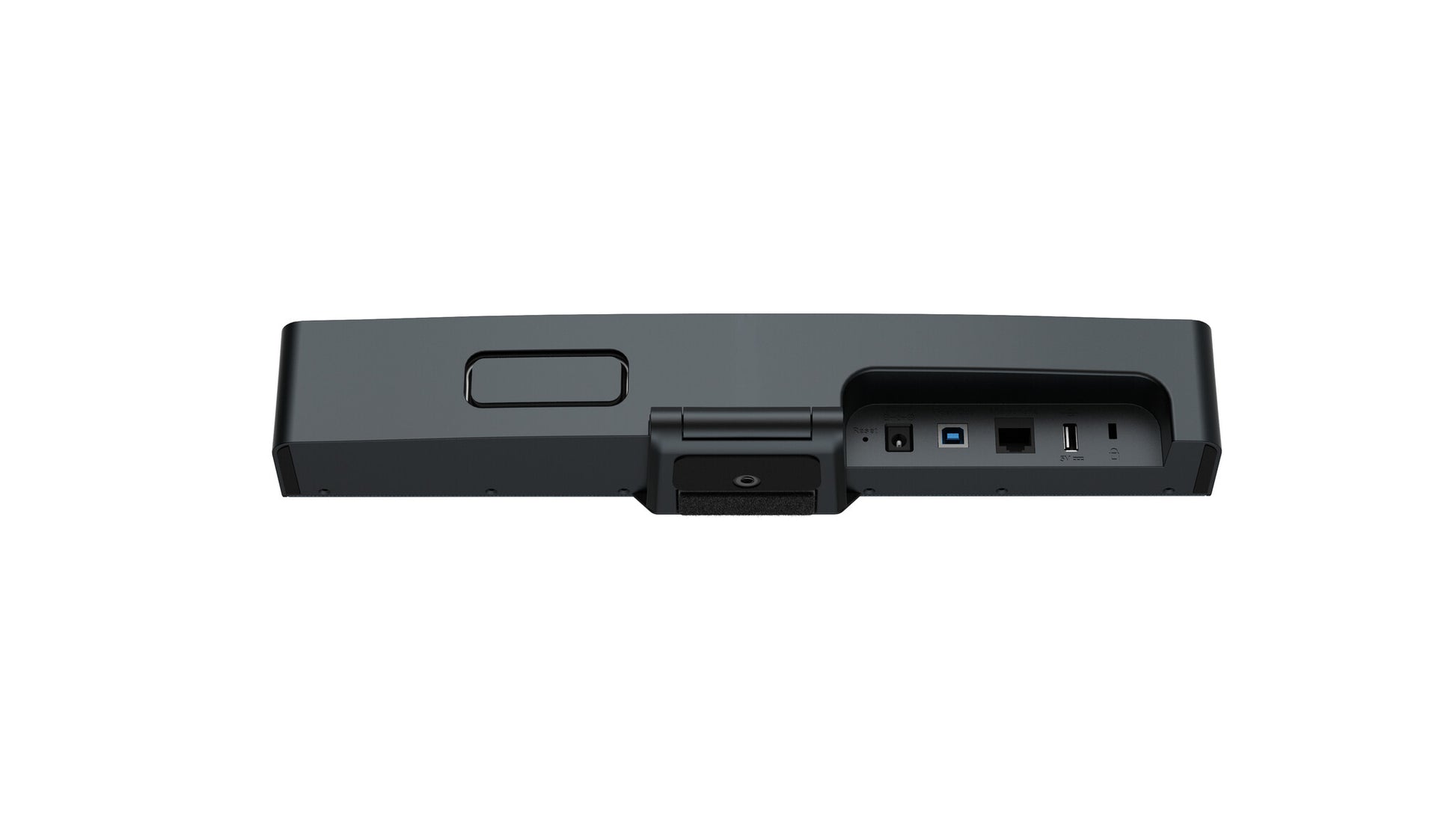

Ports & interfaces
USB 2.0 ports quantity
2
DC-in jack
Yes
Microphone in
Yes
Reset slot
Yes
Network
Wi-Fi
Yes
Camera
Megapixel (approx.)
8 MP
Camera type
Single camera
Sensor type
CMOS
Field of view (FOV) angle
120°
Number of camera presets
9
Microphone
Number of microphones
8
Number of microphone arrays
1
Computer system
Windows operating systems supported
Windows 10, Windows 7, Windows 8.1
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur
Logistics data
Country of origin
China
Harmonized System (HS) code
85176990
Features
Cable lock slot
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
0 - 40 °C
Power
Power source type
AC
AC input voltage
100 - 240 V
DC output voltage
48 V
DC output current
0.7 A
Weight & dimensions
Width
380 mm
Depth
55 mm
Height
55 mm
Weight
1.28 kg
Package width
447 mm
Package depth
165 mm
Package height
150 mm
Package weight
1.85 kg
Packaging content
AC adapter included
Yes
Mounting kit
Yes
Quick start guide
Yes
Packaging content
UVC34 all-in-one USB video bar VCR20 Remote Control, 2 x AAA battery Power adapter Wall bracket and accessories 7m USB-B to USB-A cable
