Yealink - MVC S40-C5U-000
Yealink - MVC S40-C5U-000
SKU:1106893
Low stock: 3 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Dual 48 MP lens
- AI features (eg. IntelliFocus, Multi-Stream IntelliFrame)
- 6m duplex voice pick-up with Al-Enhanced Noise Cancellation

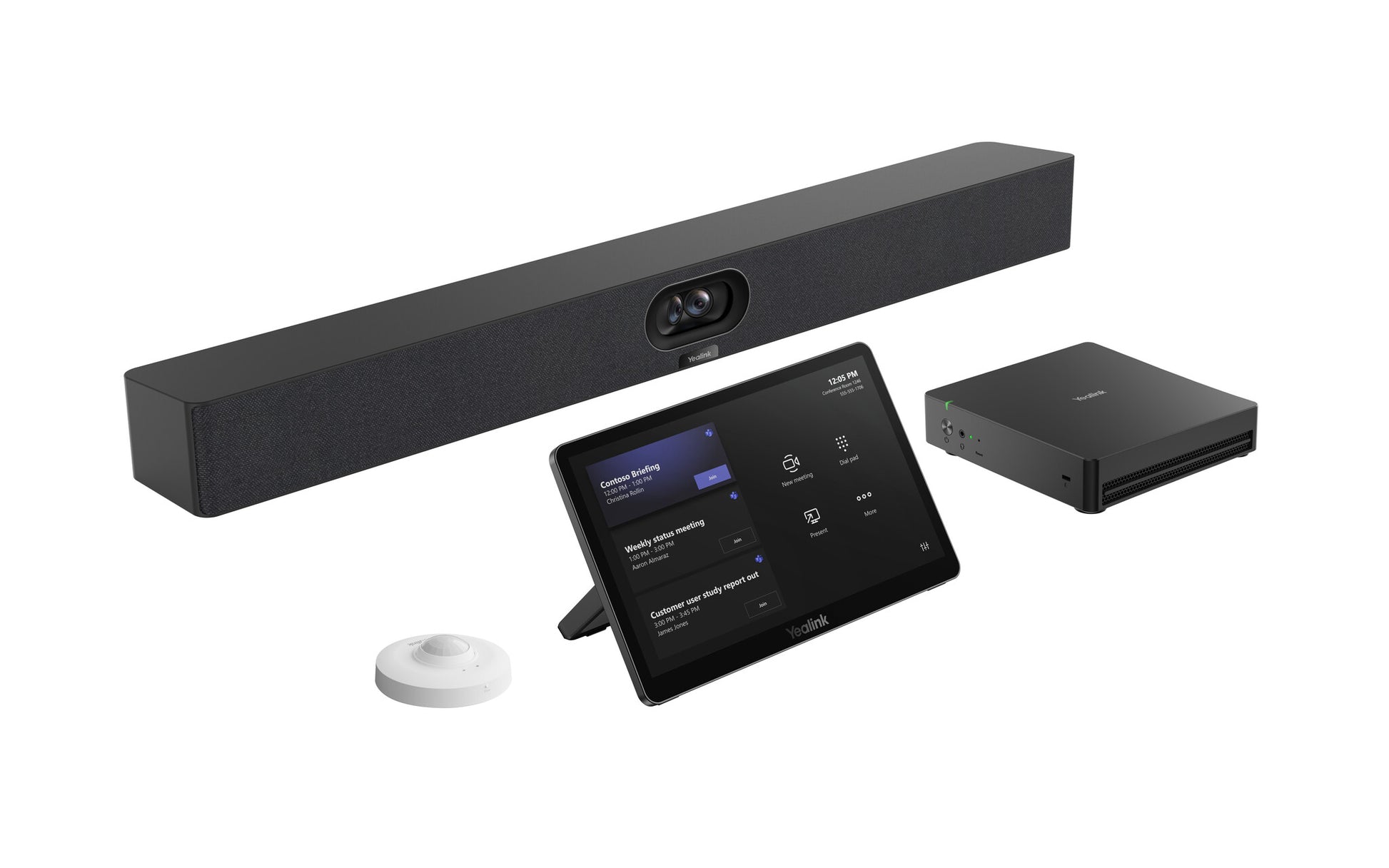

Designed for medium to large meeting rooms, MVC S40 is a bundle solution with all-in-one video bar SmartVision 40, mini-PC MCore 4 and touch panel MTouch Plus. It features advanced AI features powered by unrivalled dual 48MP lens system and future-proof computing power, supporting easy deployment & flexible design.
| Performance | |
|---|---|
| Product type | Group video conferencing system |
| Number of cameras | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Product colour | Black, Grey |
| Meeting features | Content sharing |
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Total megapixels | 45 MP |
| Supported video modes | 1080p, 2160p |
| Maximum frame rate | 30 fps |
| Streaming capability | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Noise reduction | Yes |
| Memory | |
|---|---|
| Internal memory type | DDR5 |
| Internal memory | 16000 MB |
| Storage media type | SSD |
| Total storage capacity | 256 GB |
| Ports & interfaces | |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Reset slot | Yes |
| Interface module | |
|---|---|
| Interface module HDMI input ports quantity | 1 |
| Interface module HDMI output ports quantity | 3 |
| Interface module RJ-45 ports quantity | 2 |
| Interface module DC input port | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| Camera | |
|---|---|
| Megapixel (approx.) | 48 MP |
| Camera type | Dual camera |
| Second camera resolution | 48 MP |
| Digital zoom | 6x |
| Field of view (FOV) angle | 120° |
| Horizontal field of view | 111° |
| Display | |
|---|---|
| Built-in display | Yes |
| Display | IPS |
| Display diagonal | 29.5 cm (11.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Microphone | |
|---|---|
| Number of microphone arrays | 8 |
| Computer system | |
|---|---|
| Computer system type | Mini PC |
| Processor family | Intel Core Ultra 5 |
| Applications supported | Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings, Yeallink RoomConnect |
| Logistics data | |
|---|---|
| Country of origin | China |
| Features | |
|---|---|
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Interface module dimensions (W x D x H) | 188 x 188 x 47.5 mm |
| Weight | 9.27 kg |
| Package width | 743 mm |
| Package depth | 304 mm |
| Package height | 280 mm |
| Package weight | 10.2 kg |
| Packaging content | |
|---|---|
| External interface module included | Yes |
| Camera included | Yes |
