Vivolink VLVWIP2000-ENC not categorized

• Supports HDMI 2.0b, 4K@60Hz 4:4:4, HDCP 2.2 compliant.
• HDCP 2.2 compliant, 18Gbps video bandwidth
• Standard PoE supported (802.3at PD device)
• Built-in Web GUI browser interface supporting drag & drop operations and image preview
• Video Wall up to 9x9 and Muiltiview up to 25 windows

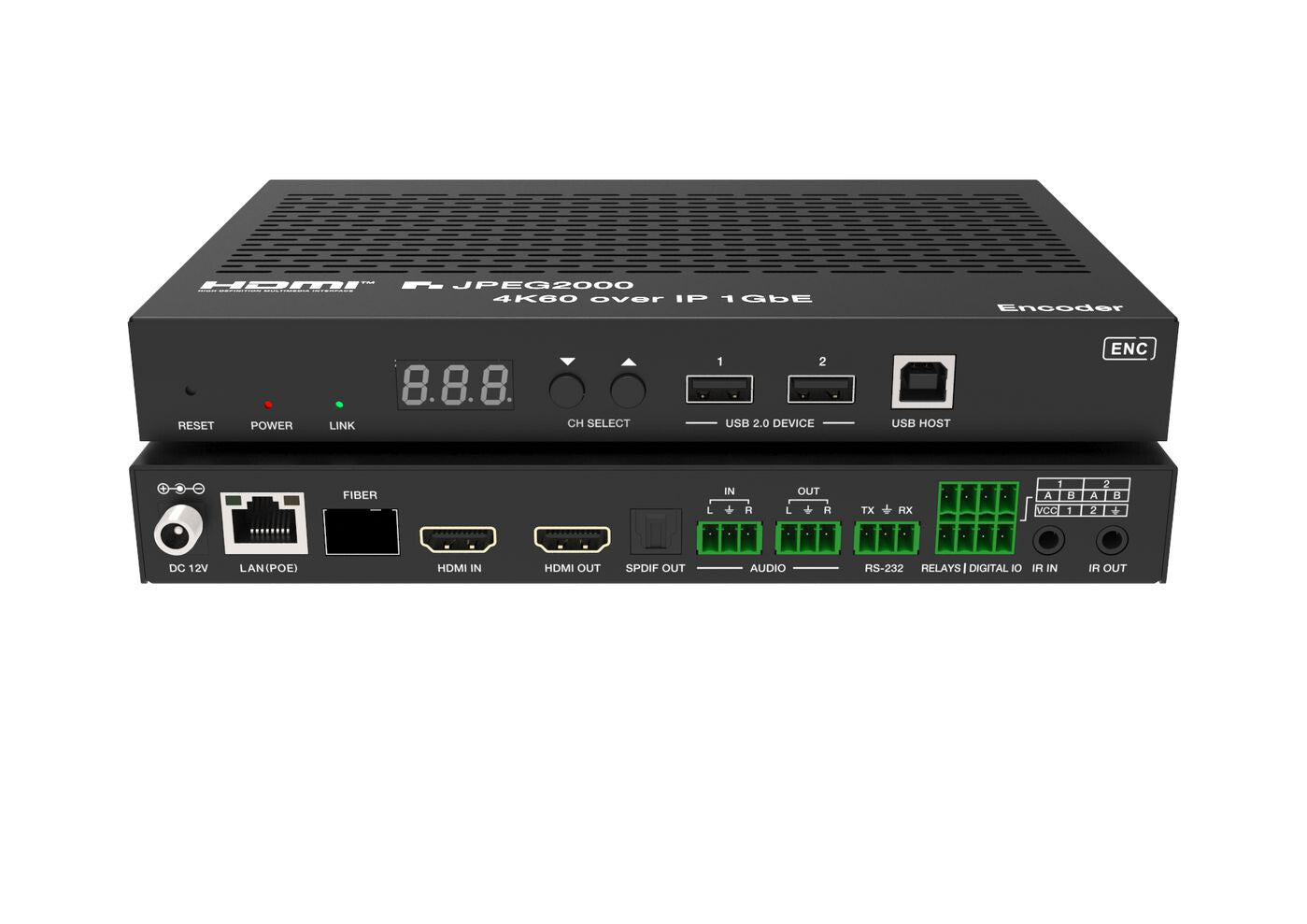

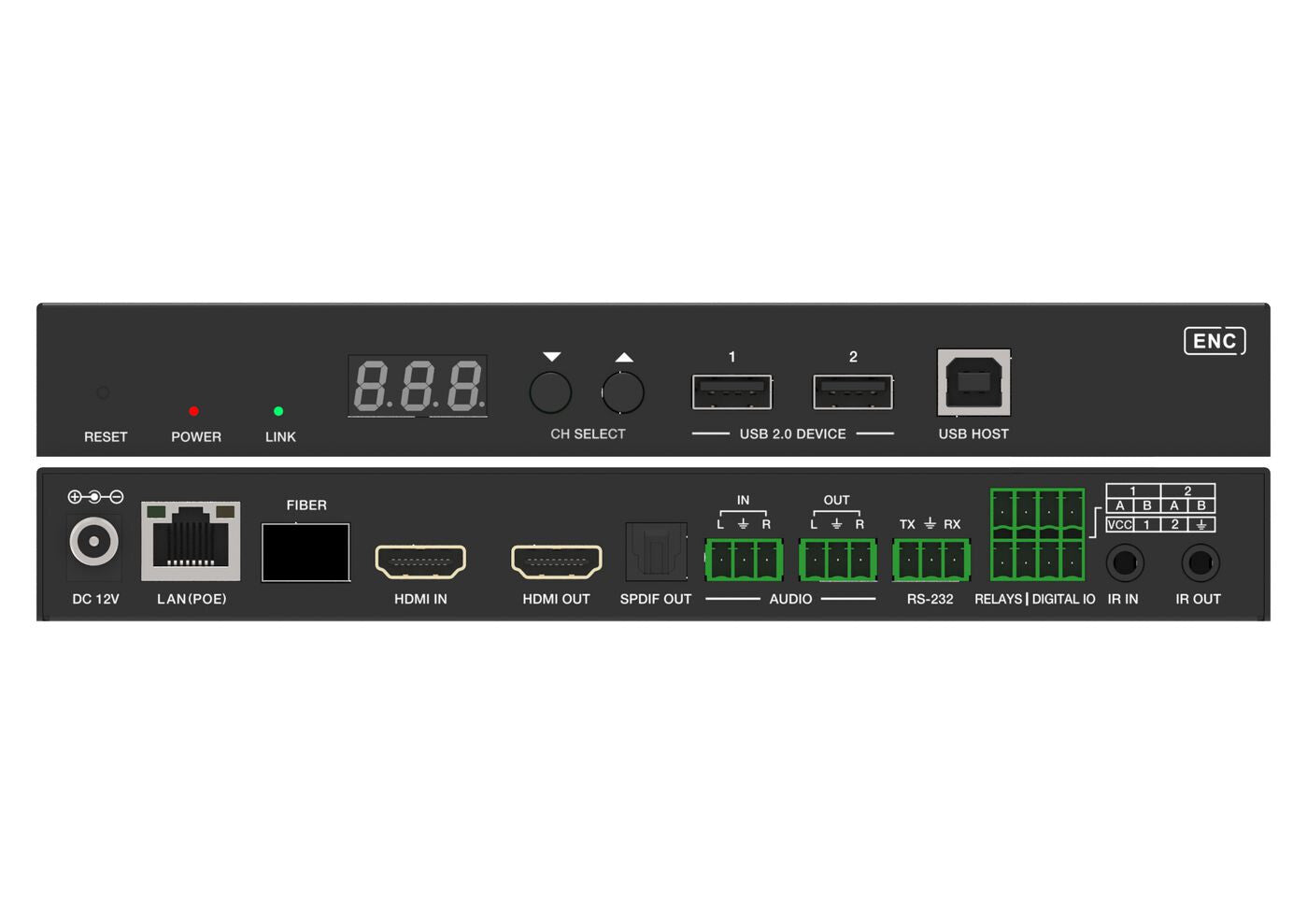

VLVWIP2000-ENC and VLVWIP2000-DEC is based on JPEG2000 technology. It integrates Copper port and Fiber port within a single box.
Encoder input supports up to 4K60 4:4:4, audio embedding or extracting.
Decoder output supports up to 4K60 4:4:4, audio extracting.
The product supports ARC/eARC/S/PDIF/Analog audio return function, also supports USB2.0/KVM/Camera, 1G Ethernet, bidirectional RS- 232, two-way IR and POE function.
Guest mode controls of RS-232, IR, CEC are supported. Built-in two channel RELAY ports and two channel I/O ports for contact control. Dante AV-A mode is supported if the product is license activated.
Built-in MJPEG Substream which supports plenty API commands to achieve flexible configurations is useful for 3rd party control Apps to preview video content.
The system is based on Linux for software development, provides flexible control methods, that are based on the intelligent networking of 1G Ethernet Switch.
The system requires a layer3 1G managed network switch supporting IGMP snooping and 8K Jumbo frame. With the PoE function it is also possible to power the unit without a PSU.

• manual pdf
