Vivolink VLVW1X4 video wall processor Black 11 W

• HDMI input up to 4Kx2K@60Hz 4:4:4
• Nine video wall modes (1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2, 2x2 Rotation)
• Built in automatic up & down-scaling to 1080p output
• Cascade function for 16 screen set-up

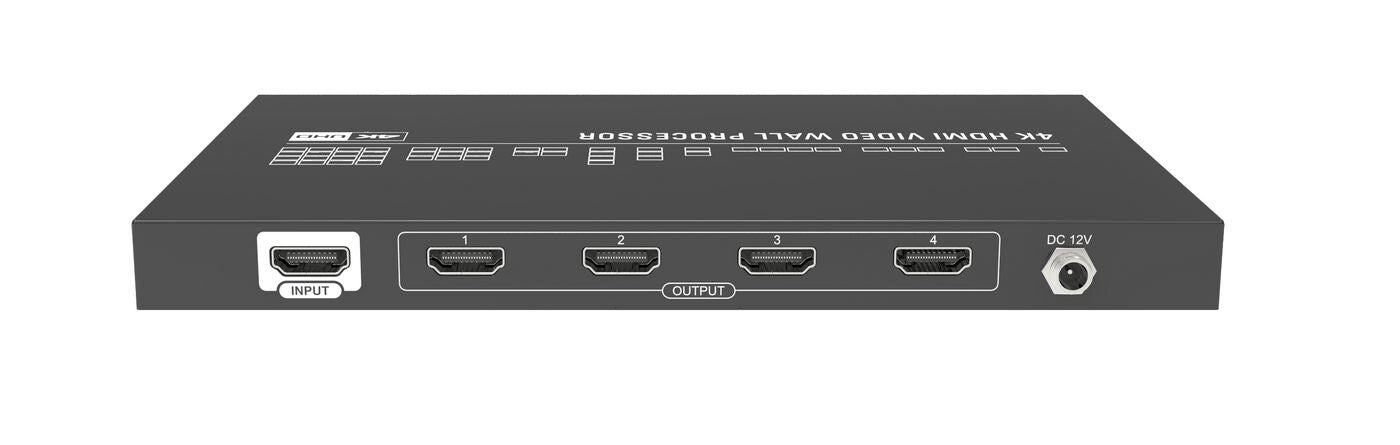

This Vivolink VideoWall processor have 1 HDMI input and 4 HDMI outputs.
HDMI input supports resolutions up to 4Kx2K@60Hz 4:4:4 and output resolution is fixed to be 1920x1080p@60Hz.

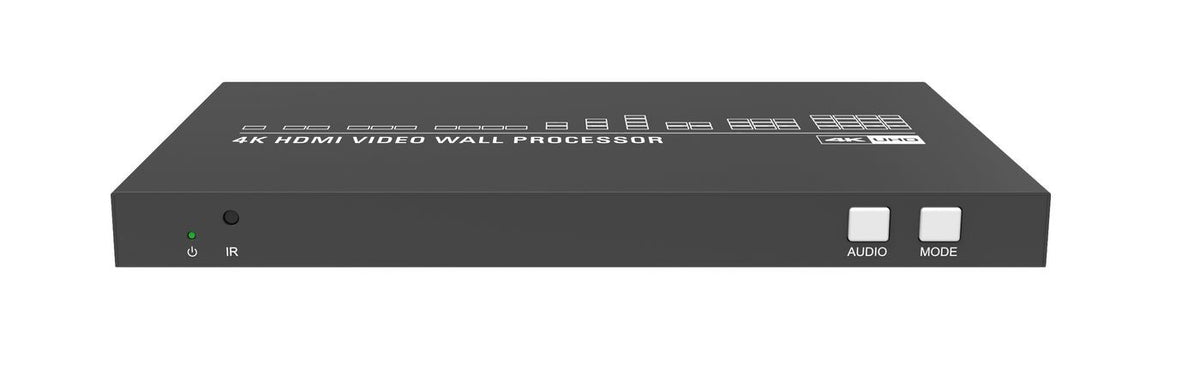

9 diffrent video wall modes, can be selected via front panel button and IR remote.
Excample:

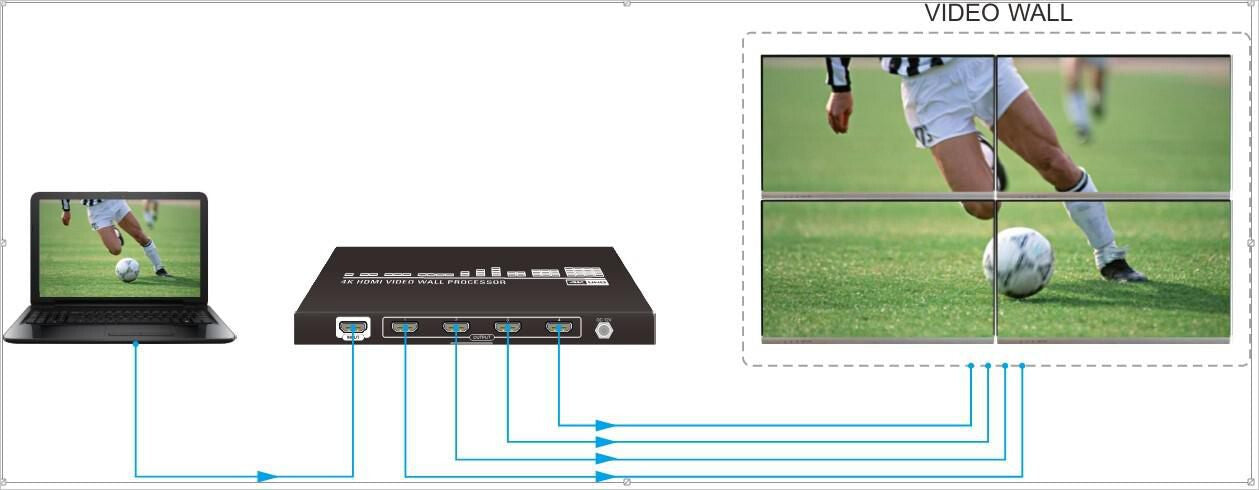

2x2 will devide picture into 4 pictures for four screens
1x2 will strech the picture horisontal out on two screens

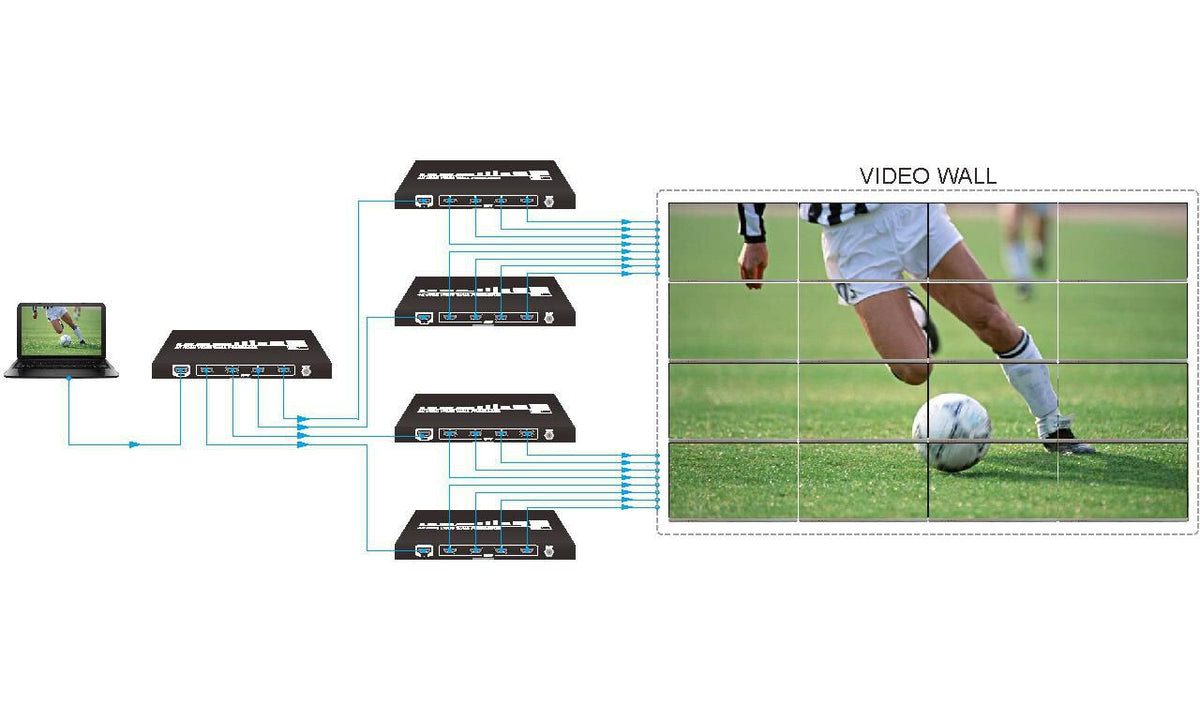

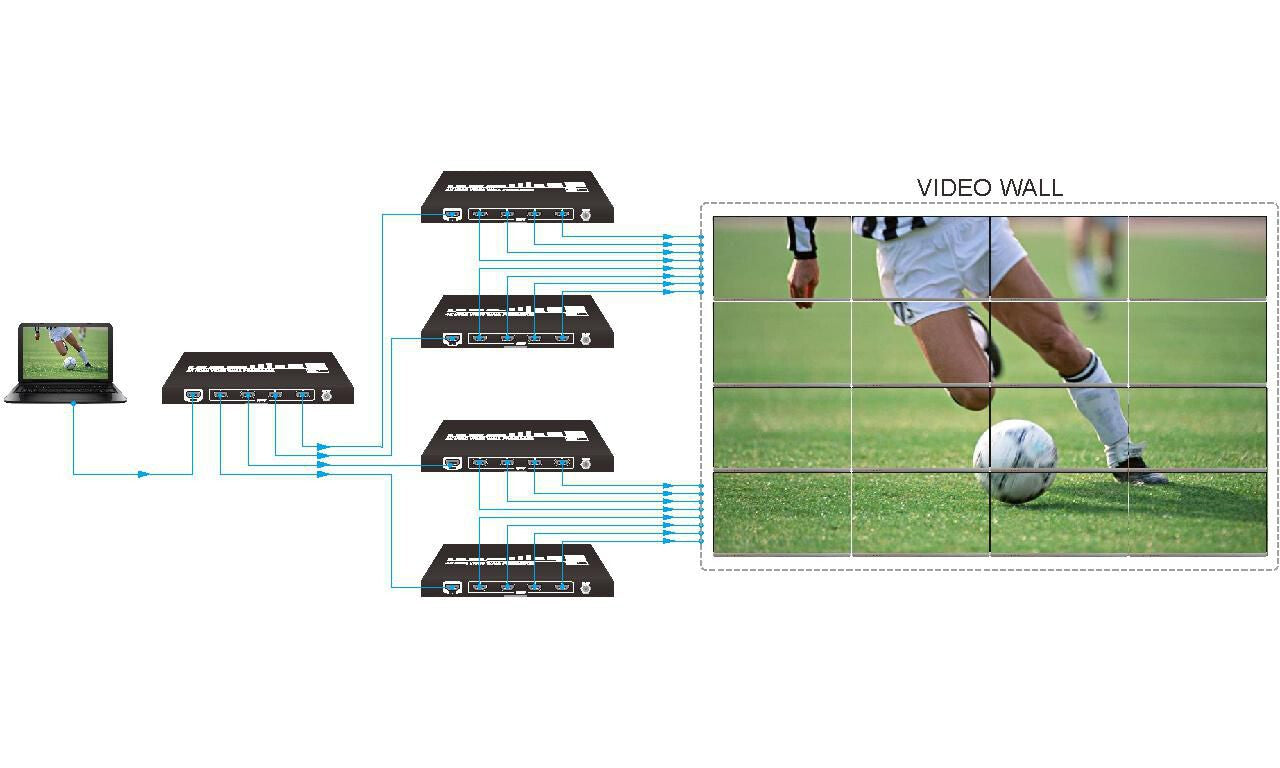

Video wall processor can be cascade coupled to support 16 screens
