3 x USB + 1 x USB-C supporting USB 2.0 transfer speed up to 300Mbps
Supports bi-direction 24V PoC power supply
HDCP 2.3 compatible
Support Dolby Vison and HDR10+

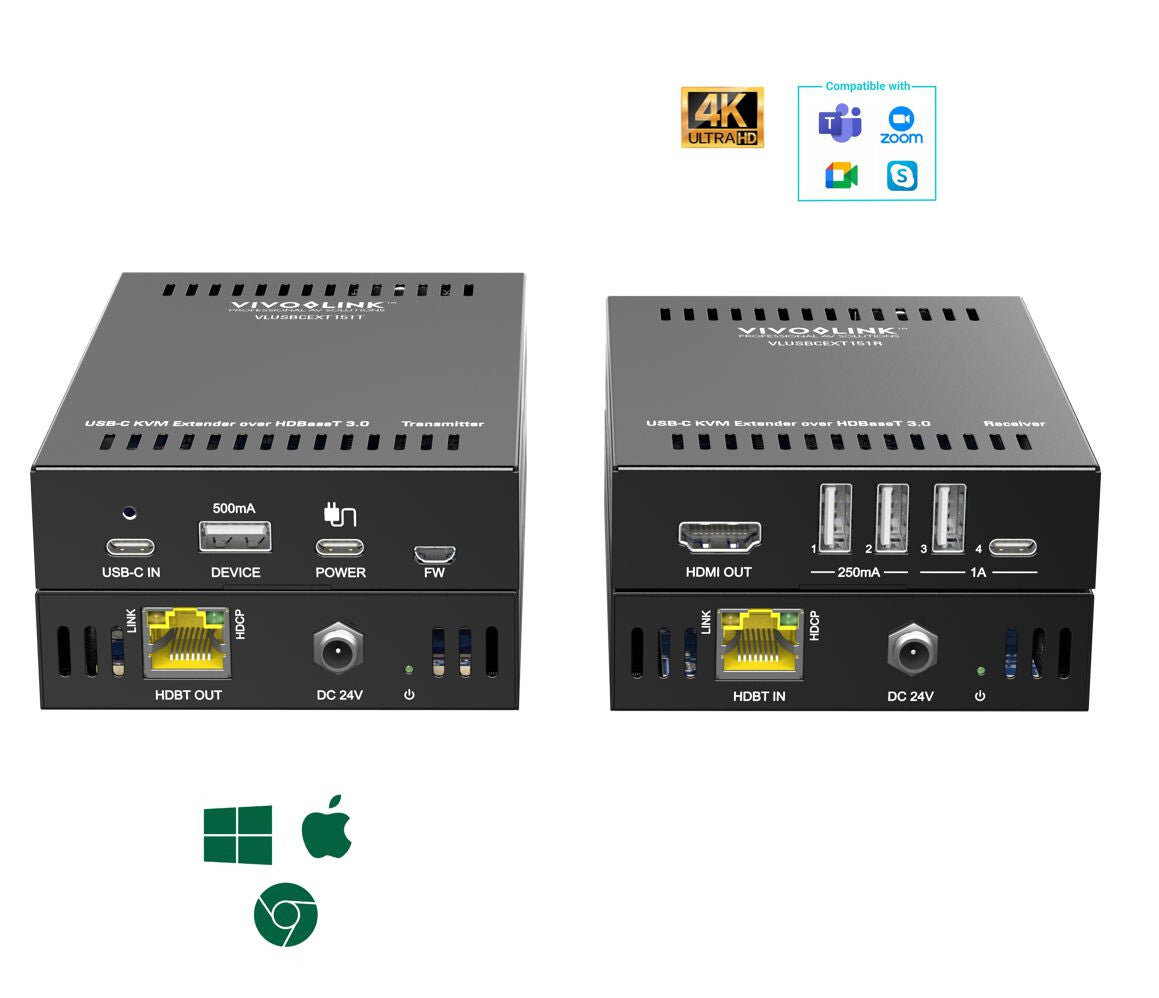

USB-C 4K KVM Extender over HDBT3.0

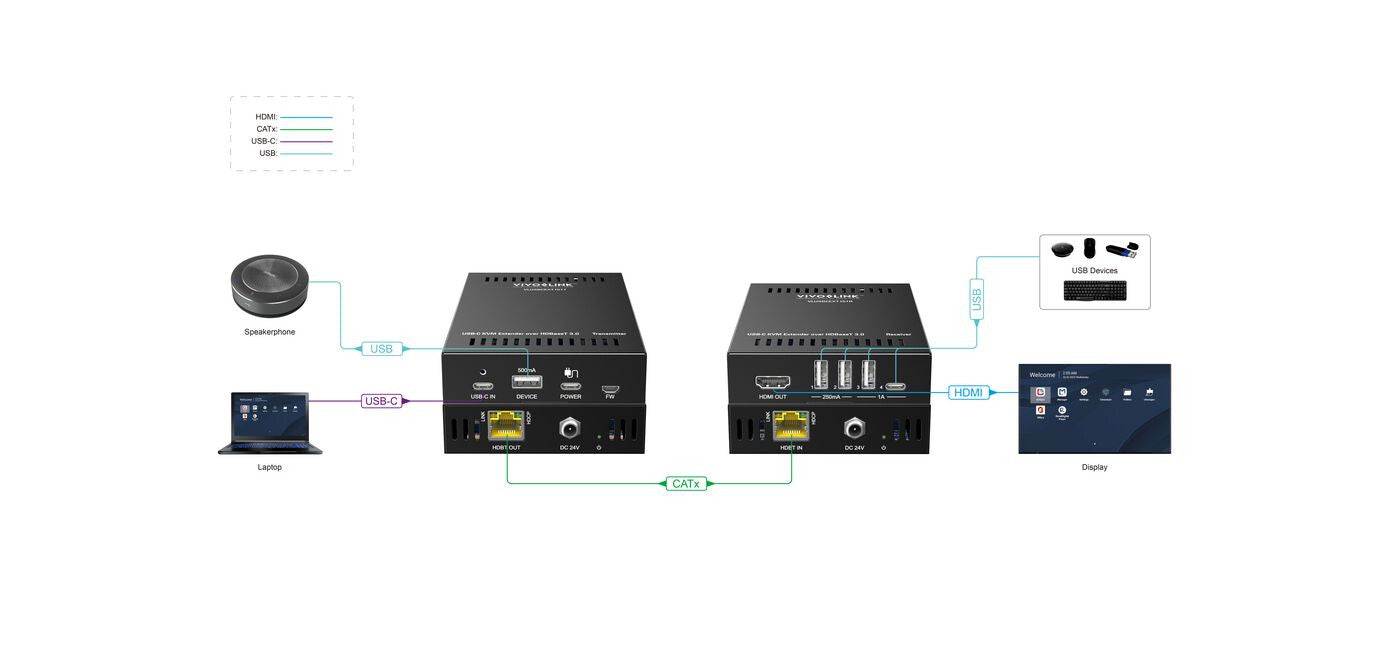

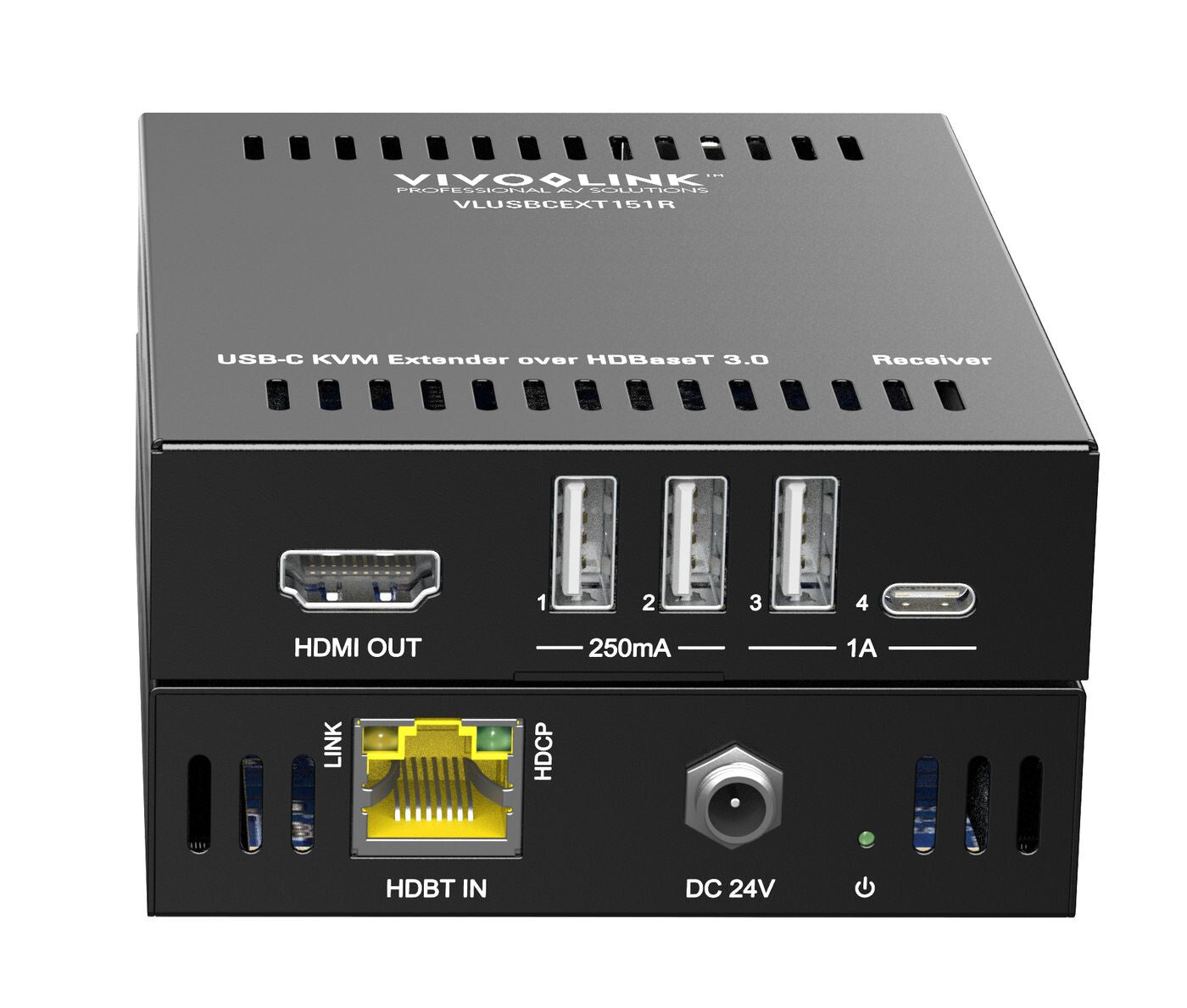

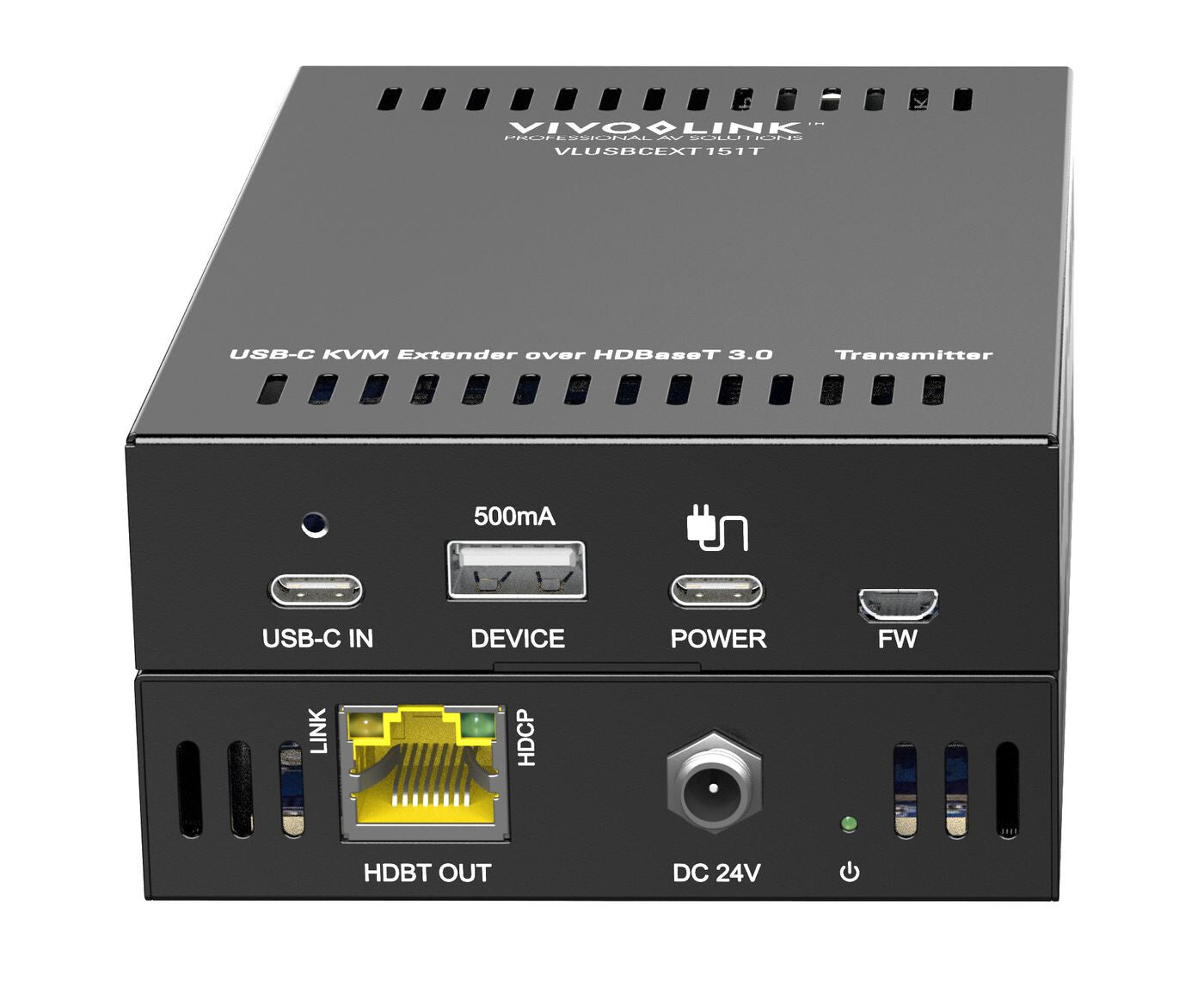

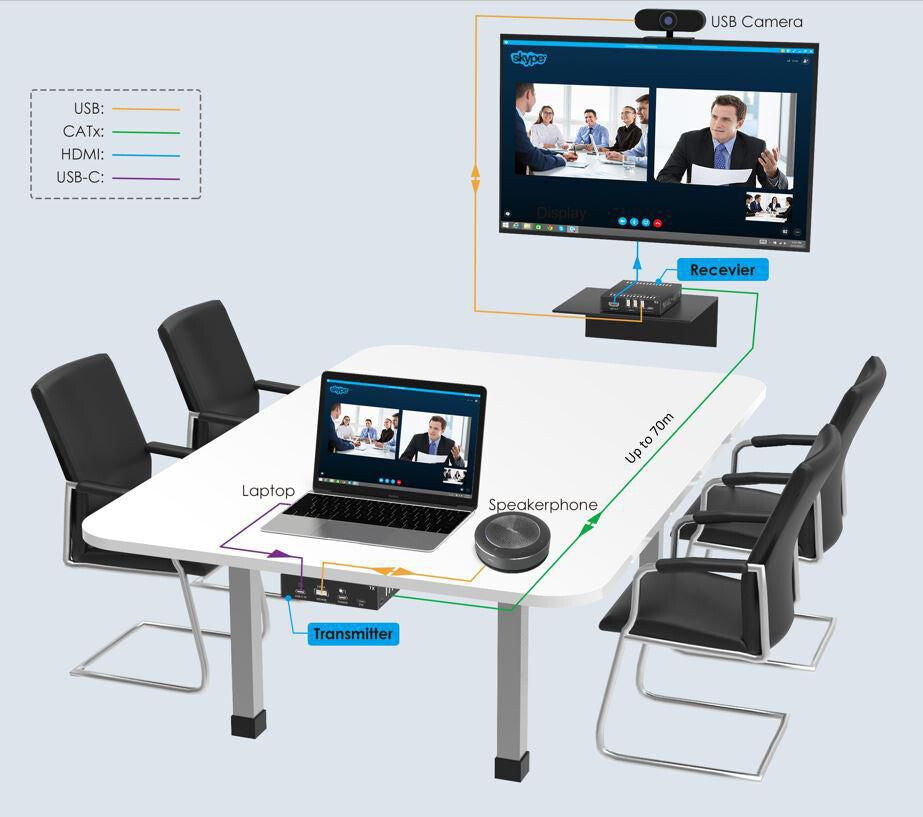

The VLUSBCEXT151 is an USB-C extender kit that can be used for meeting rooms with both screen and USB devices like cameras. HDBaseT 3.0 support the the highest performing long distance video distribution solution in the AV market. It allows one USB-C channel to be transmitted over distances of up to 70m at 4K@30Hz (40m 4K@60Hz) 4:4:4 via CAT6a cable using the latest HDBaseT VS3000 chipset Transmitter unit has USB-C input for Laptop and 100W charge port (charger is not included in the package but you can connect any USB-C charger for laptop here) + USB-A connection for example desk speaker microphone. HDBaseT output to receiver unit and support 100m lenght of CAT6A cable Receiver unit have HDMI 4K output for screen and 4 USB 2.0 inputs for devices at the screen side, like PTZ camera, soundbar and USB touch plate from screen. Support following formats: DisplayLink, DP Alt mode, DisplayPort The USB-C extender Kit includes one transmitter with USB-C input for Laptop and a receiver for the screen. There is one power supply that can be mounted at the transmitter or receiver.
