Vivolink VLUSBCEXT151 KVM extender
Vivolink VLUSBCEXT151 KVM extender
SKU:VLUSBCEXT151
100 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Supports HDMI 2.0b, 4K@60Hz 4:4:4, HDCP 2.2 compliant.
- USB-C input supports 4K@60Hz 4:4:4 HDR10+
- USB-C 100W charge port
- 4K@30Hz 70m transmission 18Gbit uncompressed
- 3 x USB + 1 x USB-C supporting USB 2.0 transfer speed up to 300Mbps
- Supports bi-direction 24V PoC power supply
- HDCP 2.3 compatible
- Support Dolby Vison and HDR10+

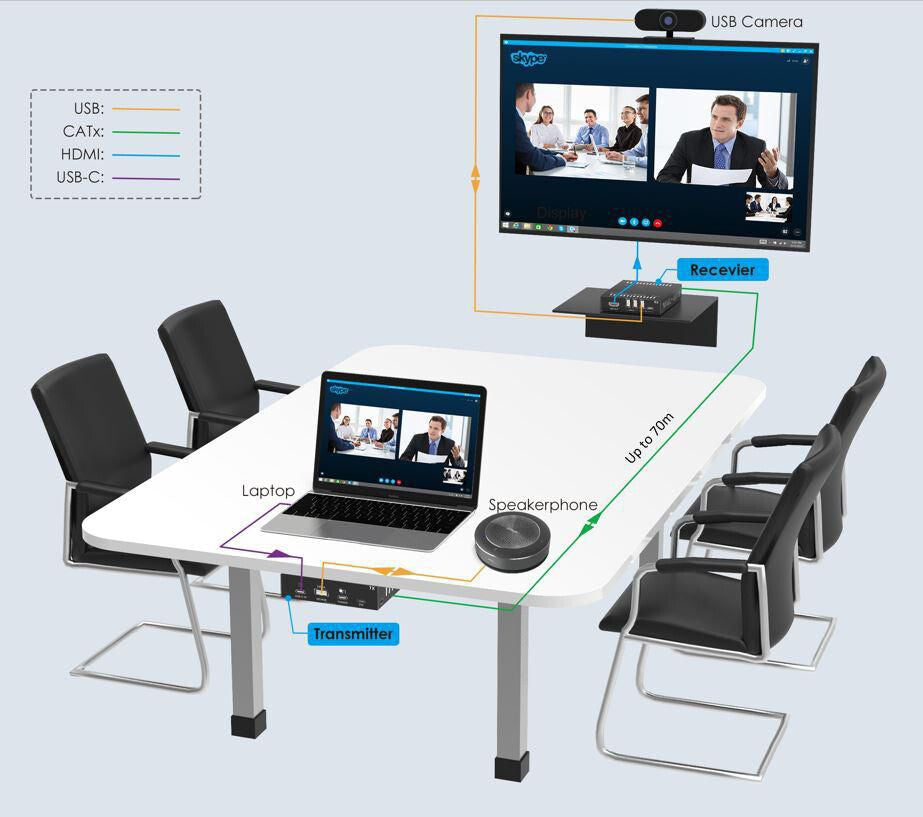

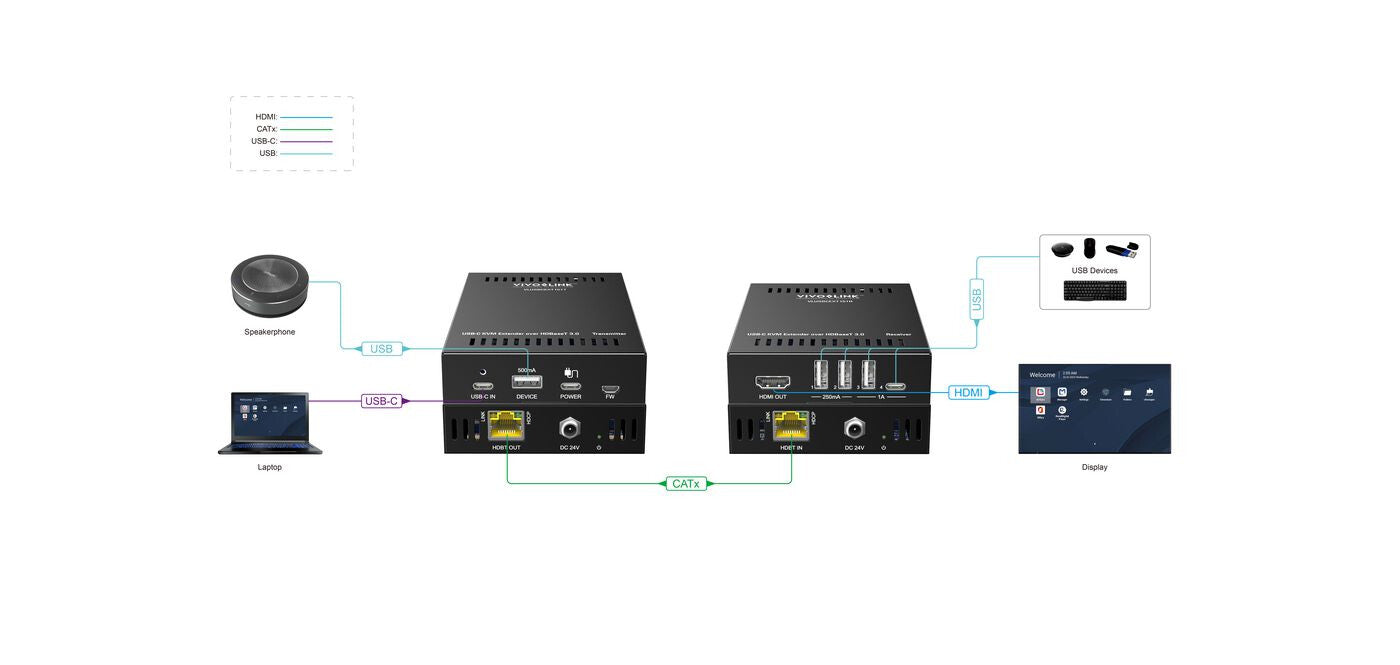

The VLUSBCEXT151 is an USB-C extender kit that can be used for meeting rooms with both screen and USB devices like cameras. HDBaseT 3.0 support the the highest performing long distance video distribution solution in the AV market. It allows one USB-C channel to be transmitted over distances of up to 70m at 4K@30Hz (40m 4K@60Hz) 4:4:4 via CAT6a cable using the latest HDBaseT VS3000 chipset

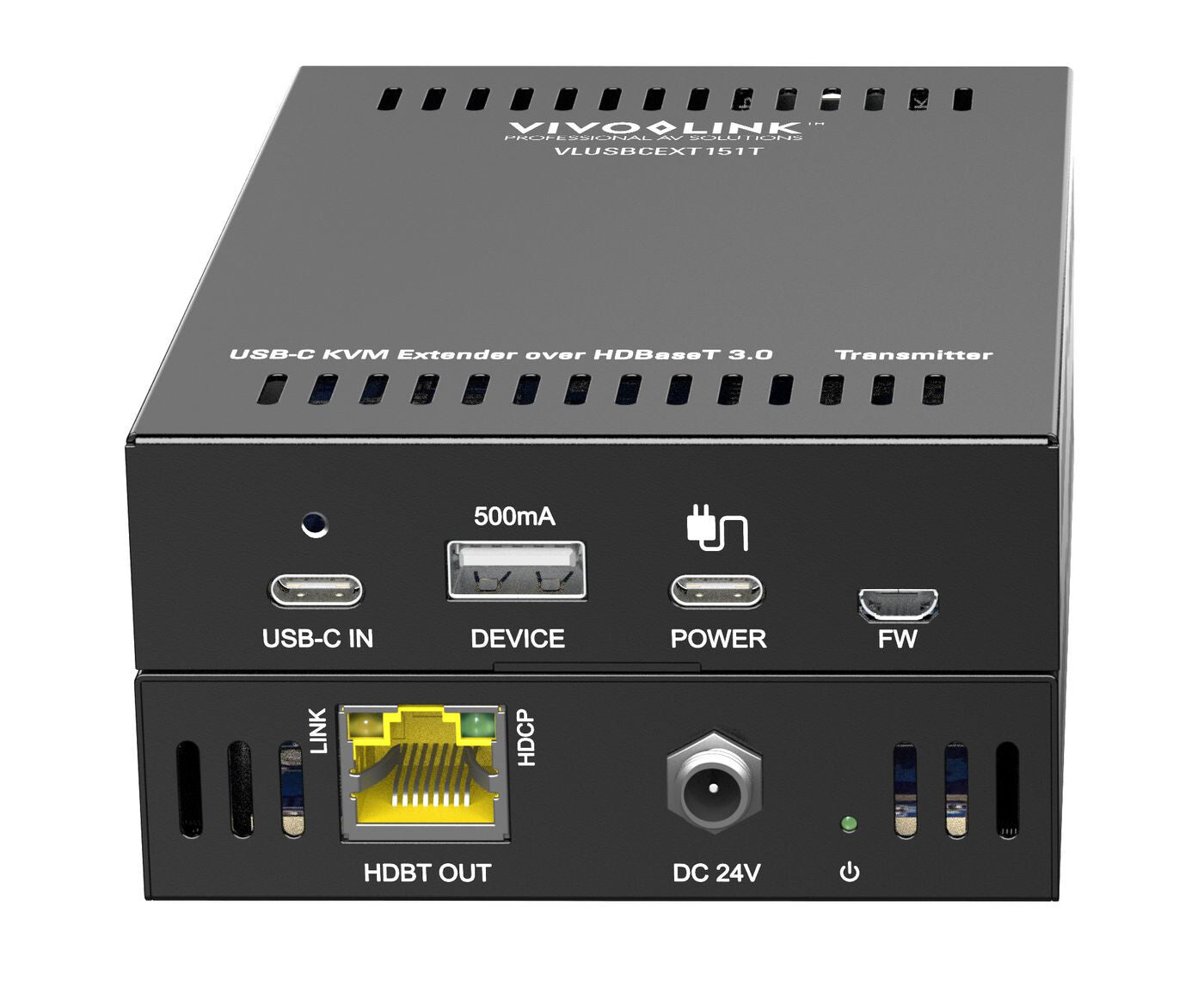

Transmitter unit has USB-C input for Laptop and 100W charge port (charger is not included in the package but you can connect any USB-C charger for laptop here) + USB-A connection for example desk speaker microphone. HDBaseT output to receiver unit and support 100m lenght of CAT6A cable

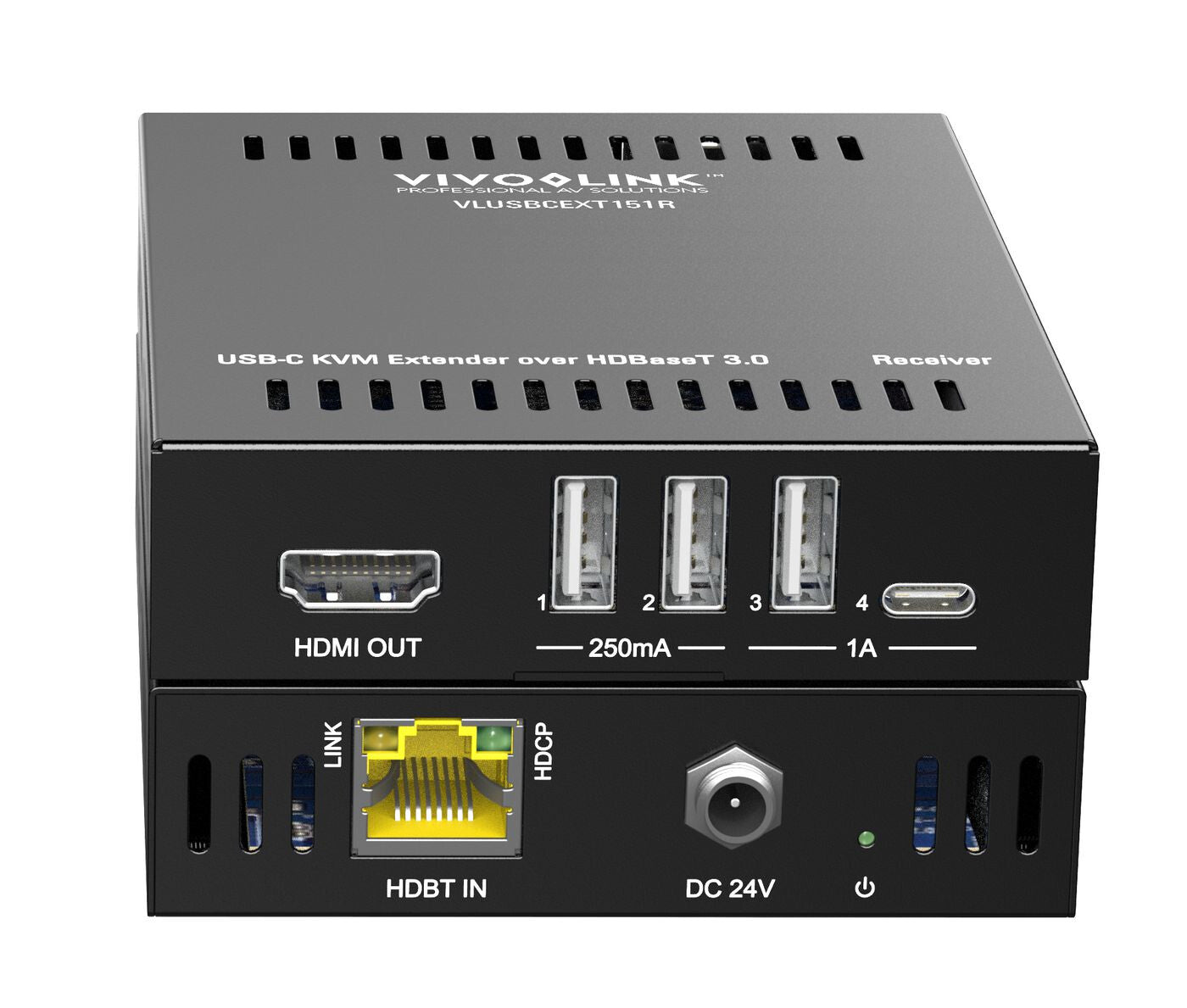

Receiver unit have HDMI 4K output for screen and 4 USB 2.0 inputs for devices at the screen side, like PTZ camera, soundbar and USB touch plate from screen.
Support following formats: DisplayLink, DP Alt mode, DisplayPort

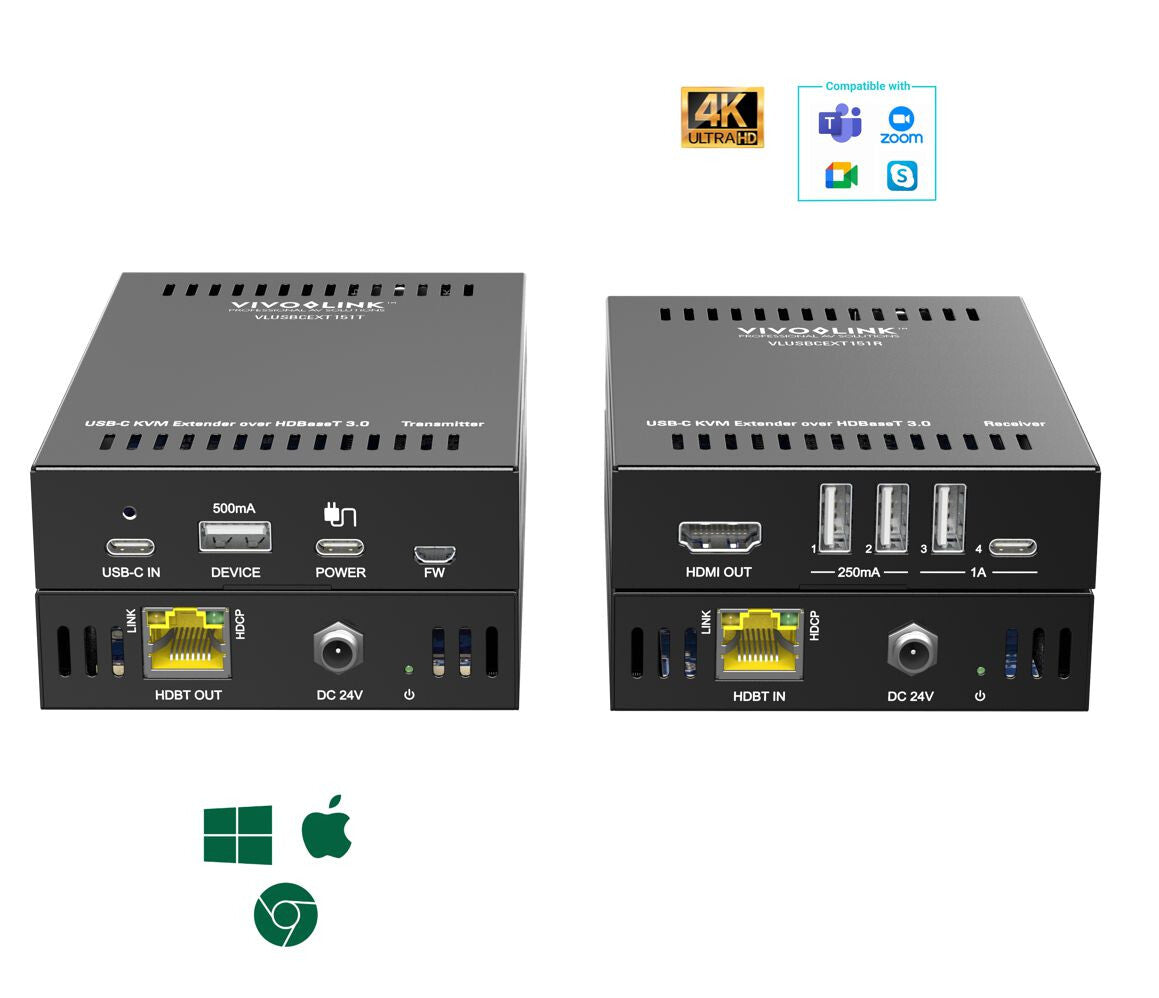

The USB-C extender Kit includes one transmitter with USB-C input for Laptop and a receiver for the screen. There is one power supply that can be mounted at the transmitter or receiver.
| Features | |
|---|---|
| Connectivity technology | Wired |
| Maximum transfer distance | 70 m |
| Cable types supported | Cat6a |
| Maximum digital resolution | 4096 x 2160 pixels |
| Supported resolutions | 4K@60Hz 4:4:4 |
| Product colour | Black |
| Easy to install | Yes |
| Plug and Play | Yes |
| USB 2.0 ports quantity | 4 |
| LED indicators | Link |
| Audio support | Yes |
| Transmitter | |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Number of displays supported | 1 |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
|---|---|
| Receiver local video ports quantity | 1 |
| Receiver local video port type | HDMI |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC adapter output voltage | 24 V |
| AC adapter output current | 1.25 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Ports & interfaces | |
|---|---|
| RJ-45 ports quantity | 1 |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
| Included power plug types | EU |
| Mounting bracket(s) included | Yes |
| Technical details | |
|---|---|
| Dimensions (WxDxH) | 90 x 21.7 x 120 mm |
| Video in | USB-C |
| Maximum resolution | 4096 x 2160 pixels |
| Weight | 500 g |
| Packaging data | |
|---|---|
| Package width | 183 mm |
| Package depth | 161 mm |
| Package height | 128 mm |
| Package weight | 820 g |
