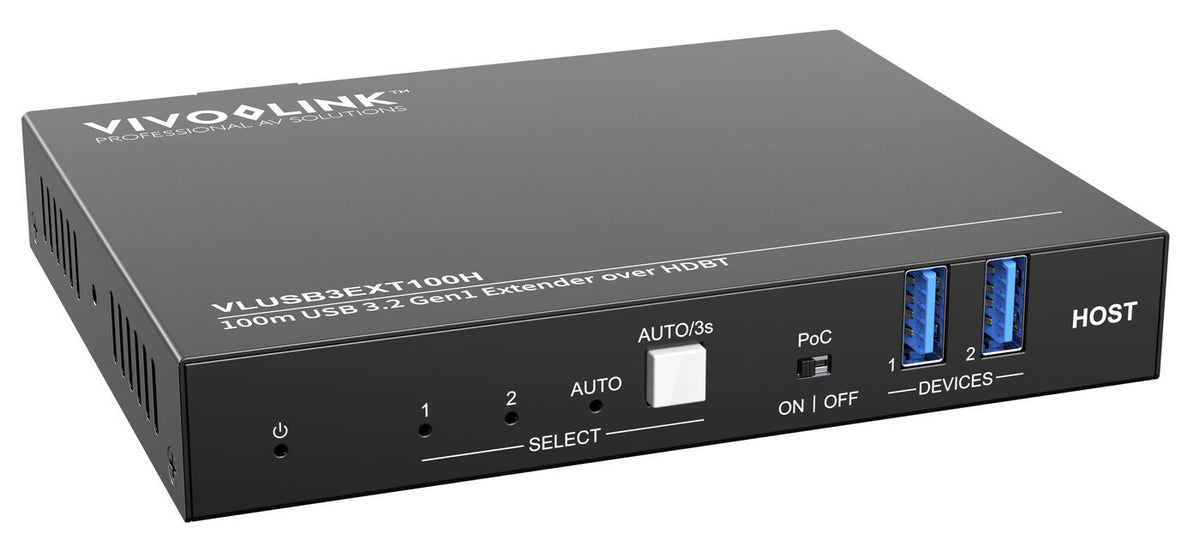

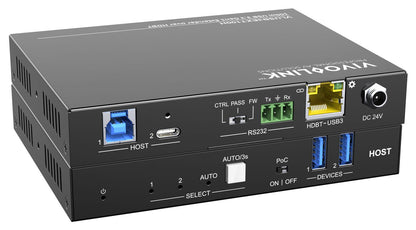

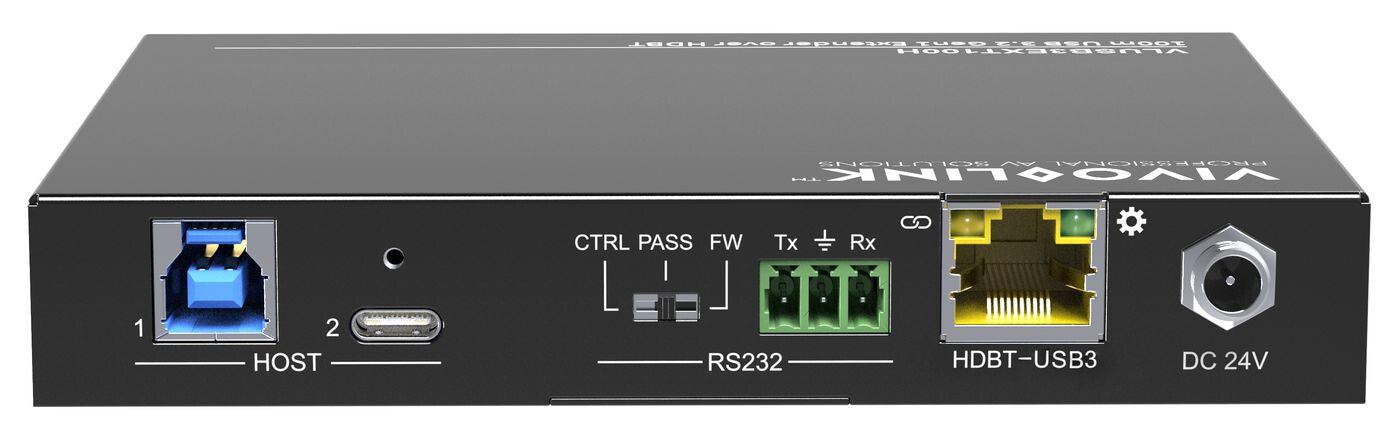

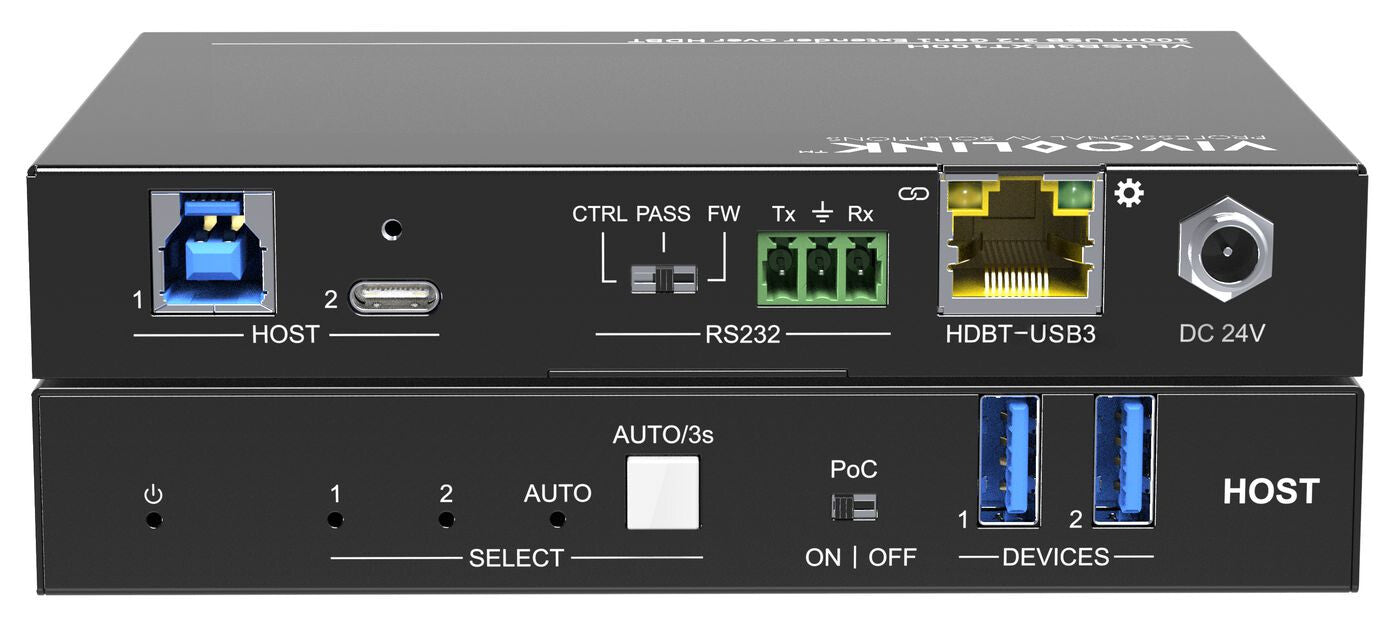

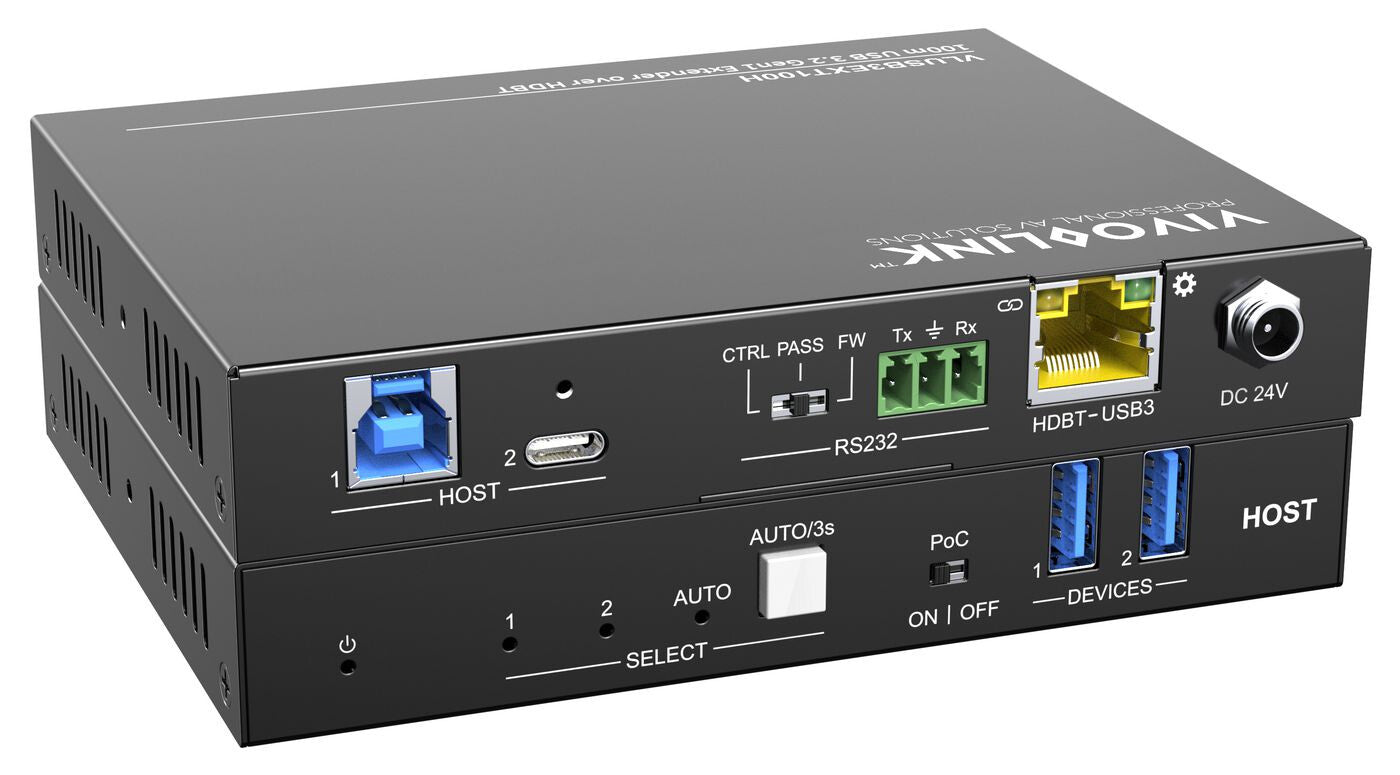

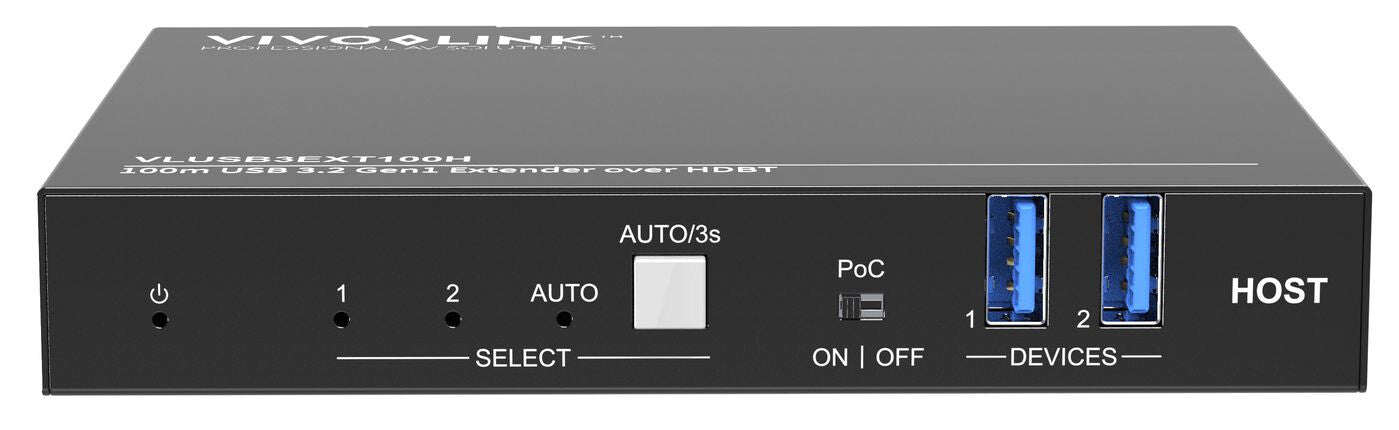

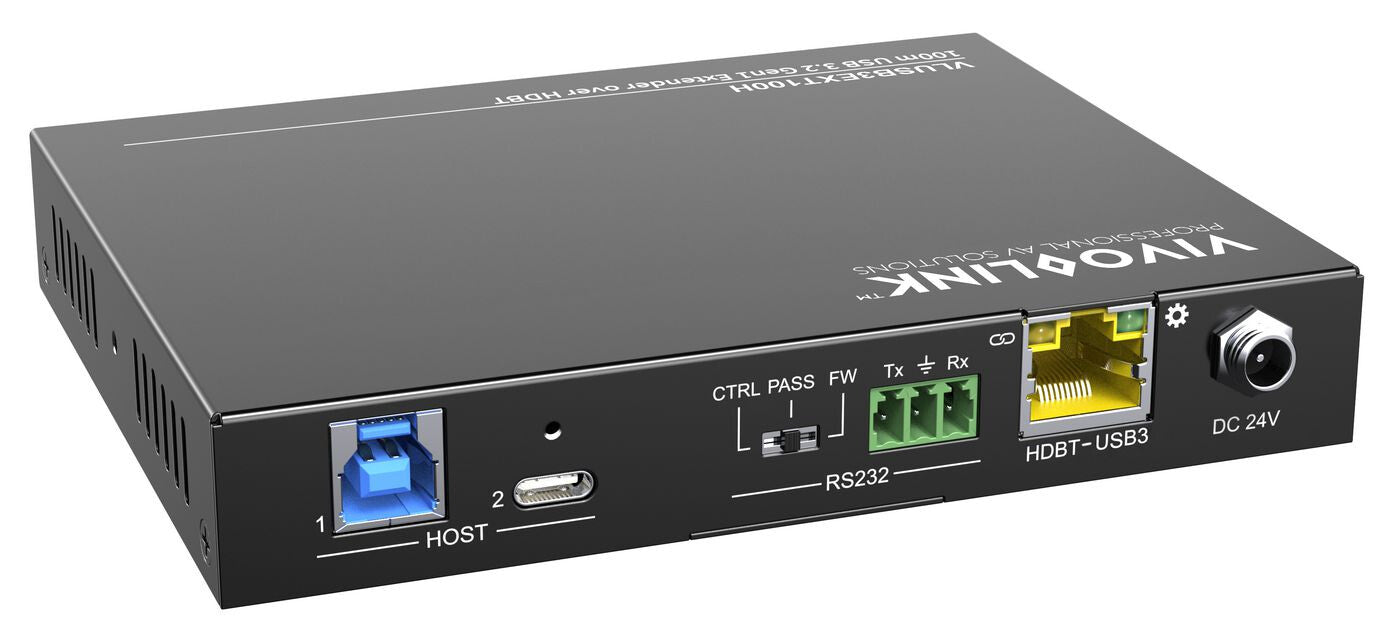

Vivolink VLUSB3EXT100H KVM extender
Vivolink VLUSB3EXT100H KVM extender
SKU:VLUSB3EXT100H
17 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- USB-C & USB-B auto switching
- Supports 100m extension
- Supports two way PoC & PoC control
- RS232 congurable for control & pass through
- 2 USB-A for multiple devices
- USB-C locking screw
The VLUSB3EXT100D is a Host that can be used to connect up to 4 USB devices like: camera, speaker, touch screen or other USB3.0 device and signal is transfered via network cable to computer. System builts on HDBaseT 3.0 and supports data speed up to 5Gbit.
Typical installation:
Meeting rooms
It has four USB ports that can extend USB 3.0 signal up to 100 meters over a Cat5e/6/7 cable.
The transmitter is powered by the computer and the power supply is at the remote receiver that’s helps provide sufficient power to any type of USB device, such as flash drives, keyboards, mouses, cameras, or printers, etc.
Extender is build in a durable metal housing and the compact size enables space-saving installation.
| Features | |
|---|---|
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat7 |
| Product colour | Black |
| Material | Metal |
| Easy to install | Yes |
| Plug and Play | Yes |
| LED indicators | Power |
| Transmitter | |
|---|---|
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
|---|---|
| AC input frequency | 50 Hz |
| AC adapter output voltage | 24 V |
| AC adapter output current | 1.5 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Weight & dimensions | |
|---|---|
| Transmitter width | 13.3 cm |
| Transmitter depth | 10.5 cm |
| Transmitter height | 2.15 cm |
| Ports & interfaces | |
|---|---|
| RJ-45 ports quantity | 1 |
| RS-232 ports | 1 |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Technical details | |
|---|---|
| Weight | 227 g |
| Packaging data | |
|---|---|
| Package weight | 438 g |
