Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR
18Gbps high bandwidth
Fully compliant with the HDMI 2.0 and HDCP2.2 specifications
Supports audio return channel (ARC).
Advanced EDID management: multiple preset and user defined allowed.
Analogue audio de-embedder function
Controllable via RS232 and IR
Supports CEC

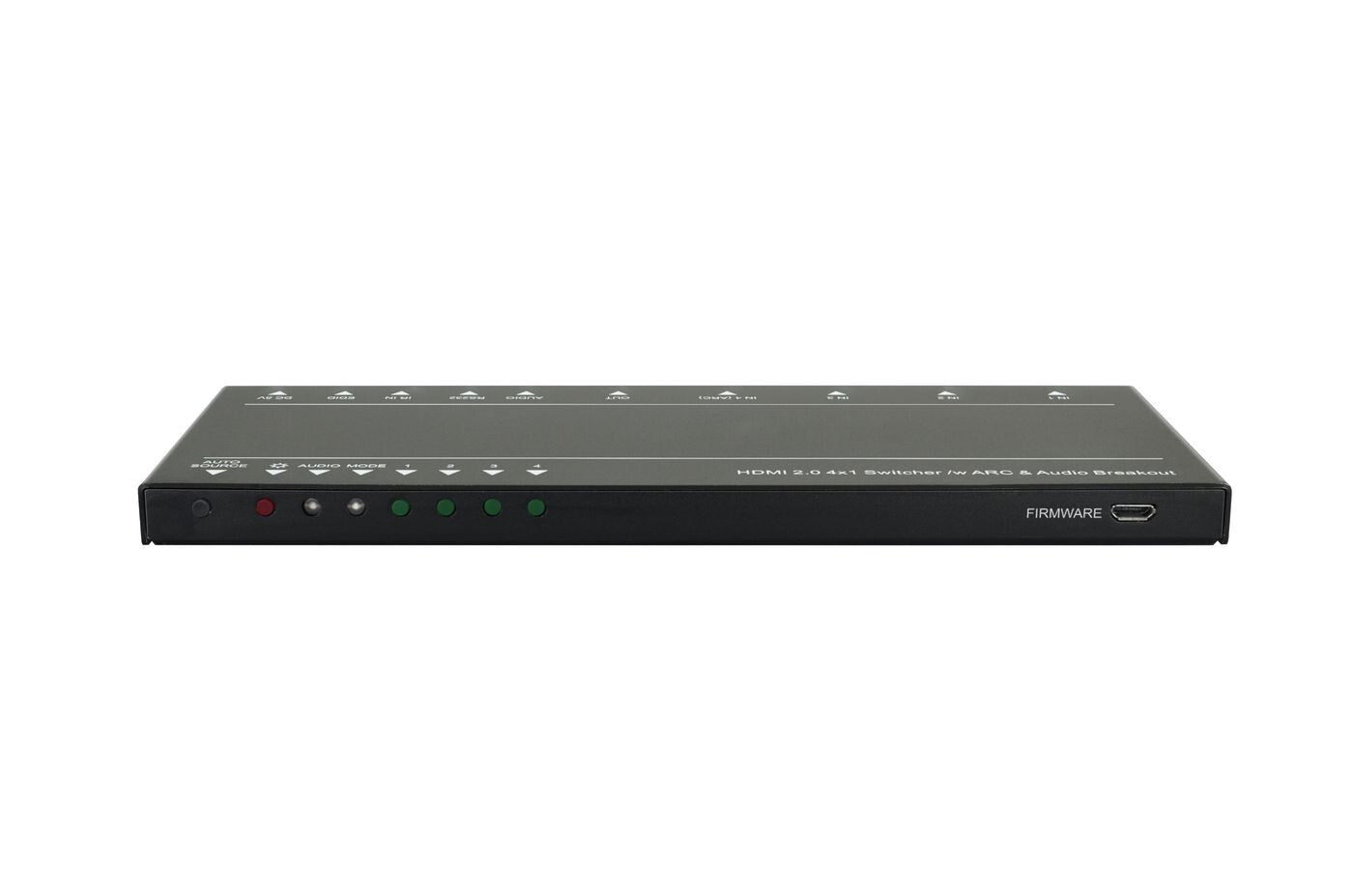

Seven LEDs to indicate the current operating status and to assist troubleshooting an installation
RS232 control and audio line out to active speakers
Firmware upgrade by Micro-USB port
HDMI switcher 4x1 (4K@60Hz)

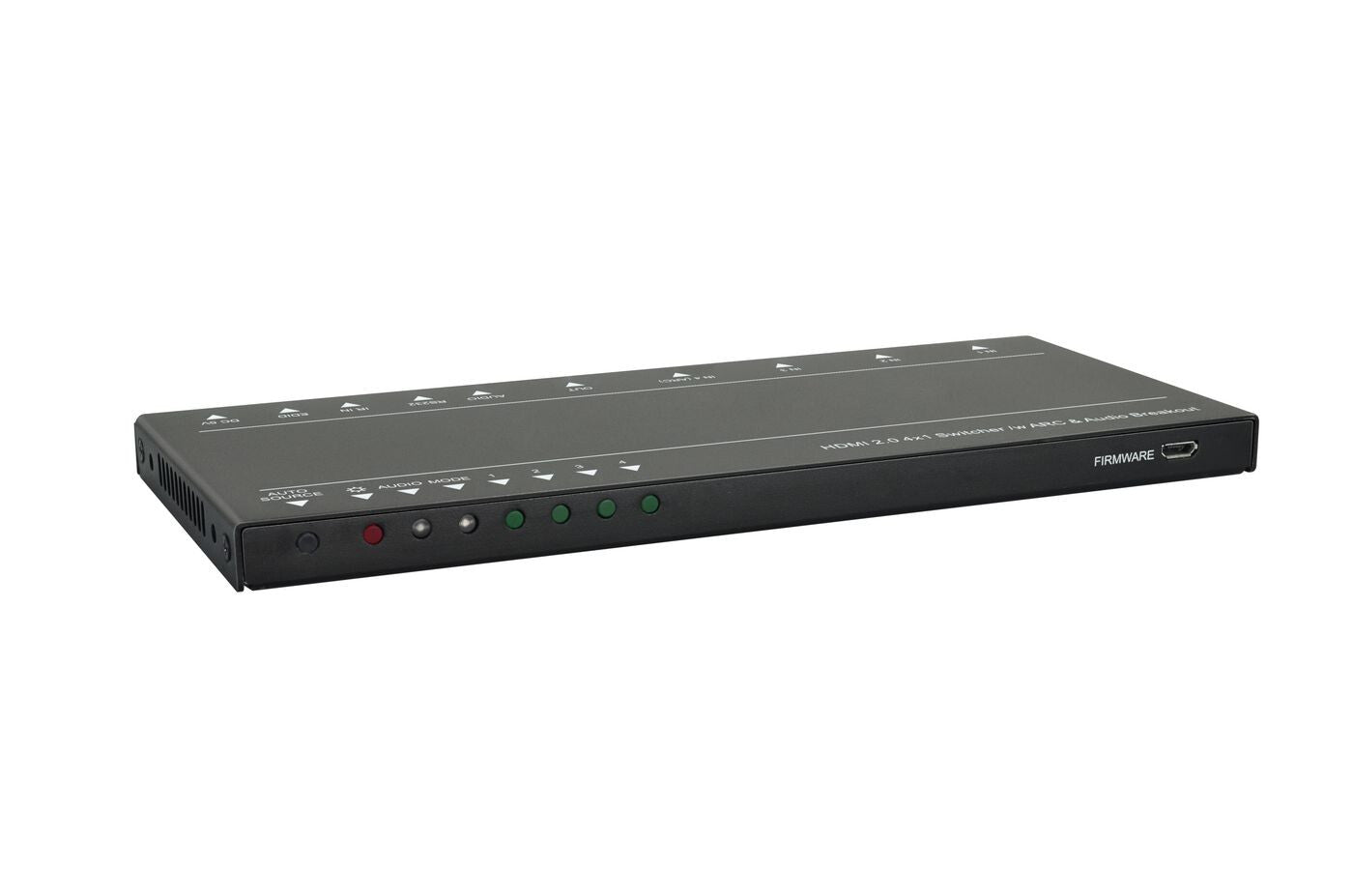

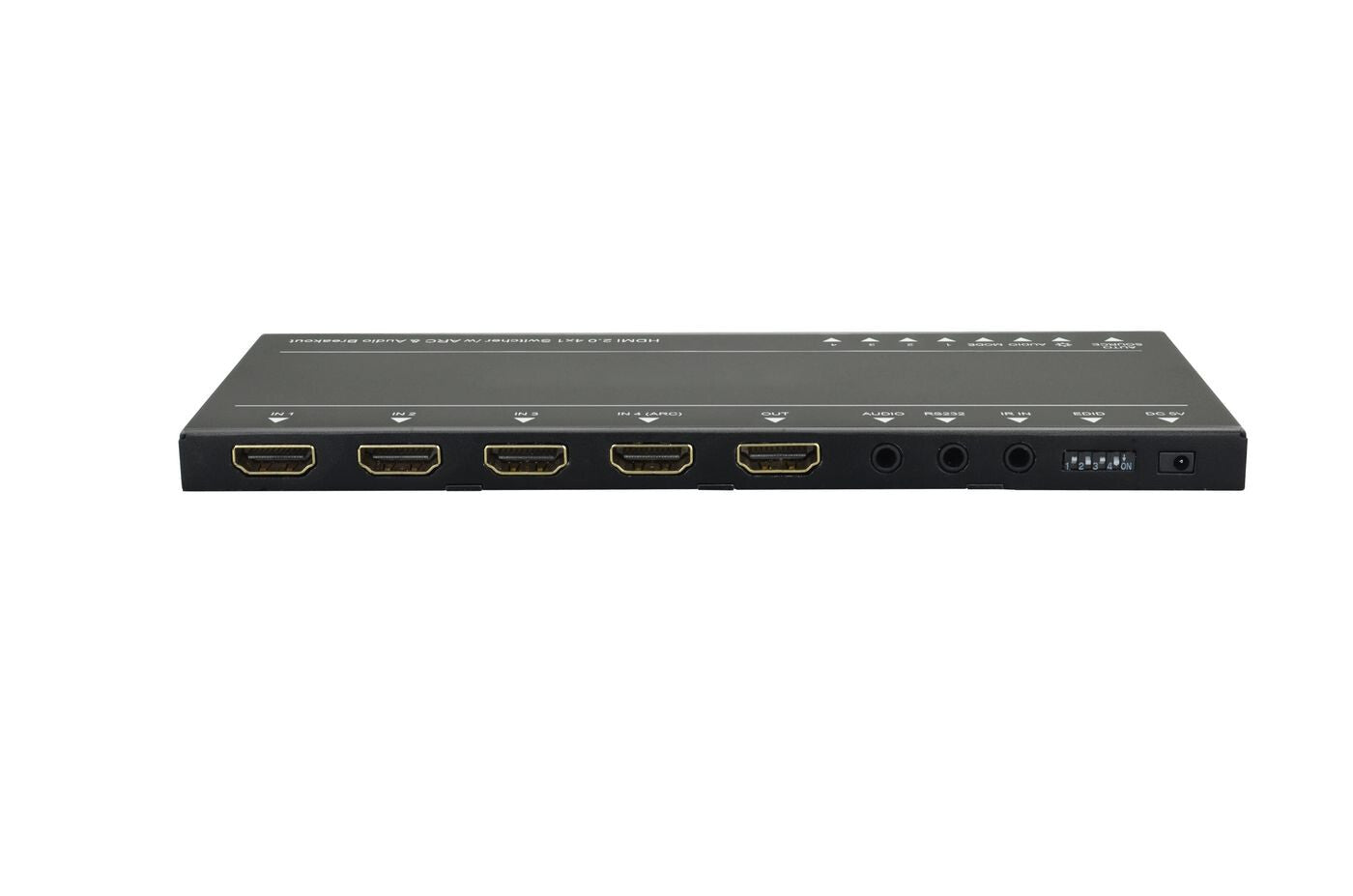

The VLSW141H is a high-performance 4x1 HDMI switch, designed to manage multiple HDMI sources with ease. It supports HDMI 18Gbps bandwidth, enabling resolutions up to 4K@60Hz with 4:4:4 chroma subsampling and HDR, ensuring exceptional video quality. The device is HDCP 2.2 compliant, ensuring compatibility with the latest content protection standards. Key features include smart EDID management for seamless integration with various display devices, support for Audio Return Channel (ARC), and audio de-embedding capabilities, allowing extraction of audio signals for separate processing. The switcher offers both automatic and manual switching modes, providing flexibility in source selection. Its ultra-slim design facilitates easy installation in diverse environments.
