VivoLink
Vivolink VLSW141H-8K video switch HDMI
Vivolink VLSW141H-8K video switch HDMI
SKU:VLSW141H-8K
45 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- HDMI switcher with 4 HDMI inputs and one HDMI out
- Supports video resolution up to 8Kx2K@60Hz 4:2:0 HDR
- 40Gbps high bandwidth
- Fully compliant with the HDMI 2.1 and HDCP2.3 specifications
- Supports audio return channel (eARC).
- Advanced EDID management: multiple preset and user defined allowed.
- Analogue audio de-embedder function
- Controllable via RS232 and IR
- Supports CEC
- Seven LEDs to indicate the current operating status and to assist troubleshooting an installation
- RS232 control and audio line out to active speakers
- Firmware upgrade by Micro-USB port

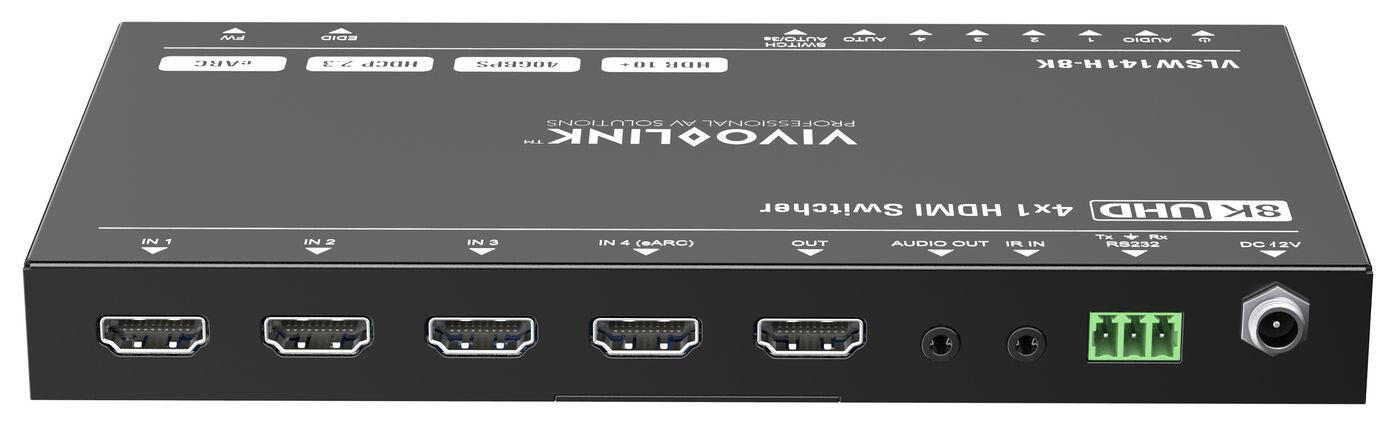

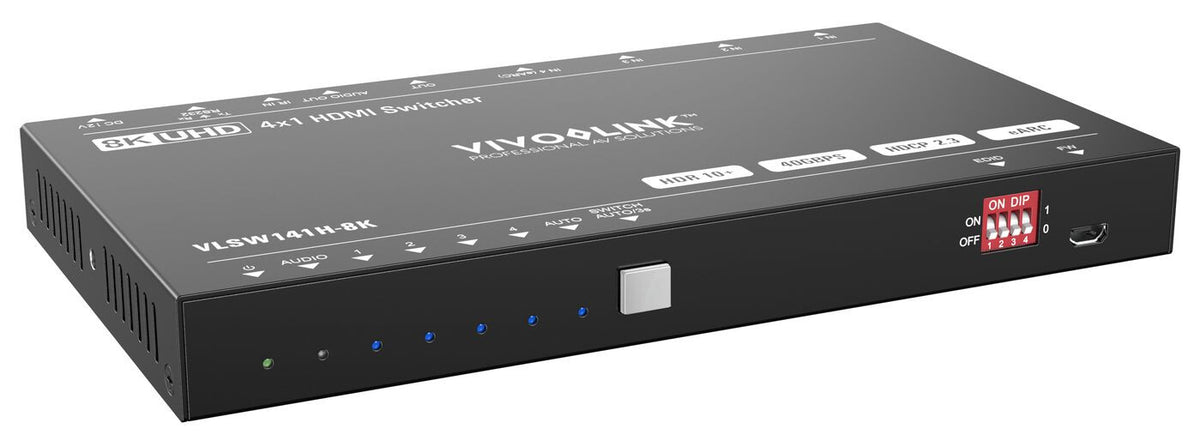

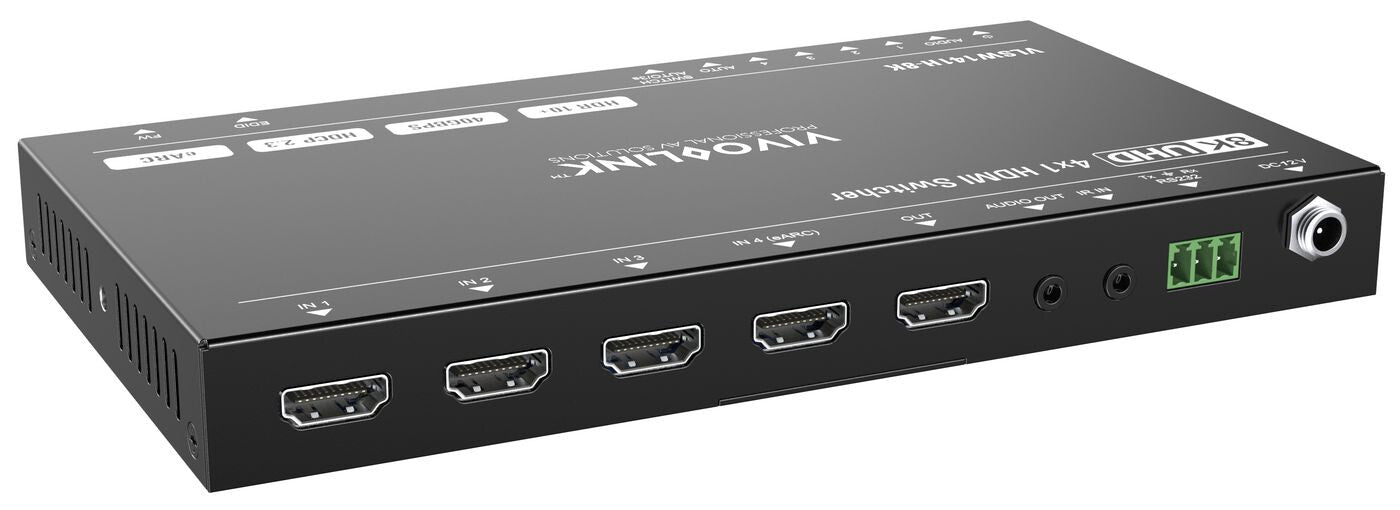

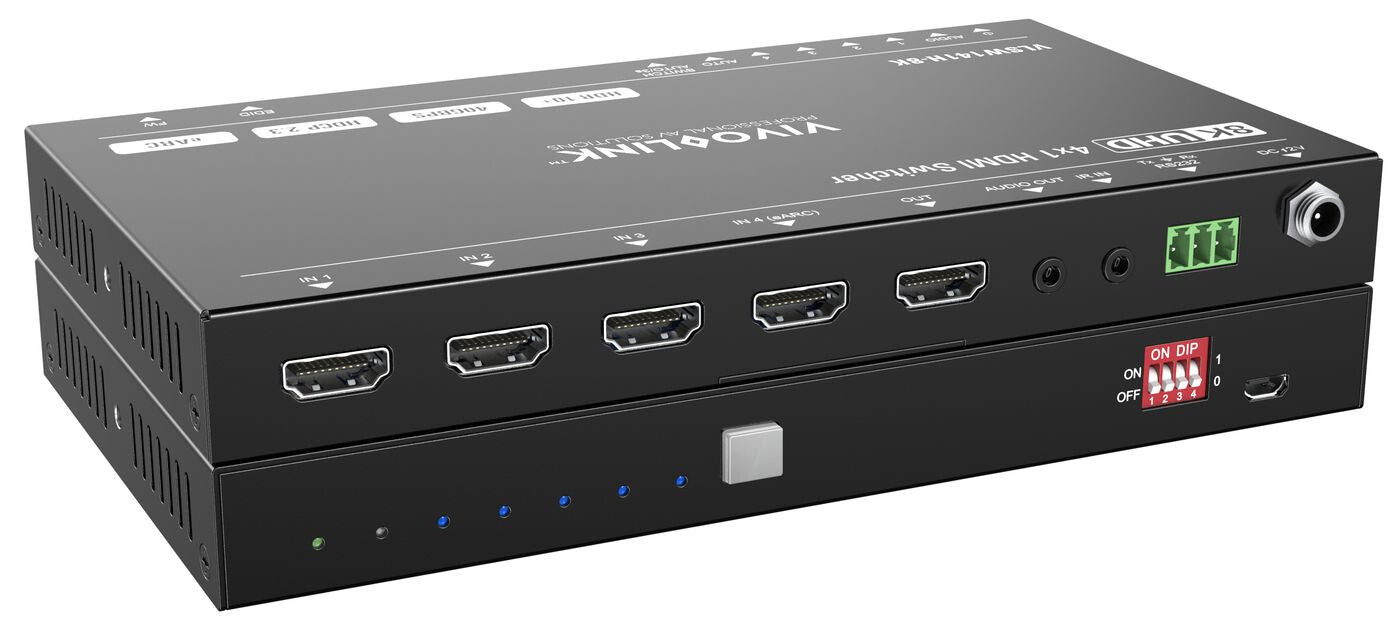

The VLSW141H-8K is a high-performance 4x1 HDMI switch, designed to manage multiple HDMI sources with ease. It supports HDMI 40Gbps bandwidth, enabling resolutions up to 8K@60Hz with 4:2:0 chroma subsampling and HDR+, ensuring exceptional video quality. The device is HDCP 2.3 compliant, ensuring compatibility with the latest content protection standards.
Key features include smart EDID management for seamless integration with various display devices, support for Audio Return Channel (eARC), and audio de-embedding capabilities, allowing extraction of audio signals for separate processing. The switcher offers both automatic and manual switching modes, providing flexibility in source selection. Its ultra-slim design facilitates easy installation in diverse environments.
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 2.1 |
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| Audio (L/R) out | 1 |
| S/PDIF out port | No |
| 3.5 mm (1/8-inch) out | Yes |
| RS-232 ports | 1 |
| Features | |
|---|---|
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| Maximum frame rate | 60 fps |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 60 Hz |
| HDCP version | 2.3 |
| Audio formats supported | PCM |
| HD type | 8K Ultra HD |
| Audio output channels | 2.0 channels |
| Remote control type | IR + RS232 |
| Maximum resolution | 7680 x 4320 pixels |
| LED indicators | Yes |
| Bandwidth | 40 Gbit/s |
| HDCP | Yes |
| Plug and Play | Yes |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Width | 239 mm |
| Depth | 134 mm |
| Height | 124 mm |
| Weight | 415 g |
| Empty weight | 415 g |
| Dimensions (WxDxH) | 188 x 105 x 21 mm |
| Packaging data | |
|---|---|
| Package width | 239 mm |
| Package depth | 134 mm |
| Package height | 124 mm |
| Package weight | 560 g |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
| Remote control included | Yes |
| Packaging content | 1x 8K UHD 4x1 HDMI Switcher |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 55 °C |
| Technical details | |
|---|---|
| Audio support | Yes |
