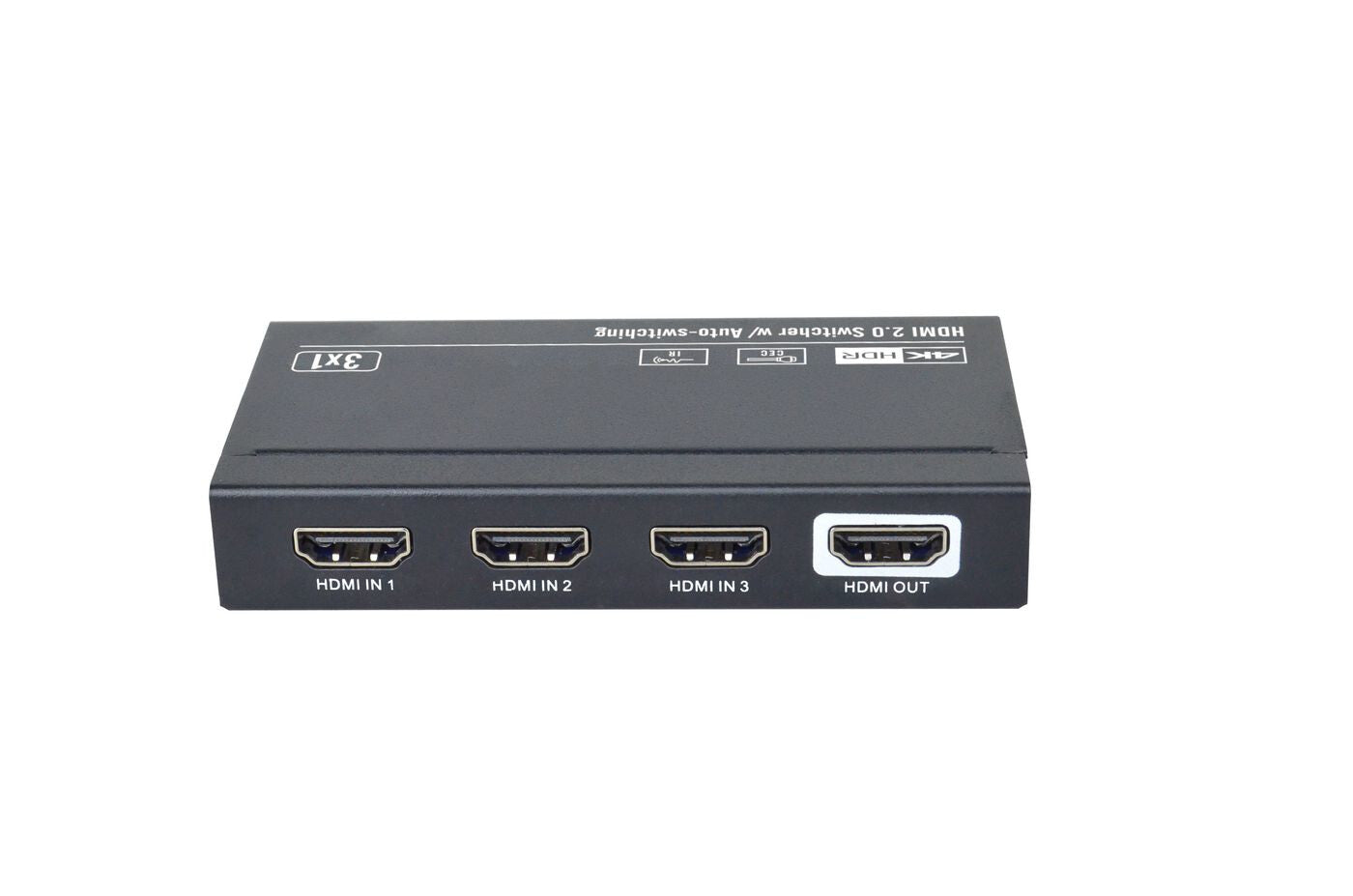

Vivolink VLSW131 video switch HDMI

• HDMI switcher with 3 HDMI inputs and one HDMI out
• Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR
• 18Gbps high bandwidth
• Fully compliant with the HDMI 2.0 and HDCP2.2 specifications
• Supports CEC pass-through
• IR, Remote included

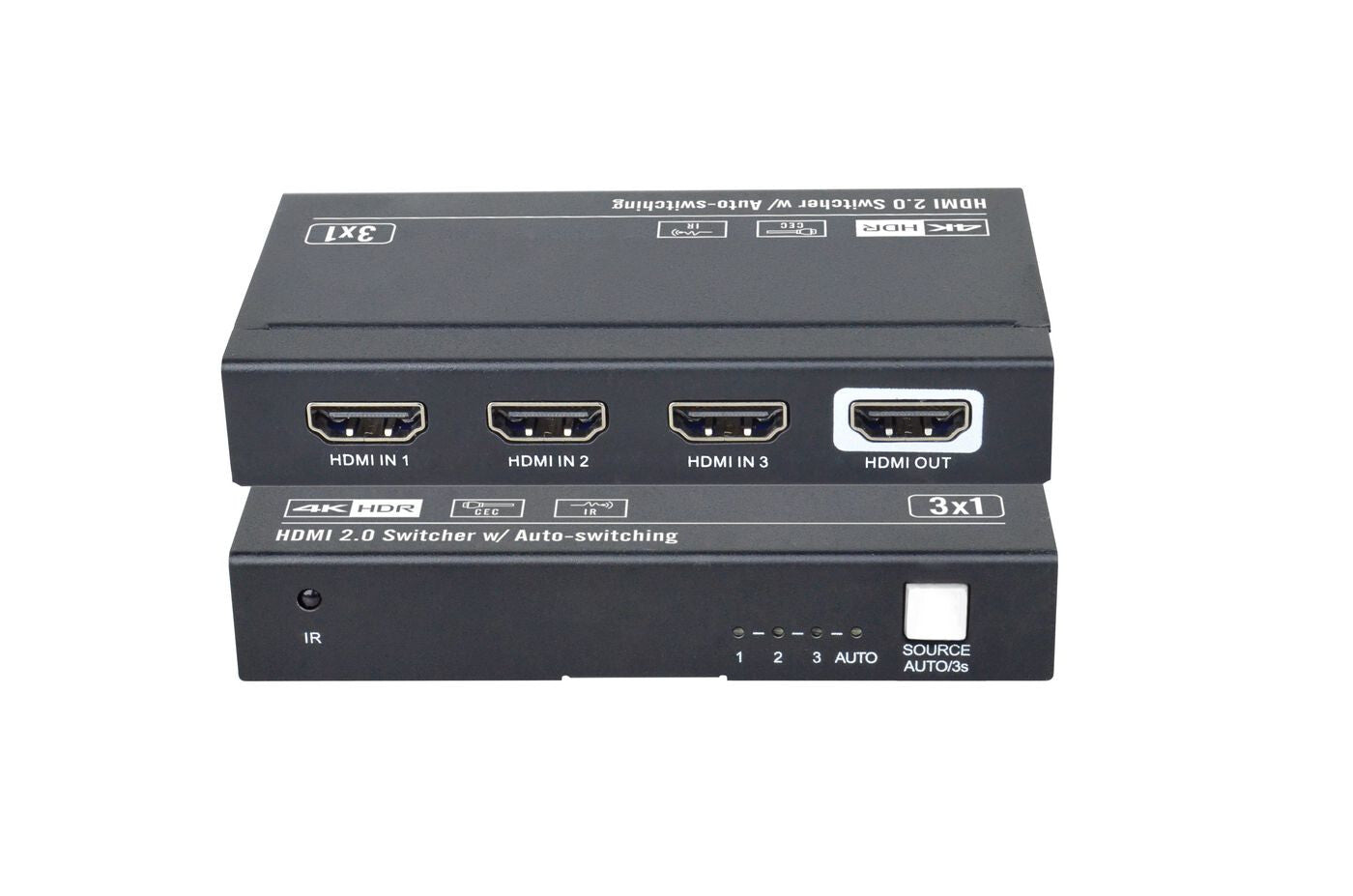

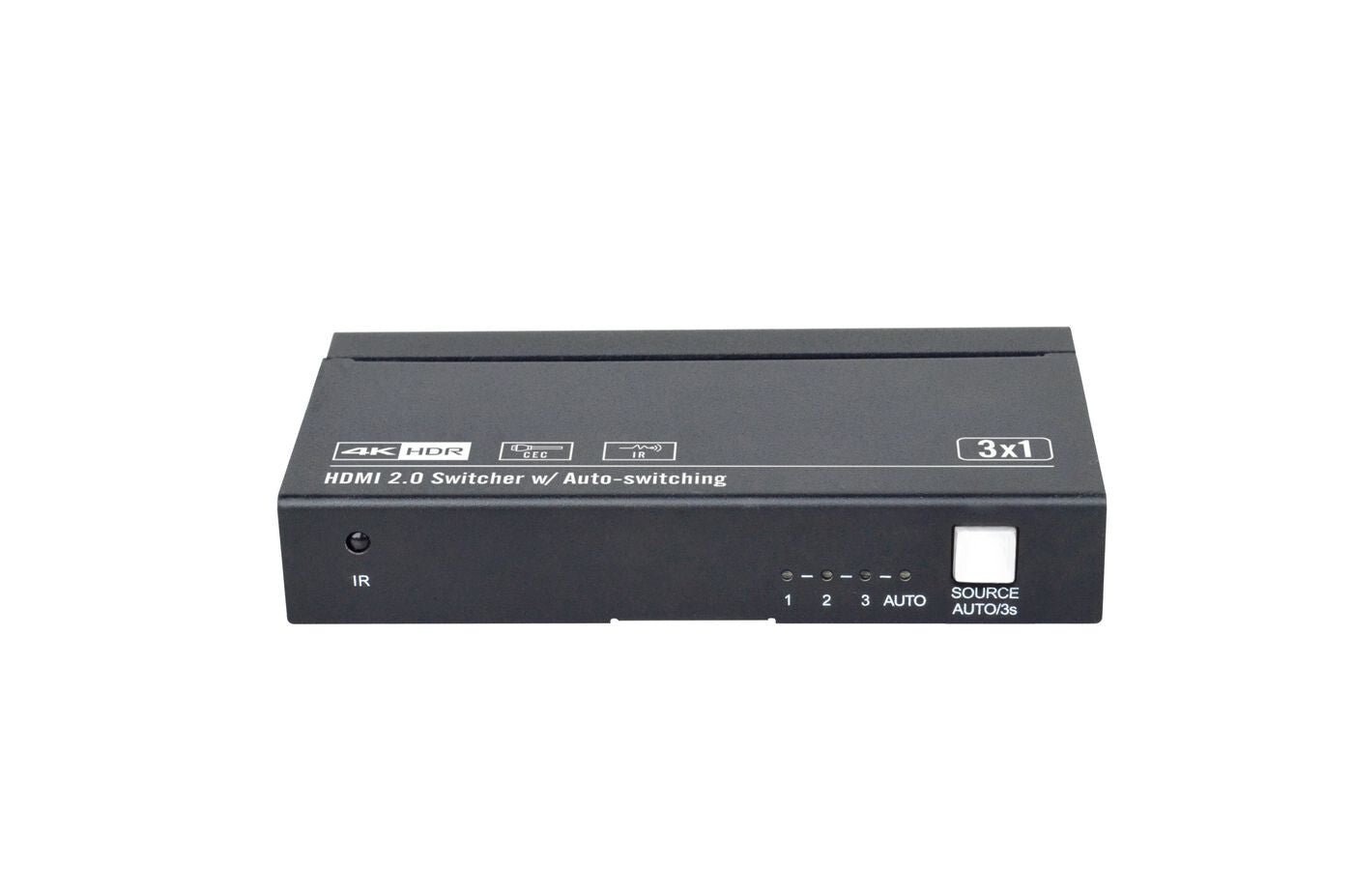

The VLSW131 is a high-performance 3x1 HDMI switch, designed to seamlessly manage multiple HDMI sources. It features three HDMI inputs and one HDMI output, supporting video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, HDR, and Dolby Vision, ensuring exceptional video quality.

Key features include automatic switching between inputs, multichannel audio support, and compliance with HDMI 18Gbps and HDCP 2.2 standards, ensuring compatibility with the latest devices. The switcher is controllable via an IR remote and is powered directly by the HDMI input source, eliminating the need for an external power supply and simplifying installation. Additionally, it supports CEC pass-through and provides LED indicators to display the current operating status.
No power supply needed, it is powered via HDMI 5 volt.

• manual pdf
• leaflet
• EU Declaration of Conformity
