Vivolink VLSW131-8K video switch HDMI
Vivolink VLSW131-8K video switch HDMI
SKU:VLSW131-8K
37 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- HDMI switcher with 3 HDMI inputs and one HDMI out
- Supports video resolution up to 8Kx2K@60Hz 4:2:0 HDR
- 40Gbps high bandwidth
- Fully compliant with the HDMI 2.0 and HDCP2.2 specifications
- Supports CEC pass-through
- IR, Remote included

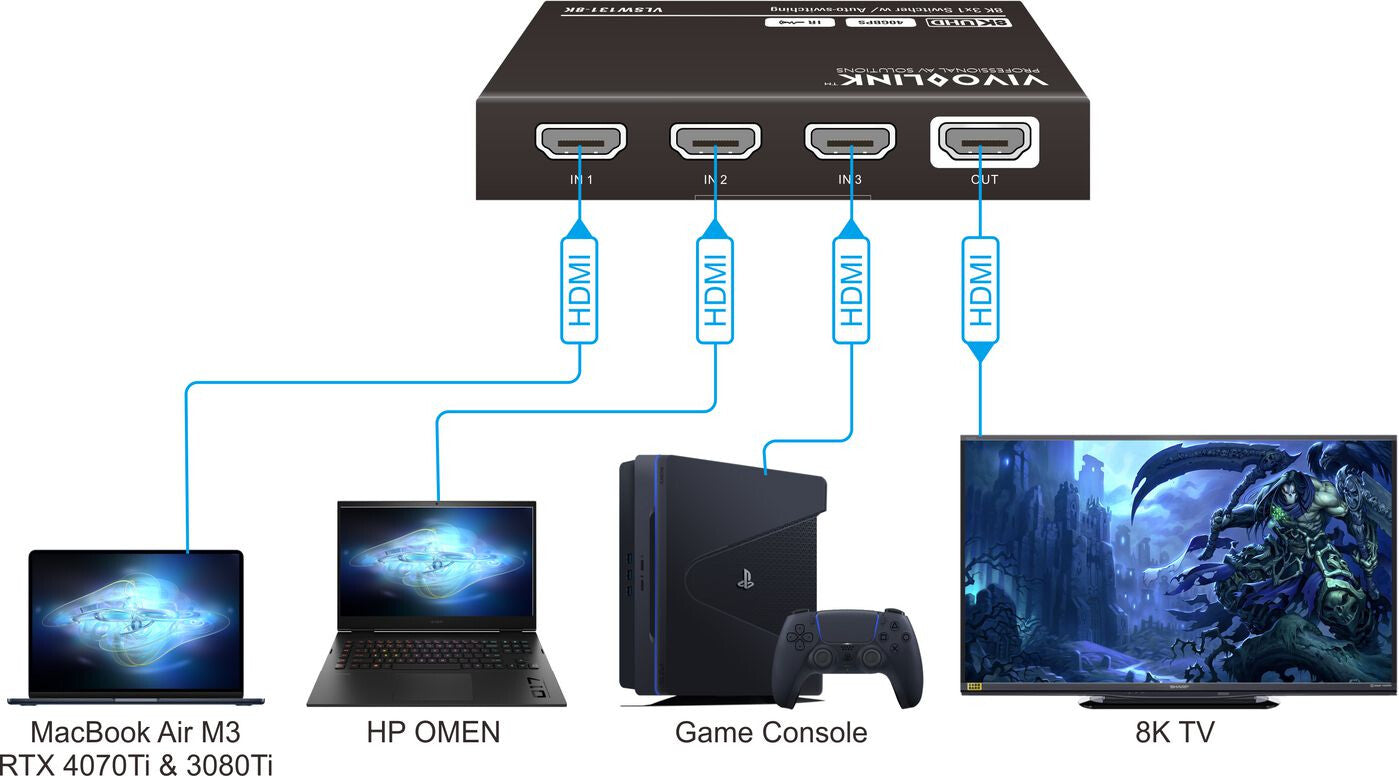

The VLSW131-8K is a high-performance 3x1 HDMI switch, designed to seamlessly manage multiple HDMI sources. It features three HDMI inputs and one HDMI output, supporting video resolutions up to 8K@60Hz with 4:2:0 HDR and Dolby Vision, ensuring exceptional video quality.
Key features include automatic switching between inputs, multichannel audio support, and compliance with HDMI 40Gbps and HDCP 2.3 standards, ensuring compatibility with the latest devices. The switcher is controllable via an IR remote and is powered directly by the HDMI input source, eliminating the need for an external power supply and simplifying installation. Additionally, it supports CEC pass-through and provides LED indicators to display the current operating status.
No power supply needed, it is powered via HDMI 5 volt.
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 2.0/2.1 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| Features | |
|---|---|
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Maximum frame rate | 60 fps |
| HDCP version | 1.4/2.2/2.3 |
| HD type | 8K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| LED indicators | Yes |
| HDCP | Yes |
| Plug and Play | Yes |
| Weight & dimensions | |
|---|---|
| Width | 155 mm |
| Depth | 88 mm |
| Height | 60 mm |
| Weight | 180 g |
| Packaging data | |
|---|---|
| Package width | 155 mm |
| Package depth | 88 mm |
| Package height | 60 mm |
| Package weight | 560 g |
| Packaging content | |
|---|---|
| Cables included | IR sensor |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
