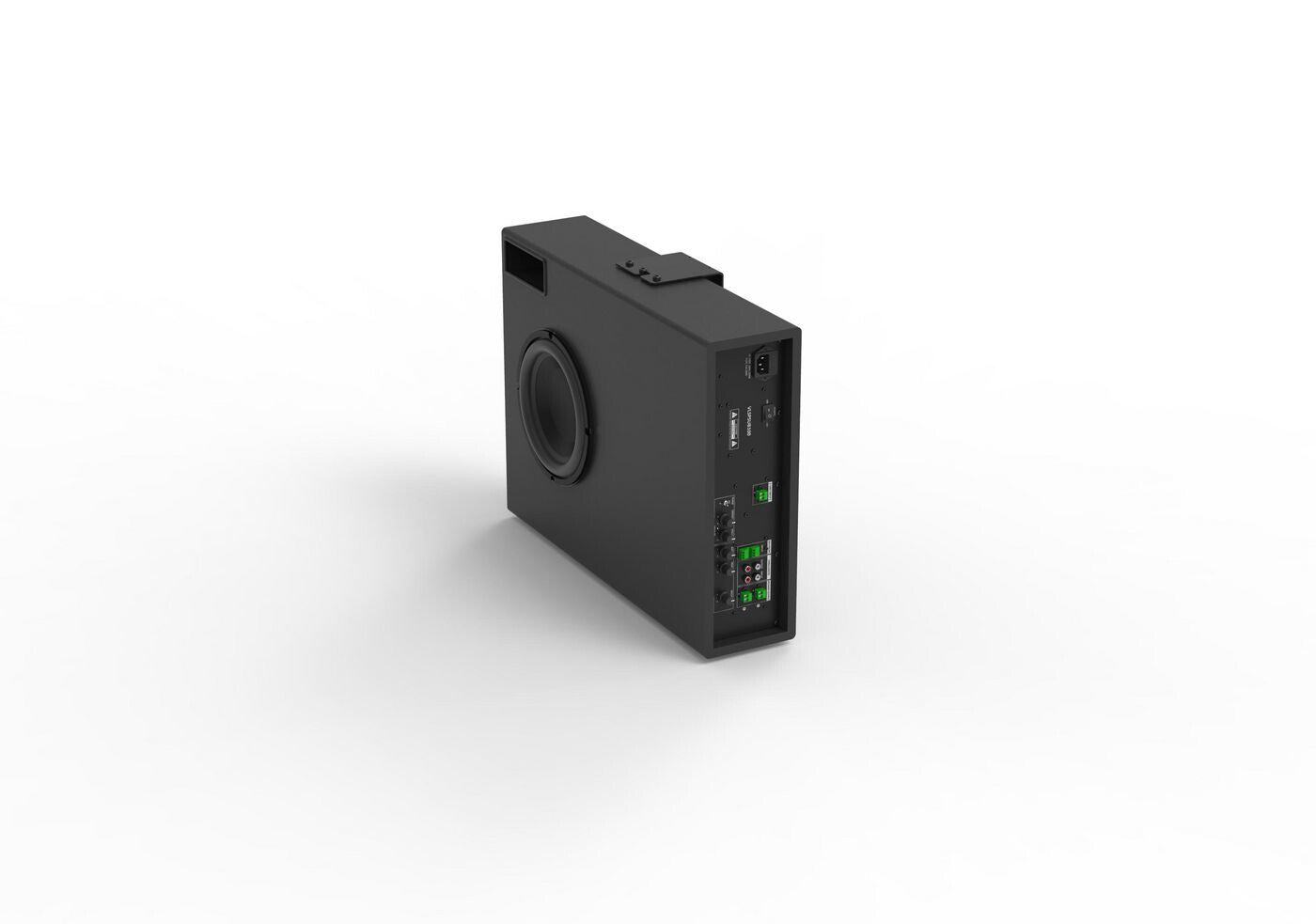

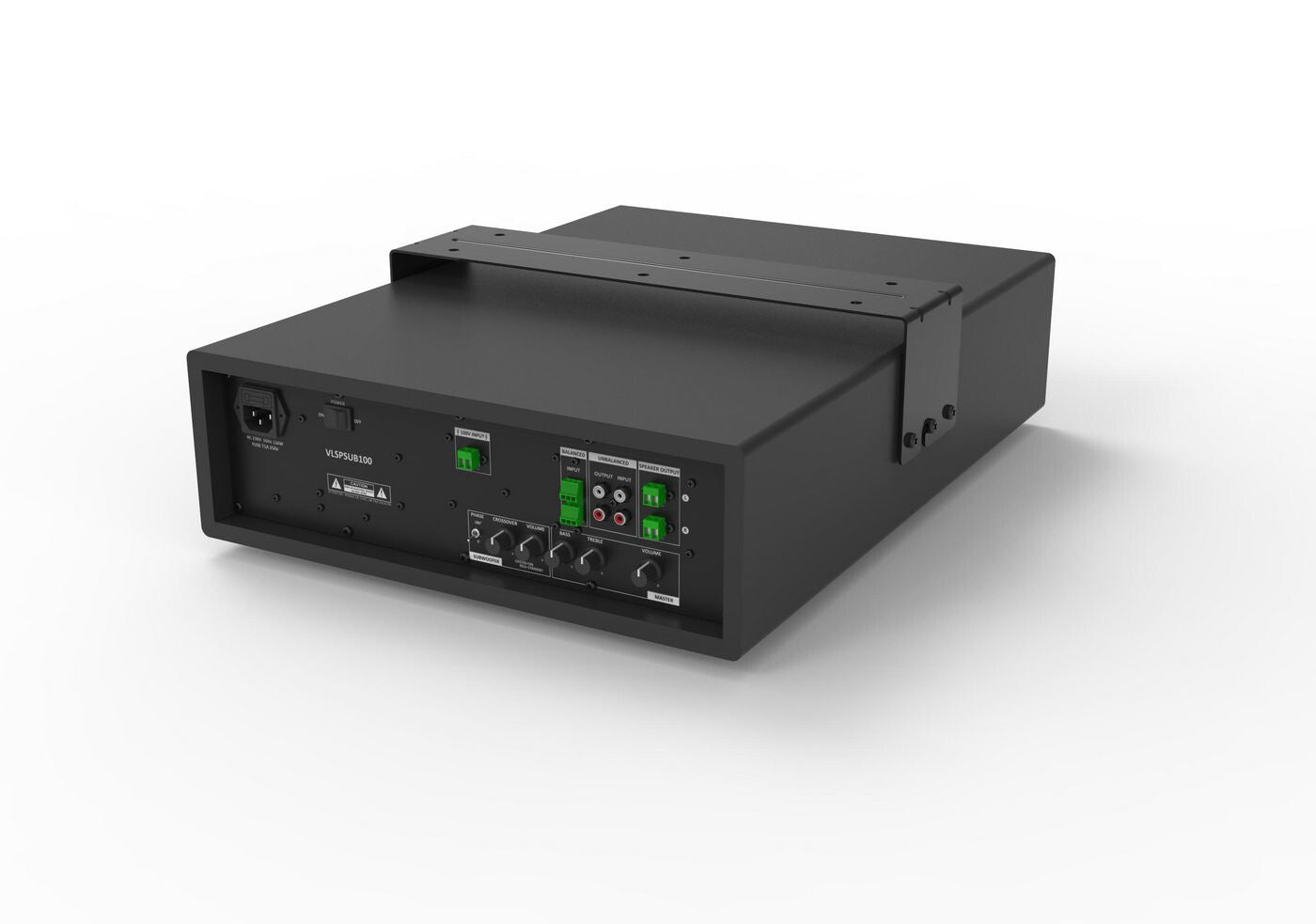

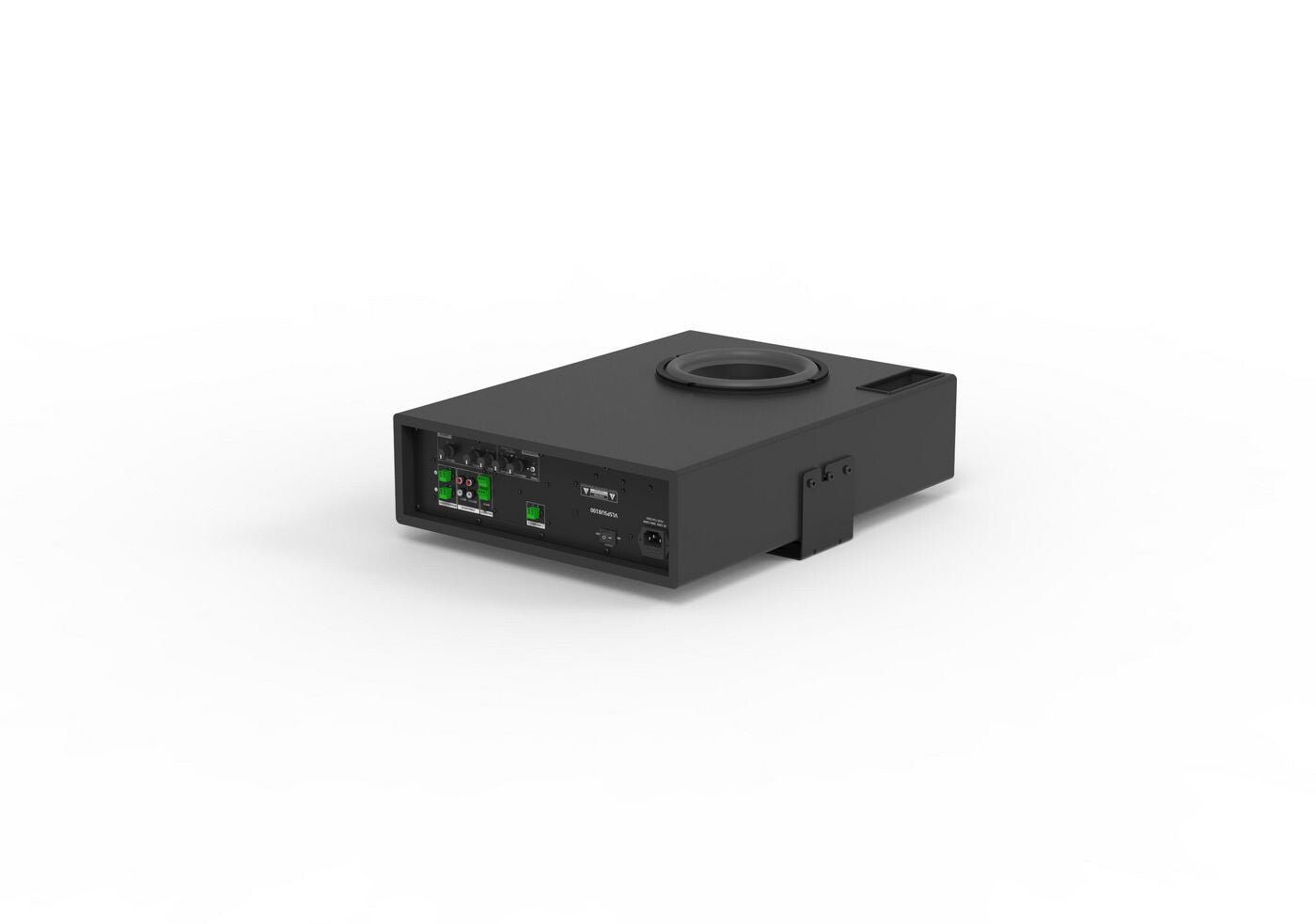

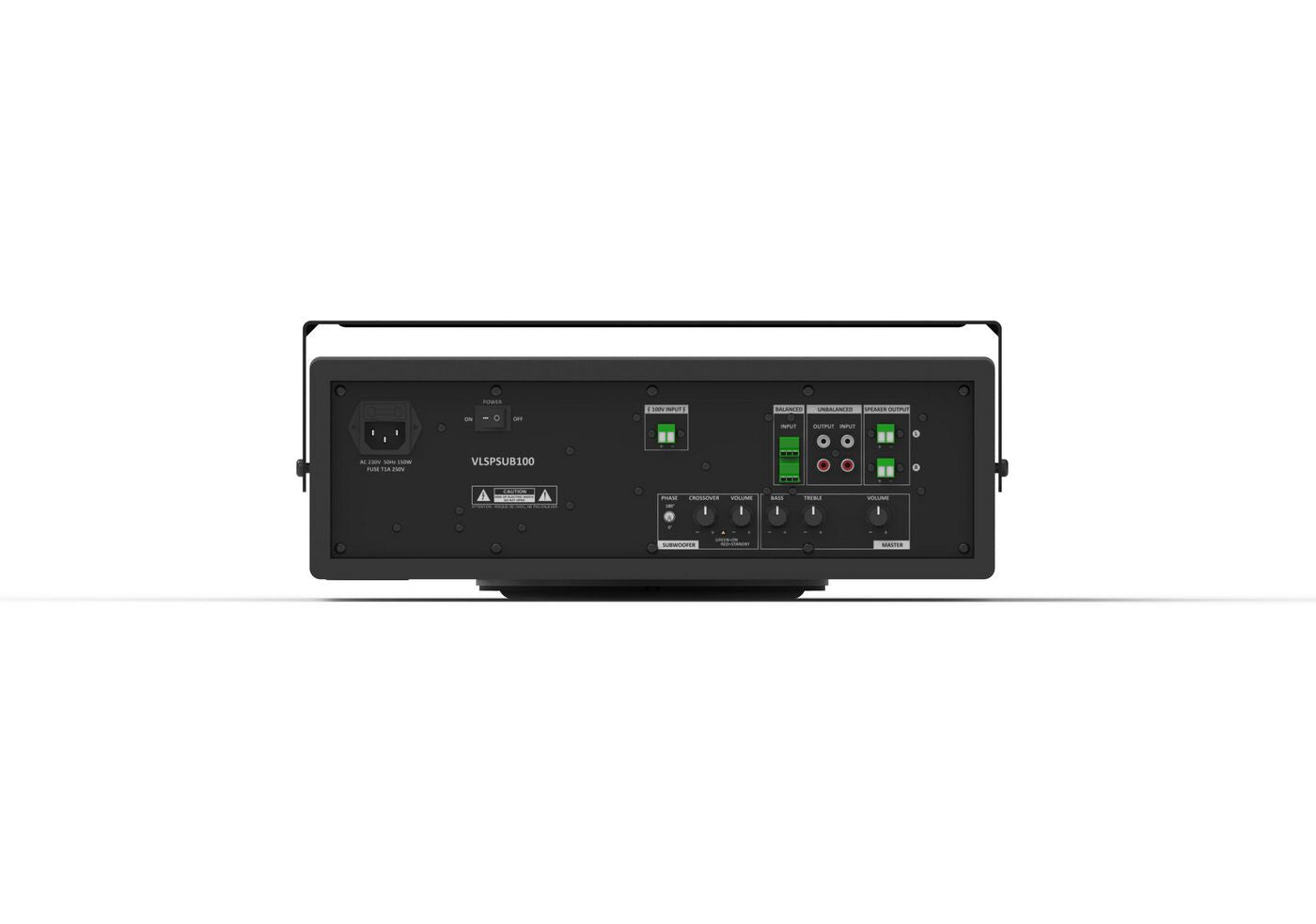

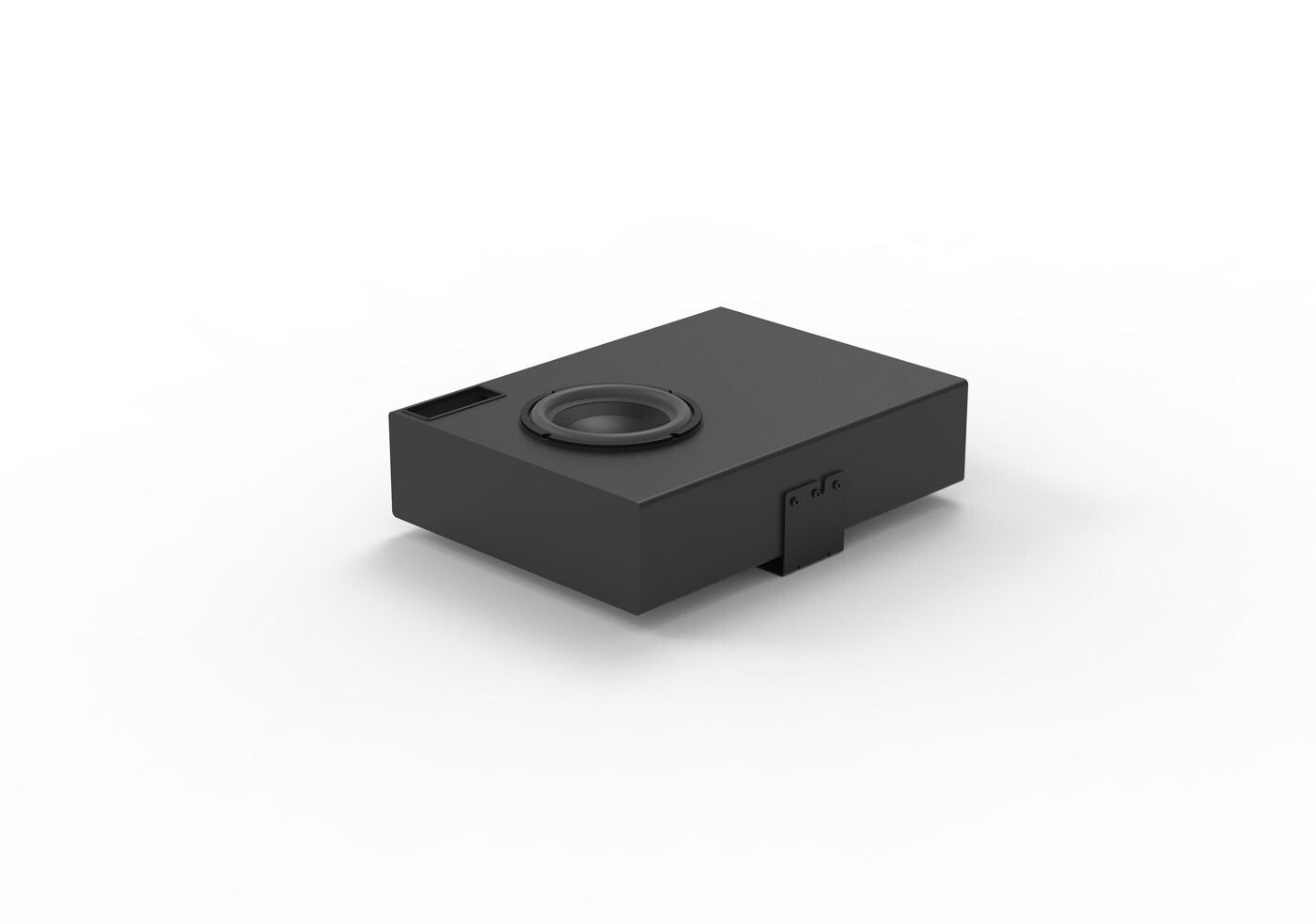

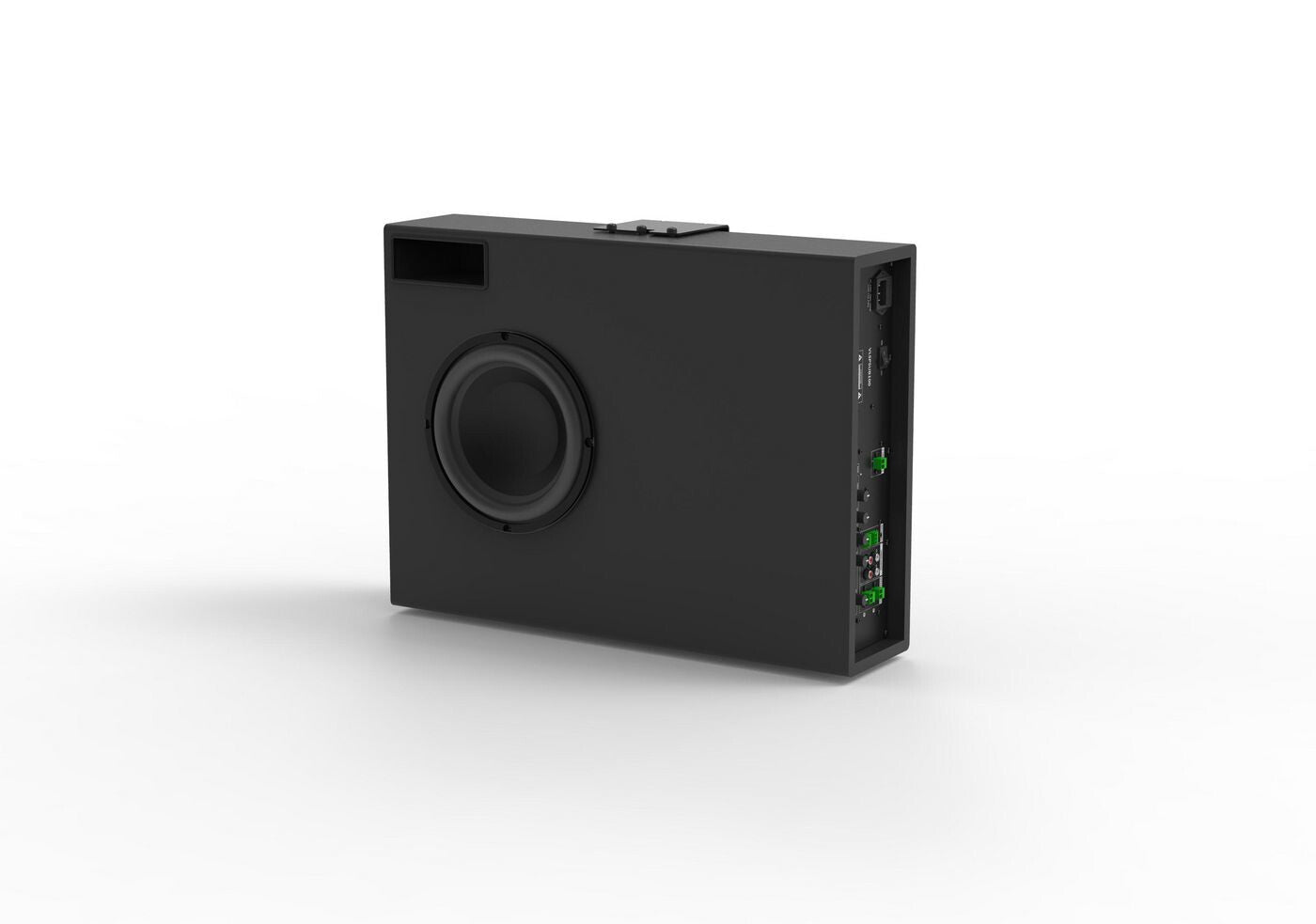

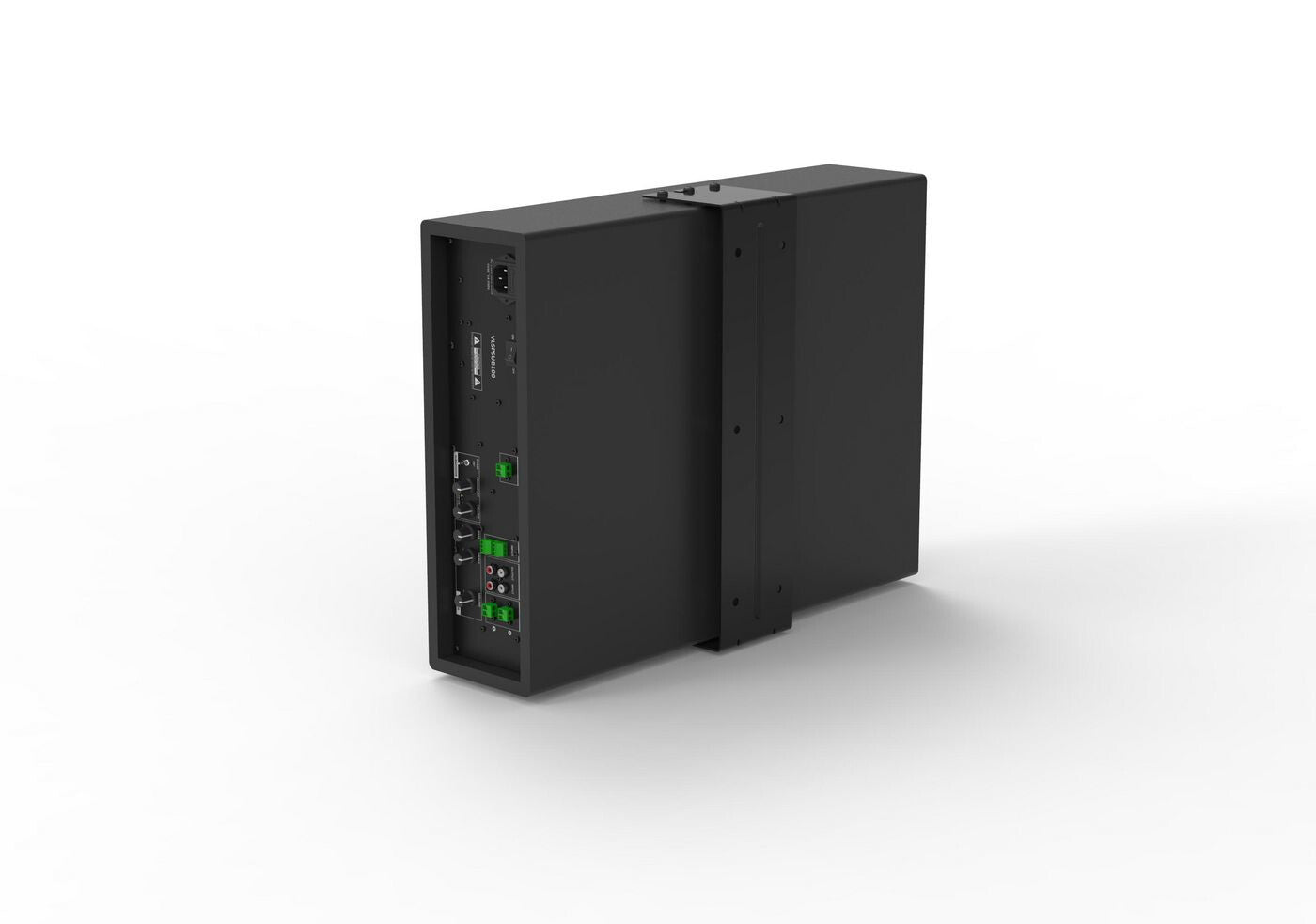

Vivolink VLSPSUB100 loudspeaker Black Wired 110 W
Vivolink VLSPSUB100 loudspeaker Black Wired 110 W
SKU:VLSPSUB100
200 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Active powered Subwoofer 8" 50W
- 2x25W speaker output + line- out
- Silent on/off via automatic ECO mode after 90 seconds (less than 0,5 Watt)

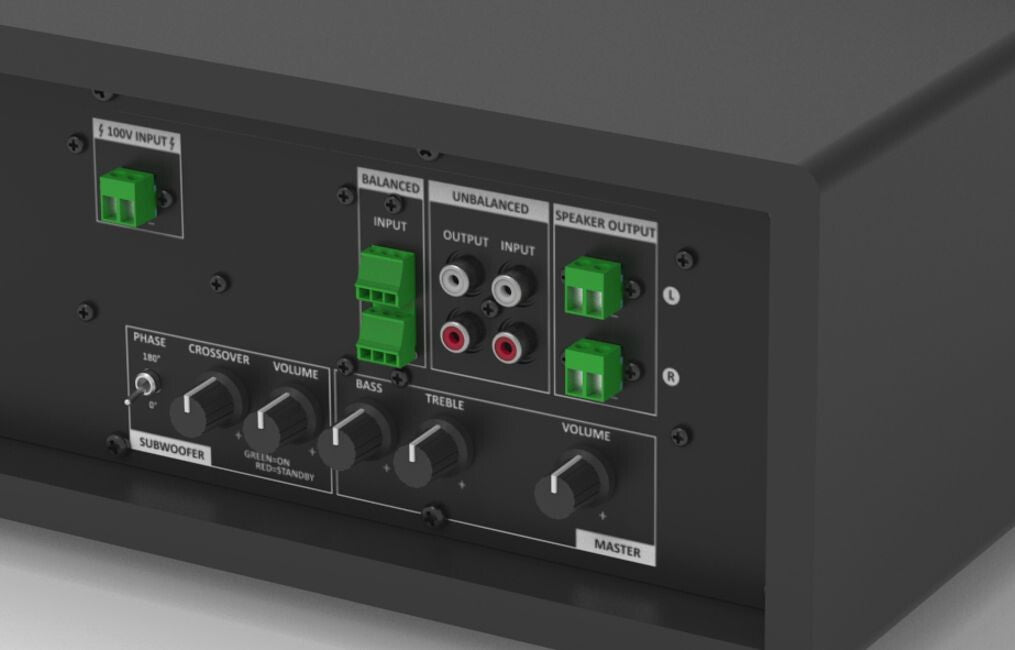

- Audio inputs: 2xRCA + 100V + Balanced input + Bluetooth for (speaker out only)
- Switchable stereo / mono output
Vivolink Active Subwoofer is a perfect match to all Vivolink speakers. It is designed to be mounted over ceiling or under funiture
Ideal for meeting rooms, hotels and auditoriums.
It have line input and loop out for active sattelite speakers.
Subwoofer can also be used together with passive sattelite speakers using the internal power amplifier for sattelige speakers on 2 x 25W
• For rooms up to 200m2
• Power effect for subwoofer: 50 Watts
• Power effect for passive ceiling speakers:
(VLSPMTC60WT) 2x25Watts
• Inputs: 100V, Balanced in and RCA line in
• Bluetooth input for speaker out only (not supported for line-out)
• Outputs: RCA line out and Speaker out 2x 25W
• Line out for active speakers (VLSP60/65/61/70)
• Frequency range: 80Hz-20kHz
• Impedance: 8 Ohm
| Loudspeakers | |
|---|---|
| Audio output channels | 2.1 channels |
| Speaker placement | Ceiling-mountable |
| Number of drivers | 3 |
| Woofer | Yes |
| Woofer diameter (imperial) | 20.3 cm (8") |
| Subwoofer RMS power | 50 W |
| Audio | |
|---|---|
| RMS rated power | 110 W |
| Speakers RMS power | 60 W |
| Frequency range | 40 - 20000 Hz |
| Impedance | 4 Ω |
| Crossover frequency | 200 Hz |
| Performance | |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Volume control | Rotary |
| On/off switch | Yes |
| Certification | CE |
| Amplifier | |
|---|---|
| Amplifier | Built-in |
| Amplifier class | D |
| Amplifier output power (tweeter) | 30 W |
| Amplifier output power (woofer) | 50 W |
| Amplifier output power | 110 W |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| 3.5 mm (1/8-inch) in | Yes |
| 6.35 mm (1⁄4-inch) input | 1 |
| Audio RCA inputs | 1 |
| Power | |
|---|---|
| Power source type | AC |
| AC input voltage | 230 - 240 V |
| Power consumption (typical) | 75 W |
| Power consumption (standby) | 0.5 W |
| Current | 1 A |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 210 mm |
| Height | 265 mm |
| Weight | 6.26 kg |
| Packaging data | |
|---|---|
| Package width | 440 mm |
| Package depth | 210 mm |
| Package height | 265 mm |
| Package weight | 6.75 kg |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting brackets included | Yes |
| Cables included | AC |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Number of amplifier channels | 3 channels |
| Magnetically shielded | Yes |
| Case colour | Black |
| Adaptor plug | EU |
| Audio (L/R) in | 1 |
| Accessories included | AC Power Cord |
| Housing colour | Black |
| Front speaker impedance | 4 Ω |
| Front speaker frequency range | 80 - 20000 Hz |
| Speaker weight | 6.36 g |
