Vivolink VLHUB121-EXT USB graphics adapter Black
Vivolink VLHUB121-EXT USB graphics adapter Black
SKU:VLHUB121-EXT
49 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Compliant with HDMI 2.0b and HDCP 2.3, 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz (YUV 4:4:4)
- USB-C supports DP-ALT mode for A/V, USB 2.0 data and power charging up to 60 watts
- USB-C and HDMI signal inputs support auto or manual switching mode
- Auto switching supports HDMI 5V or signal detect selection
- HDR, HDR10, HDR10+, Dolby Vision, HLG

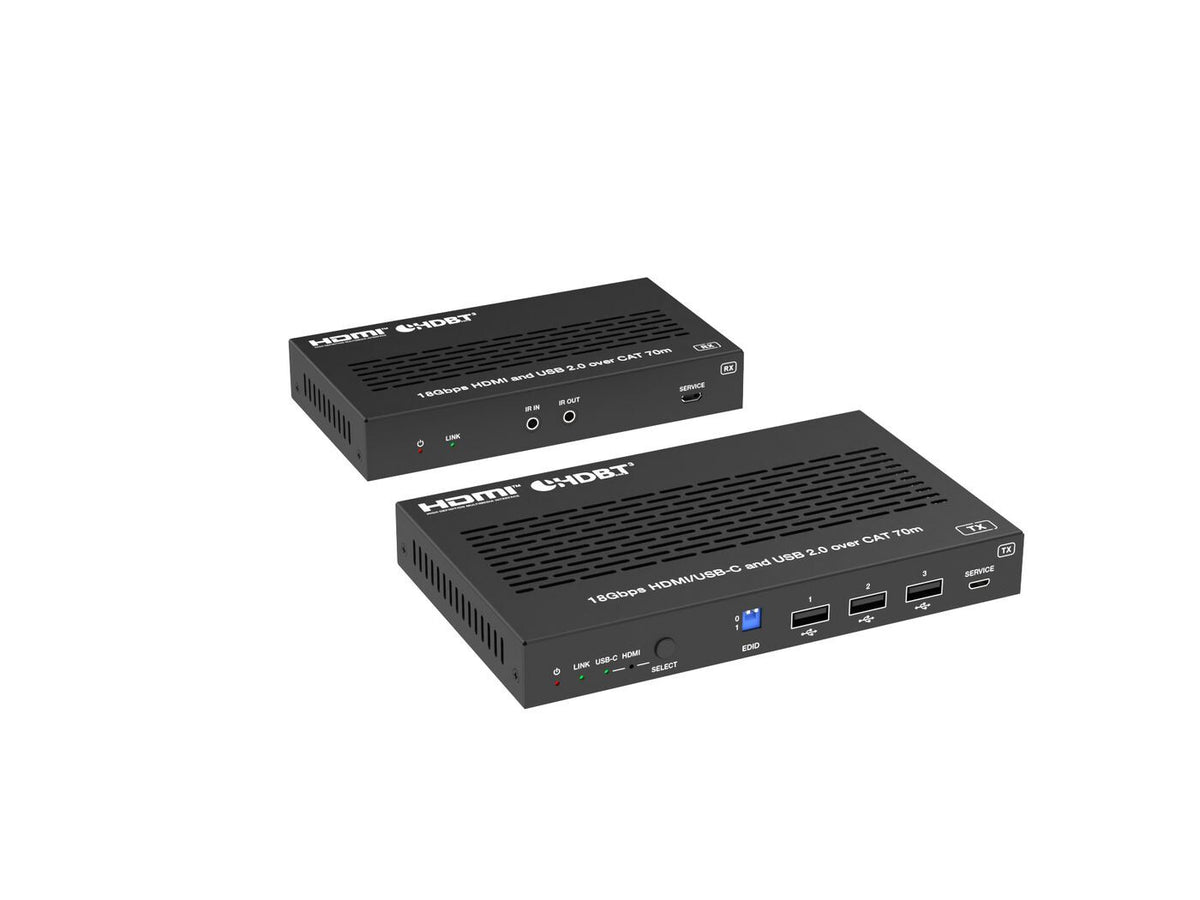

This 18Gbps HDBaseT 3.0 Extender can extend uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and USB 2.0 signals up to 230ft/70m
(4K30/1080P) or 131ft /40m (4K60) via a single CAT6A/7 cable.

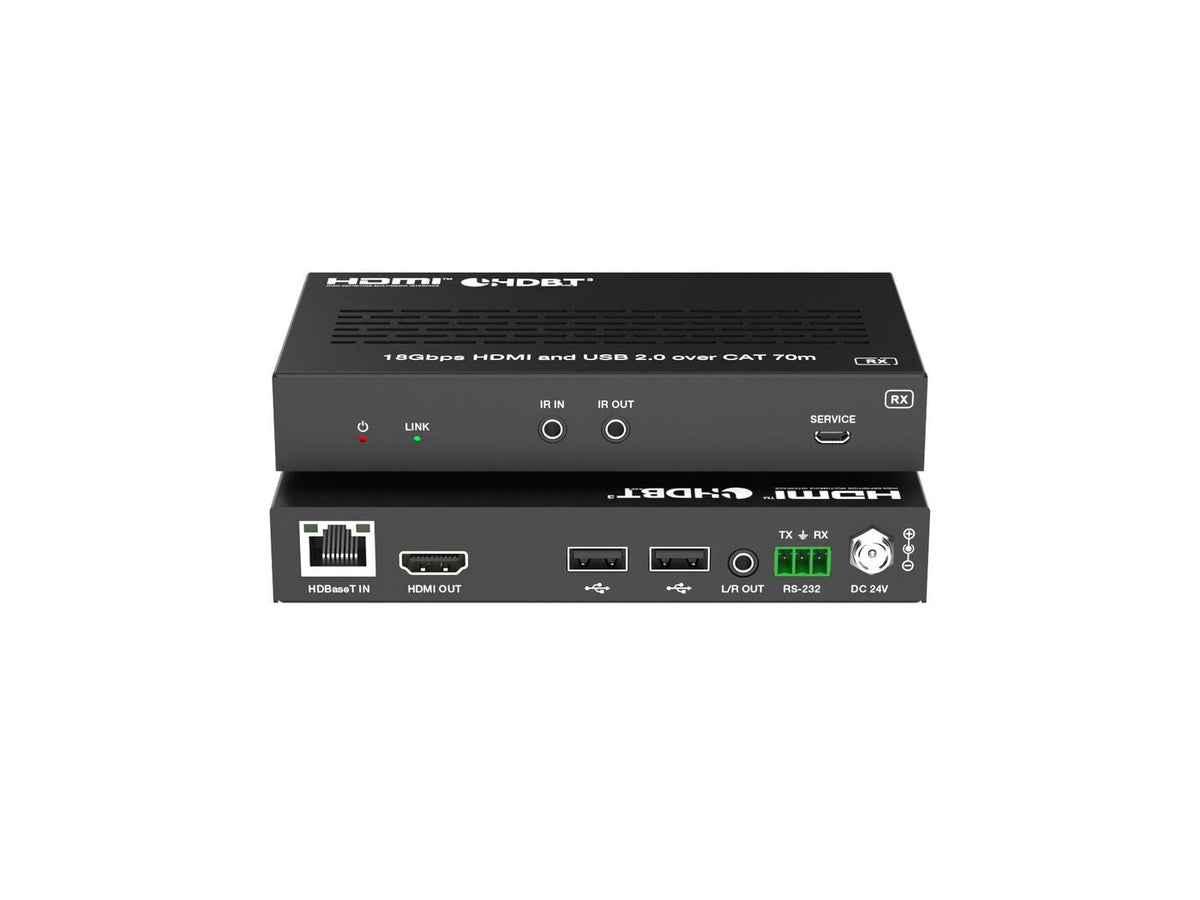

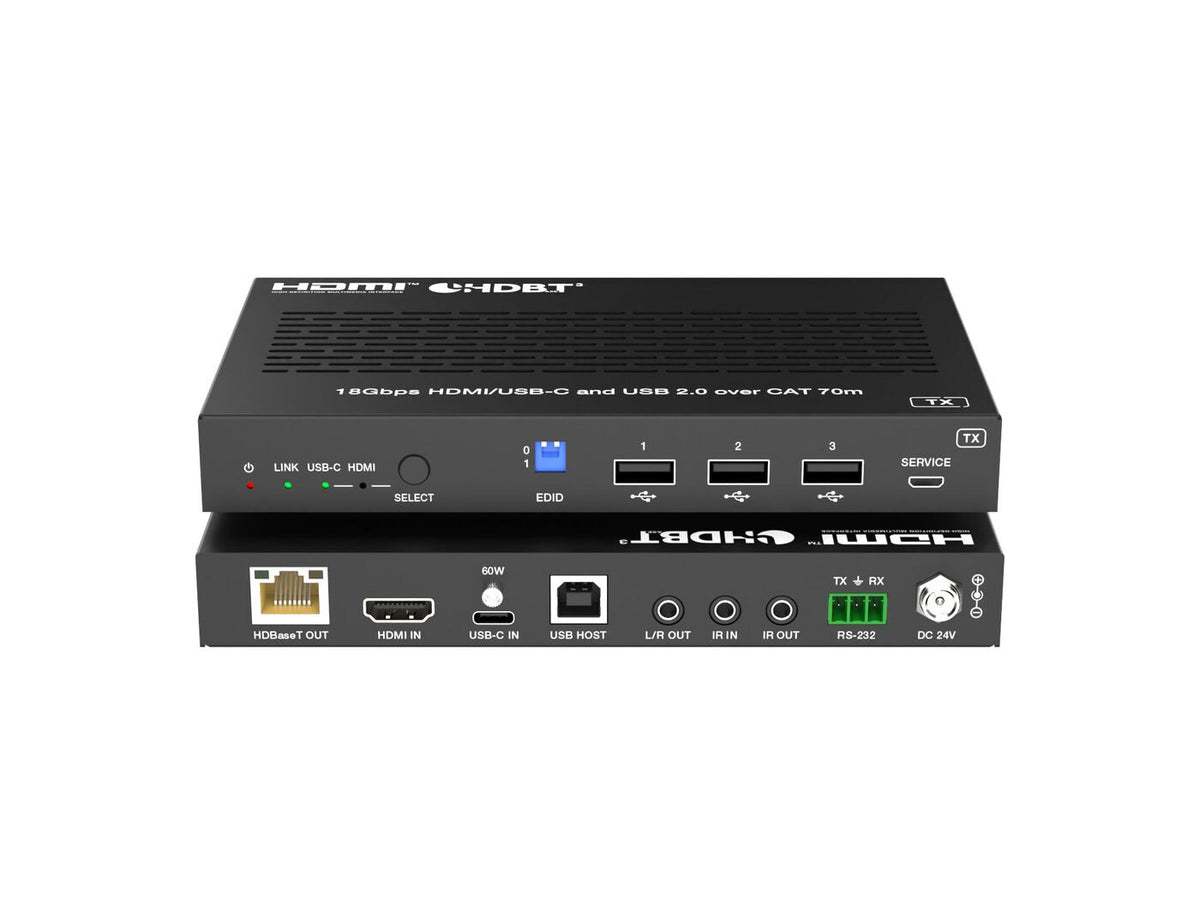

The transmitter features with 1x HDMI input, 1x USB-C input (60W charging), 1x USB Host and 3x USB Device ports. The receiver features with 1x HDMI output, 2x USB Device ports. Both transmitter and receiver support 3.5mm analog audio de-embedding, EDID management, bi-directional IR and RS-232 signal pass-through. This product supportsbi-directional 24V POC function.The Extender offers the most convenient solution for video extension via a single CAT cable with long distance capability, and it is the perfect solution for home/ commercial application.
| Performance | |
|---|---|
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A |
| USB connector gender | Female |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0b |
| HDCP | Yes |
| HDCP version | 2.3 |
| Refresh rate at maximum resolution | 60 Hz |
| Supported video modes | 2160p |
| Audio output channels | 2.0 channels |
| LED indicators | Status |
| Data transfer rate (max) | 0.35 Gbit/s |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Integrated USB cable | No |
| Power | |
|---|---|
| Input voltage | 230 V |
| Weight & dimensions | |
|---|---|
| Weight | 40 g |
| Package weight | 50 g |
| Packaging content | |
|---|---|
| Cables included | AC |
| Manual | Yes |
