VivoLink

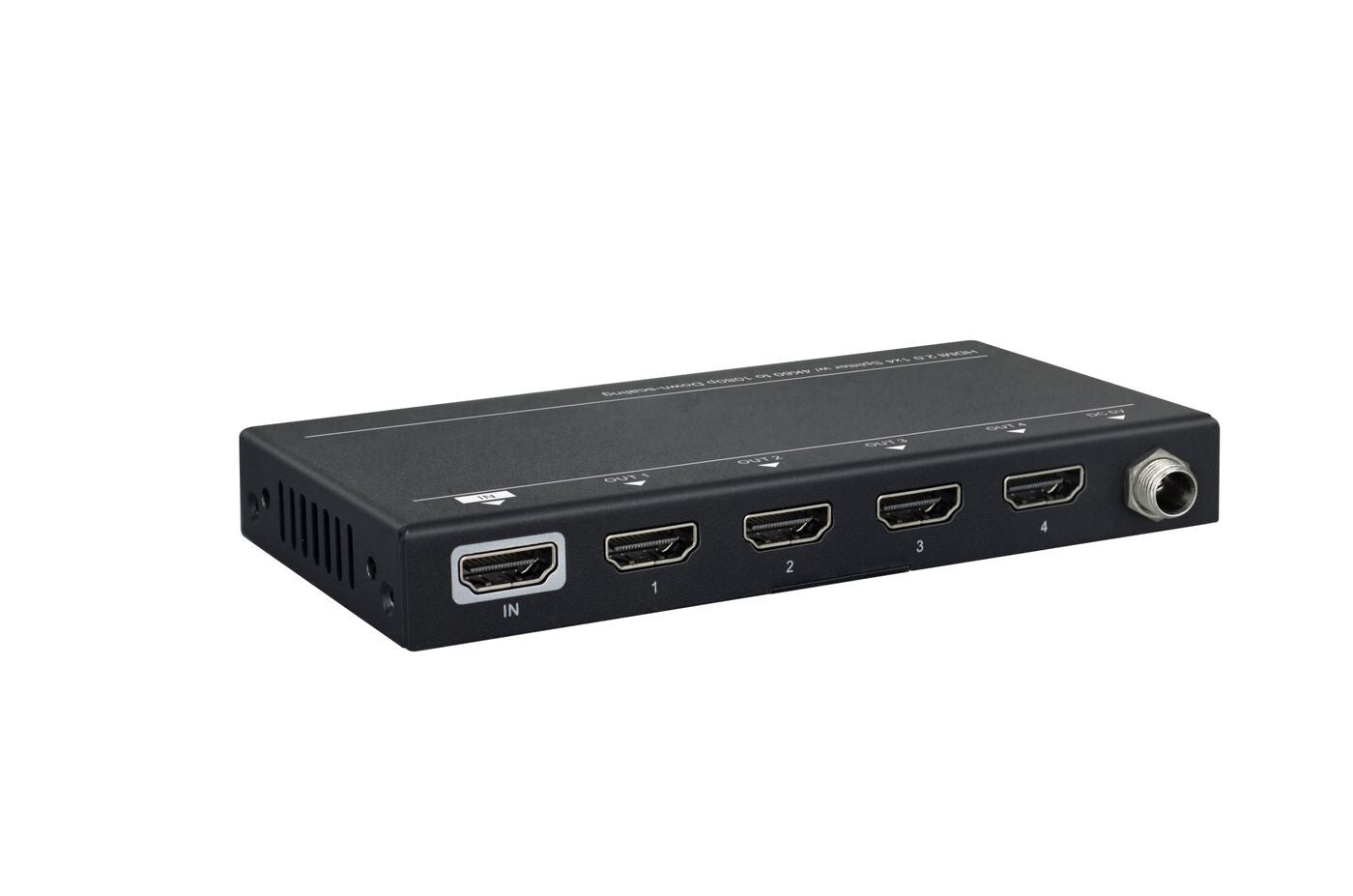

Vivolink VLHDMISP1X4 video splitter HDMI 4x HDMI
Vivolink VLHDMISP1X4 video splitter HDMI 4x HDMI
SKU:VLHDMISP1X4
75 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- HDMI 2.0 1x4 Splitter with 4K to 1080P Down-scaling
- Built-in equalizer for signal enhancement
- 18Gbps high bandwidth

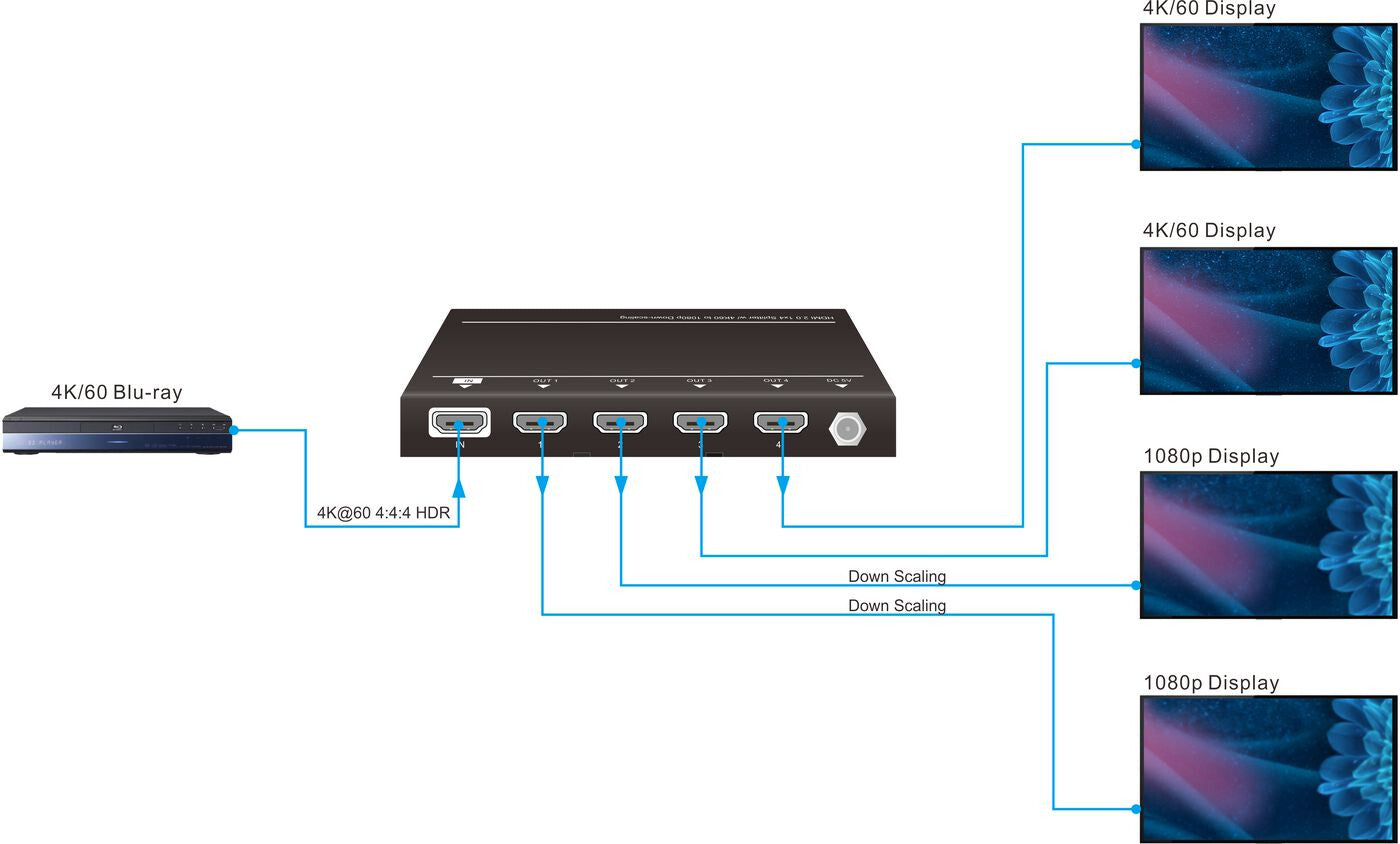

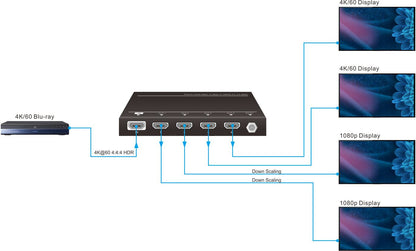

The VLHDMISP1X4 is a high-performance 1x4 HDMI splitter designed to distribute a single HDMI input to four outputs simultaneously. It supports video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, HDR10, and Dolby Vision, ensuring exceptional video quality.

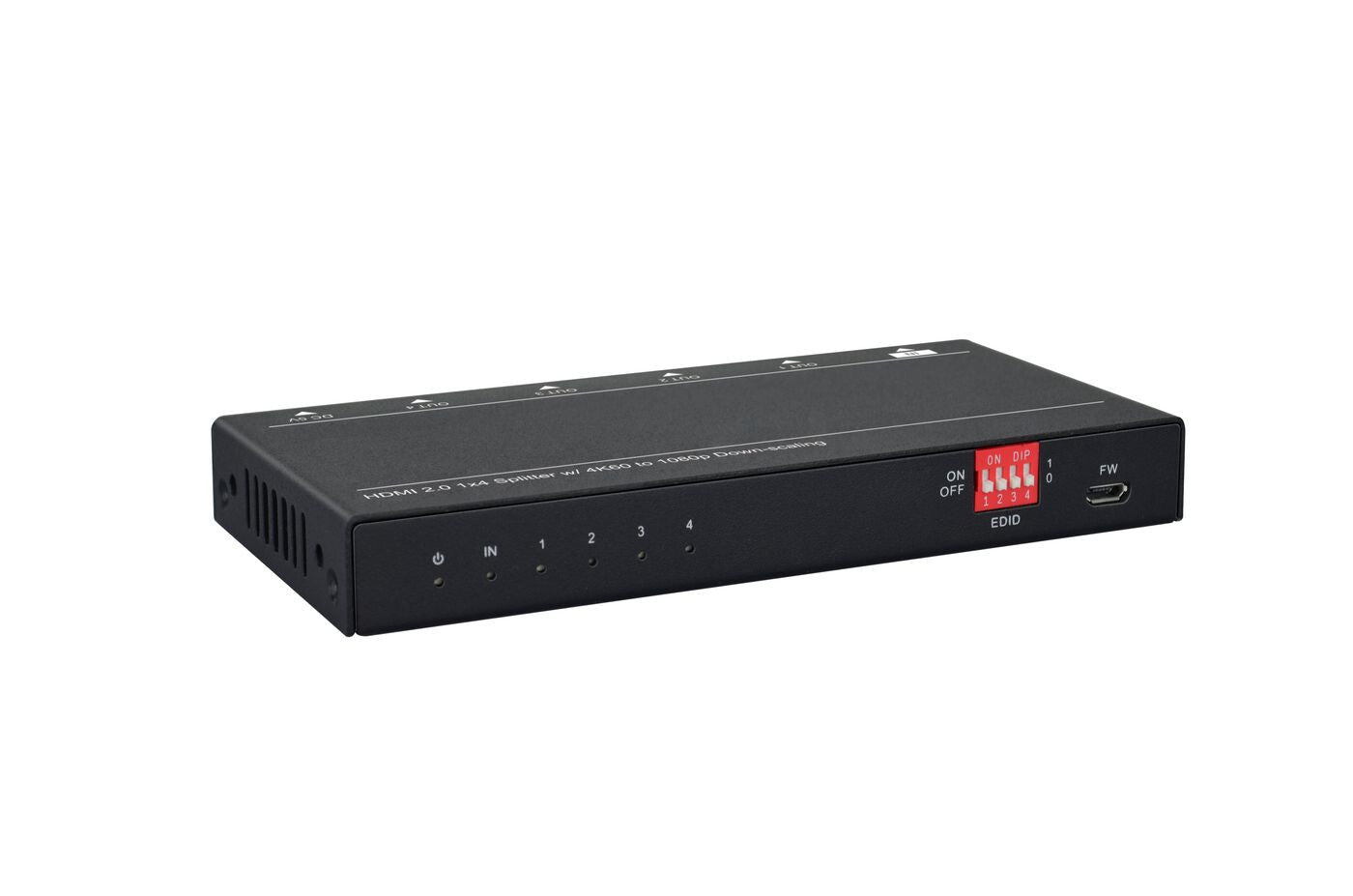

Key features include advanced EDID management with multiple built-in settings selectable via a 4-pin DIP switch, video resolution down-scaling allowing 4K input to be automatically degraded to 1080p output for compatibility with 1080p displays, and support for CEC pass-through. The splitter also provides LEDs to indicate the current operating status and supports convenient firmware upgrades through a Micro-USB port.
Typical Applications:
Perfect for distributing HDMI signals in retail stores or at trade shows.
| Ports & interfaces | |
|---|---|
| Video ports quantity | 4 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 1.4/2.0 |
| DC-in jack | Yes |
| Features | |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| 3D | Yes |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| Number of displays supported | 4 |
| LED indicators | Yes |
| Supported video modes | 3840p |
| Plug and Play | Yes |
| Power LED | Yes |
| Easy to install | Yes |
| Network | |
|---|---|
| Ethernet LAN | No |
| Power | |
|---|---|
| AC input voltage | 110 -230 V |
| Power consumption (typical) | 2.5 W |
| Weight & dimensions | |
|---|---|
| Width | 142 mm |
| Depth | 70.4 mm |
| Height | 17.6 mm |
| Weight | 360 g |
| Dimensions (WxDxH) | 142 x 70.6 x 17.6 mm |
| Packaging data | |
|---|---|
| Package width | 180 mm |
| Package depth | 121 mm |
| Package height | 114 mm |
| Package weight | 464 g |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| User guide | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Technical details | |
|---|---|
| Cascadable | Yes |
| Maximum cable length | 100 m |
| Connector type | HDMI |
