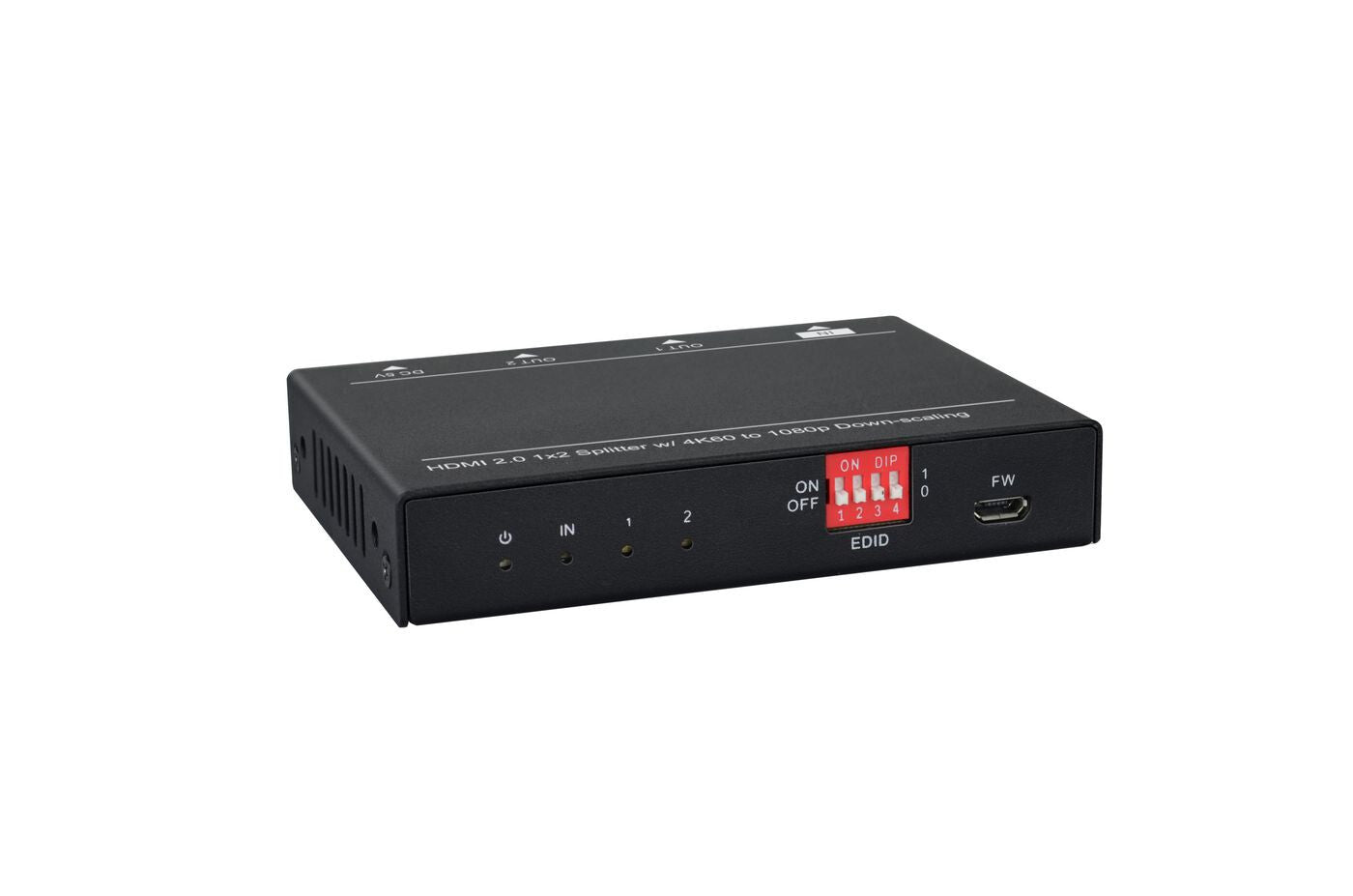

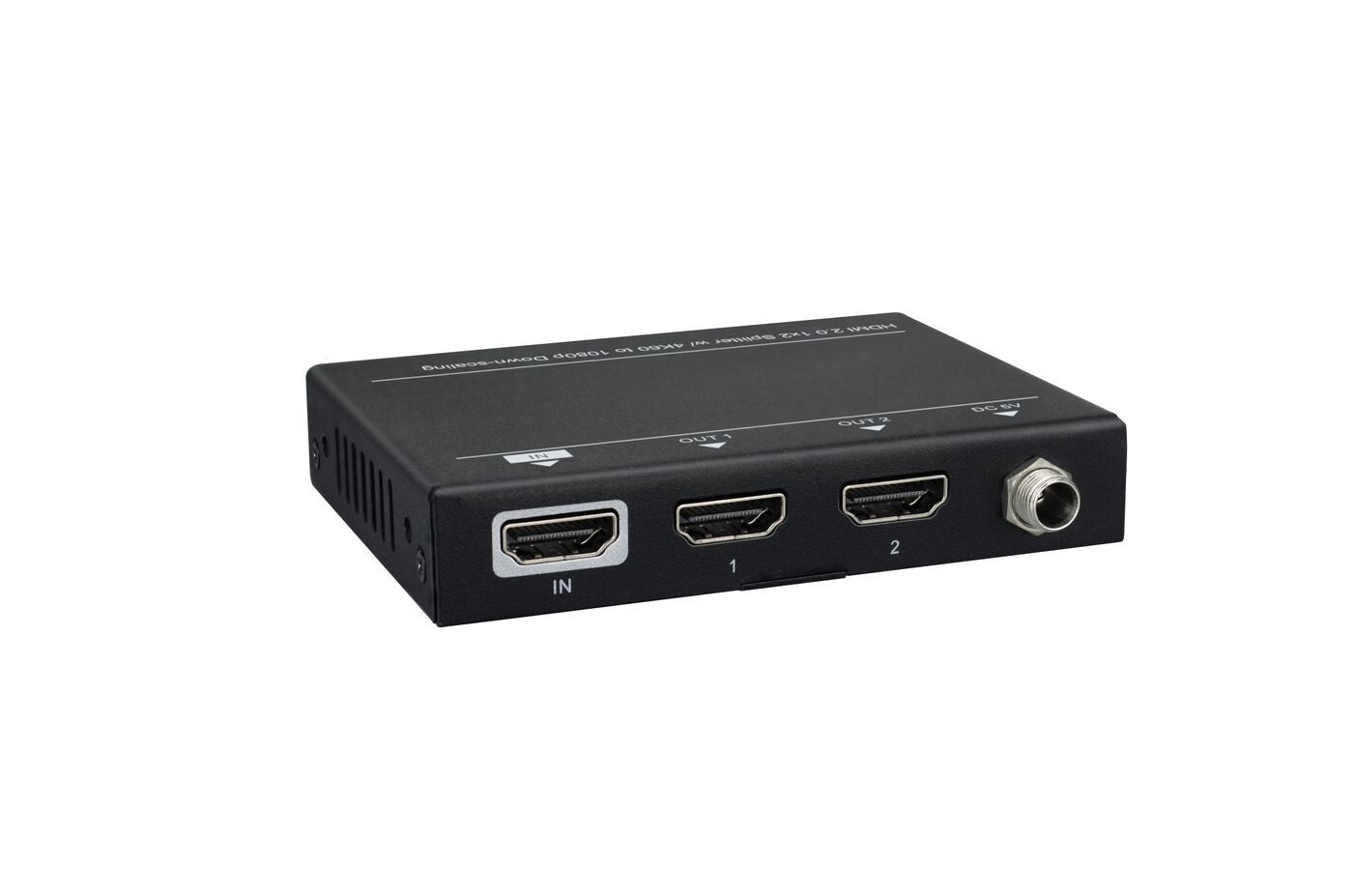

Vivolink VLHDMISP1X2 video splitter HDMI 2x HDMI

• Supports HDMI 2.0 and the video resolution up to 4K@60Hz 4:4:4
• HDMI input supports HDCP 2.3
• Supports video resolution down-scaling
• 18Gbps high bandwidth
• Advanced EDID management (multiple built-in EDID settings)
• Built-in equalizer for signal enhancement
• Supports CEC pass-through
• Provides LEDs to indicate the current operating status
• DIP switch on box to control signal source resolution
• Firmware upgrade by Micro-USB port

The VLHDMISP1X2 is a high-performance 1x2 HDMI splitter designed to distribute a single HDMI input to two outputs simultaneously. It supports video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, HDR10, and Dolby Vision, ensuring exceptional video quality.

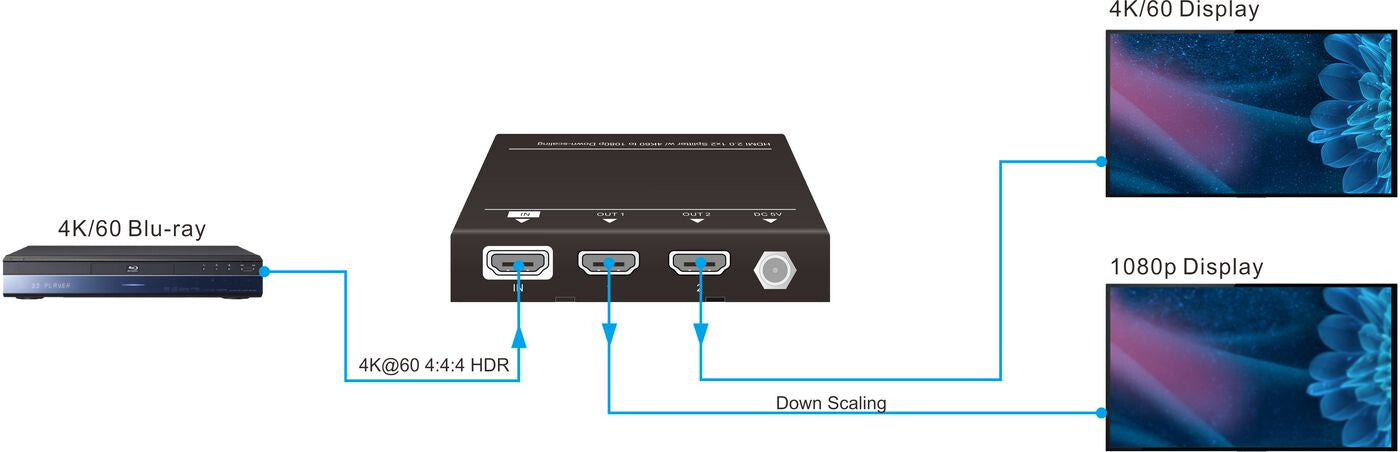

Key features include advanced EDID management with multiple built-in settings selectable via a 4-pin DIP switch, video resolution down-scaling allowing 4K input to be automatically degraded to 1080p output for compatibility with 1080p displays, and support for CEC pass-through. The splitter also provides LEDs to indicate the current operating status and supports convenient firmware upgrades through a Micro-USB port.
Typical Applications:
Ideal for distributing HDMI signals to multiple displays in retail environments, trade shows, or any setting requiring high-quality video output to multiple screens.
