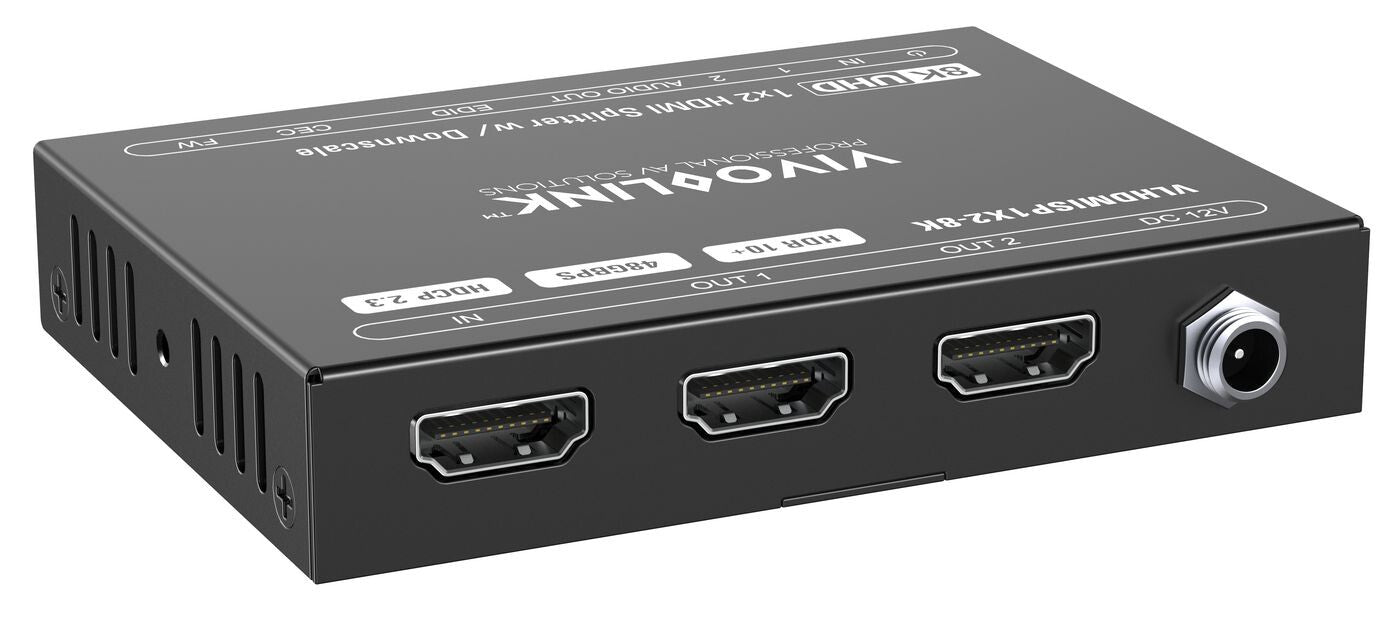

Vivolink VLHDMISP1X2-8K video splitter HDMI 2x HDMI
Vivolink VLHDMISP1X2-8K video splitter HDMI 2x HDMI
Regular price
£103.32 GBP
Regular price
Sale price
£103.32 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:VLHDMISP1X2-8K
20 in stock
- HDMI 2.1 1x2 Splitter with 8K/4K to 1080P Down-scaling
- Built-in equalizer for signal enhancement
- 48Gbps high bandwidth
HDMI splitter 1x2 (8K@60Hz)
Vivolink VLHDMISP1X2-8K HDMI splitter Supports HDMI V2.1 and the video resolution up to 8K@60Hz 4:4:4.
HDMI input supports HDCP 2.3 and the outputs support HDCP Active or HDCP Passive mode. with 8K to 4K Down-scaling

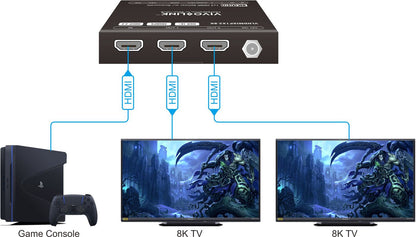

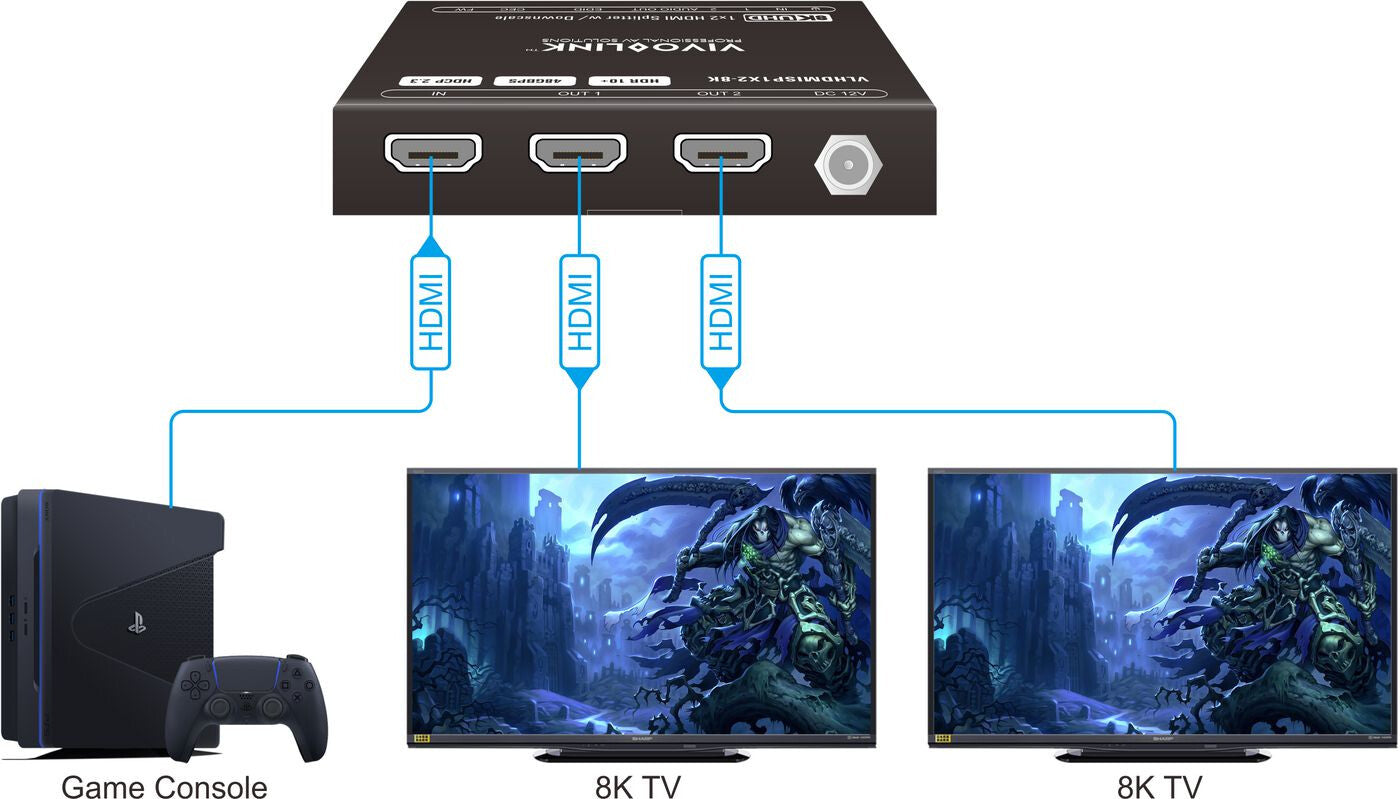

Typical installations:
Ideal for splitting HDMI signals for shops or fairs'
Function:
Supports video resolution down-scaling
48Gbps high bandwidth
Advanced EDID management (multiple built-in EDID settings)
Built-in equalizer for signal enhancement
Supports CEC pass-through
Provides LEDs to indicate the current operating status

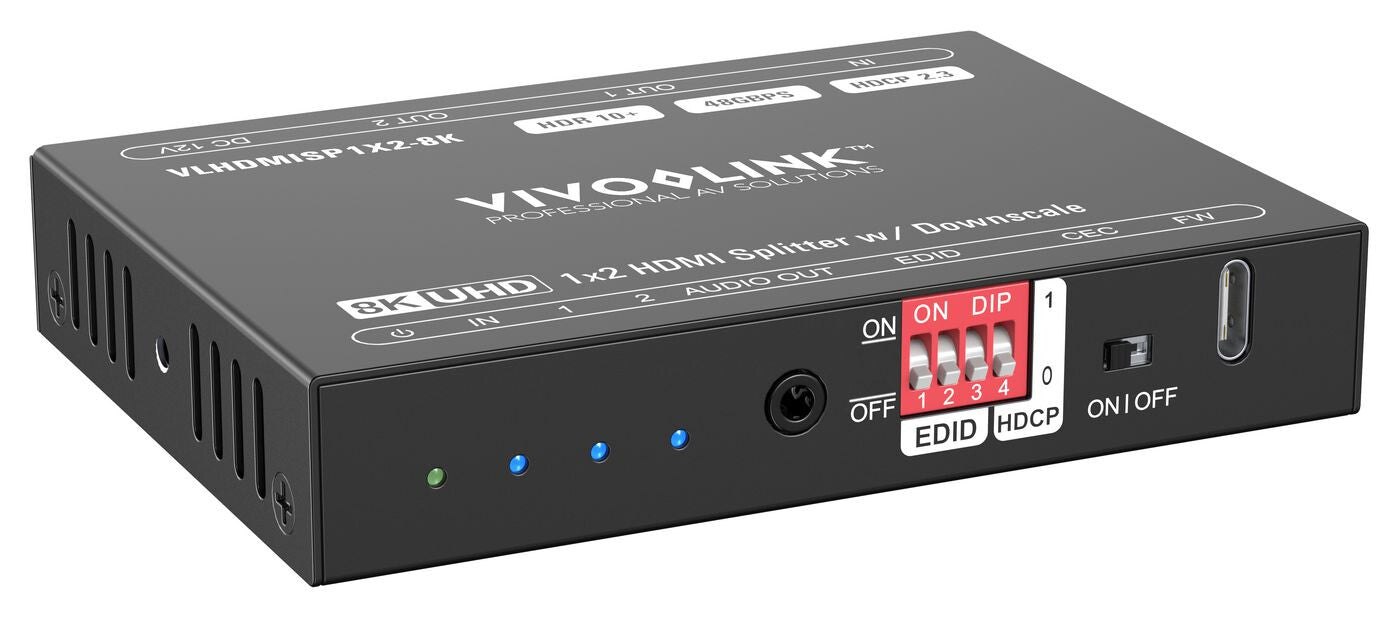

DIP switch on box to control signal source resolution
Firmware upgrade by USB-C port
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video in | 1x HDMI |
| Video out | 2x HDMI |
| HDMI version | 2.1 |
| DC-in jack | Yes |
| Features | |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum resolution | 7680 x 4320 pixels |
| HD type | 8K Ultra HD |
| 3D | Yes |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.4/2.2/2.3 |
| HDCP | Yes |
| Number of displays supported | 2 |
| LED indicators | Yes |
| Supported video modes | 4320p |
| Plug and Play | Yes |
| Power LED | Yes |
| Easy to install | Yes |
| Network | |
|---|---|
| Ethernet LAN | No |
| Power | |
|---|---|
| AC input voltage | 110 -230 V |
| Power consumption (typical) | 2.5 W |
| Weight & dimensions | |
|---|---|
| Width | 180 mm |
| Depth | 121 mm |
| Height | 114 mm |
| Weight | 300 g |
| Dimensions (WxDxH) | 96 x 70.4 x 17.6 mm |
| Packaging data | |
|---|---|
| Package width | 180 mm |
| Package depth | 121 mm |
| Package height | 114 mm |
| Package weight | 400 g |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| User guide | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Technical details | |
|---|---|
| Cascadable | Yes |
| Maximum cable length | 100 m |
| Connector type | HDMI |
