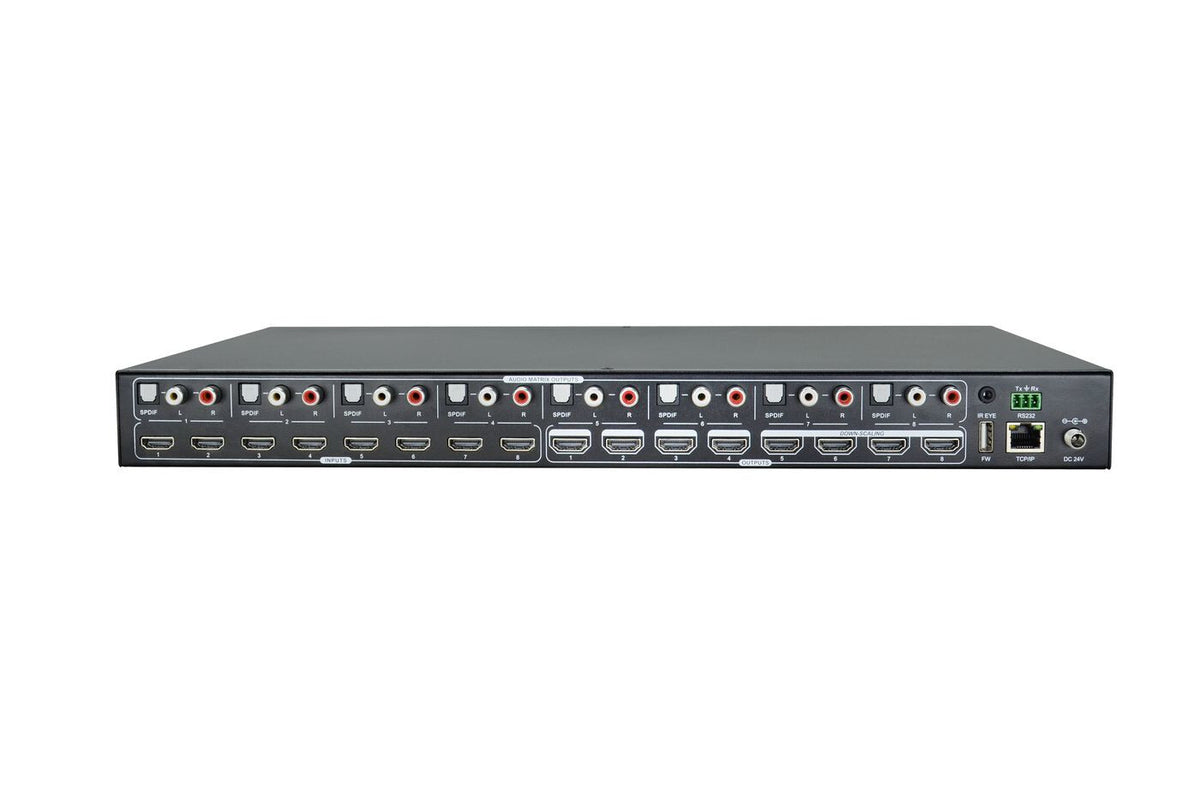

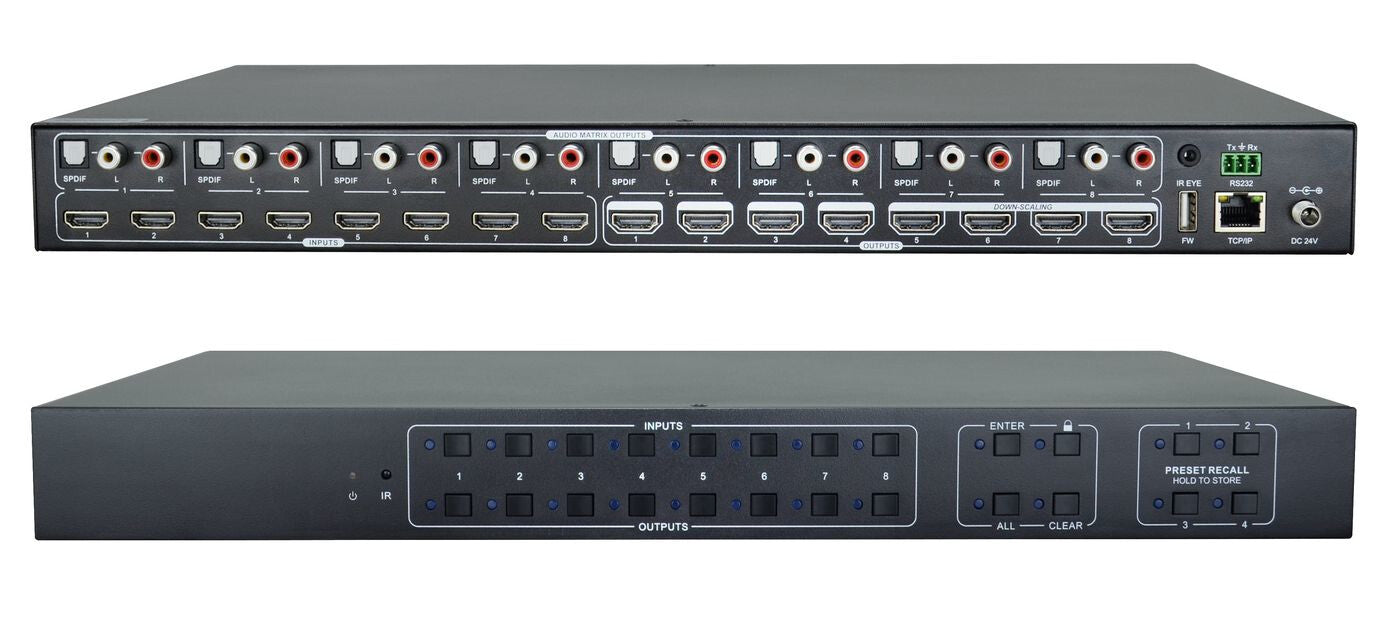

Vivolink VLHDMIMAT8X8 matrix switcher
Vivolink VLHDMIMAT8X8 matrix switcher
SKU:VLHDMIMAT8X8
Low stock: 2 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- HDMI 2.0 Matrix HDCP 2.3 Compliant
- Support 18Gbps bandwidth for 4K@60Hz 4:4:4 8bit
- HDMI Output support up to 5V 500mA for AOC cable
- Build-in GUI for matrix set-up and control over LAN
- Advanced EDID management and HDCP handling
- 4K to 1080p downscaling on up to four HDMI outputs
The Vivolink VLHDMIMAT8X8 is a professional 8x8 HDMI 2.0 matrix switcher designed for demanding AV installations where reliable 4K video distribution and flexible audio routing are essential.
The matrix supports up to 4K@60Hz 4:4:4 with HDR10 and Dolby Vision compatibility, while also supporting HDCP 2.3 for modern professional AV environments. With integrated audio matrix functionality, the unit allows audio de-embedding from any HDMI input or output to both analogue and digital audio outputs.

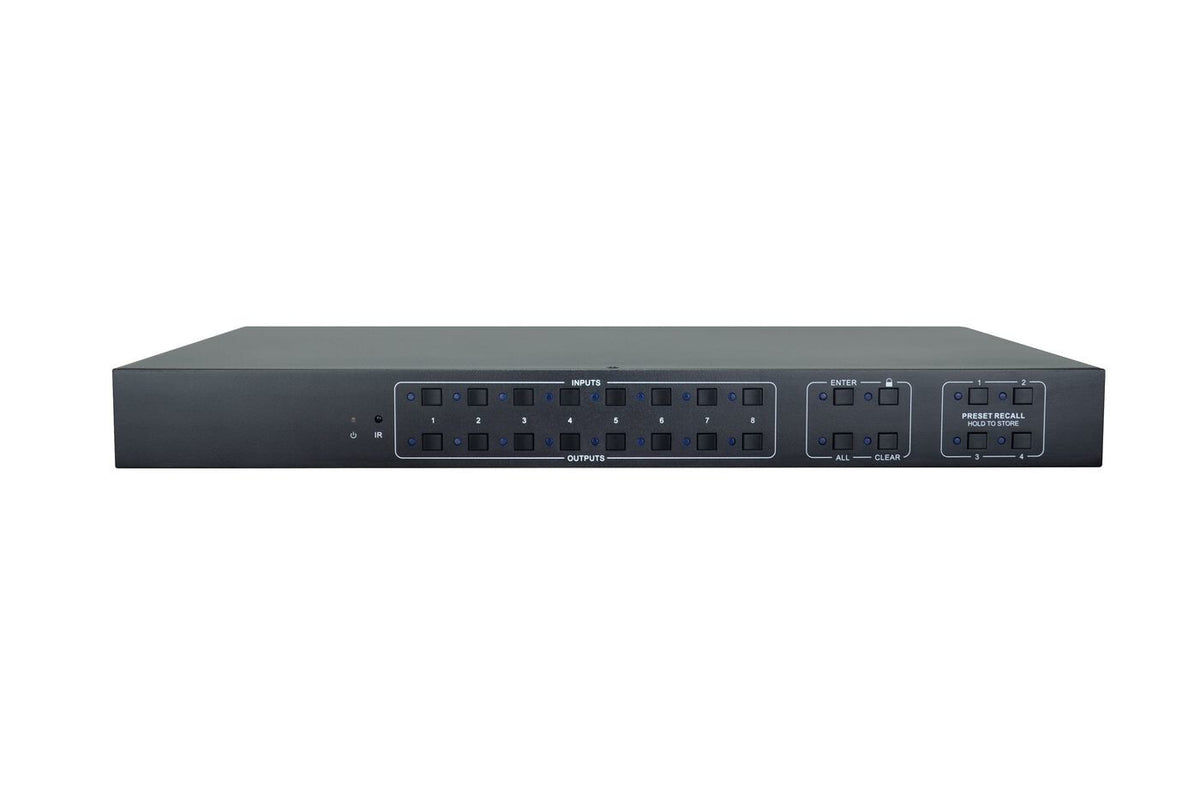

VLHDMIMAT8X8 includes advanced EDID management, comprehensive HDCP handling and multiple control options including front panel, IR, RS232 and TCP/IP control, making it ideal for integration into professional AV control systems.
The last four HDMI outputs support integrated 4K to 1080p downscaling, making the matrix highly flexible in mixed-resolution installations where both 4K and Full HD displays are used simultaneously.
The matrix also supports Active Optical HDMI cables (AOC) with HDMI power output up to 5V/500mA, helping ensure stable long-distance HDMI installations.
Key features
8 HDMI inputs and 8 HDMI outputs
Supports LPCM 7.1, Dolby Atmos®, Dolby TrueHD®, DTS:XTM and DTS-HD Master AudioTM pass-through
Individual volume adjustment on each analogue L/R output
18Gbps bandwidth
Supports bi-directional IR and RS232 extension
Rackmountable professional AV design
Supports firmware upgrades via network interface
HDMI outputs support up to 5V/500mA for AOC cables
Typical Applications
Conference rooms
Control centers
Education facilities
Corporate environments
Digital signage systems
Hospitality AV installations
Broadcast and production environments
Multi-display AV distribution systems
| Features | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
| Audio formats supported | PCM |
| Design | |
|---|---|
| Housing colour | Black |
| Rack mounting | Yes |
| LED indicators | Yes |
| Remote control included | Yes |
| Ports & interfaces | |
|---|---|
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 8 |
| HDMI version | 2.0 |
| RJ-45 input ports | 1 |
| Digital audio optical out | 8 |
| RS-232 ports | 1 |
| Digital audio coaxial out | 1 |
| Audio (L/R) out | 8 |
| Power | |
|---|---|
| Power consumption (typical) | 24 W |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 55 °C |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
| Weight & dimensions | |
|---|---|
| Width | 350 mm |
| Depth | 540 mm |
| Height | 140 mm |
| Weight | 2 kg |
| Package width | 350 mm |
| Package depth | 540 mm |
| Package height | 140 mm |
| Package weight | 3.1 kg |
| Packaging content | |
|---|---|
| Cables included | IR sensor |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
