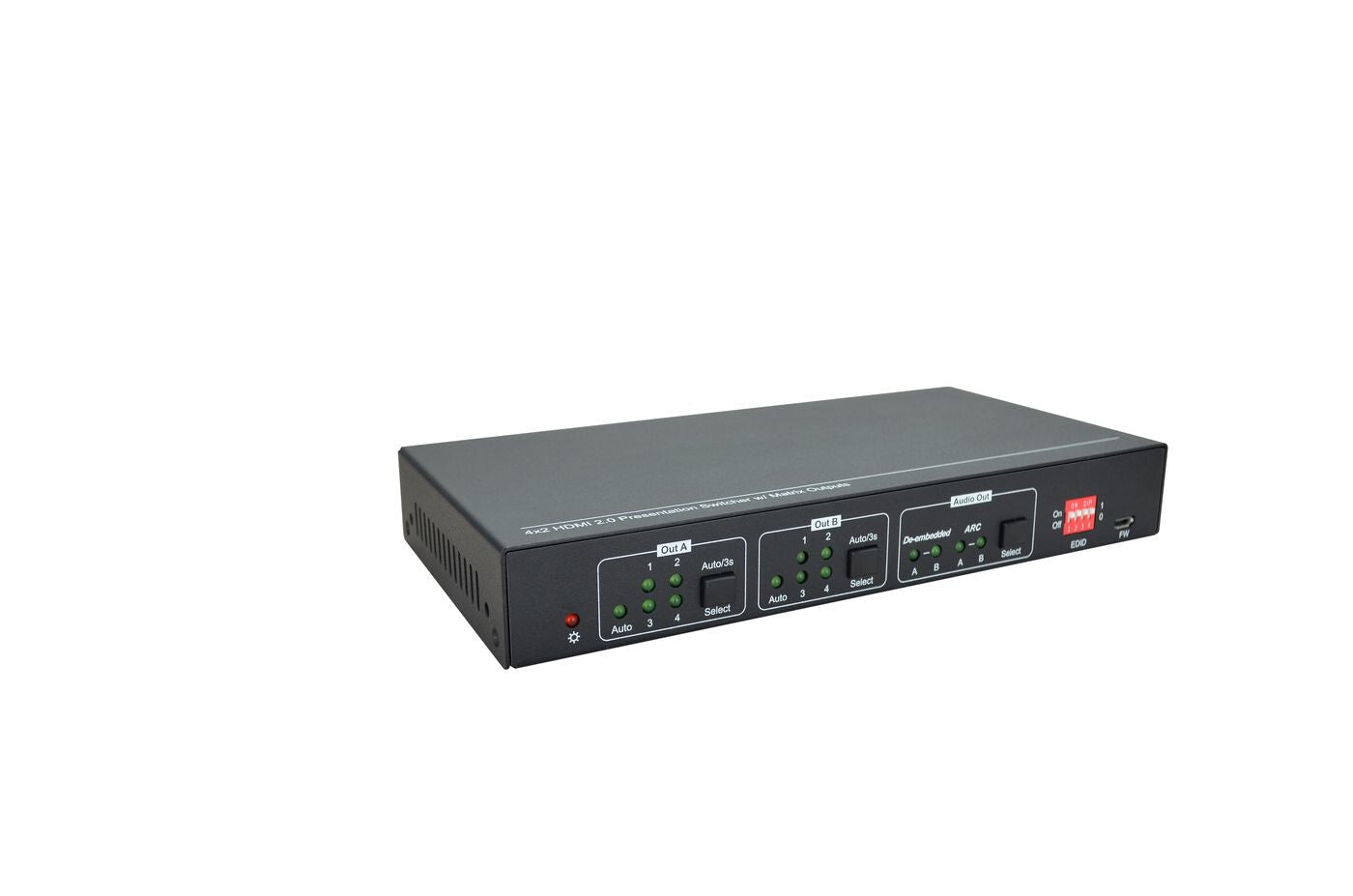

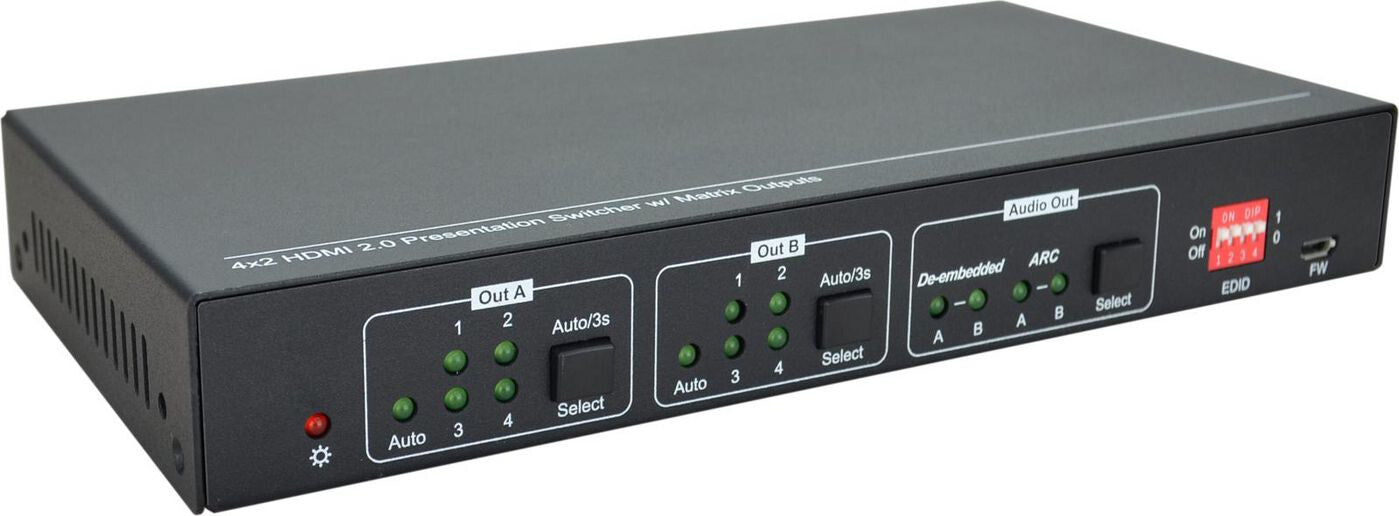

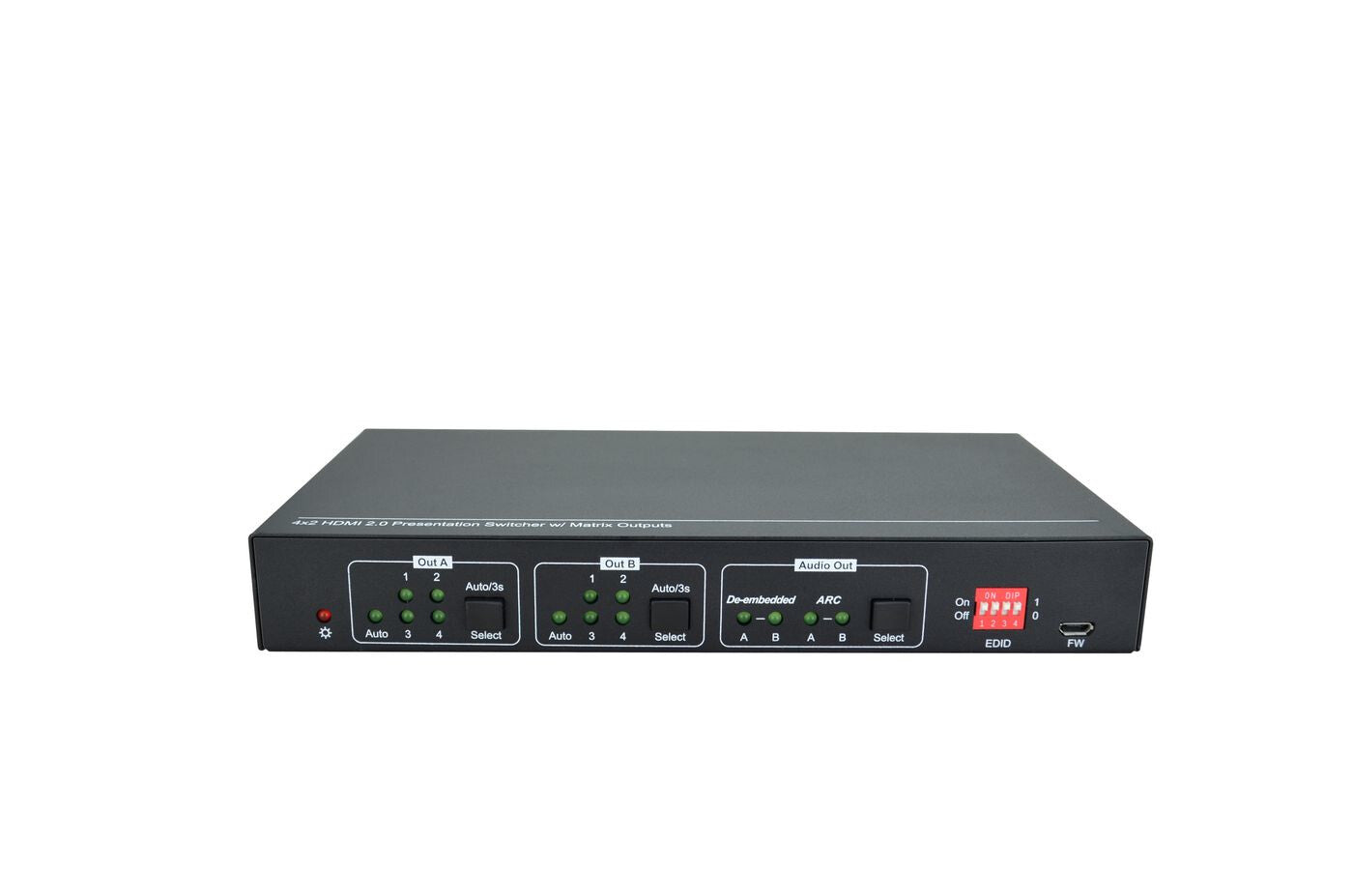

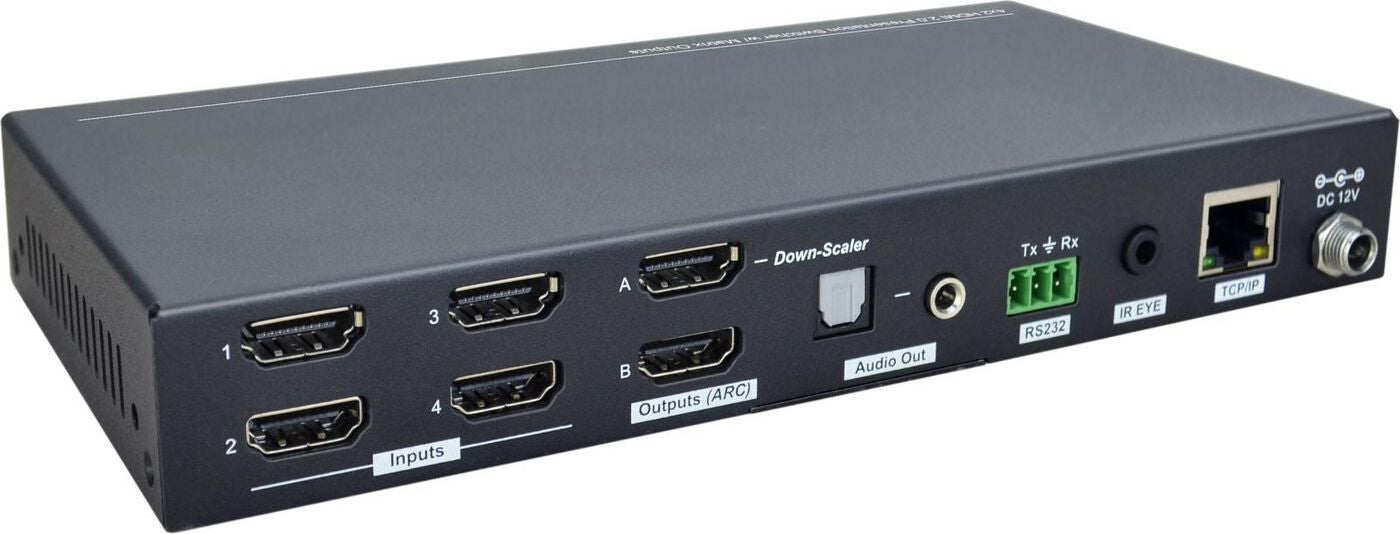

Vivolink VLHDMIMAT4X2RS matrix switcher Scaling matrix switcher 7.5 W

Name: Vivolink VLHDMIMAT4X2RS matrix switcher Scaling matrix switcher 7.5 W
Brand: VivoLink
SKU: VLHDMIMAT4X2RS
Price: 325.97 GBP
Availability: InStock

£325.97 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

SKU:VLHDMIMAT4X2RS

12 in stock

4x2 HDMI presentation switcher with matrix outputs
HDMI 2.0b, 4K@60Hz 4:4:4 8bit, HDR 10, HDCP 2.2
RS232, IR and WEB GUI control (not telnet)
4K to 1080p down-scaling
SPDIF and 3.5mm output for dual HDMI OUT audio extraction and dual HDMI OUT ARC
Smart EDID management
True 4K matrix switcher that can be controlled via WEB GUI

HDMI 2.0 4x2, 4K@60Hz, 18Gbps, HDCP 2.2, SPDIF, 3.5mm, RS-232, 200x28.5x100 mm

VLHDMIMAT4X2RS is a 4K HDR capable 4x2 HDMI Matrix Switcher that features 18Gbps bandwidth and HDCP2.2 on all inputs and outputs. It’s fully compliant with HDMI2.0 standard and backward compatible with old HDMI1.4 sources and displays. SPDIF and 3.5mm audio breakout audio from corresponding HDMI outputs.

Smart EDID management.
True 4K matrix switcher that can be controlled via WEB GUI (not telnet)

Features
Product type	Scaling matrix switcher
Maximum resolution	3840 x 2160 pixels
Bandwidth	18 Gbit/s
HDCP	Yes
HDCP version	2.2
High Dynamic Range (HDR) supported	Yes
Extended display identification data (EDID)	Yes
Audio formats supported	PCM

Design
Housing colour	Black
Control type	Buttons
LED indicators	Yes
Remote control included	Yes

Display
Built-in display	No

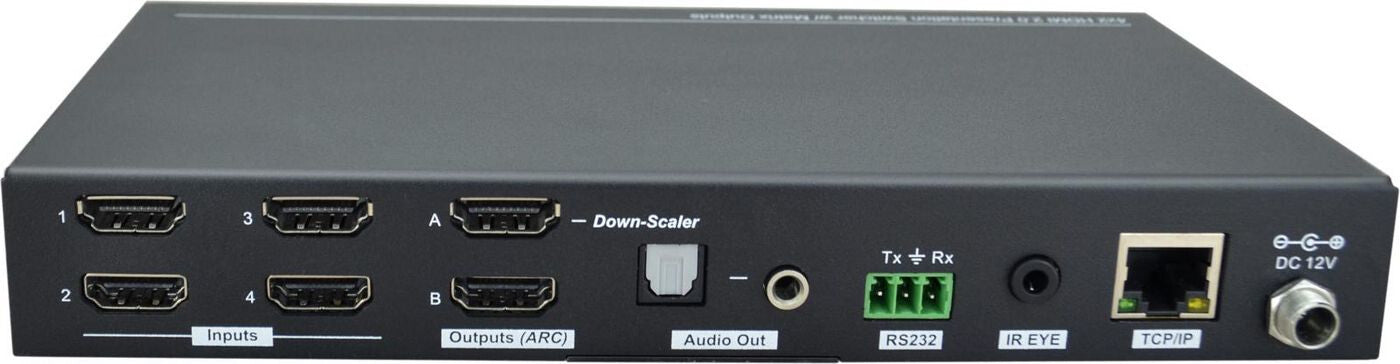

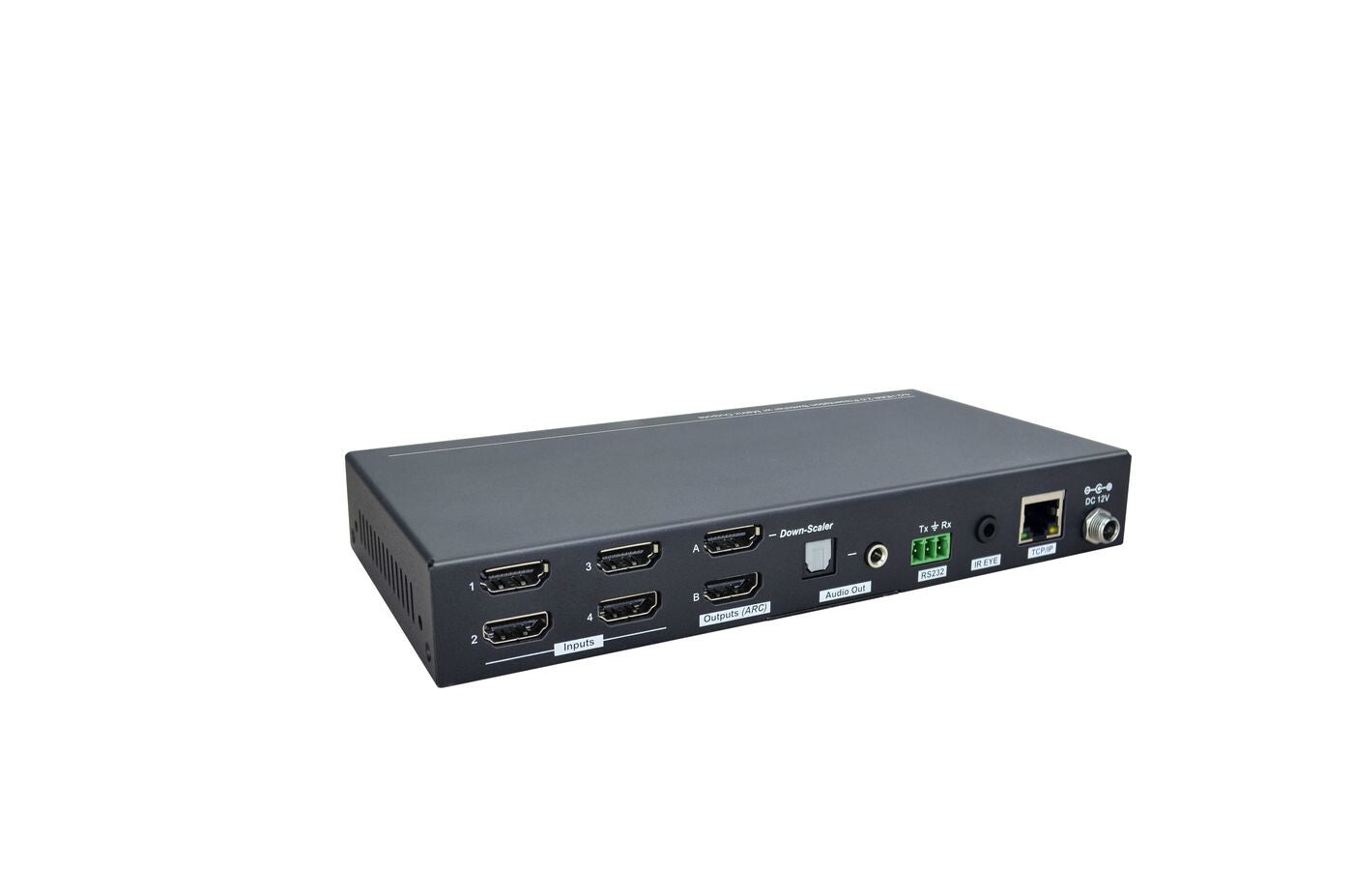

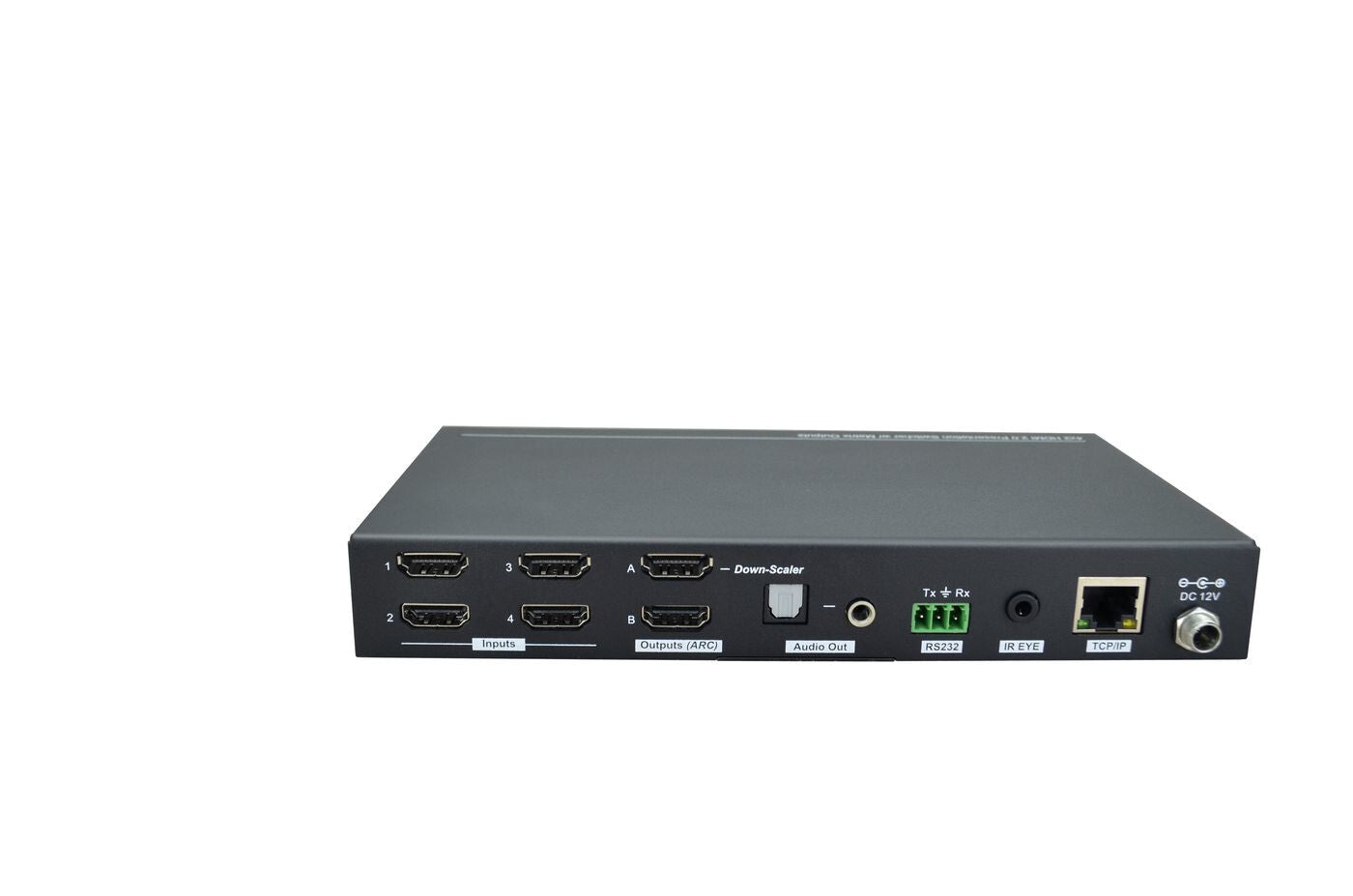

Ports & interfaces
HDMI input ports quantity	4
HDMI output ports quantity	2
HDMI version	2.0b
RJ-45 input ports	1
Digital audio optical out	1
USB connector type	Micro-USB
USB ports quantity	1
Ethernet LAN (RJ-45) ports	1
RS-232 ports	1
Audio (L/R) out	1
