VivoLink

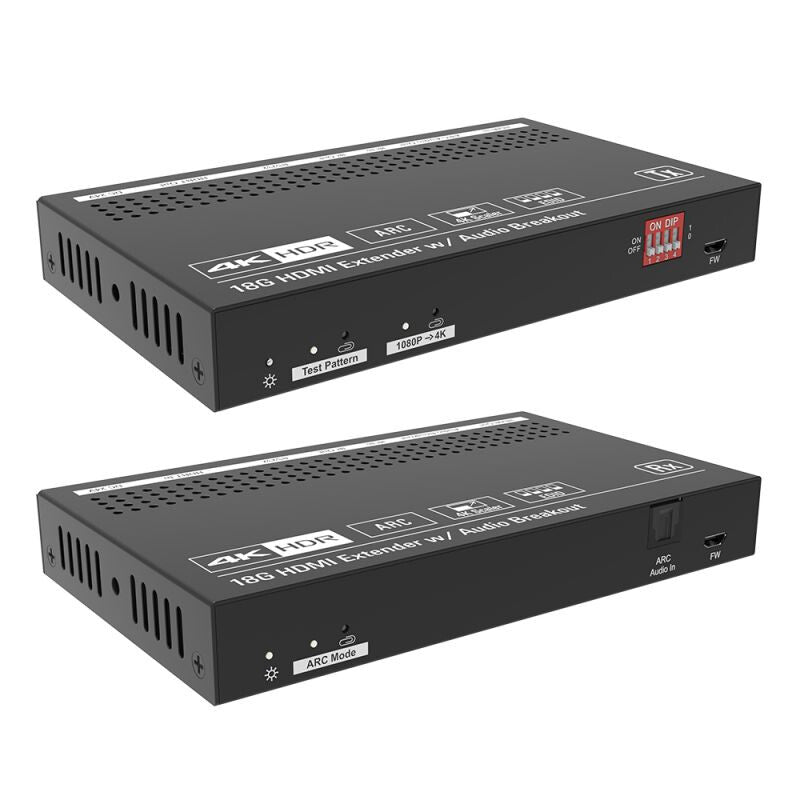

Vivolink VLHDMIEXTHDB2.0S AV extender AV transmitter & receiver Black
Vivolink VLHDMIEXTHDB2.0S AV extender AV transmitter & receiver Black
Regular price
£385.62 GBP
Regular price
Sale price
£385.62 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:VLHDMIEXTHDB2.0S
11 in stock
- Support ARC
- built-in EDID settings by 4-pin DIP switch
- Full HDMI 2.0 compliant
- support HDCP2.2 Active or HDCP Passive mode
- 18 Gbps bandwidth
- Slim 4K HDBT extender
- Two way PoC
- Support Bi-directional IR and RS232

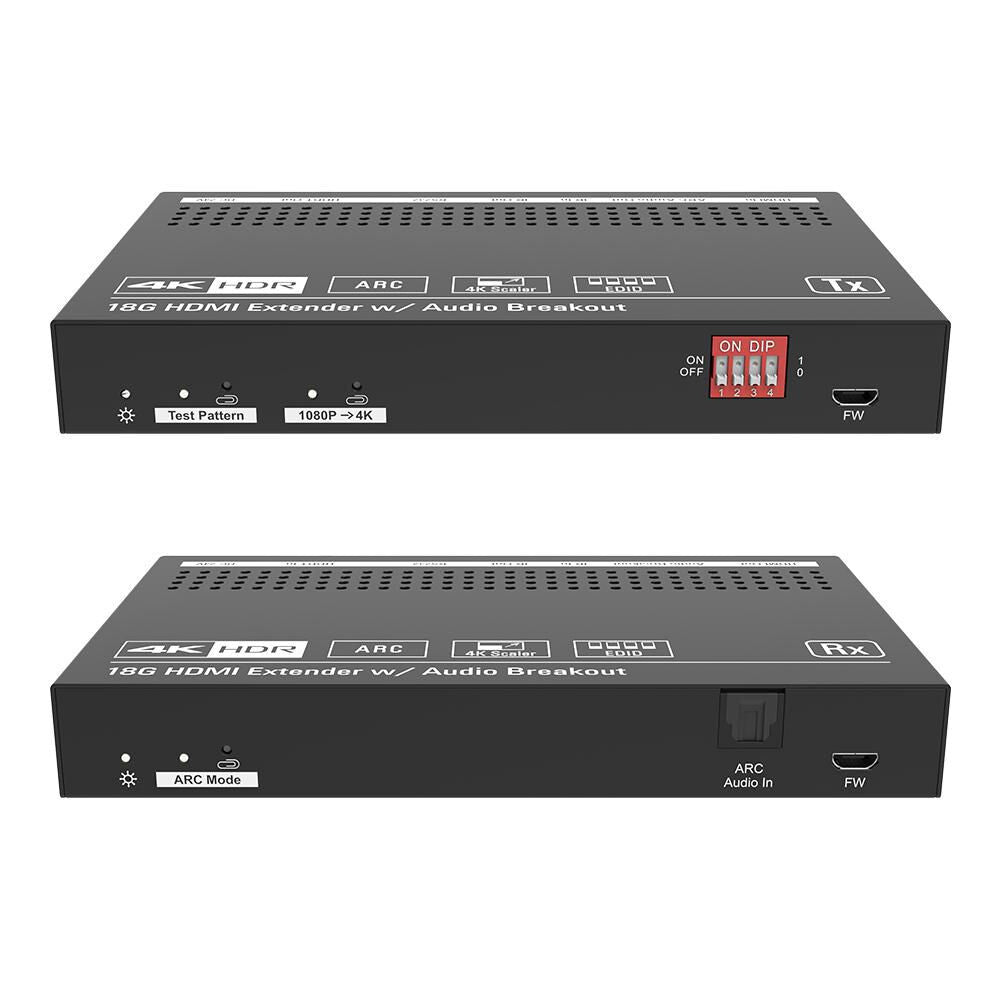

- Build in Test pattern in 4K/1080P image for troubleshooting
HDBaseT Extender kit HDMI 2.0 18Gbps /w Audio Breakout
Transmitter/Receiver HDMI 2.0 18Gbps /w Audio Breakout
Supports video resolution up-scaling, the 1080P input can be automatically upgraded to 4K output.
Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.
Function:
HDMI 2.0 extender
Point to point,Tx to Rx for 70m@1080P,40m 4K@60Hz 4:4:4
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| RS-232 pass-through | Yes |
| CEC pass-through | Yes |
| IR pass-through | Yes |
| HDCP pass-through | Yes |
| HDCP version | 2.2 |
| Wall mountable | Yes |
| HDCP & EDID bypass | Yes |
| Remote control type | IR + RS232 |
| Supported video modes | 3840p |
| LED indicators | Yes |
| HDCP | Yes |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| HDBaseT certified | Yes |

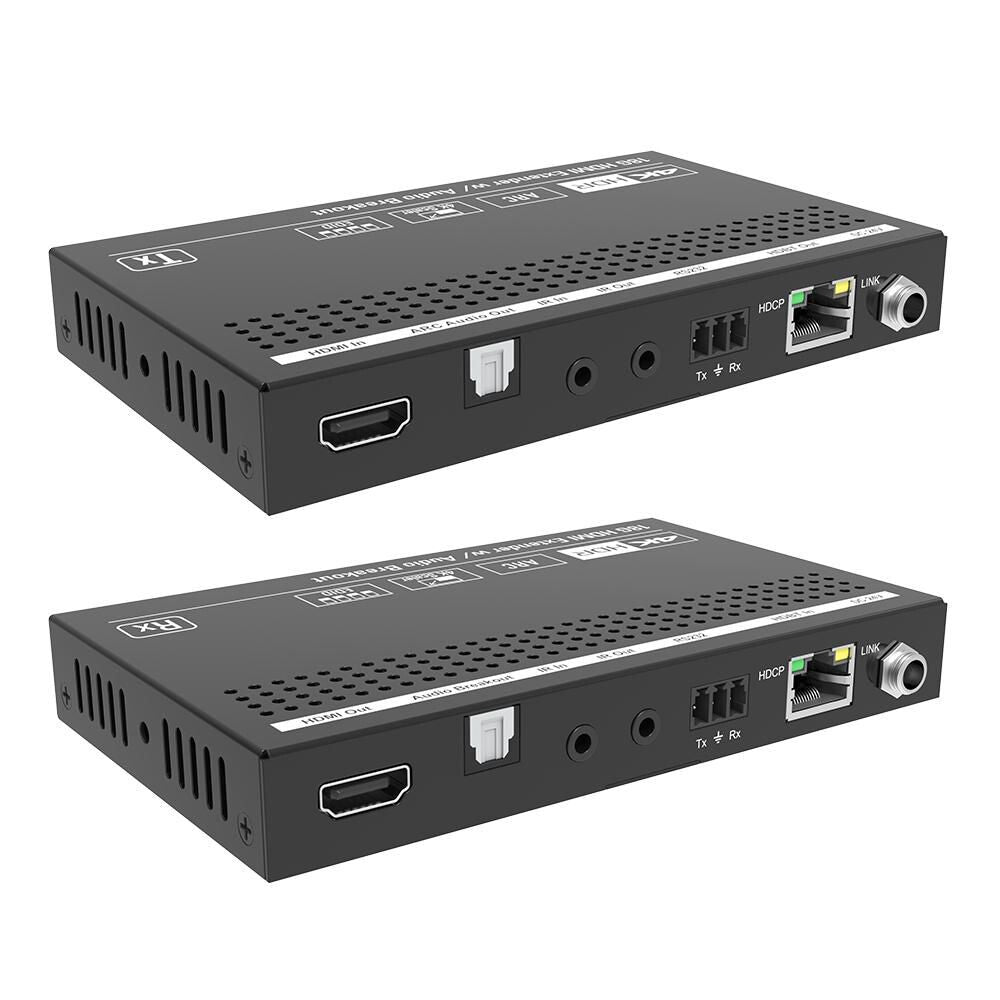

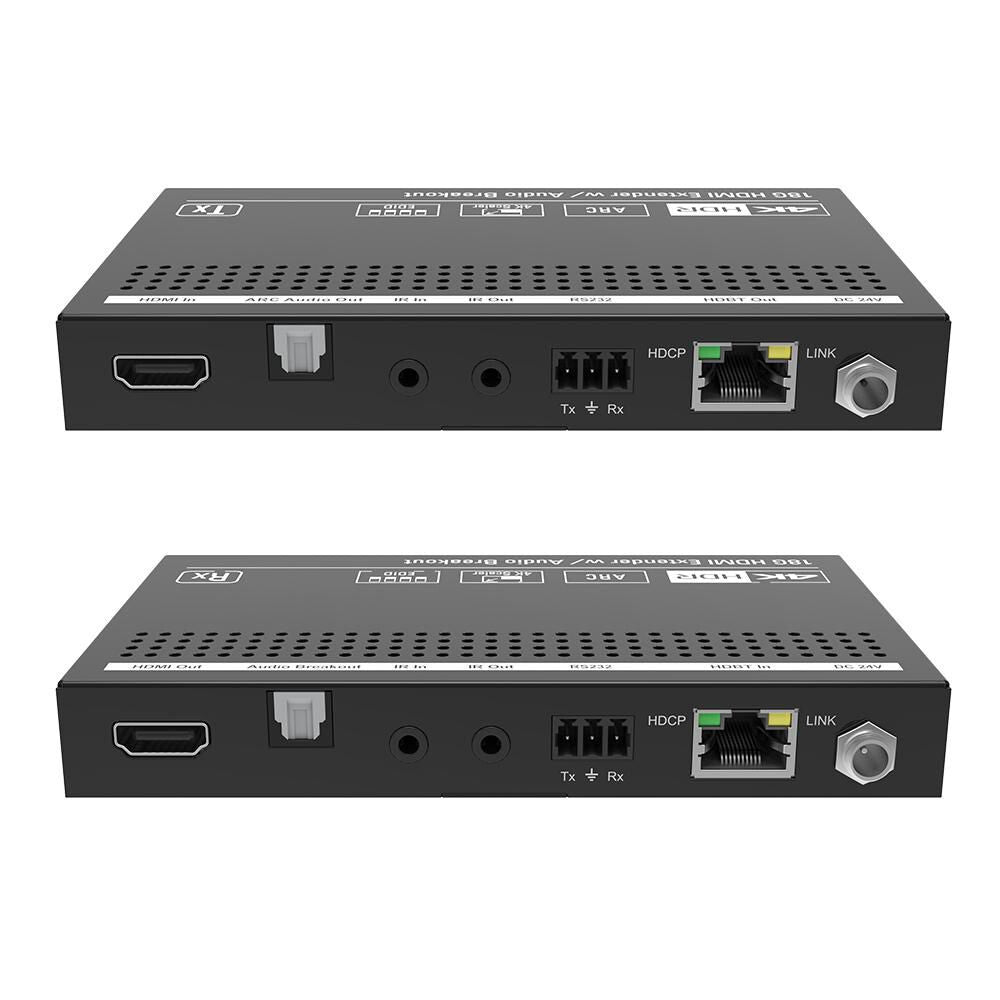

| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| HDMI in | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Digital audio optical output type | TOSLINK |
| Video out | 1 |
| Video in | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Serial ports quantity | 1 |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| Serial interface type | RS-232 |
| DC-in jack | Yes |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operating voltage | 24 V |
| Power consumption (transmitter) (max) | 14 W |
| Power consumption (receiver) (max) | 14 W |
| External power adapter | Yes |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 184 mm |
| Depth | 161 mm |
| Height | 126 mm |
| Weight | 500 g |
| Packaging data | |
|---|---|
| Package width | 184 mm |
| Package depth | 161 mm |
| Package height | 126 mm |
| Package length | 18.5 cm |
| Package weight | 660 g |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Included power plug types | EU |
| Mounting brackets included | Yes |
| IR receiver included | No |
| IR blaster included | No |
| Technical details | |
|---|---|
| Audio support | Yes |
