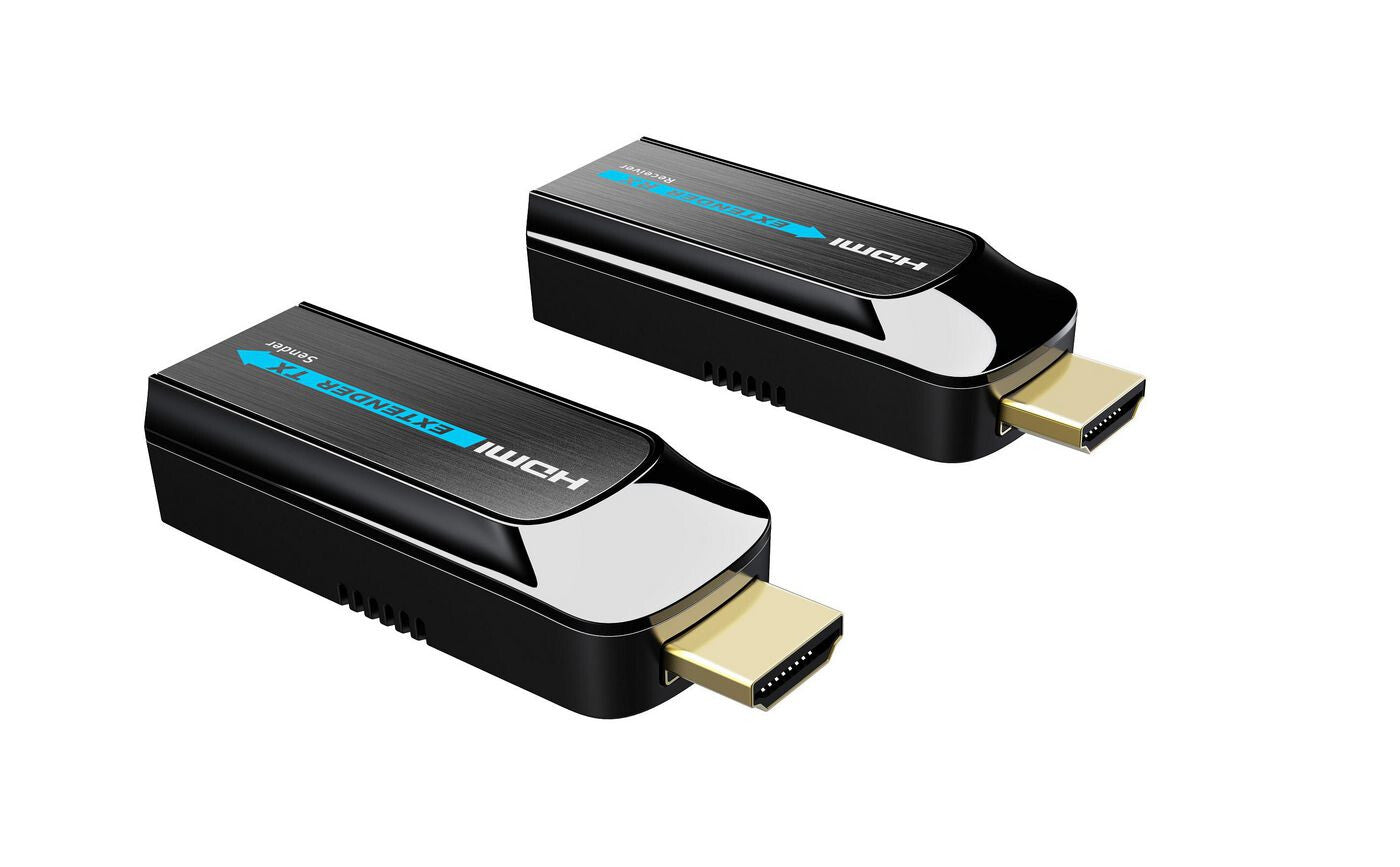

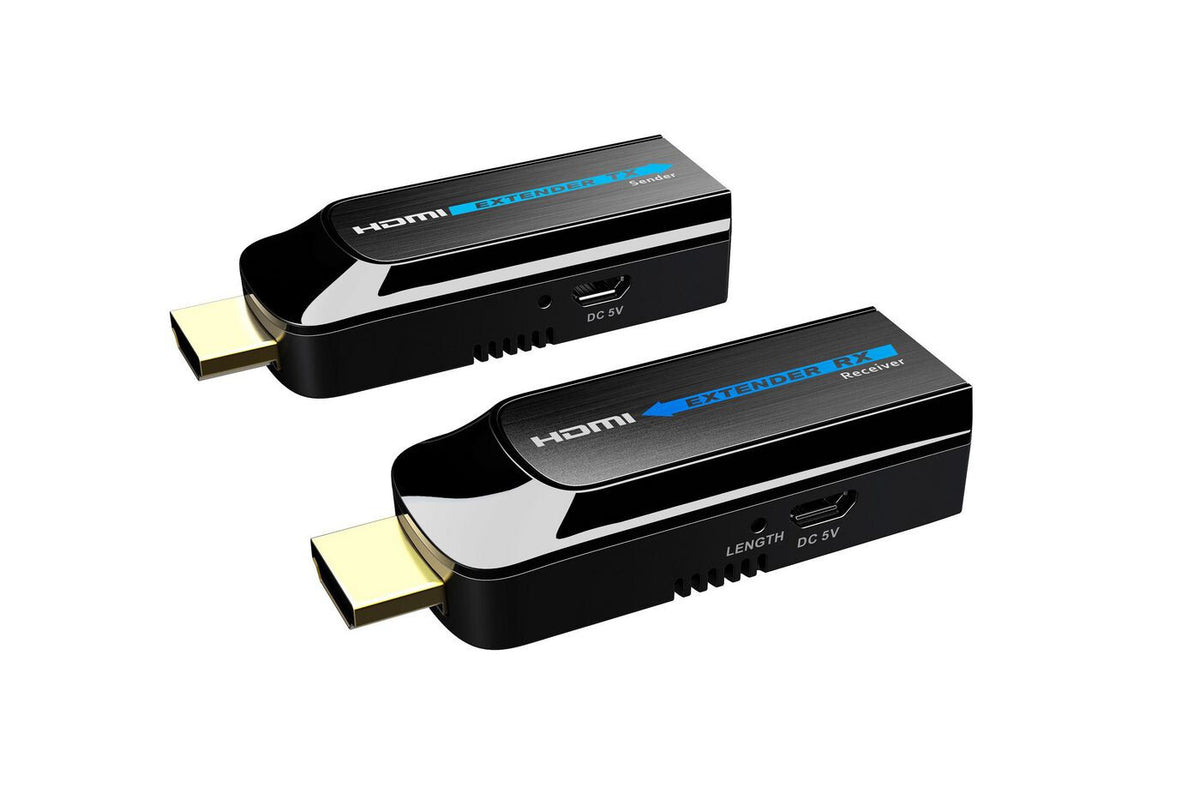

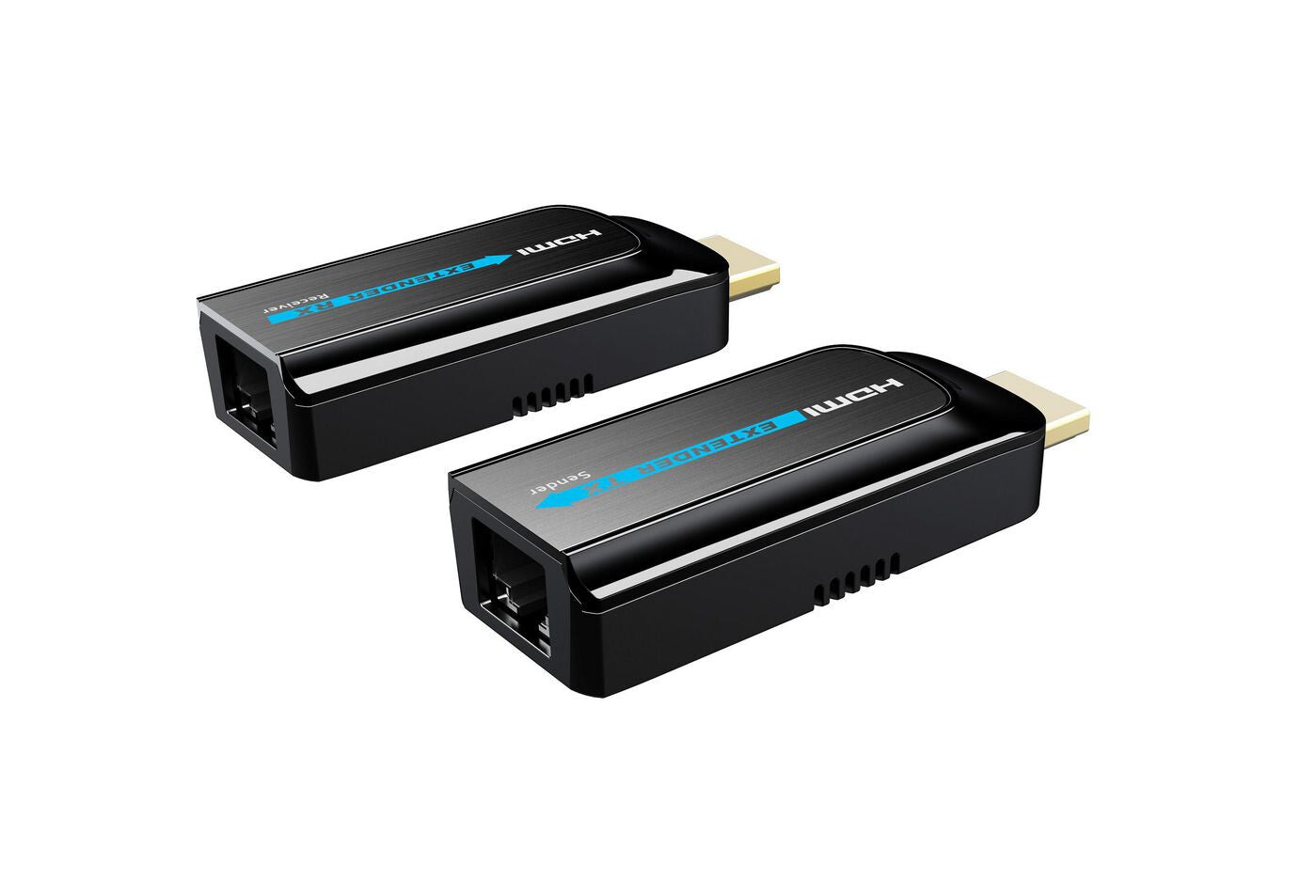

Vivolink VLHDMIEXTDGL50 AV extender AV transmitter Black
Vivolink VLHDMIEXTDGL50 AV extender AV transmitter Black
SKU:VLHDMIEXTDGL50
26 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Supports Full HD resolution 1080P@60 Hz
- Maximum transmission distance 50m
- PoC from transmitter to receiver
Ultra cost efficient HDMI extention dongles using CAT6a cable up to 50m extention. Support power over network cable (PoC) from transmitter to receiver
Typical installation:
It can be installed anywhere to extend HDMI signal up to 50m using CAT6a CAT cable
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 50m 1080P@60Hz
Key features:
Super cost-effective HDMI extender over CAT cable
USB power cables included in the package
| Features | |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6a |
| Maximum transfer distance | 50 m |
| HDCP pass-through | Yes |
| HDCP version | 1.2 |
| HDCP & EDID bypass | Yes |
| Supported video modes | 1080p |
| Material | Acrylonitrile butadiene styrene (ABS) |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| HDMI in | 1 |
| Video out | 1 |
| Video in | 1 |
| DC-in jack | Yes |
| Power | |
|---|---|
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Output current | 1 A |
| Power consumption (transmitter) (max) | 3 W |
| Power consumption (receiver) (max) | 3 W |
| External power adapter | No |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 71.35 x 25.9 x 11.05 mm |
| Width | 153 mm |
| Depth | 119 mm |
| Height | 80 mm |
| Weight | 318 g |
| Receiver weight | 10 g |
| Transmitter dimensions (WxDxH) | 71.35 x 25.9 x 11.05 mm |
| Transmitter weight | 10 g |
| Packaging data | |
|---|---|
| Package dimensions (WxDxH) | 120 x 80 x 60 mm |
| Package width | 153 mm |
| Package depth | 119 mm |
| Package height | 80 mm |
| Package weight | 320 g |
| Packaging content | |
|---|---|
| AC adapter included | No |
| Manual | Yes |
| Packaging content | 1 x Transmitter HDMI dongle |
| Technical details | |
|---|---|
| Audio support | Yes |
