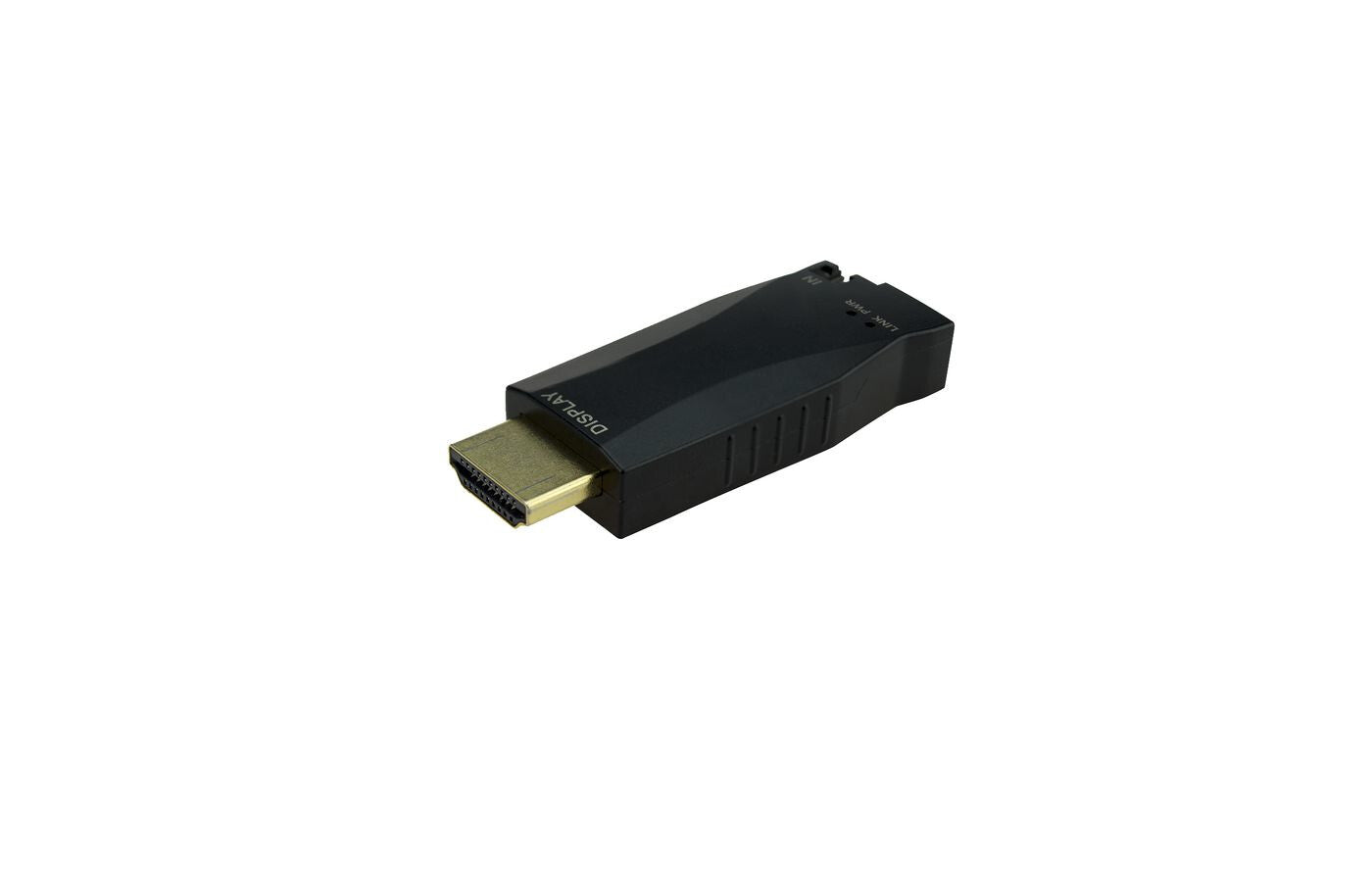

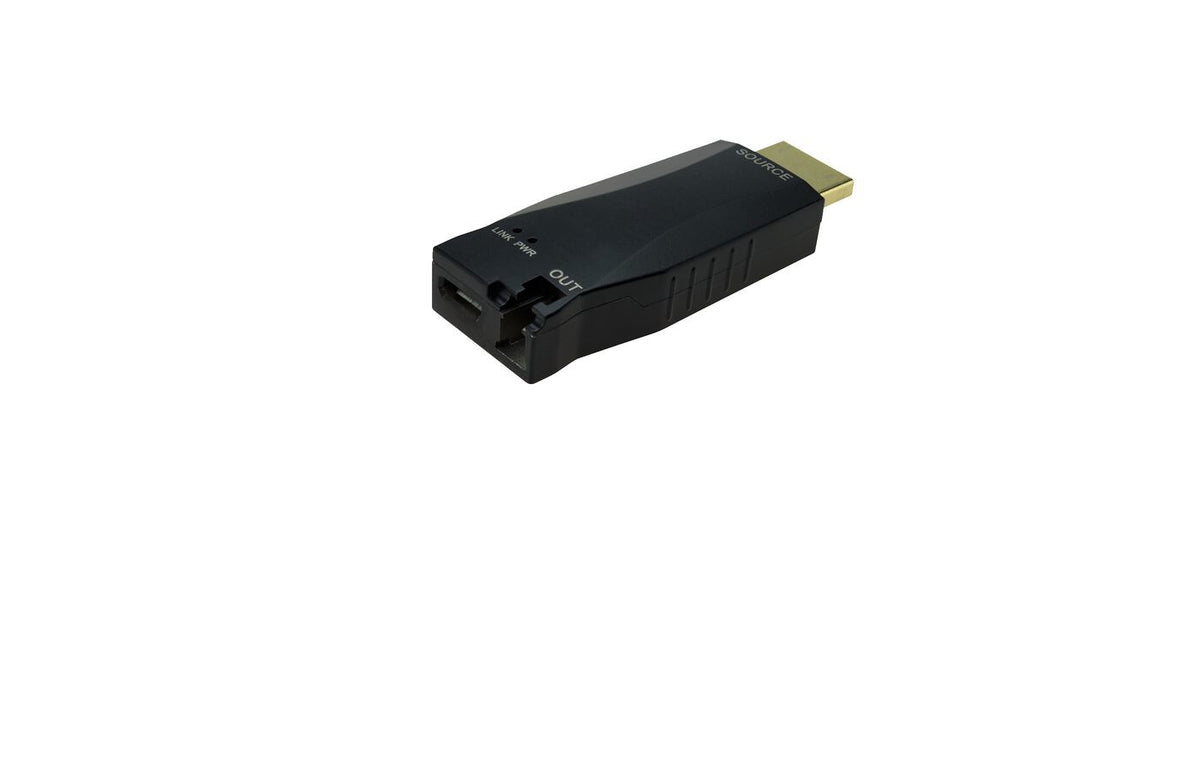

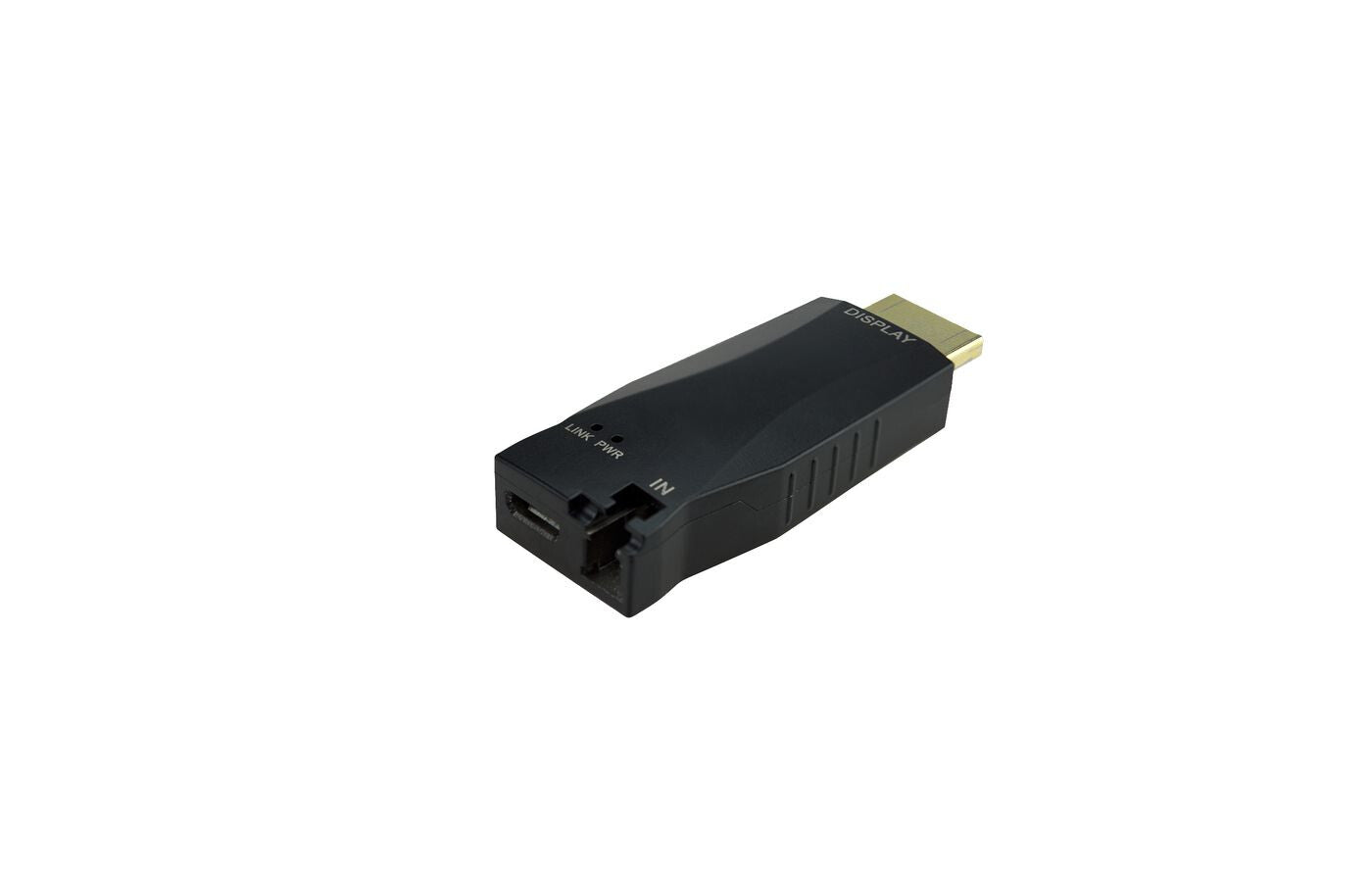

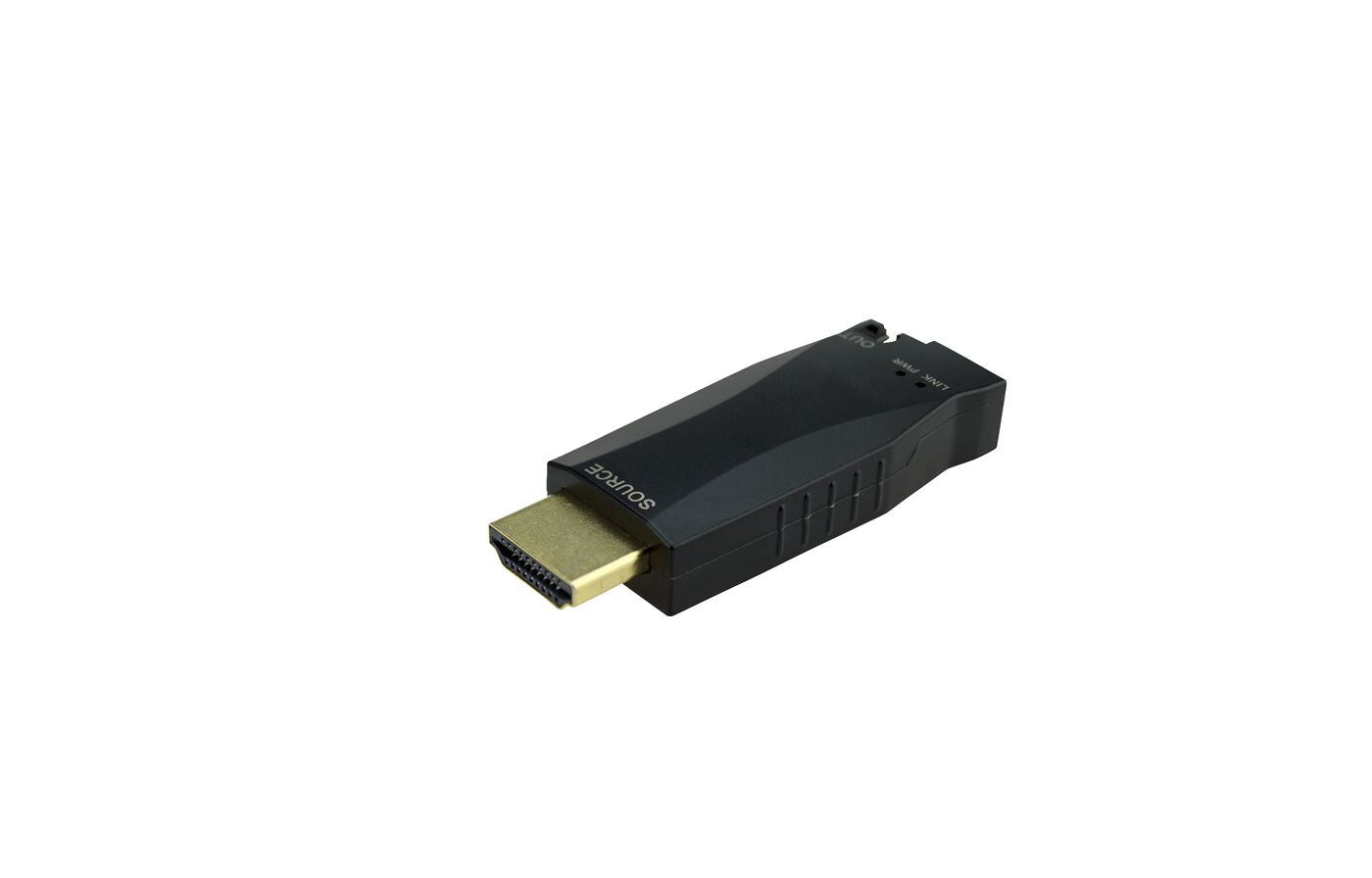

Vivolink VLHDMIEXTDGL100 AV extender AV transmitter & receiver Black
Vivolink VLHDMIEXTDGL100 AV extender AV transmitter & receiver Black
SKU:VLHDMIEXTDGL100
Low stock: 10 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 4K HDCP1.4 10.2G 4K@60Hz 4:2:0
- Multimode fiber up to 300m
- Singlemode fiber up to 300m (2km without HDCP)
HDMI over fiber dongle kit

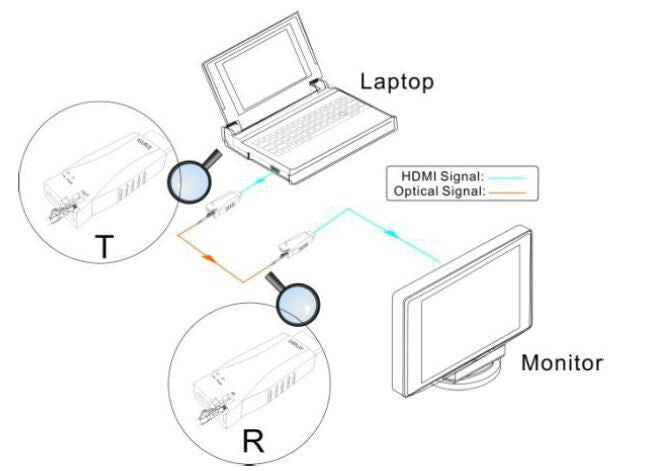

Typical installation:
4K fiber extender dongles HDMI 1:1
Single-mode fiber: HDMI signal without HDCP ≤ 2000m
Single-mode fiber: HDMI signal with HDCP ≤ 300m
Multi-mode fiber: ≤ 300m
It can be installed in building with existing fibernetwork
Long distance 4K transmission to e.g. outdoor digital signage
Function:
4K@60Hz signal expention
HDCP1.4
In box:

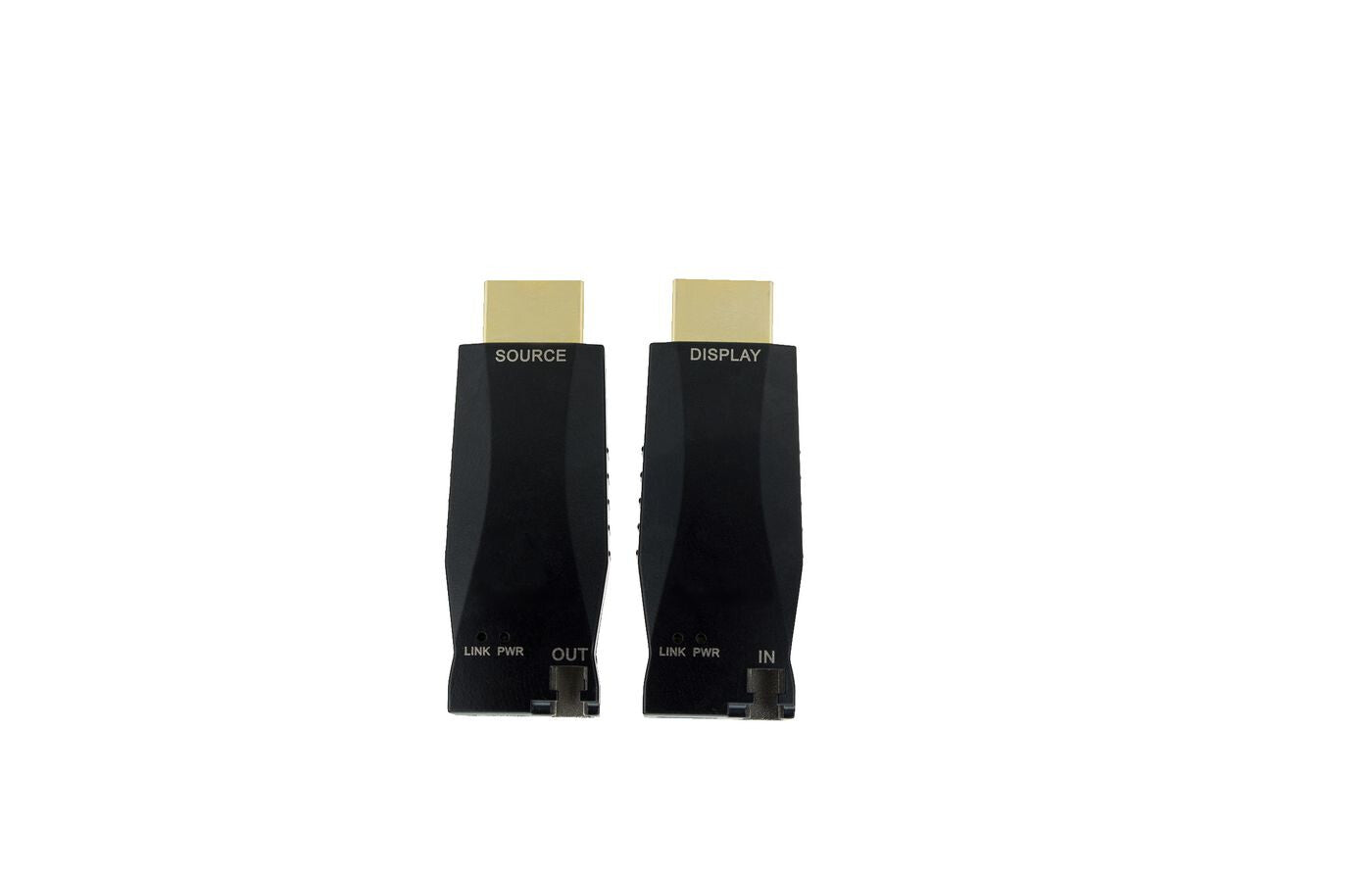

2 x HDMI fiber dongles
2 x USB power cables
1 x 0,5m fiber cable for test
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 300 m |
| HDCP pass-through | Yes |
| Plug and Play | Yes |
| HDCP version | 1.4 |
| HDCP & EDID bypass | Yes |
| Supported video modes | 2160p |
| HDCP | Yes |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| HDMI in | 1 |
| Video out | 1 |
| Video in | 1 |
| DC-in jack | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 120 x 80 x 55 mm |
| Width | 130 mm |
| Depth | 84 mm |
| Height | 2 mm |
| Weight | 26 g |
| Receiver weight | 10 g |
| Transmitter dimensions (WxDxH) | 71.35 x 25.9 x 11.05 mm |
| Transmitter weight | 10 g |
| Packaging data | |
|---|---|
| Package weight | 200 g |
| Packaging content | |
|---|---|
| AC adapter included | No |
| Cables included | DC |
| Manual | Yes |
| Packaging content | 1 x transmitter |
| Technical details | |
|---|---|
| Audio support | Yes |
