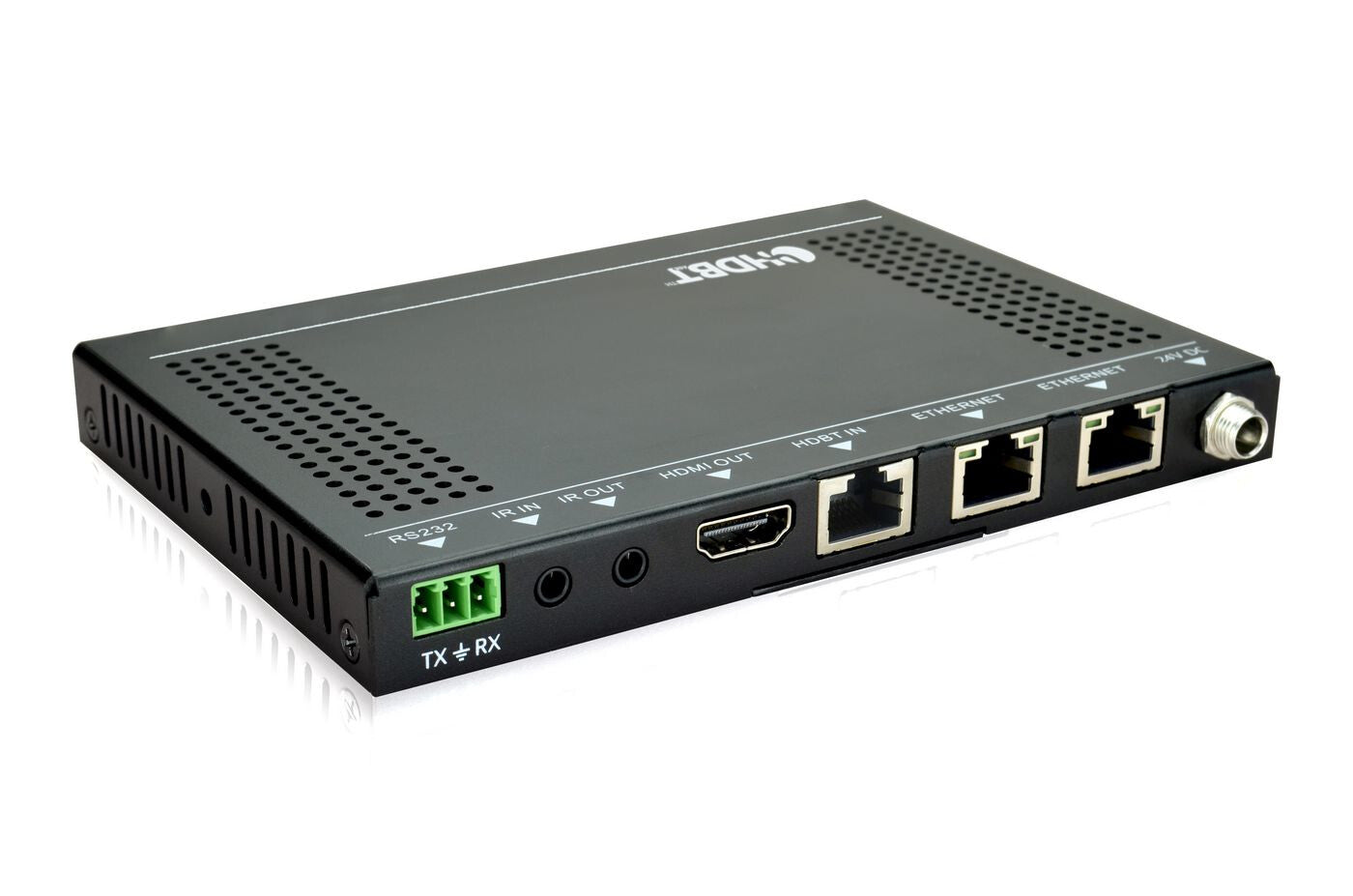

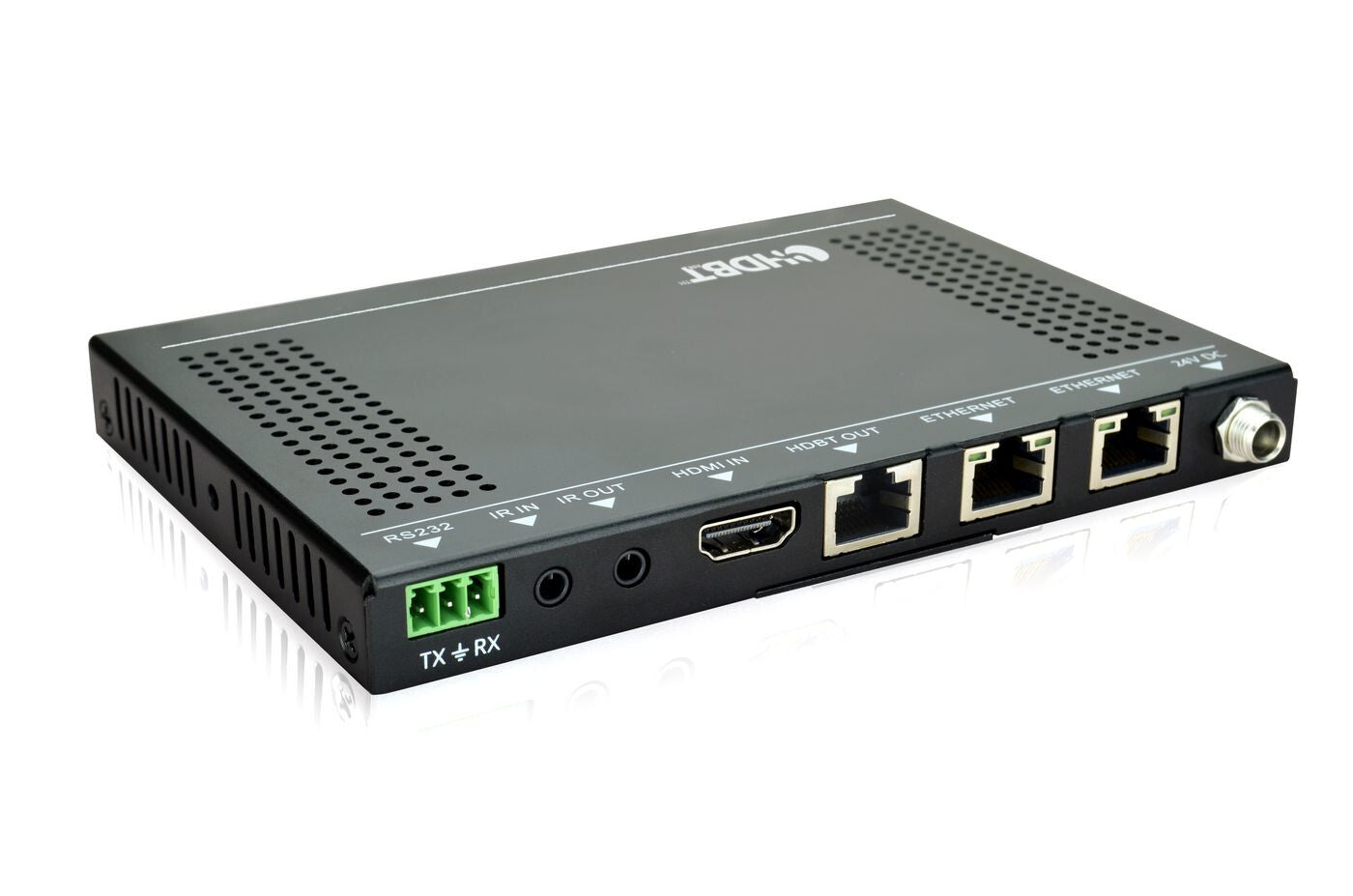

Vivolink VLHDMIEXT422 AV extender AV transmitter & receiver Black
Vivolink VLHDMIEXT422 AV extender AV transmitter & receiver Black
Regular price
£524.68 GBP
Regular price
Sale price
£524.68 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:VLHDMIEXT422
18 in stock
- Ultra-thin design
- Support up to 4K@60Hz 4:2:0 video signal transmission
- HDCP2.2 compliant.
- Maximum transmission distance is up to 70m for 4Kx2K
- Maximum transmission distance is up to 100m for 1080p
- Maximum extension distance is up to 100m for Ethernet
- Two way PoC
- High bandwidth:10.2Gbps
- Support IR/RS232 passthrough
- Use HDBaseT technology

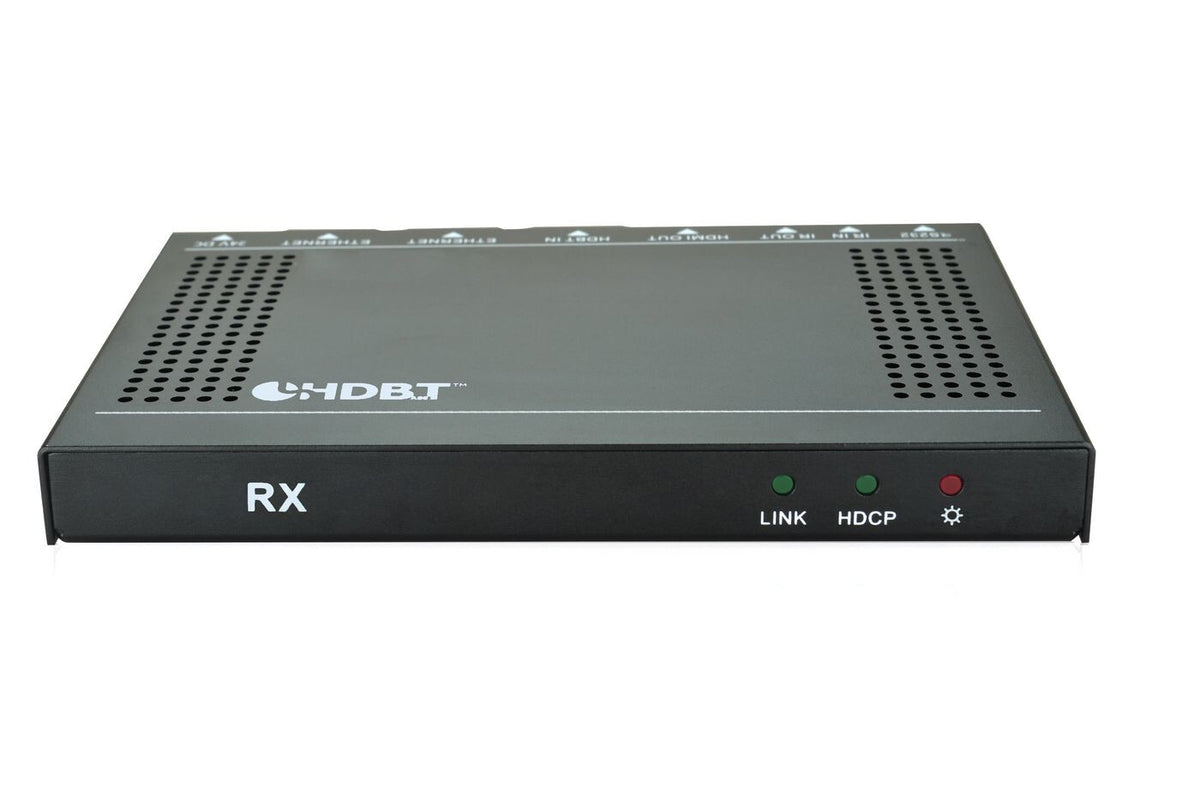

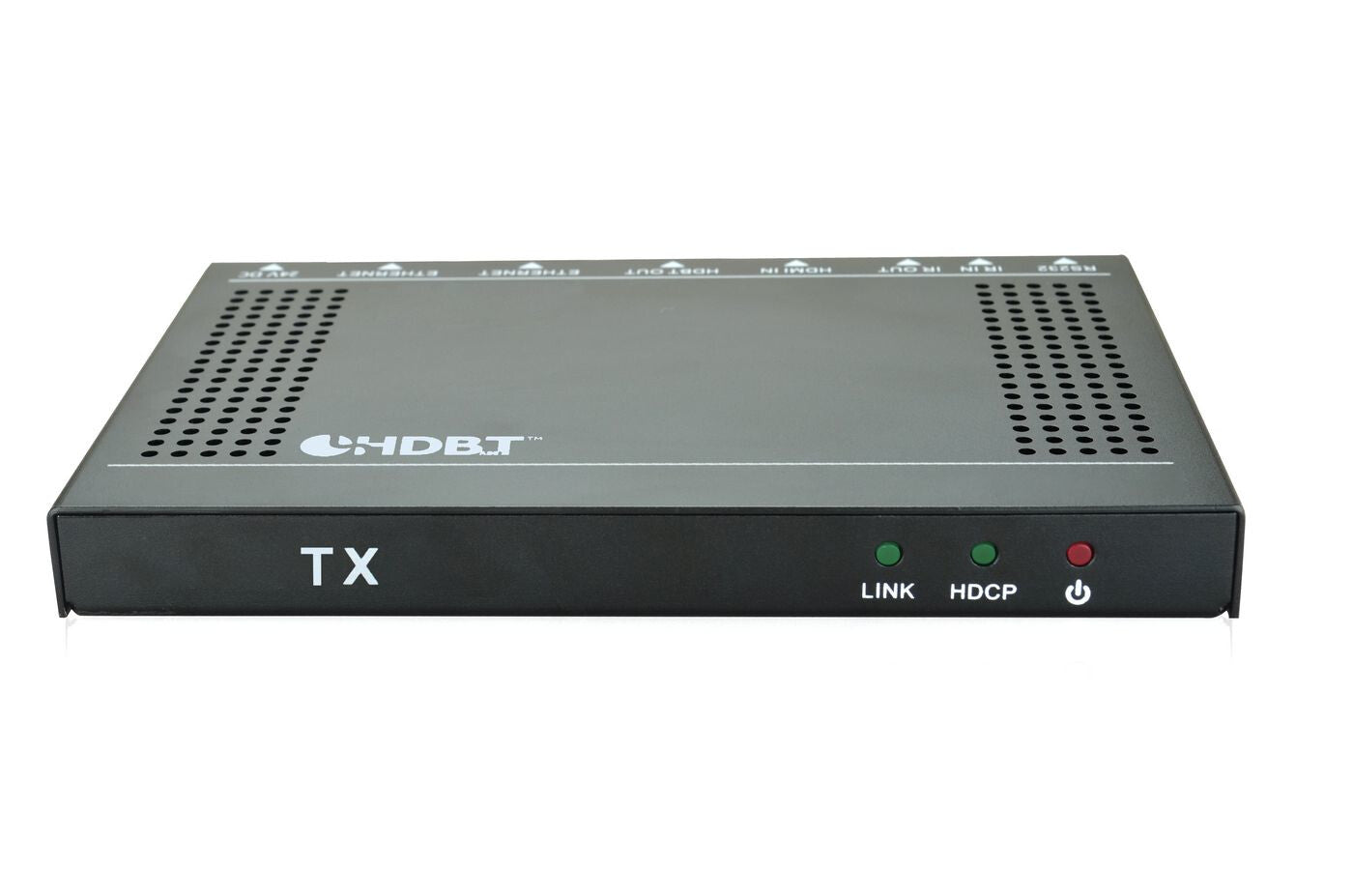

- LED indicators show work status

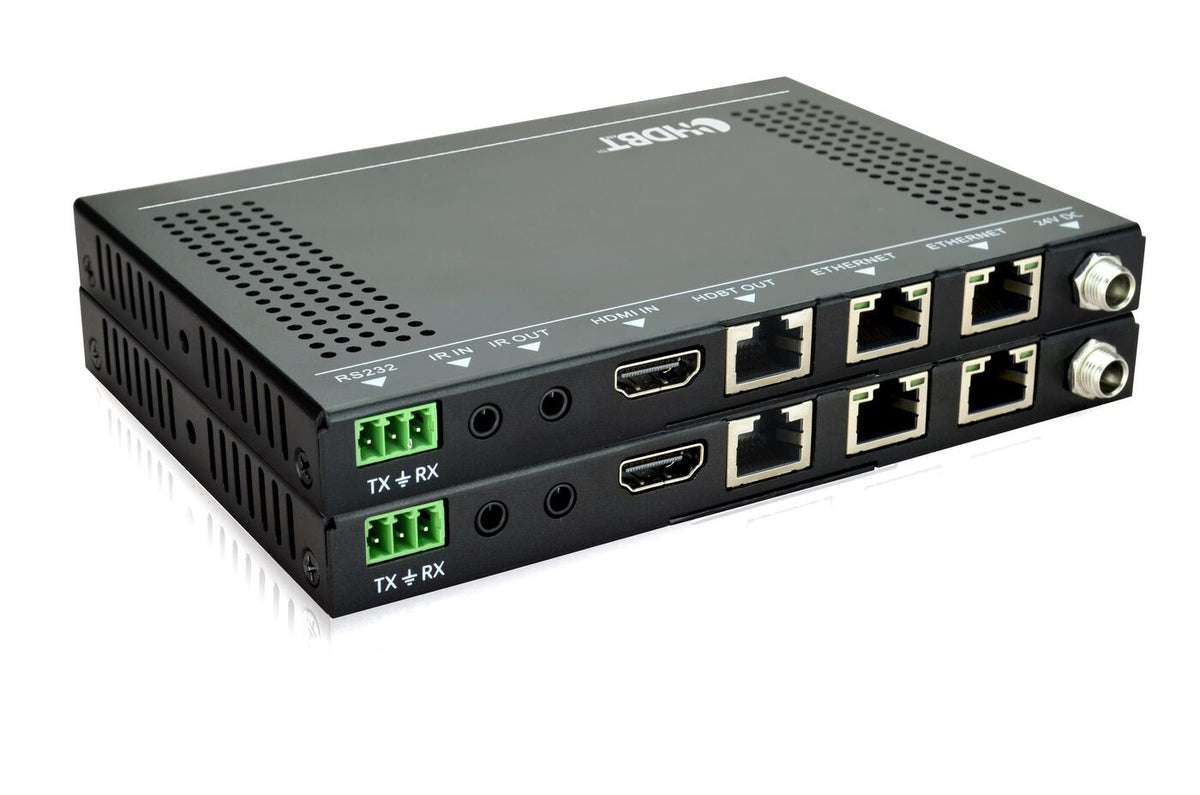

HDBaseT Extender kit 100m
Transmitter/Receiver HDMI Two way PoC Bi-directional IR, RS232 and CEC, one PSU and HDCP2.2 compliant

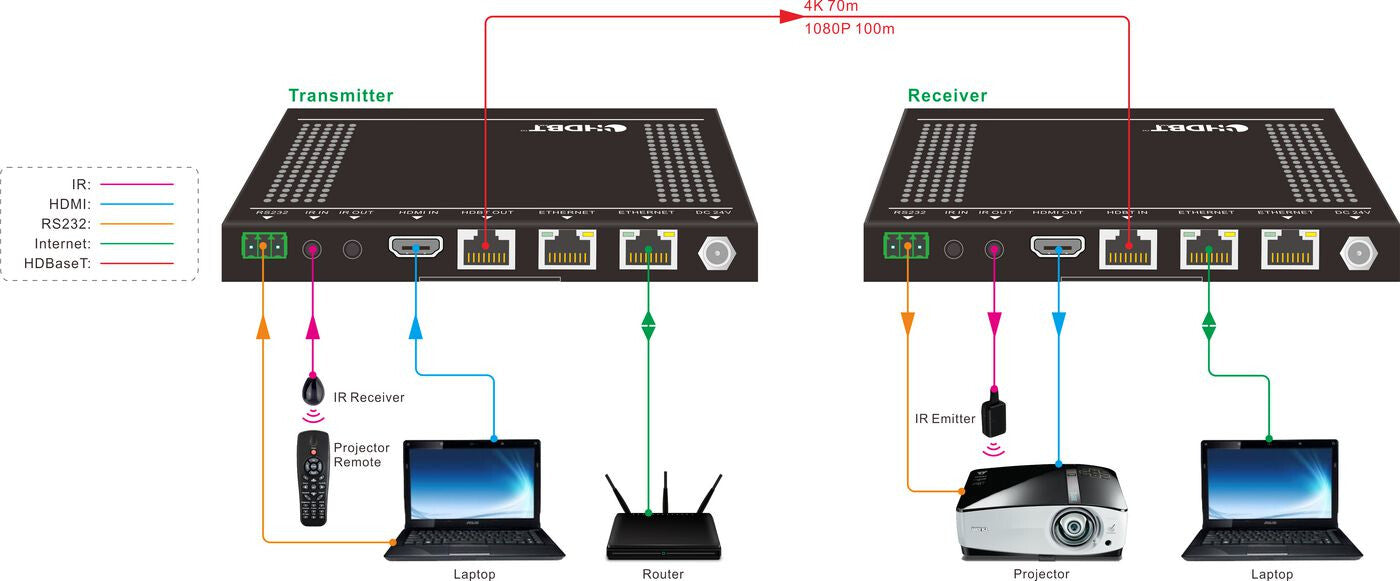

Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.
Function:
HDMI extender
Point to point Tx to Rx for 100m@1080P,70m@4K
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| RS-232 pass-through | Yes |
| CEC pass-through | Yes |
| IR pass-through | Yes |
| HDCP pass-through | Yes |
| HDCP version | 2.2 |
| Wall mountable | Yes |
| HDCP & EDID bypass | Yes |
| Remote control type | IR + RS232 |
| Supported video modes | 3840p |
| LED indicators | Yes |
| HDCP | Yes |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black |
| HDBaseT certified | Yes |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| HDMI in | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Video out | 1 |
| Video in | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Serial ports quantity | 1 |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| Serial interface type | RS-232 |
| DC-in jack | Yes |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (transmitter) (max) | 10 W |
| Power consumption (receiver) (max) | 10 W |
| External power adapter | Yes |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 184 mm |
| Depth | 159 mm |
| Height | 152 mm |
| Weight | 480 g |
| Packaging data | |
|---|---|
| Package width | 184 mm |
| Package depth | 159 mm |
| Package height | 152 mm |
| Package weight | 938 g |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Included power plug types | EU |
| Mounting brackets included | Yes |
| IR receiver included | No |
| IR blaster included | No |
| Technical details | |
|---|---|
| Audio support | Yes |
