VivoLink

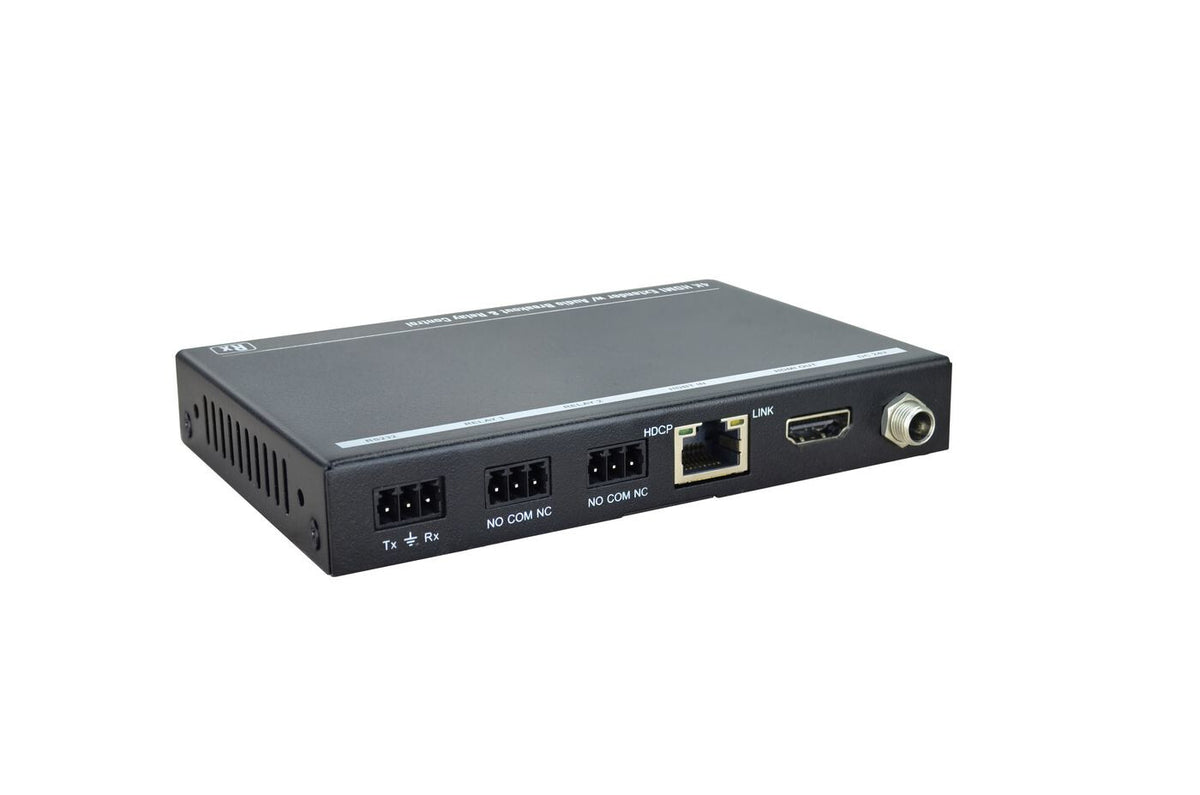

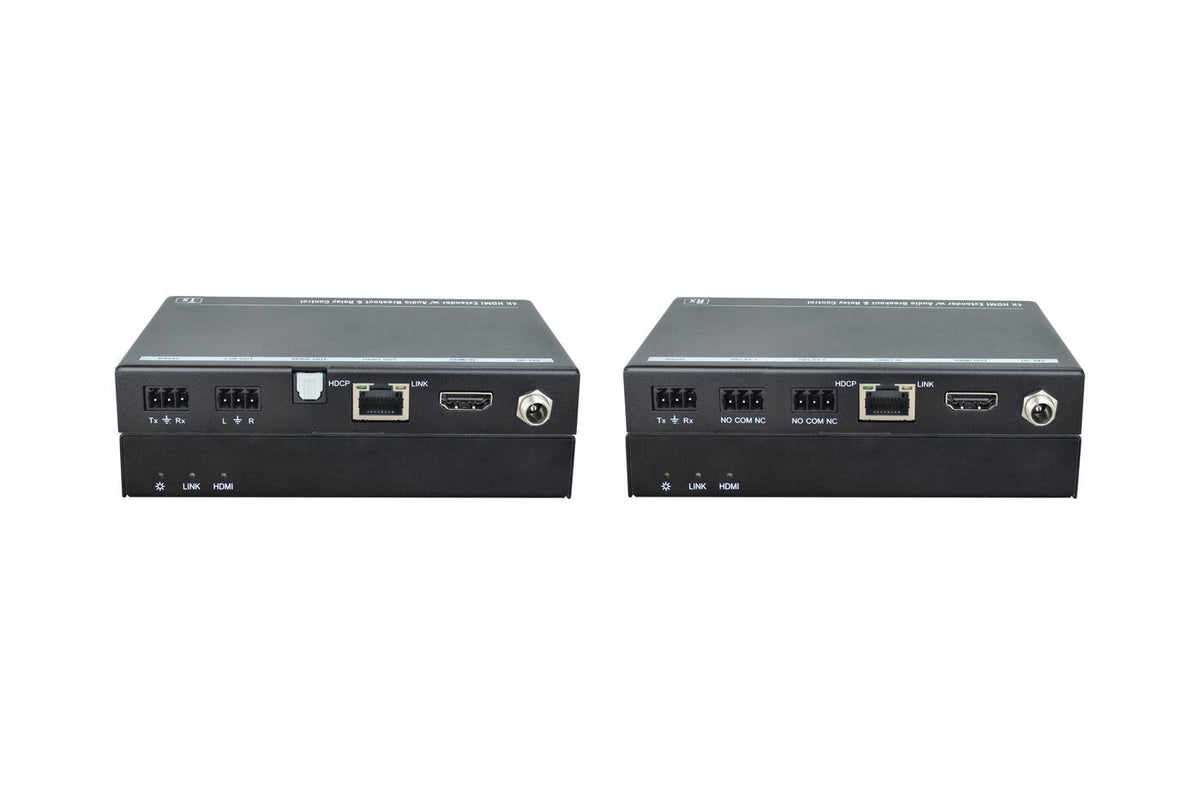

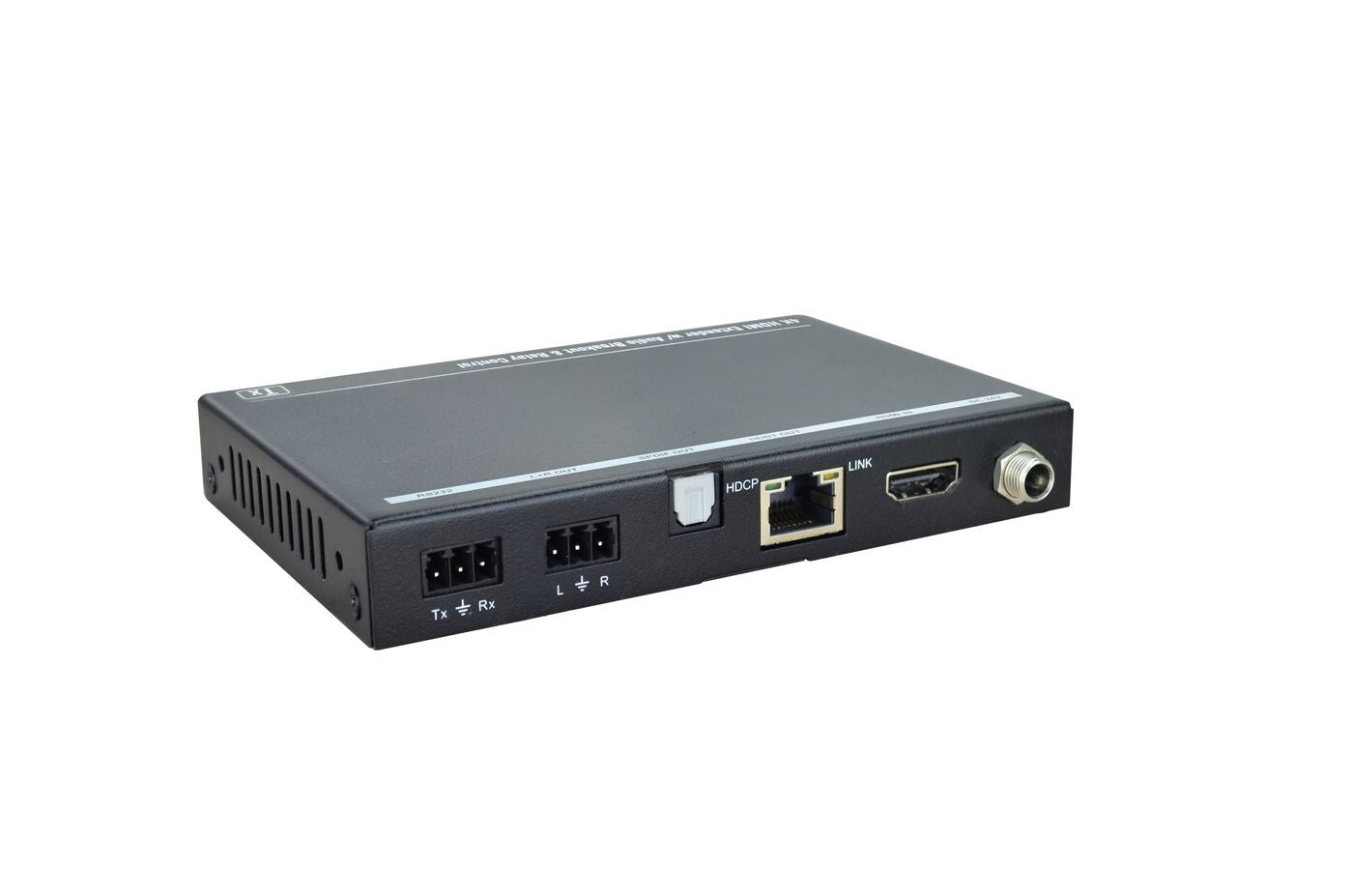

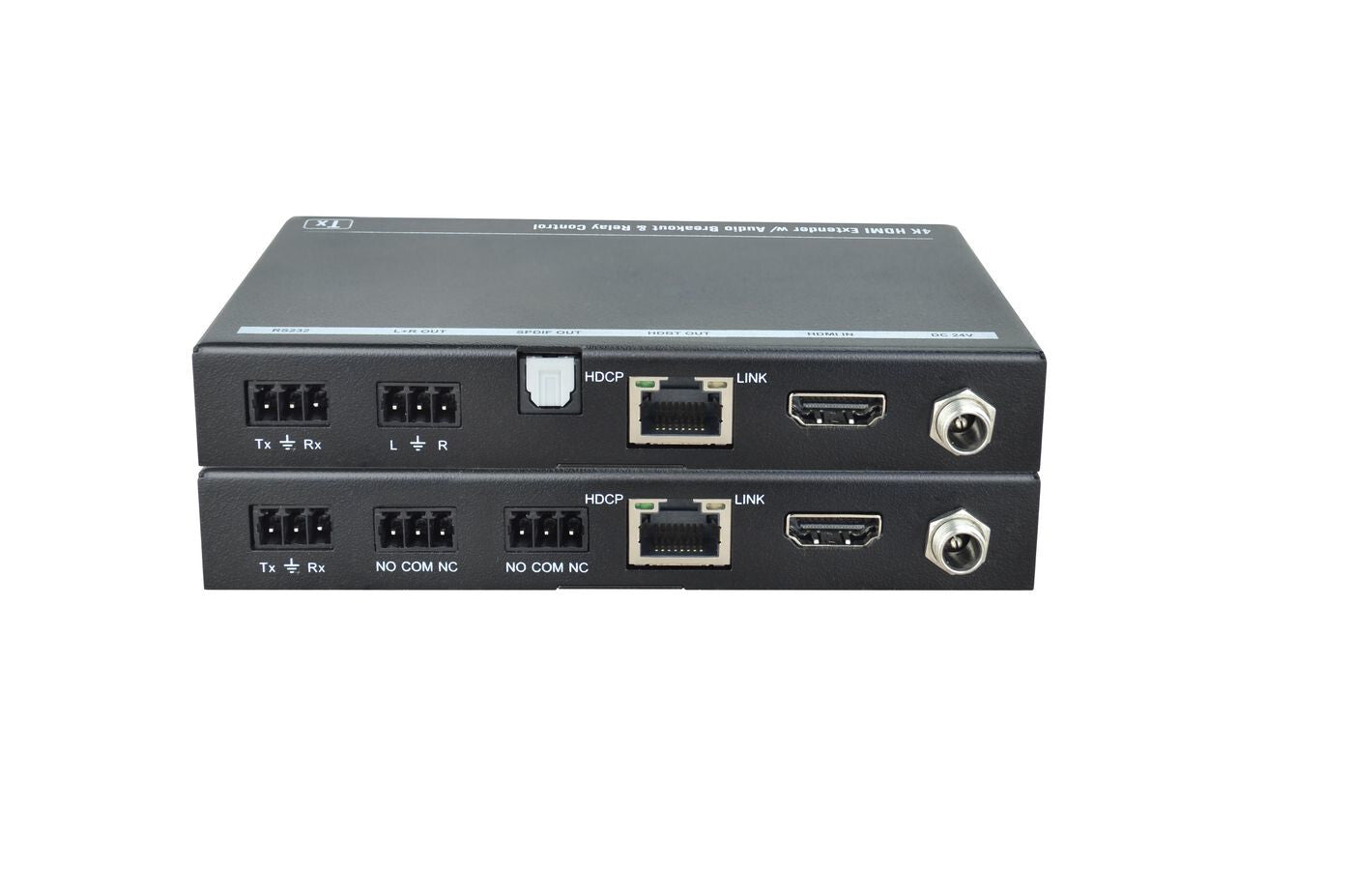

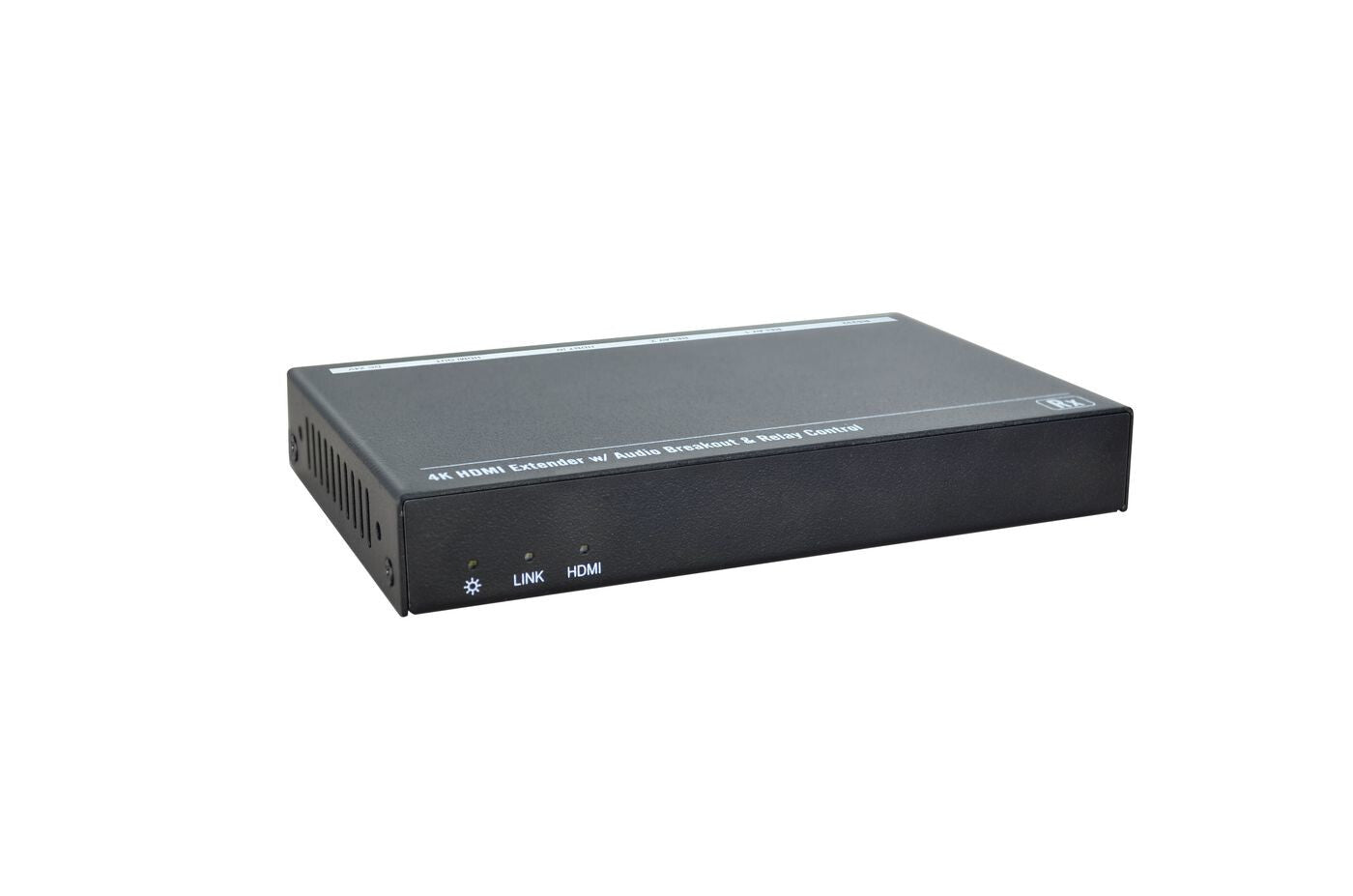

Vivolink VLHDMIEXT416 AV extender AV transmitter & receiver Black
Vivolink VLHDMIEXT416 AV extender AV transmitter & receiver Black
Regular price
£230.65 GBP
Regular price
Sale price
£230.65 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:VLHDMIEXT416
50 in stock
- 4K HDMI Extender set
- HDMI 1.4(4K@60 4:2:0), HDCP 2.2
- HDBT extension up to 1080P@70m & 4K@40m
- Relay control for projection screen
- Audio de-embedder on Tx
- CEC pass-through
- Two way PoC
HDBaseT Extender kit w/relay
HDBaseT extender kit including relay for projector screen Rx unit and audio de-embed on Tx
2 way PoC, IR, RS232, one PSU, HDMI 1.4 and HDCP2.2 compliant
Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.
Function:
HDMI extender
Relays output on receiver unit can control screen up/down via RS232 codes.
Audio de-embed on transmitter unit for connection to audio system
Point to point Tx to Rx for 70m@1080P,40m 4K
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| RS-232 pass-through | Yes |
| CEC pass-through | Yes |
| IR pass-through | Yes |
| HDCP pass-through | Yes |
| Wall mountable | Yes |
| HDCP & EDID bypass | Yes |
| Remote control type | IR + RS232 |
| Supported video modes | 3840p |
| LED indicators | Yes |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black |
| HDBaseT certified | Yes |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| HDMI in | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Video out | 1 |
| Video in | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Serial ports quantity | 1 |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| Serial interface type | RS-232 |
| DC-in jack | Yes |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (transmitter) (max) | 9 W |
| Power consumption (receiver) (max) | 9 W |
| External power adapter | Yes |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -25 - 70 °C |
| Weight & dimensions | |
|---|---|
| Width | 182 mm |
| Depth | 161 mm |
| Height | 127 mm |
| Weight | 600 g |
| Packaging data | |
|---|---|
| Package width | 182 mm |
| Package depth | 161 mm |
| Package height | 127 mm |
| Package weight | 984 g |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Included power plug types | EU |
| Mounting brackets included | Yes |
| IR receiver included | No |
| IR blaster included | No |
| Technical details | |
|---|---|
| Audio support | Yes |
