Vivolink VLHDMIEXT3-T AV extender AV transmitter Black

• Power can be PoE or with using the included USB-C to A cable
• Supports Full HD resolution 1080P@60 Hz
• Maximum transmission distance 150m
• Supports IR control (IR receiver and transmitter included)
• Signal can be splitted with a GBit Switch to several receivers

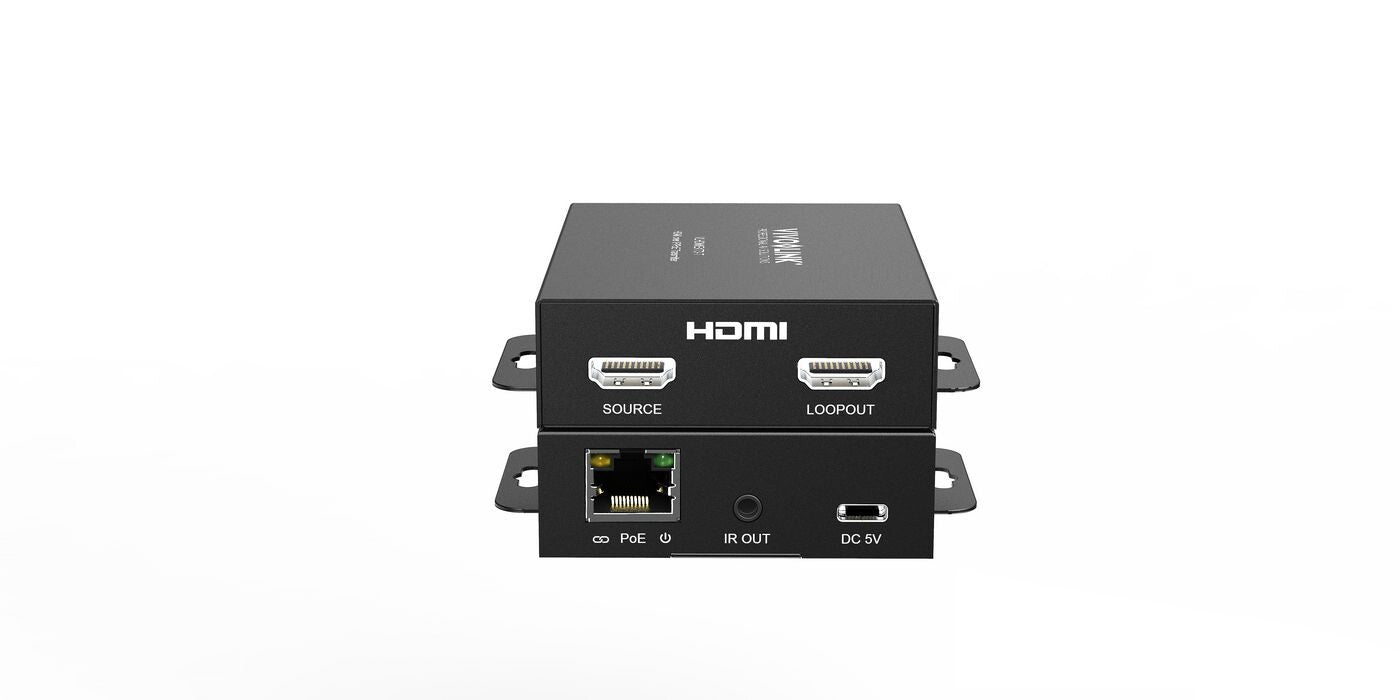

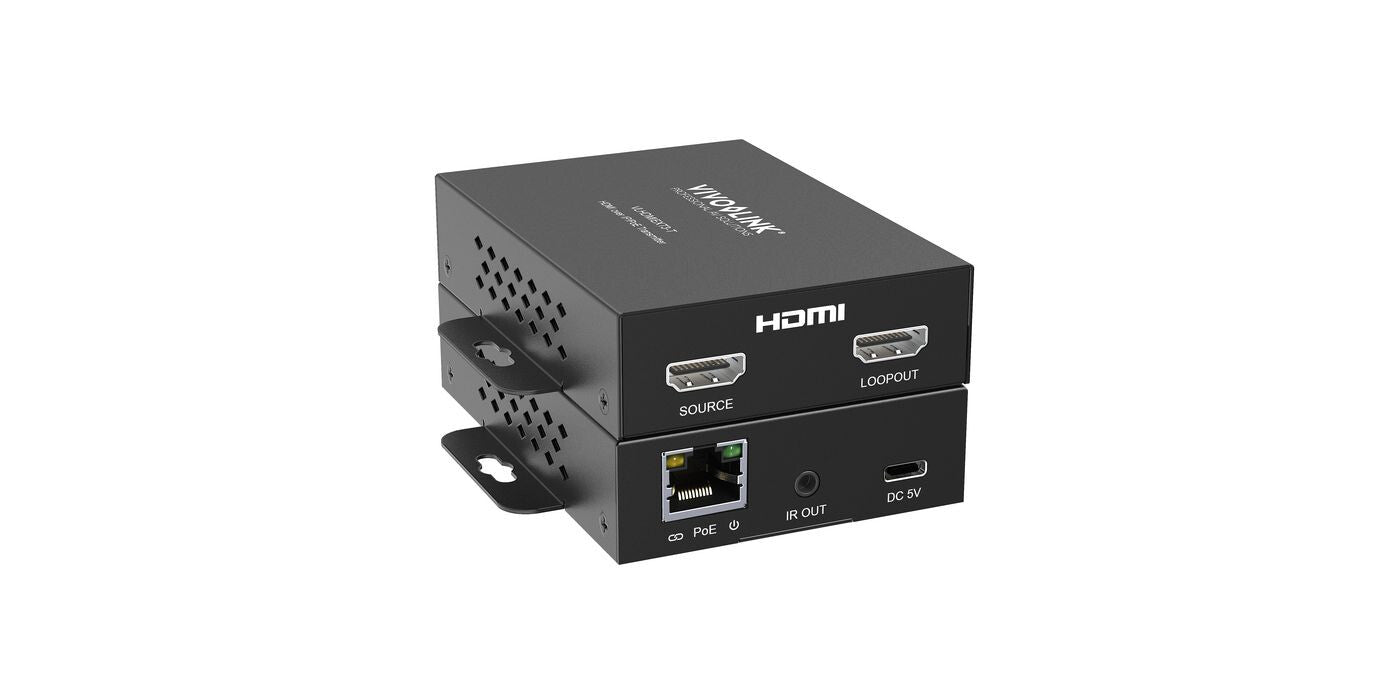

Transmitter unit with IR transmitter Max resolution 1080P@60hz

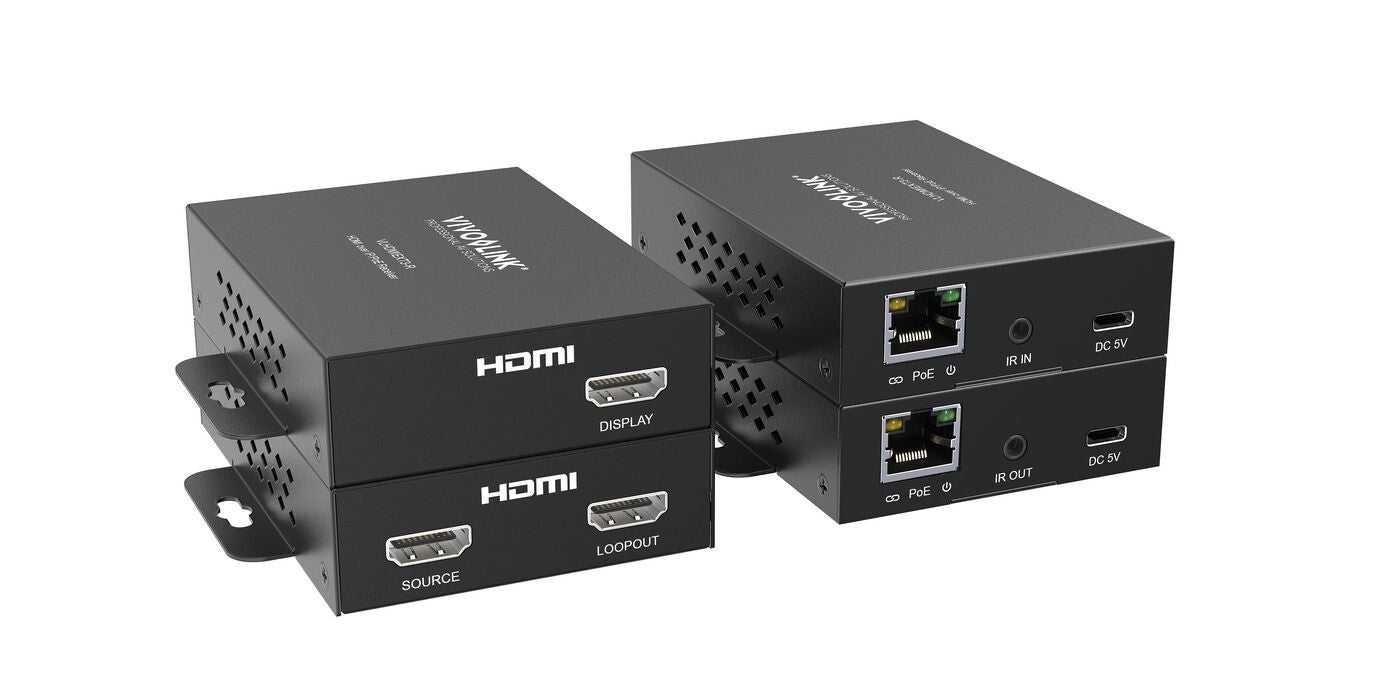

VLHDMIEXT3-T is transmitter for VLHDMIEXT3-R
It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 150 meters via single network cable (Cat 6)

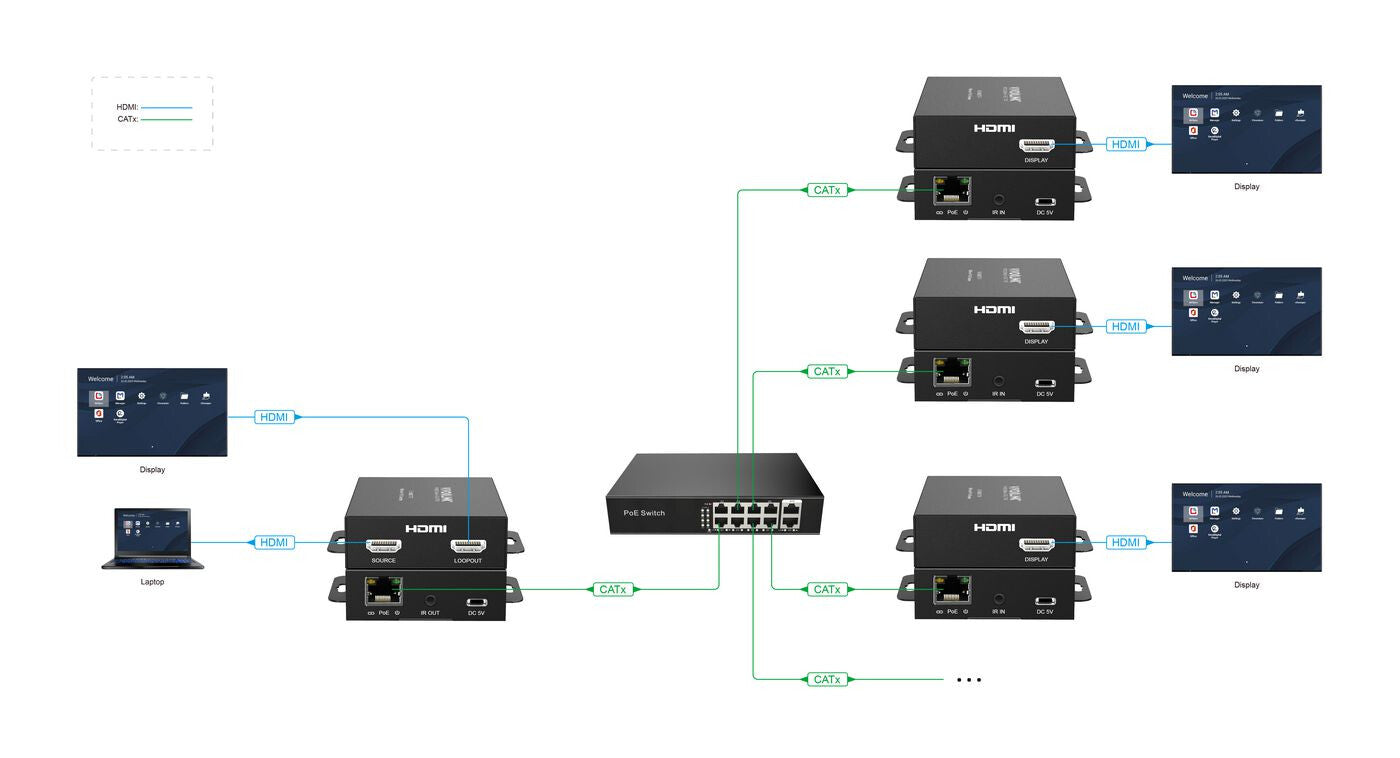

Up to 253 receivers can be connected to one transmitter using Gbit switch.
One receiver will occupy 18Mbit bandwith.
Note that this product is not compatible with HDBaseT receivers


Typical installation:
It can be installed anywhere to extend HDMI signal up to 150m including AV/IR control signals
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 150m 1080P@60Hz
Signal can be splitted with a GBit Switch to several receivers
One receiver device only occupy 18M bandwidth.
Key features:
Super cost-effective HDMI extender over IP network
