Vivolink VLHDMIEXT1-TV2 AV extender AV transmitter Black
Vivolink VLHDMIEXT1-TV2 AV extender AV transmitter Black
SKU:VLHDMIEXT1-TV2
Low stock: 2 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Supports Full HD resolution 1080P@60 Hz
- Maximum transmission distance 120m
- Supports IR control (IR receiver and transmitter included)
- Signal can be spitted with a GBit Switch to several receivers
Transmitter unit with IR transmitter Max resolution 1080P@60hz
VLHDMIEXT1-TV2 is transmitter for VLHDMIEXT1-RV2
It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 120 meters via single network cable (Cat 5e/6)
Up to 253 receivers can be connected to one transmitter using Gbit switch.
One receiver will occupy 18Mbit bandwith.
Note that this product is not compatible with HDBaseT receivers

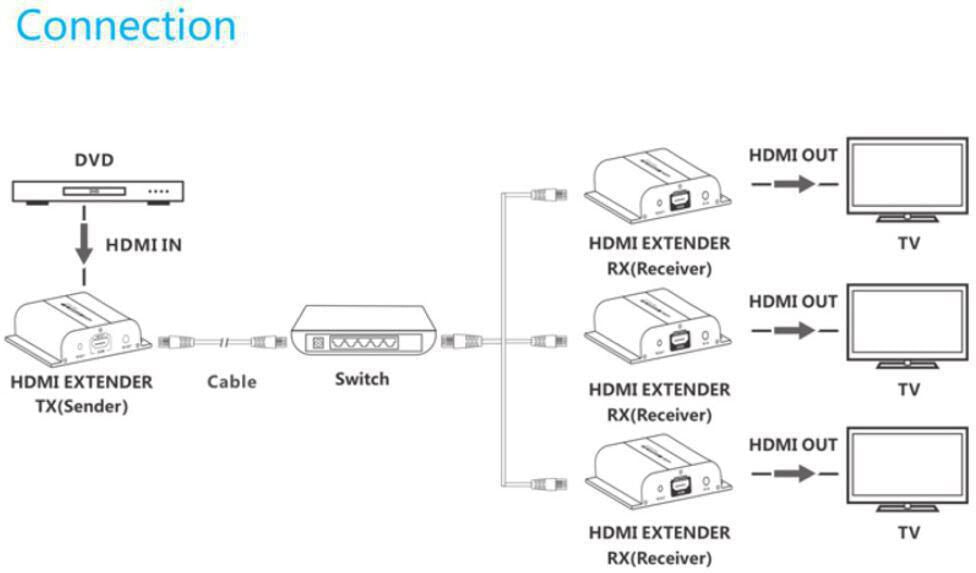

Typical installation:
It can be installed anywhere to extend HDMI signal up to 120m including AV/IR control signals
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 120m 1080P@60Hz
Signal can be spitted with a GBit Switch to several receivers
One receiver device only occupy 18M bandwidth.
Key features:
Super cost-effective HDMI extender over IP network
TX: 192.168.1.210
RX: 192.168.1.220
| Features | |
|---|---|
| Type | AV transmitter |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 120 m |
| IR pass-through | Yes |
| HDCP pass-through | Yes |
| HDCP version | 1.4 |
| Wall mountable | Yes |
| HDCP & EDID bypass | Yes |
| Remote control type | IR |
| Video compression formats | H.264 |
| Supported video modes | 1080p |
| LED indicators | Yes |
| Cable length | 120 m |
| HDCP | Yes |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 output ports | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| HDMI in | 1 |
| Video out | 1 |
| Video in | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 3.5 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
|---|---|
| Width | 96.8 mm |
| Depth | 94 mm |
| Height | 23.7 mm |
| Weight | 206 g |
| Packaging data | |
|---|---|
| Package width | 153 mm |
| Package depth | 119 mm |
| Package height | 80 mm |
| Package weight | 306 g |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Included power plug types | EU |
| IR receiver included | Yes |
| IR blaster included | No |
| Technical details | |
|---|---|
| Audio support | Yes |
