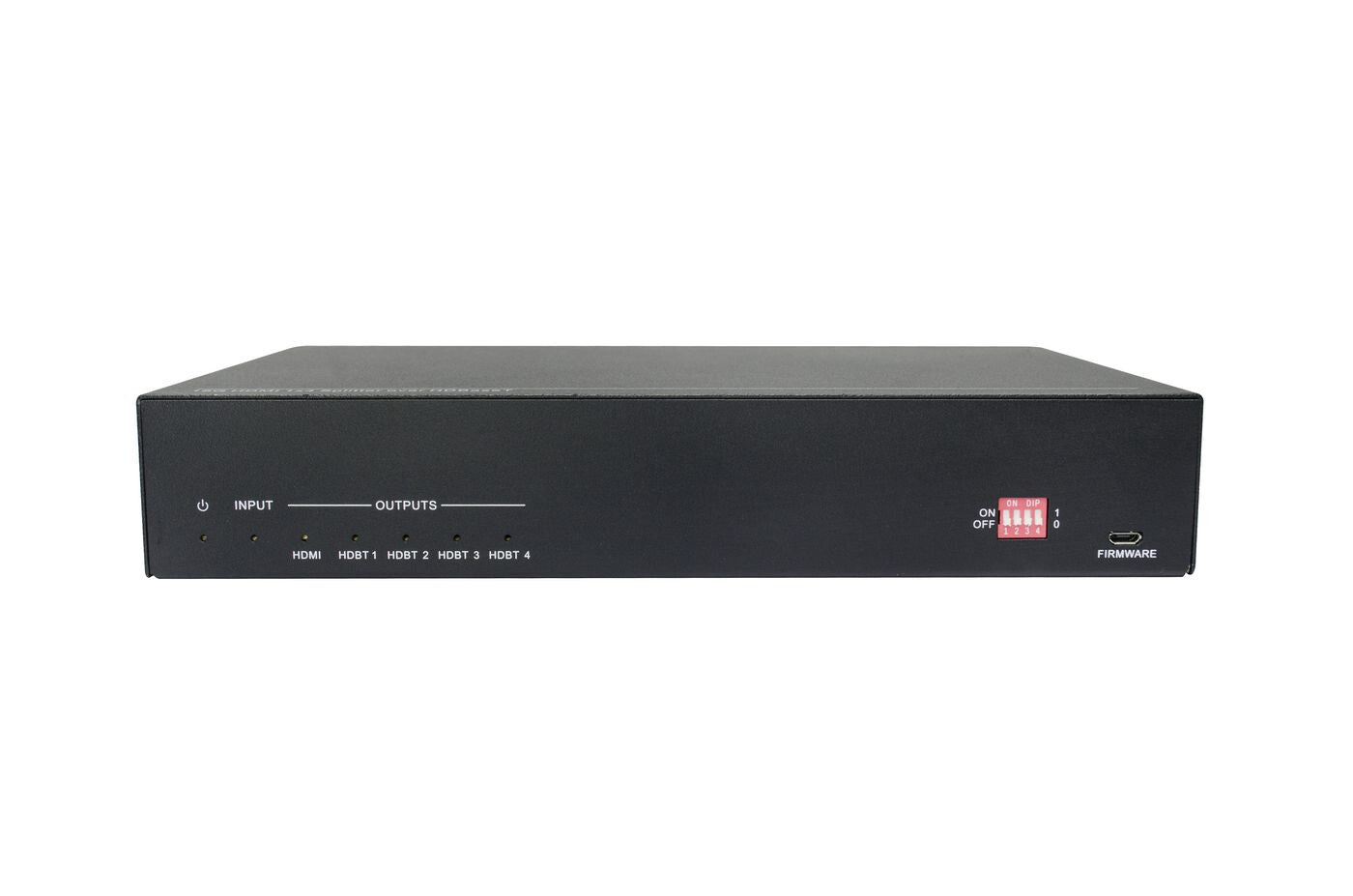

Vivolink VLHDBSP1X4V2 video splitter HDMI

• Integrated with HDBaseT technology, 4K@60Hz 4:4:4 supported
• 4 HDBaseT outputs with PoH at 230ft (70m)
• Analog balanced/unbalanced + digital audio output
• One HDMI output for local monitor or loop to next box
• RS232 & Bi-directional IR to control display
• Smart EDID management to avoid the display issue
• LEDs for status checking
• 4 x 3.5mm IR input jacks for connecting the four IR receivers

VLHDBSP1X4V2 is a 4K HDBaseT splitter with 4 HDBaseT plus 1 HDMI outputs. It distributes HDMI signal via CAT cable at 230ft (70m) with PoC, and enables IR and RS232 pass-through to control the remote displays. Build in audio de-embedder.
Reveiver unit to this model is: VLHDMIMAT4X444-R
