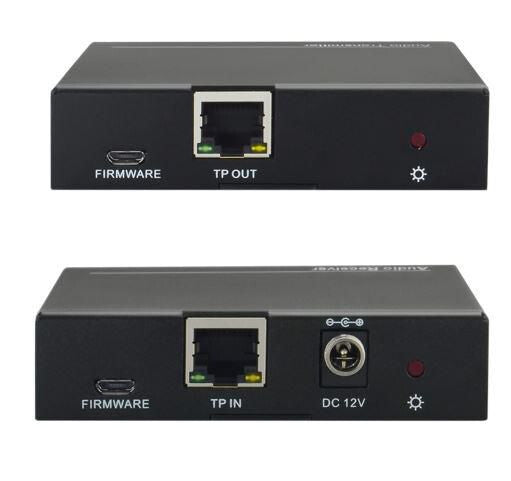

Vivolink VLEXTA170 AV extender AV transmitter & receiver Black

Vivolink VLEXTA170 AV extender AV transmitter & receiver Black

£134.90 GBP
£134.90 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

VLEXTA170

Low stock: 10 left

  • 3 selectable audio inputs
  • Power over Cable (PoC), from Rx to Tx
  • 100m audio transmission
  • 3 audio synchronized outputs
Audio Extender Kit, with 12V/1A PSU EU plug

VLEXTA170 is an audio extender, including transmitter & receiver. It distributes audio signal via CATx cable at 100m with PoC function from Rx to Tx.

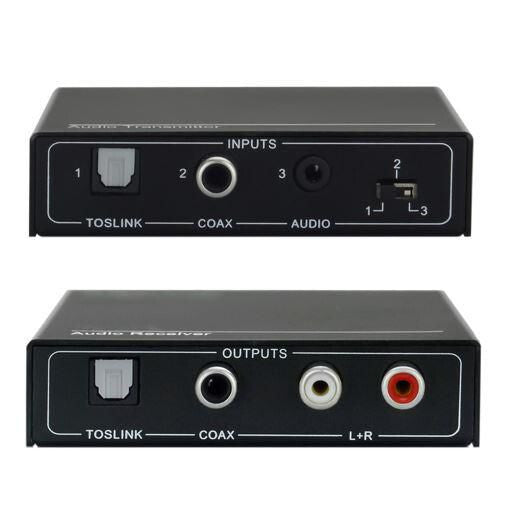

It provides TOSLINK/COAX/STEREO audio inputs.

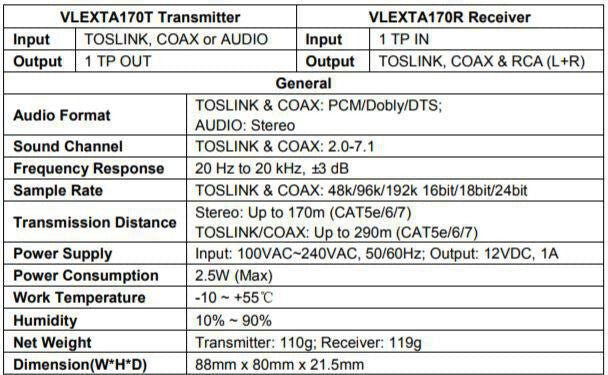

Features
Type AV transmitter & receiver
Cable types supported Cat5e
Maximum transfer distance 100 m
Audio output channels 2.0 channels
IR pass-through Yes
Audio formats supported PCM
Wall mountable Yes
HDCP & EDID bypass Yes
LED indicators Yes
Product colour Black
Ports & interfaces
Connectivity technology Wired
RJ-45 input ports 1
RJ-45 output ports 1
Digital audio coaxial out 1
Video out 1
Video in 1
Audio RCA outputs 1
Audio (L/R) out 1
3.5 mm (1/8-inch) out Yes
3.5 mm (1/8-inch) in Yes
Audio output 3
Audio input 3
DC-in jack Yes
Power
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Operating voltage (transmitter) 12 V
Operating voltage (receiver) 12 V
Output current 1 A
Power consumption (transmitter) (max) 2.5 W
Power consumption (receiver) (max) 2.5 W
External power adapter Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -10 - 55 °C
Weight & dimensions
Width 80 mm
Depth 80 mm
Height 21.5 mm
Weight 240 g
Transmitter dimensions (WxDxH) 88 x 80 x 21.5 mm
Packaging data
Package width 156 mm
Package depth 155 mm
Package height 120 mm
Package weight 484 g
Packaging content
AC adapter included Yes
Included power plug types EU
Mounting brackets included Yes
IR receiver included No
IR blaster included No
Technical details
Audio support Yes
