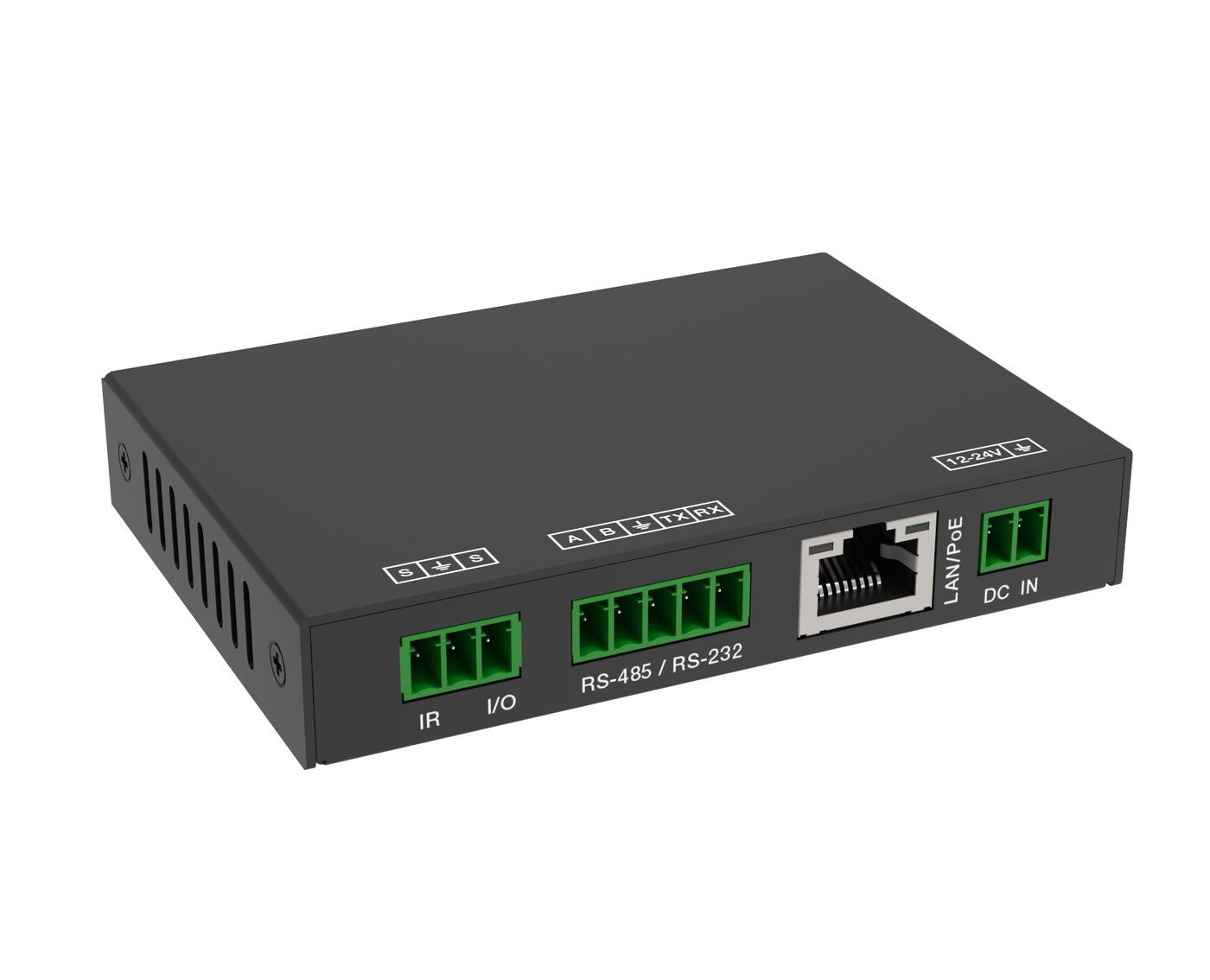

Vivolink VLEXT100 interface cards/adapter

• Built-in Web Server for Intuitive Configuration
• Power Input: 12-24V DC or PoE (AC power adapter not included)
• Communication Ports: RS-232/RS-485, GPIO, and IR output
• Network: 10/100M Ethernet with TCP/UDP support

The Vivolink VLEXT100 seamlessly bridges IP-based control systems with serial-based AV equipment. It enables TCP/IP or UDP control of any Vivolink device with an RS232 or RS485 port - making it easy to integrate Serial-based equipment into modern control ecosystems.
Effortless Integration & Control
This compact expander supports both RS-232 and RS-485 communication standards and can be controlled via TCP/IP or UDP protocols. Ideal for use with centralised room control systems.
Flexible Power Options
Supports both 12–24V DC and Power over Ethernet (PoE), giving you greater flexibility and reducing installation complexity by eliminating the need for separate power supplies.
Intuitive Web-Based Configuration
A built-in web server provides a user-friendly configuration interface accessible from any browser - PC, tablet, or smartphone - making setup quick and straightforward.
Robust Connectivity & Versatility

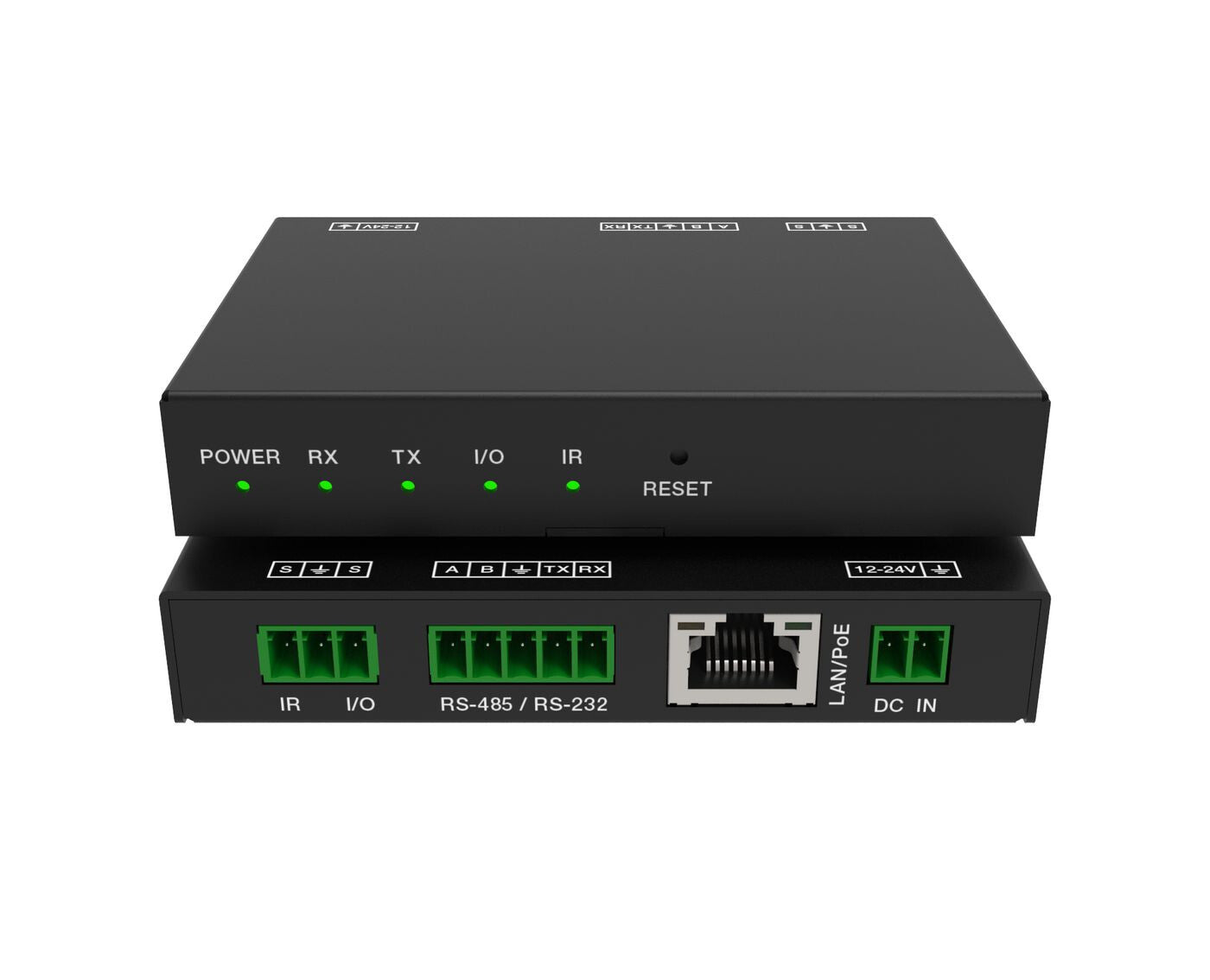

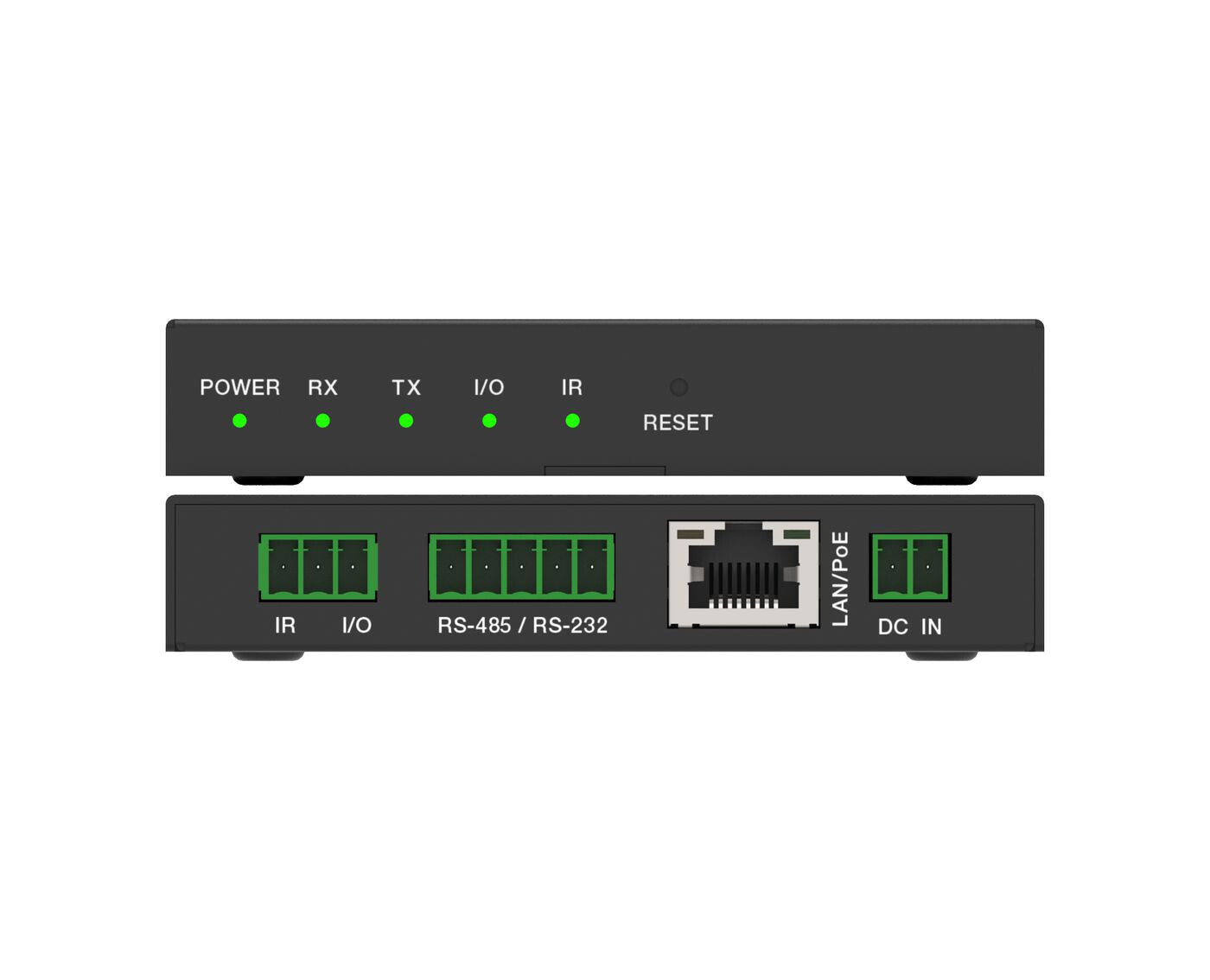

Equipped with a 100M Ethernet port for stable communication, a GPIO port for customizable I/O functions, and an IR output for full AV integration.
Durable, Low-Power Design

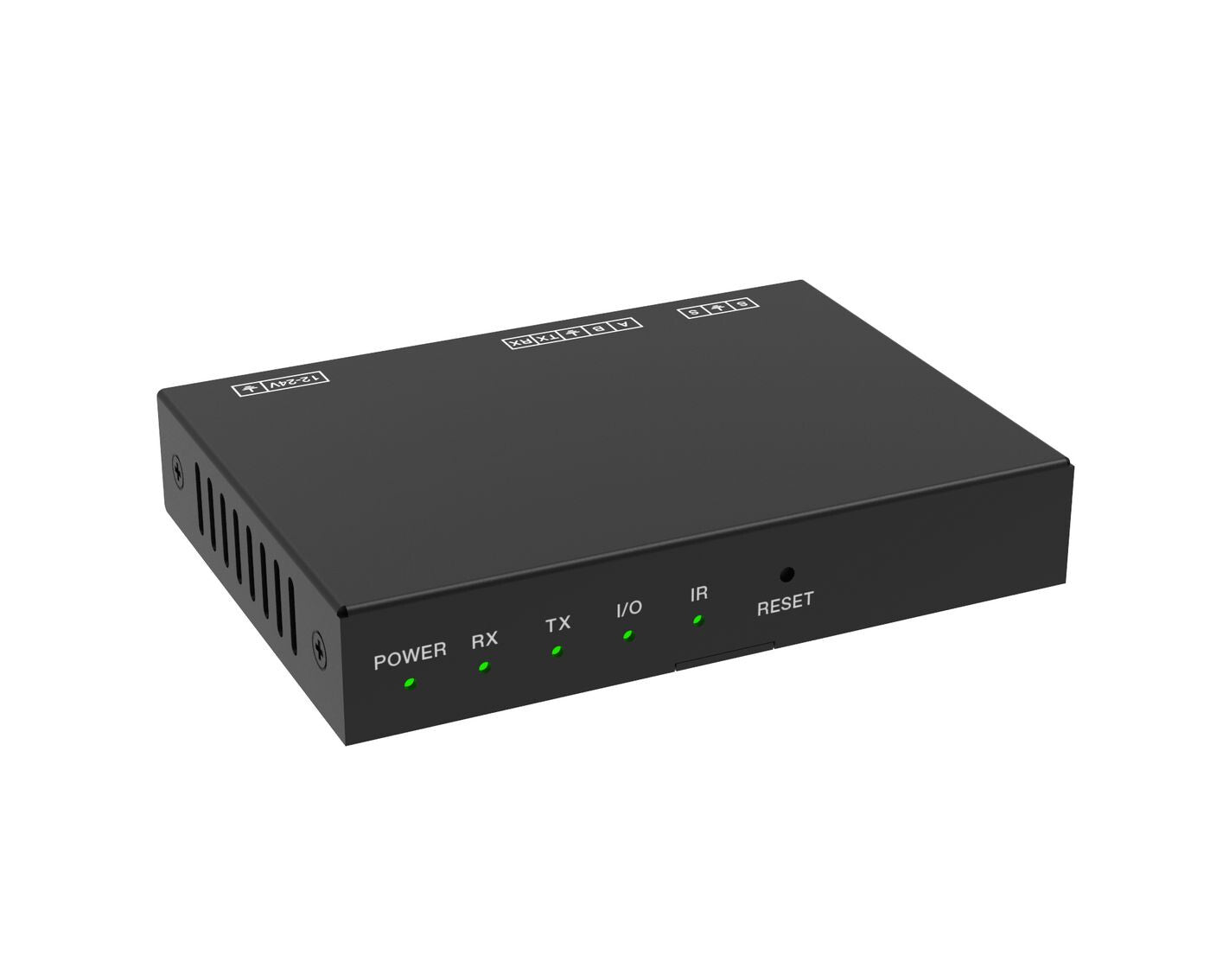

Housed in a sturdy metal chassis for enhanced durability, the VLEXT100 is built for professional environments. It also features advanced ESD protection and ultra-low power consumption of just 0.48W.
Package Contents
1x Network Serial Port Expander
1x 5pin-3.81mm Phoenix Connector (male)
1x 3pin-3.81mm Phoenix Connector (male)
1x 2pin-3.81mm Phoenix Connector (male)
2x Mounting Ear
4x Machine Screw (KM3*4)
1x User Manual
