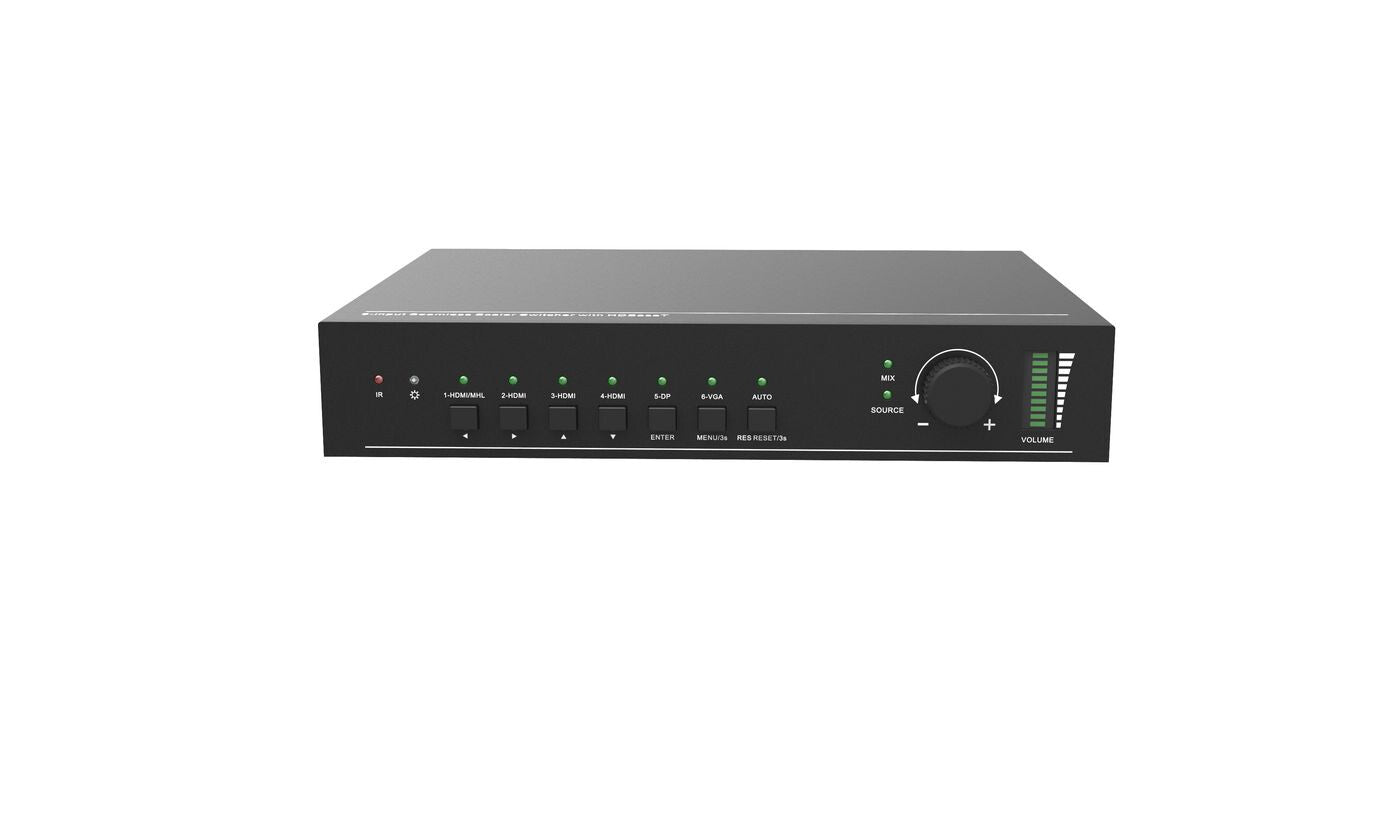

Vivolink VL120026 video scaler
Vivolink VL120026 video scaler
Regular price
£898.21 GBP
Regular price
Sale price
£898.21 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:VL120026
Low stock: 1 left
- Scales and switches any video signal to HDMI and HDBT outputs
- HDBaseT receiver for far-end monitor/projector
- RS232 control
HDBaseT Seamless Scaler kit

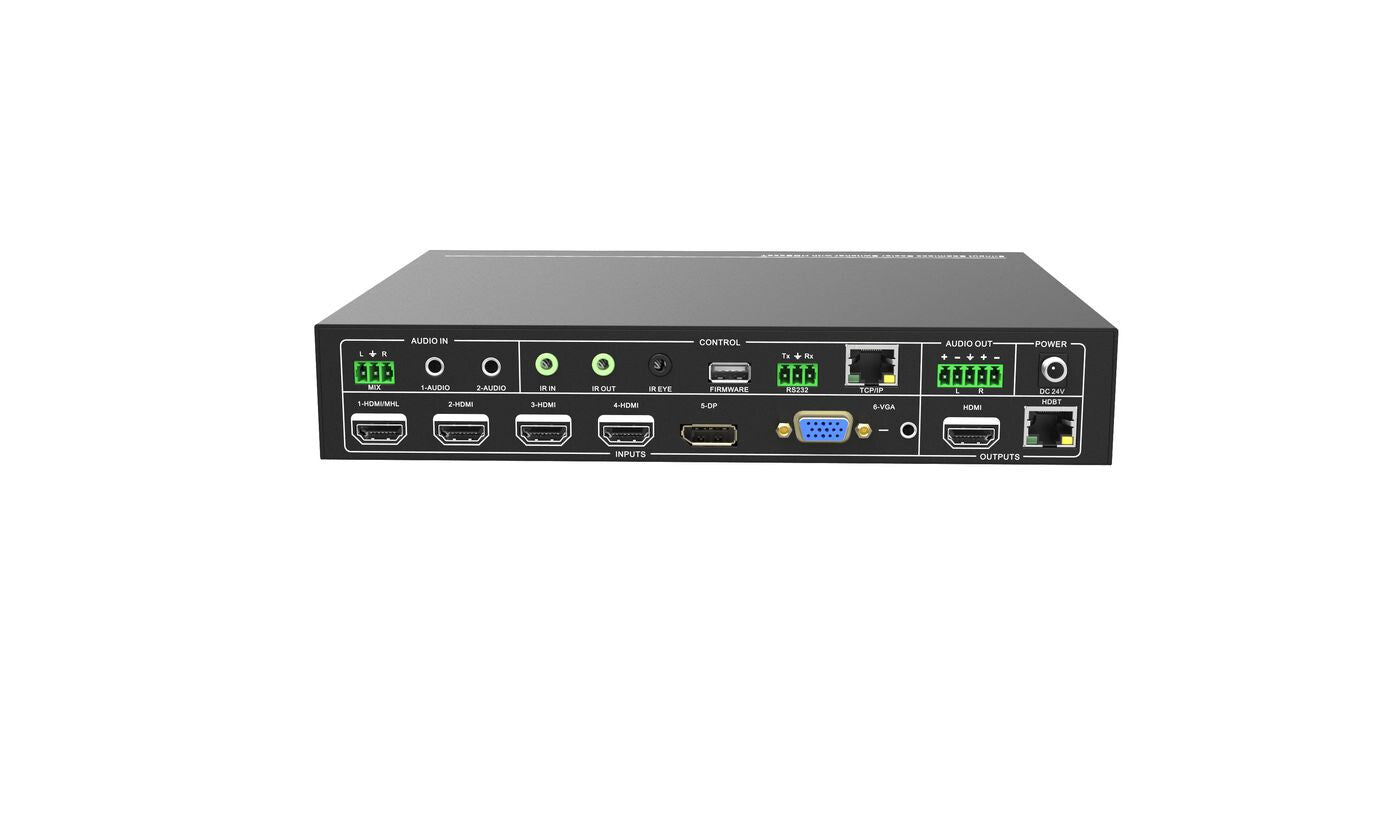

4x HDMI 1x DisplayPort 1x VGA Out HDBaseT + HDMI and Audio preout for active speakers.
Typical installation:
Complete all in one solution kit with receiver and transmitter
Ideal for meeting rooms where different signal sources should be supported
Function:
True seamless switching
6 input 2 output HDBaseT and HDMI mirror
Built-in scaler and seamless switching
Supports MHL (Mobile High-Definition Link)
| Features | |
|---|---|
| Control type | Buttons |
| LED indicators | Power |
| Housing material | Metal |
| Product colour | Black |
| Video | |
|---|---|
| HDCP version | 1.4/2.2 |
| Ports & interfaces | |
|---|---|
| RJ-45 ports quantity | 2 |
| RS-232 input ports | 1 |
| Remote control interface | Yes |
| Audio output | Yes |
| Audio input | Yes |
| VGA (D-Sub) input ports | 1 |
| Number of HDMI outputs | 1 |
| HDMI in | 4 |
| Power | |
|---|---|
| AC adapter input voltage | 110 - 230 V |
| Weight & dimensions | |
|---|---|
| Weight | 1 kg |
| Height | 144 mm |
| Depth | 267 mm |
| Width | 302 mm |
| Certificates | |
|---|---|
| Certification | HDBaseT |
| Packaging data | |
|---|---|
| Package weight | 2.26 kg |
| Package height | 144 mm |
| Package depth | 267 mm |
| Package width | 302 mm |
