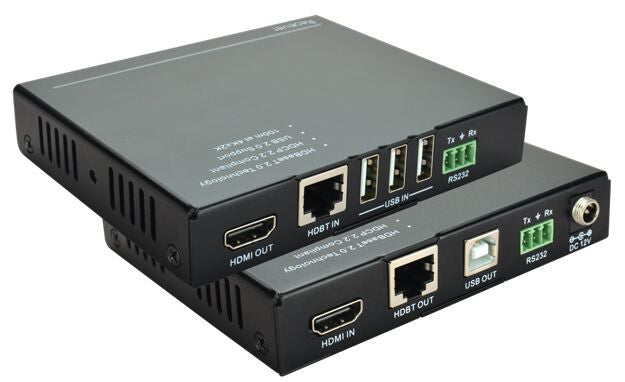

Vivolink VL120021 KVM extender Transmitter & receiver
Vivolink VL120021 KVM extender Transmitter & receiver
Regular price
£603.14 GBP
Regular price
Sale price
£603.14 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:VL120021
50 in stock
- 4K 100m transmission
- HDCP 2.2 compatible
- 3 x USB KVM function supporting USB 2.0 transfer speed up to 200Mbps
- RS232 pass-through
HDBaseT KVM Extender
Transmitter/Receiver HDMI USB PoH48,Bi-directional IR, RS232, 3 x USB 2.0 and CEC, one PSU, HDMI 2.0 , HDCP2.2
Typical installations:
• Interactive touch screens, control of a remote
• Ideally designed for smart displays and fitting digital signage markets
Function:
• 100m Extender HDMI + USB + RS232 (with CAT6 cable)
• Supports 4K x 2K @ 60Hz 4:2:0
Note: UK Plug NOT included. Please add: VLPSUPLUG-UK

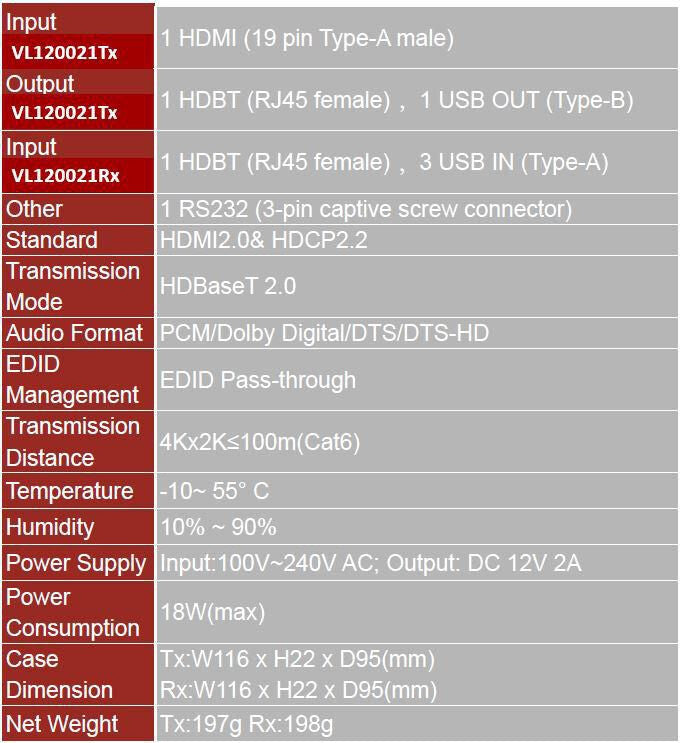

| Features | |
|---|---|
| LED indicators | Link |
| USB data transfer rates | 200 Mbit/s |
| USB 2.0 ports quantity | 3 |
| Plug and Play | Yes |
| Easy to install | Yes |
| Product colour | Black |
| Supported resolutions | 1280x800 4:4:4 |
| Maximum refresh rate | 60 Hz |
| Cable types supported | Cat6a |
| Maximum transfer distance | 100 m |
| Connectivity technology | Wired |
| Type | Transmitter & receiver |
| Transmitter | |
|---|---|
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter local keyboard/mouse port type | USB |
| Number of displays supported | 1 |
| Transmitter local video port | Yes |
| Transmitter video port type | HDMI |
| Power | |
|---|---|
| Power consumption (receiver) (max) | 18 W |
| Power consumption (transmitter) (max) | 18 W |
| AC adapter output current | 2 A |
| AC adapter output voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Weight & dimensions | |
|---|---|
| Receiver weight | 198 g |
| Receiver height | 2.2 cm |
| Receiver depth | 9.5 cm |
| Receiver width | 11.6 cm |
| Transmitter weight | 197 g |
| Transmitter height | 2.2 cm |
| Transmitter depth | 9.5 cm |
| Transmitter width | 11.6 cm |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| RJ-45 ports quantity | 1 |
| HDMI version | 2.0 |
| USB port type | USB Type-A |
| Packaging data | |
|---|---|
| Package weight | 818 g |
| Package height | 128 mm |
| Package depth | 161 mm |
| Package width | 183 mm |
| Packaging content | |
|---|---|
| Mounting bracket(s) included | Yes |
| Included power plug types | EU |
| Manual | Yes |
| AC adapter included | Yes |
| Technical details | |
|---|---|
| Video in | HDMI |
| Dimensions (WxDxH) | 116 x 95 x 22 mm |
| Weight | 500 g |
