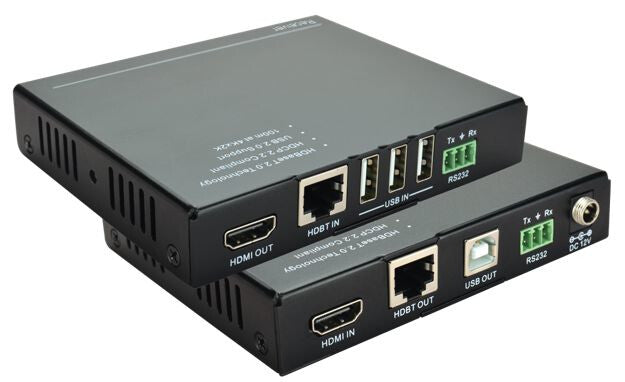

Vivolink VL120021 KVM extender

Vivolink VL120021 KVM extender

£617.11 GBP
£617.11 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

VL120021

36 in stock

  • 4K 100m transmission
  • HDCP 2.2 compatible
  • 3 x USB KVM function supporting USB 2.0 transfer speed up to 200Mbps
  • RS232 pass-through
HDBaseT KVM Extender

Transmitter/Receiver HDMI USB PoH48,Bi-directional IR, RS232, 3 x USB 2.0 and CEC, one PSU, HDMI 2.0 , HDCP2.2
Typical installations:
• Interactive touch screens, control of a remote
• Ideally designed for smart displays and fitting digital signage markets
Function:
• 100m Extender HDMI + USB + RS232 (with CAT6 cable)
• Supports 4K x 2K @ 60Hz 4:2:0
Note: UK Plug NOT included. Please add: VLPSUPLUG-UK

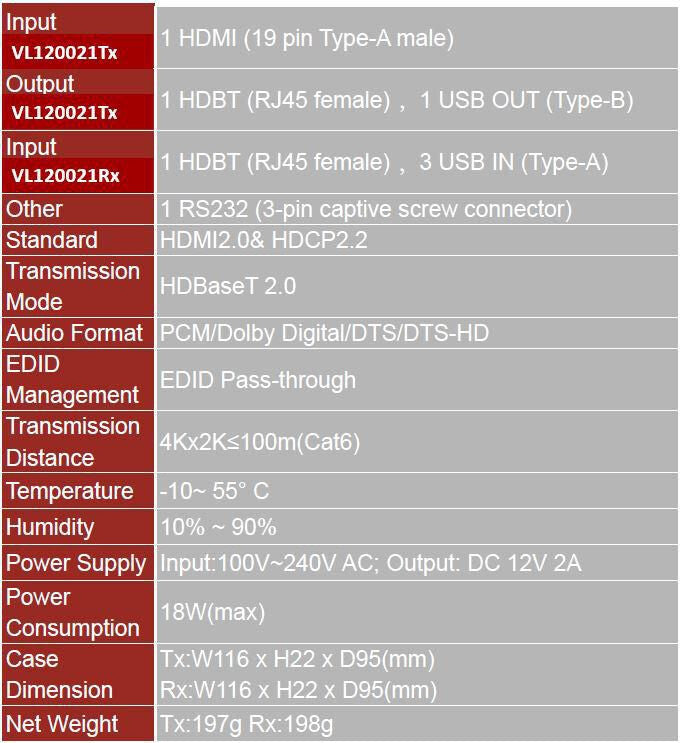

Features
Connectivity technology Wired
Maximum transfer distance 100 m
Cable types supported Cat6a
Maximum digital resolution 4096 x 2160 pixels
Supported resolutions 1280x800 4:4:4
Easy to install Yes
Plug and Play Yes
USB 2.0 ports quantity 3
USB data transfer rates 200 Mbit/s
LED indicators Link
Transmitter
Transmitter video port type HDMI
Transmitter local video port Yes
Number of displays supported 1
Transmitter local keyboard/mouse port type USB
RJ-45 ports quantity (transmitter) 1
Power
AC input voltage 100 - 240 V
AC adapter output voltage 12 V
AC adapter output current 2 A
Power consumption (transmitter) (max) 18 W
Operational conditions
Operating temperature (T-T) -10 - 55 °C
Ports & interfaces
USB port type USB Type-A
RJ-45 ports quantity 1
RS-232 ports 1
Packaging content
AC adapter included Yes
Manual Yes
Included power plug types EU
Mounting bracket(s) included Yes
Technical details
Dimensions (WxDxH) 116 x 95 x 22 mm
Video in 1
Weight 500 g
Packaging data
Package width 183 mm
Package depth 161 mm
Package height 128 mm
Package weight 818 g
