Vivolink VL120016 AV extender AV transmitter & receiver Black
Vivolink VL120016 AV extender AV transmitter & receiver Black
Regular price
£305.04 GBP
Regular price
Sale price
£305.04 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:VL120016
30 in stock
- Support up to 4K@30Hz 4:2:0 video signal transmission
- Max transmission distance is 4K 131ft (40m) and 1080P 230ft (70m) over single CAT5e/CAT6 cable
- High Bandwidth: 10.2Gbps Compliant with HDMI1.4 & HDCP2.2
- Use HDBaseT technology for extended capability and reliability
- Bi-directional IR pass-through
HDMI Slim Extender Kit 70m

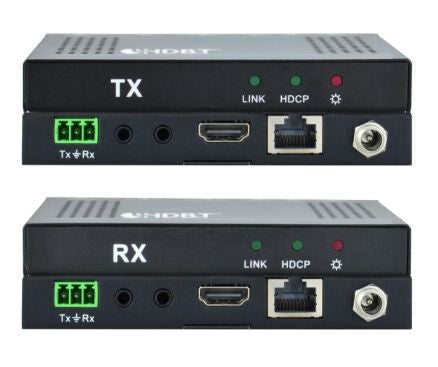

VL120016 is a mini-size HDBaseT Extender set that consists of transmitter (VL120016T) and receiver (VL120016R), supporting 1080P/ 4K signal transmission up to 131ft (40m), 1080P signal up to 230ft (70m) over single CAT5e/6 cable. VL120016 supports CEC, bidirectional RS232 & IR control, and one way-directional PoH function.

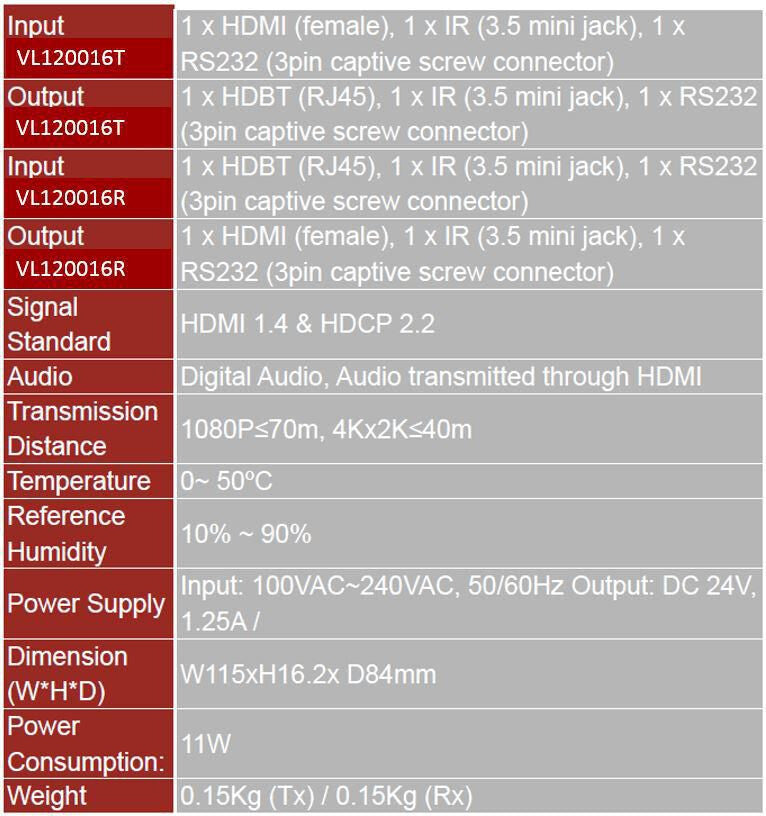

| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 70 m |
| RS-232 pass-through | Yes |
| CEC pass-through | Yes |
| IR pass-through | Yes |
| HDCP pass-through | Yes |
| Wall mountable | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP & EDID bypass | Yes |
| Remote control type | IR + RS232 |
| Supported video modes | 3840p |
| LED indicators | Yes |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black |
| HDBaseT certified | Yes |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 1 |
| HDMI in | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Video out | 1 |
| Video in | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Serial ports quantity | 1 |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| Serial interface type | RS-232 |
| DC-in jack | Yes |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operating voltage (transmitter) | 24 V |
| Operating voltage (receiver) | 24 V |
| Output current | 1.5 A |
| Power consumption (transmitter) (max) | 11 W |
| Power consumption (receiver) (max) | 11 W |
| External power adapter | Yes |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
|---|---|
| Width | 184 mm |
| Depth | 160 mm |
| Height | 129 mm |
| Weight | 658 g |
| Receiver weight | 150 g |
| Transmitter dimensions (WxDxH) | 115 x 84 x 16.2 mm |
| Transmitter weight | 150 g |
| Packaging data | |
|---|---|
| Package width | 184 mm |
| Package depth | 160 mm |
| Package height | 129 mm |
| Package weight | 758 g |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Included power plug types | EU |
| Mounting brackets included | Yes |
| IR receiver included | No |
| IR blaster included | No |
| Technical details | |
|---|---|
| Audio support | Yes |
