VivoLink
Vivolink VL120005 audio amplifier 2.0 channels Home Black
Vivolink VL120005 audio amplifier 2.0 channels Home Black
Regular price
£344.28 GBP
Regular price
Sale price
£344.28 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:VL120005
24 in stock

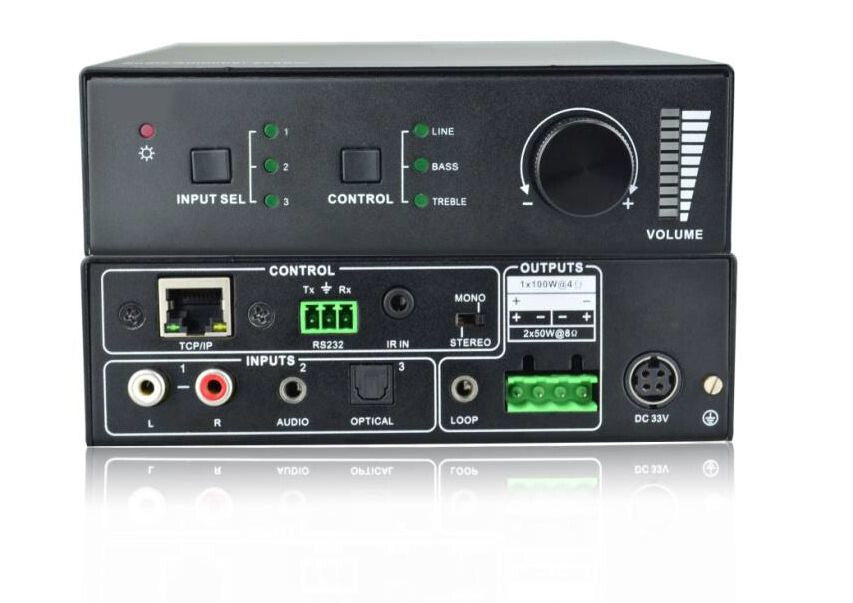

- 2 analog and 1 optical digital inputs
- Stereo and bridge output modes selectable
- Bass, Treble & Volume adjustable
- Loop output to cascade to another amplifier
- Locking power connector
- Controlable via button, RS232, IR and TCP/IP
Audio amplifier 2x50W
VL120005 is a digital amplifier with 3 inputs. With 2x50W@8 Ohm as default output, it can also be switched to 1x100W@4 Ohm by bridge connection.
Controlable via button, RS232, IR and TCP/IP.

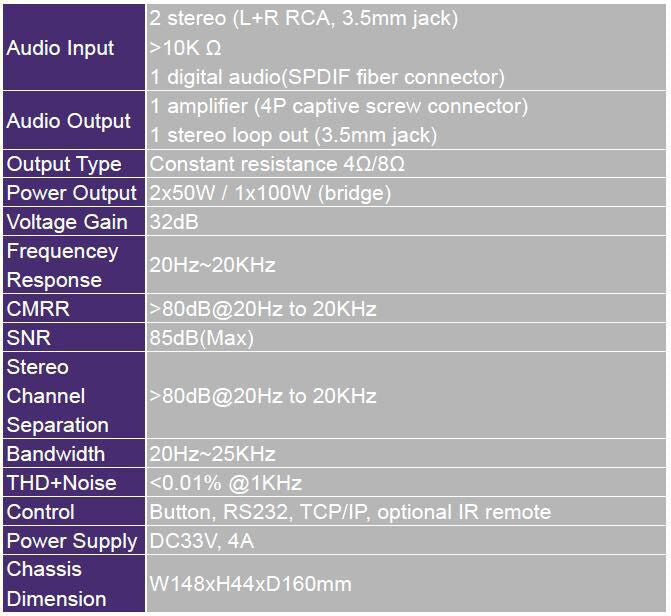

| Audio | |
|---|---|
| Audio output channels | 2.0 channels |
| Amplifier class | D |
| Total Harmonic Distortion (THD) | 0.01% |
| Signal-to-Noise Ratio (SNR) | 85 dB |
| RMS power output per channel (8 Ohm) | 50 W |
| Bridge-mode power output per channel (8 Ohm) | 100 W |
| Bridge-mode power output per channel (4 Ohm) | 100 W |
| Frequency range | 20 - 20000 Hz |
| Ports & interfaces | |
|---|---|
| Speakers connectivity type | RCA |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Digital audio optical in | 1 |
| Phono audio in (L,R) | Yes |
| Technical details | |
|---|---|
| Purpose | Home |
| Connectivity technology | Wired |
| Product colour | Black |
| Bass adjustment | Yes |
| Treble adjustment | Yes |
| Remote control type | RS-232 |
| Bridge function | Yes |
| Turntable connectivity | No |
| Material | Metal |
| Power | |
|---|---|
| AC input voltage | 110 -220 V |
| DC input voltage | 3 V |
| Maximum current | 4 A |
| Weight & dimensions | |
|---|---|
| Width | 148 mm |
| Depth | 160 mm |
| Height | 44 mm |
| Weight | 600 g |
| Indication | |
|---|---|
| LED indicators | Yes |
| Packaging content | |
|---|---|
| Manual | Yes |
| Packaging data | |
|---|---|
| Package width | 317 mm |
| Package depth | 248 mm |
| Package height | 126 mm |
| Package weight | 1.67 kg |
