Vivolink VL120004 audio amplifier 2.0 channels Home Black
Vivolink VL120004 audio amplifier 2.0 channels Home Black
SKU:VL120004
75 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 2 switchable analog audio inputs
- One 3-level MIC input with mixer function
- Stereo, Dual mono & Bridge output mode selectable
- Bass, Treble & Volume adjustable
- Loop output to cascade to another VL120004
- Locking power adaptor
- Controlable via button, RS232 (optional IR via IR-VL120004)
VL120004 is a digital amplifier (Class-D) with 2 line & 1 MIC inputs, which supports EQ control and MIC mixing. With 2x20W@4 Ohm as default output, it can be switched to 1x40W@8 Ohm by bridge connection.
Controlable via button, RS232 (optional IR via IR-VL120004).

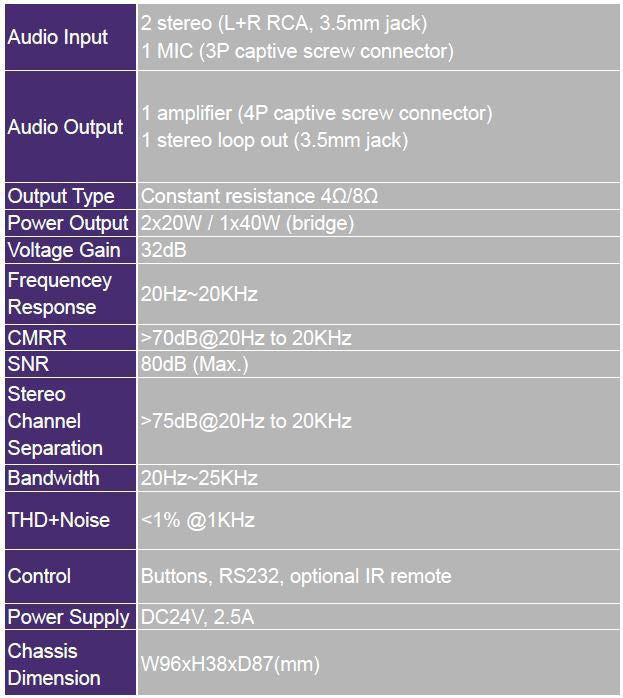

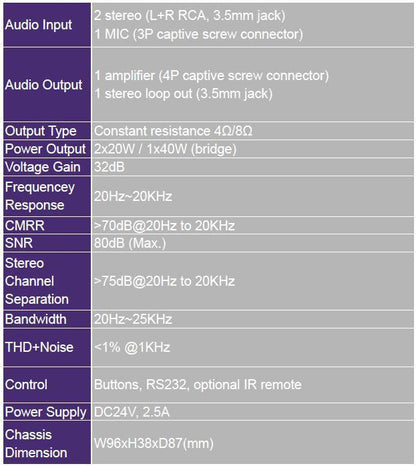

| Audio | |
|---|---|
| Audio output channels | 2.0 channels |
| Amplifier class | D |
| Total Harmonic Distortion (THD) | 1% |
| Signal-to-Noise Ratio (SNR) | 80 dB |
| RMS power output per channel (4 Ohm) | 20 W |
| RMS power output per channel (8 Ohm) | 20 W |
| Bridge-mode power output per channel (8 Ohm) | 40 W |
| Bridge-mode power output per channel (4 Ohm) | 40 W |
| Frequency range | 20 - 20000 Hz |
| Ports & interfaces | |
|---|---|
| Speakers connectivity type | 3.5mm |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Phono audio in (L,R) | Yes |
| Technical details | |
|---|---|
| Purpose | Home |
| Connectivity technology | Wired |
| Product colour | Black |
| Bass adjustment | Yes |
| Treble adjustment | Yes |
| Remote control type | RS-232 |
| Bridge function | Yes |
| Turntable connectivity | No |
| Material | Metal |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input voltage | 110 -220 V |
| Weight & dimensions | |
|---|---|
| Width | 96 mm |
| Depth | 87 mm |
| Height | 38 mm |
| Weight | 790 g |
| Indication | |
|---|---|
| LED indicators | Yes |
| Packaging content | |
|---|---|
| Manual | Yes |
| Packaging data | |
|---|---|
| Package width | 267 mm |
| Package depth | 204 mm |
| Package height | 77 mm |
| Package weight | 894 g |
