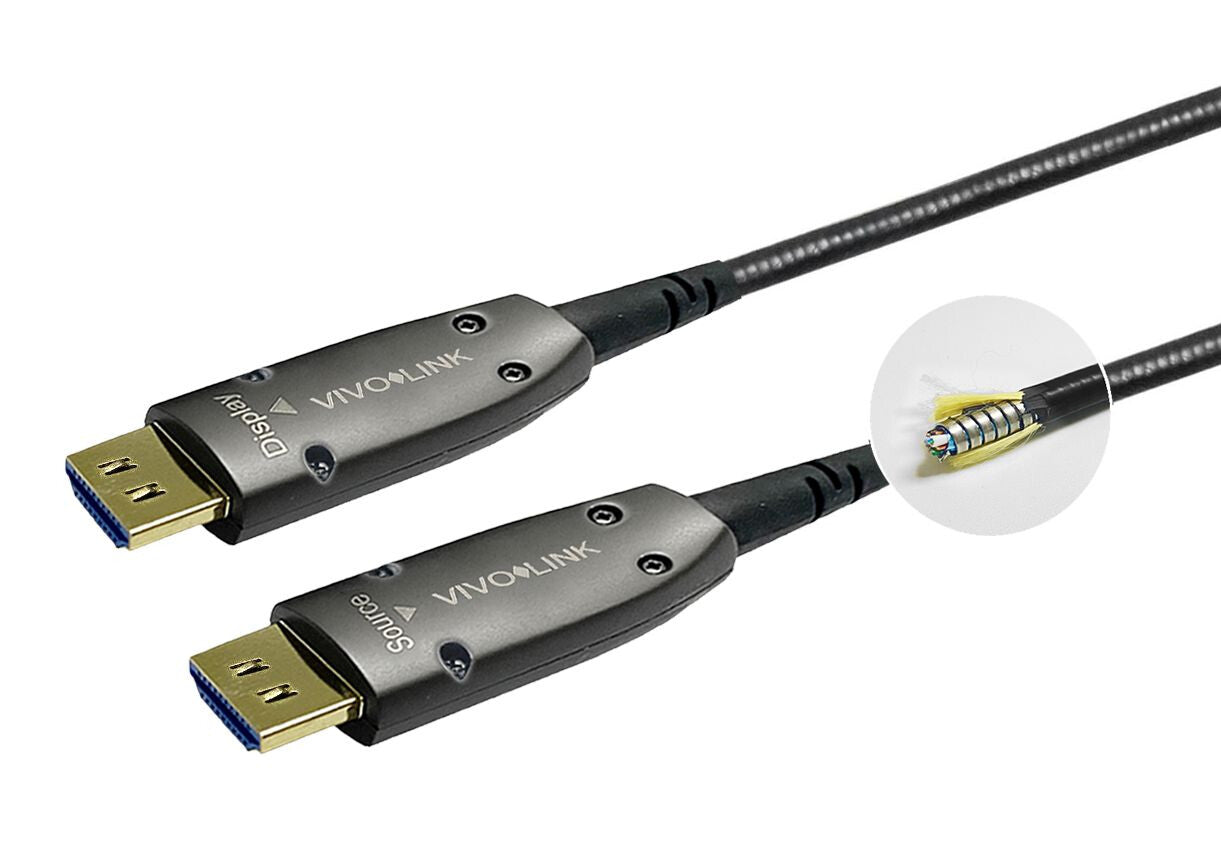

Vivolink PROHDMIOP20AM-DRUM HDMI cable 20 m HDMI Type A (Standard) Black

• Cable use Class-1 Professional laser with 12 years warranty
• CEC & ARC Support
• Cable is built with military standard optical fiber
• Power consumption only 0,35W
• Optic fiber is covered with copper wires
• Kevlar filling inside makes the cable extremely strong and robust
• Lock ring in cable head secure no damage by pulling in cable
• Cable head is made by molded metal
• Connector pins are gold bladed for a reliable and perfect contact
• The optical fiber converter is extremly high quality chip set
• Minimum bend radius: 20mm
• Unlimited number of bends with bend radius down to 20mm
• Working temperature: -20 degree to + 60 degree
• Secure-lock HDMI connector prevents accidental disconnection

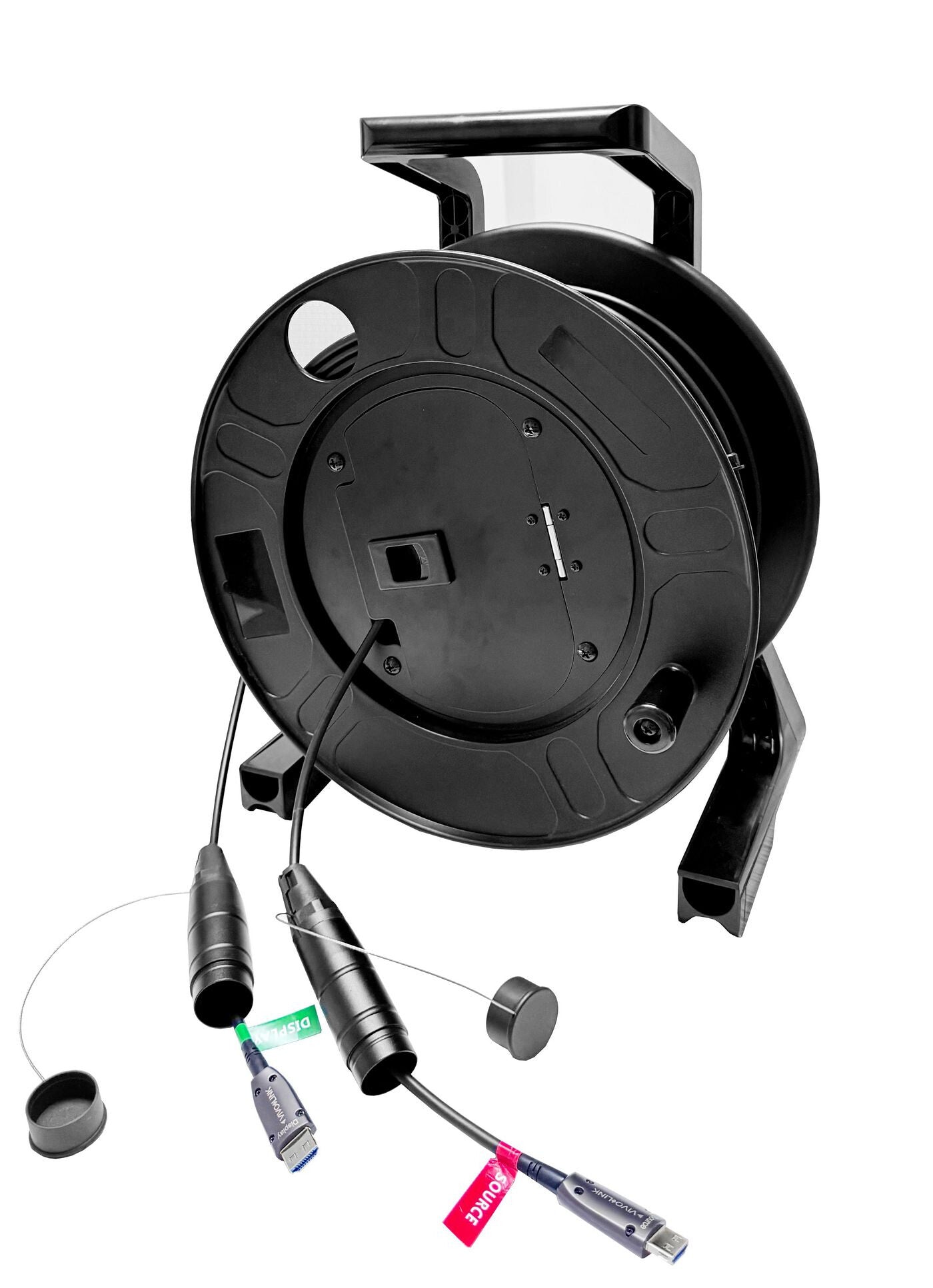

Vivolink Optical HDMI 4K Armored Cable, supplied on a robust 20-meter cable drum designed for safe transport and efficient handling.

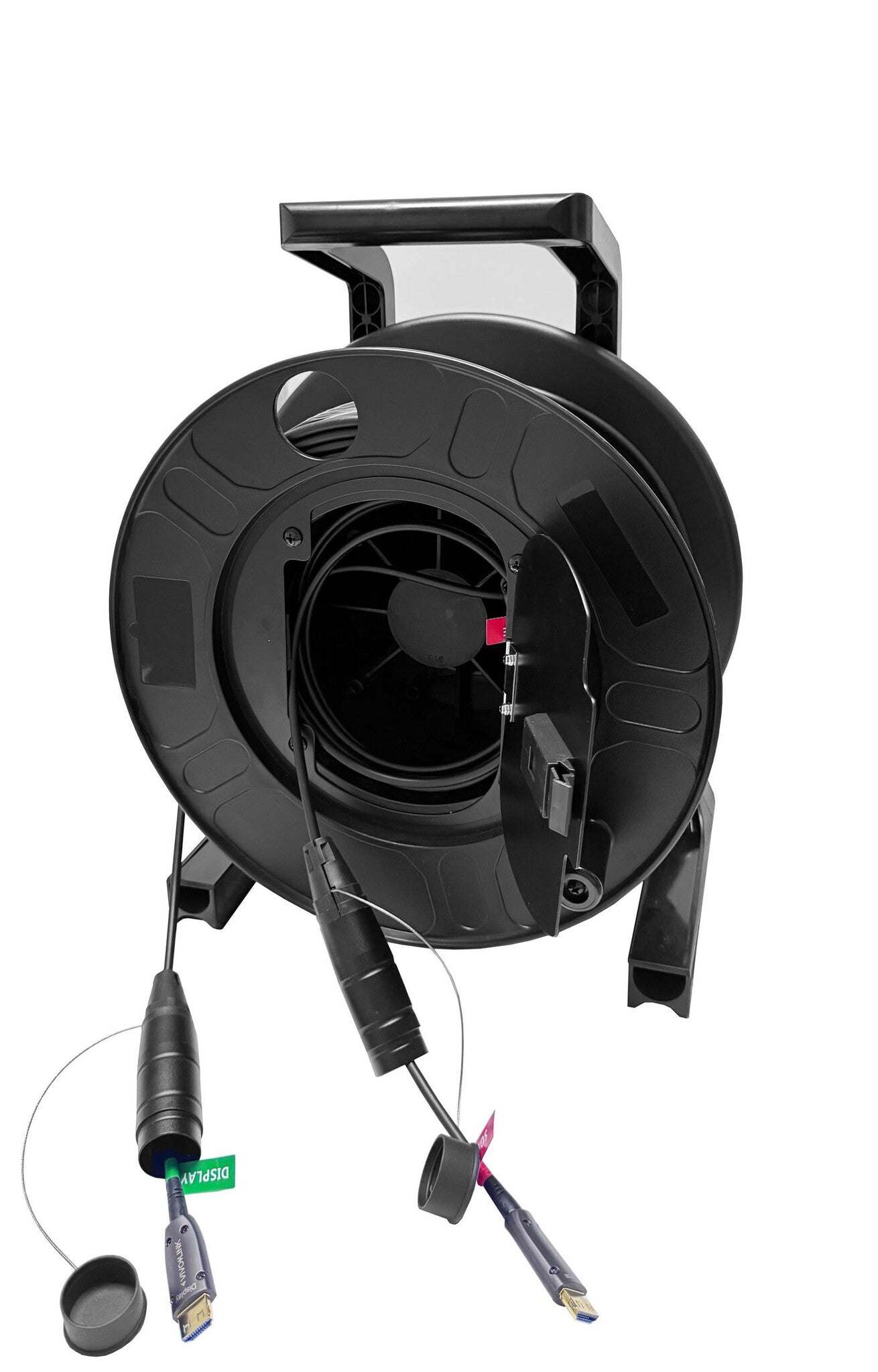

The drum features an extra-high outer flange, making it easier to reel the cable in evenly and without slipping. An integrated connector compartment allows the HDMI connector to be securely stored inside the drum during reeling, preventing the cable head from rotating freely and reducing strain on the connector.
This thoughtful drum design improves handling during installation, transport, and storage, while helping to protect the cable and connector from damage.
HDMI 2.0 Support 4K/60Hz 4:4:4 18Gbps, HDR 12bit, HDCP2.2, 3D & ARC. Slim size of 4.0mm.
Typical installation:
Places where high resolution is required on long distance.


Tensile Strength (Pull resistance): 20 kg.
Maximum pressure load on cable: 305 kg.

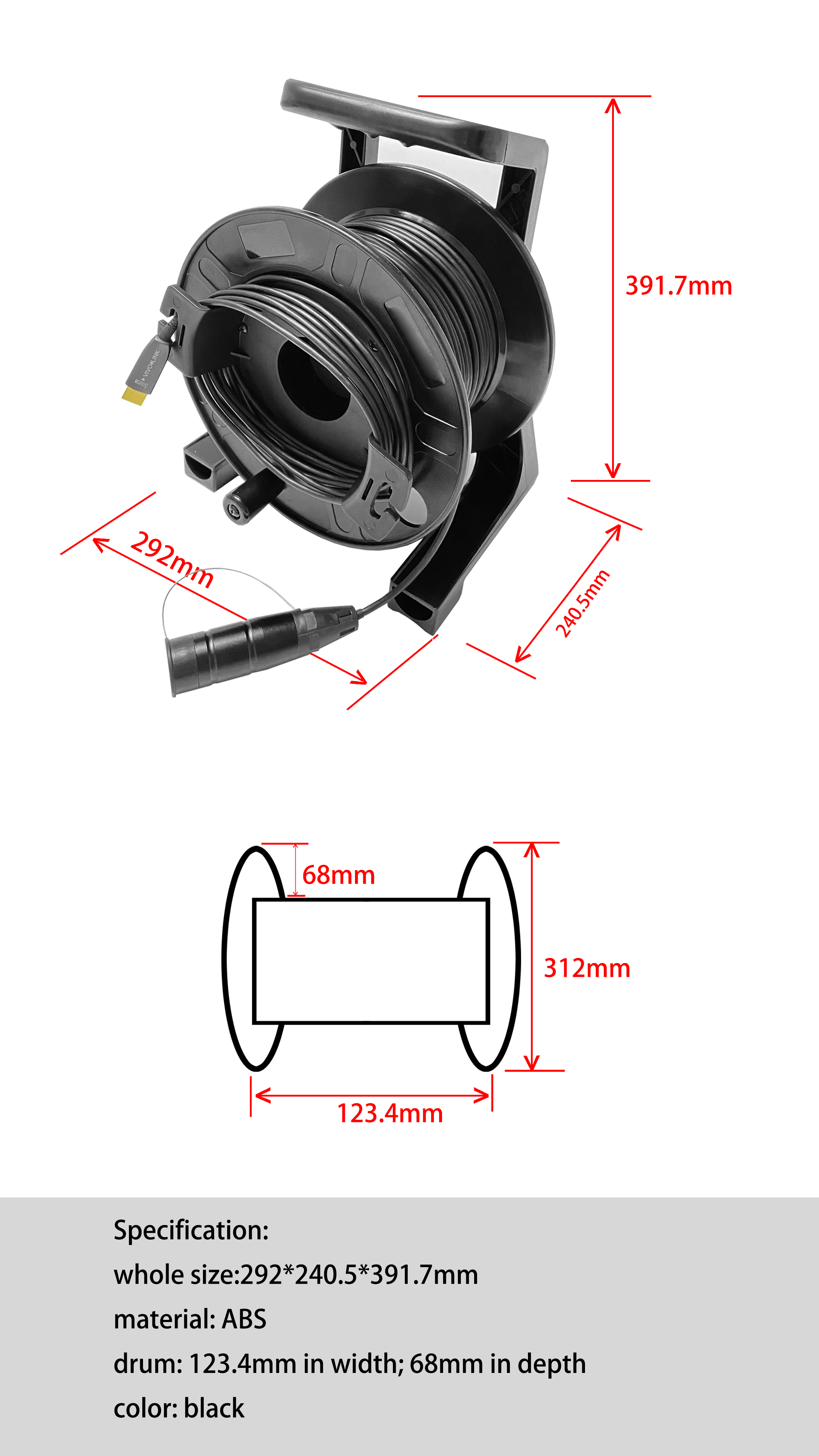

• Technical Drawing
