VivoLink

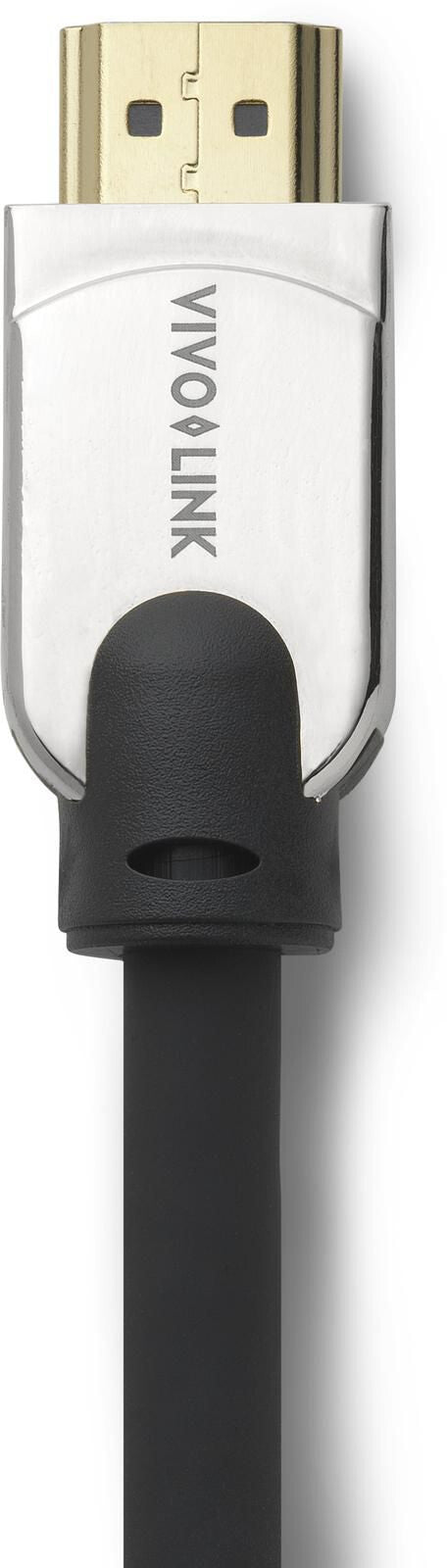

Vivolink PRO HDMI MALE - FEMALE HDMI 2.0 4K - 2K

Vivolink PRO HDMI MALE - FEMALE HDMI 2.0 4K - 2K

Regular price £16.33 GBP
Regular price Sale price £16.33 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:PROHDMIHDMFM2

100 in stock

  • All HDMI resolutions up to 4K (4096x2160p @60Hz), including 3D video
  • Support sample rate 4:4:4
  • High Dynamic Range (HDR)
  • Transfer speed 18 Gbit/s
  • HDCP 2.2
  • Supports Deep Color, up to 16-bits per channel, including x.v.Color standard
  • Supports the 21:9 cinema aspect ratio
  • Supports SA-CD, DVD-Audio, DTS-HD Master Audio, Dolby TrueHD, and other highde inition audio standards
  • Audio Return Channel
  • Auto Lip Sync
  • Supports up to 32 audio channels and a 1536 kHz audio sampling rate
  • Dynamic sound synchronization
  • Supports extended CEC (Consumer Electronics Control) commands and functions
  • the HDMI Ethernet Channel, and the Audio Return Channel features
  • Fully assembled with 19 pins connected
  • High quality HDMI A connector, 15um gold min. in contact area for high reliability
  • and professional use
  • 99,9% pure copper wires for lossless picture transmission
  • Triple shielded cable and extra shielding in the connector
  • High Flexibility ensuring small bending radius

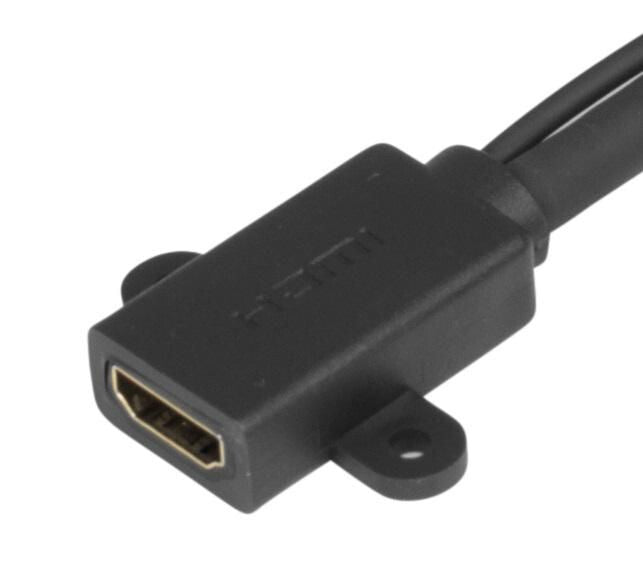

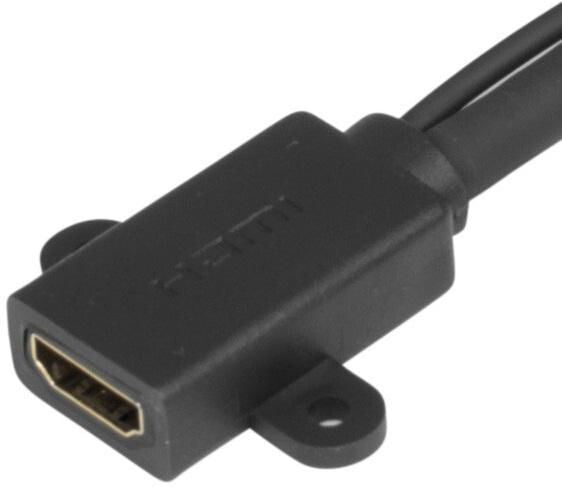

  • HDMI female end has ears for mounting e.g under a table
  • USB power injection cable for fiber cable installations

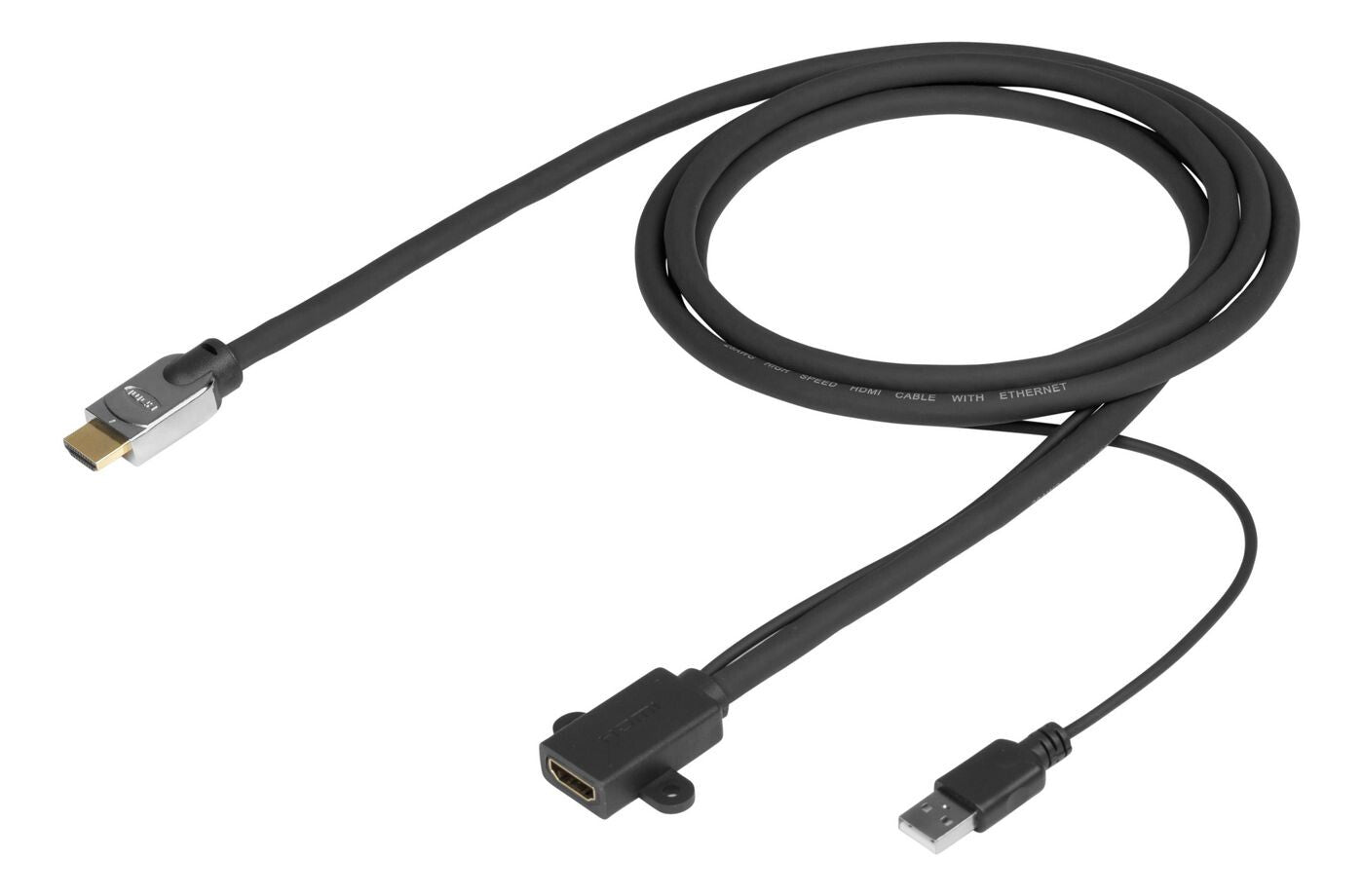

Pro HDMI Cable 2m M/F w/usb power

High Performance and High Speed HDMI 2.0 18Gbit Cable with Ethernet and Metal Housing.

Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC
Ultra flexible.

Unique design features made for Professional AV environments.
USB cable for power injection (fiber cables).
HDMI female end has ears for securing and mounting the cable e.g under a table.

Features
Quantity per pack 1 pc(s)
Plug and Play Yes
Colour depth 16 bit
Cable jacket material Polyvinyl chloride (PVC)
Cable material Copper
Connector contacts plating Gold
AWG wire size 28
Maximum refresh rate 60 Hz
Maximum resolution 4096 x 2160 pixels
High Dynamic Range (HDR) technology High Dynamic Range 10 (HDR10)
High Dynamic Range (HDR) supported Yes
Data transfer rate 18 Gbit/s
HDCP version 2.2
HDCP Yes
HDMI Ethernet channel Yes
Audio Return Channel (ARC) Yes
Dolby technologies DTS-HD Master Audio
Supported video modes 2160p
Supported graphics resolutions 4096 x 2160
3D Yes
HDMI version 2.0
Product colour Black
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Female
Connector 1 gender Male
Connector 2 HDMI Type A (Standard)
Connector 1 HDMI Type A (Standard)
Cable length 2 m
Operational conditions
Operating temperature (T-T) -20 - 60 °C
Weight & dimensions
Package weight 170 g
Package height 45 mm
Package depth 160 mm
Package width 165 mm
Weight 70 g
Cable diameter 7.3 mm
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84733080
