VivoLink

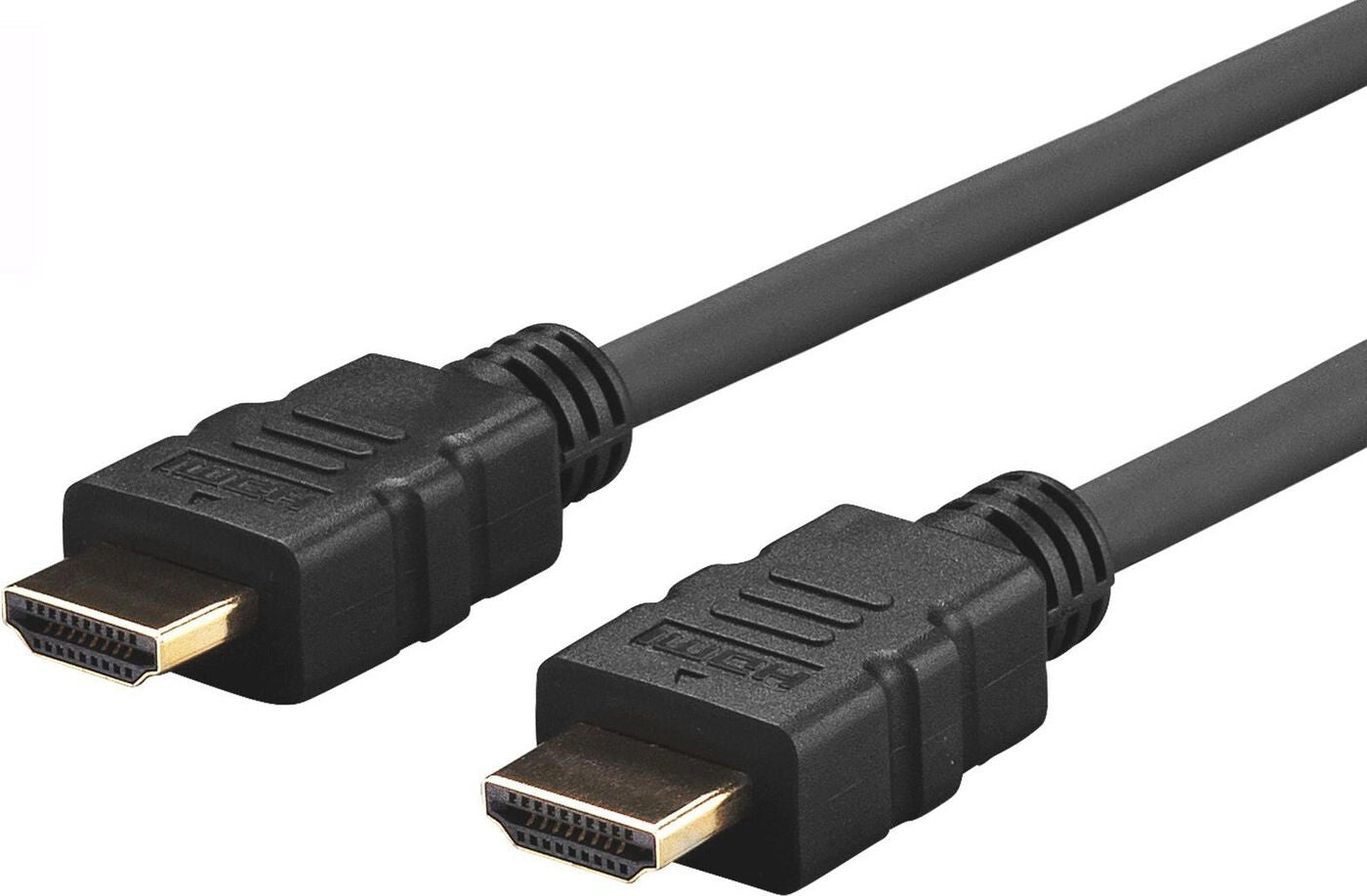

Vivolink PRO HDMI LSZH

Vivolink PRO HDMI LSZH

Regular price £105.00 GBP
Regular price Sale price £105.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:PROHDMIHDLSZH20

12 in stock

  • All HDMI resolutions up to 4K60Hz, including 3D video
  • High Dynamic Range (HDR)
  • Transfer speed 10.2 Gbit/s
  • HDCP 2.2
  • Supports Deep Color, up to 16-bits per channel, including x.v.Color standard
  • Supports the 21:9 cinema aspect ratio
  • Supports SA-CD, DVD-Audio, DTS-HD Master Audio, Dolby TrueHD, and other highde inition audio standards
  • Audio Return Channel
  • Auto Lip Sync
  • Supports up to 32 audio channels and a 1536 kHz audio sampling rate
  • Dynamic sound synchronization
  • Supports extended CEC (Consumer Electronics Control) commands and functions
  • the HDMI Ethernet Channel, and the Audio Return Channel features
  • Fully assembled with 19 pins connected
  • High quality HDMI A connector, 15um gold min. in contact area for high reliability
  • and professional use
  • 99,9% pure copper wires for lossless picture transmission
  • Triple shielded cable and extra shielding in the connector
  • High Flexibility ensuring small bending radius
  • Low Smoke & Zero Halogen
Pro HDMI Cable LSZH 20m

High Performance and High Speed HDMI 10.2Gbit Cable with Ethernet.

Supports Resolutions up to 4K@30Hz with HDCP 2.2, CEC and ARC
Ultra flexible.

Low Smoke & Zero Halogen.


Note: This cable is with HDMI lock. This is to ensures a stable and secure connection between AV equipment (e.g. AV splitters, switches or other AV distribution equipment) in fixed installations. Please add the PROHDMIHDMFM2 cable when using this cable connection with a laptop or other portable devices. This cable protects the interface in your portable device so it will not get damaged when plugging in and out several times.

Features
Quantity per pack 1 pc(s)
Plug and Play Yes
Colour depth 16 bit
Cable jacket material Low smoke zero halogen (LSZH)
Cable material Copper
Connector contacts plating Gold
AWG wire size 24
Maximum refresh rate 60 Hz
Maximum resolution 4096 x 2160 pixels
Supported digital audio channels (uncompressed) 32
High Dynamic Range (HDR) technology High Dynamic Range 10 (HDR10)
High Dynamic Range (HDR) supported Yes
Data transfer rate 18 Gbit/s
RGB support 4:4:4
HDCP version 2.2
HDCP Yes
HDMI Ethernet channel Yes
Audio Return Channel (ARC) Yes
Dolby technologies DTS-HD Master Audio
Supported video modes 2160p
Supported graphics resolutions 4096 x 2160
3D Yes
HDMI version 2.0
Product colour Black
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 HDMI Type A (Standard)
Connector 1 HDMI Type A (Standard)
Cable length 20 m
Operational conditions
Operating temperature (T-T) -20 - 60 °C
Weight & dimensions
Package weight 1.97 kg
Package height 90 mm
Package depth 254 mm
Package width 280 mm
Weight 1.87 kg
Cable diameter 9.5 mm
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84733080
