VivoLink

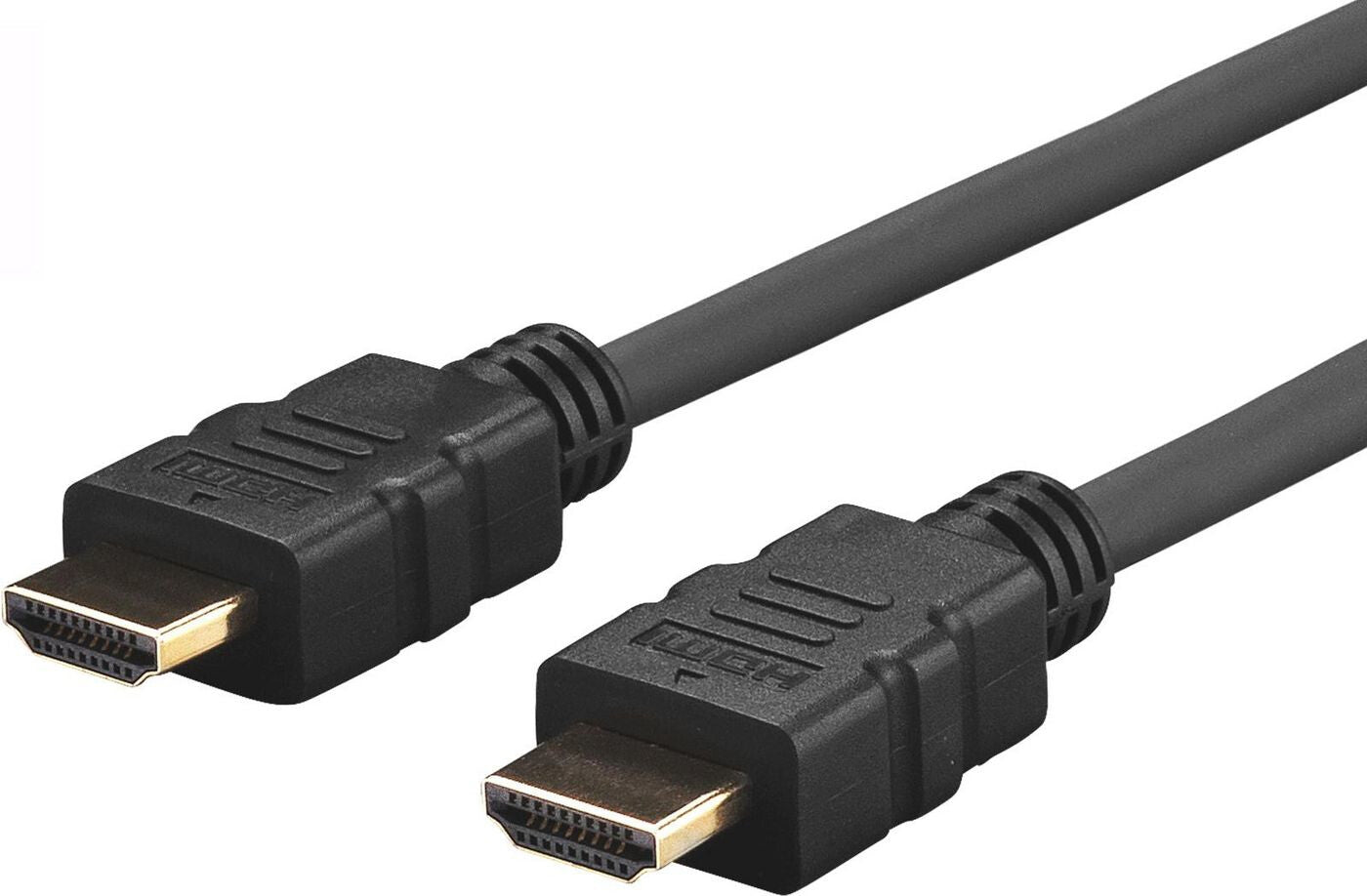

Vivolink PRO HDMI LSZH

Vivolink PRO HDMI LSZH

Regular price £29.66 GBP
Regular price Sale price £29.66 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:PROHDMIHDLSZH7.5

850 in stock

  • All HDMI resolutions up to 4K (4096x2160p @60Hz), including 3D video
  • Support sample rate 4:4:4
  • High Dynamic Range (HDR)
  • Transfer speed 18 Gbit/s
  • HDCP 2.2
  • Supports Deep Color, up to 16-bits per channel, including x.v.Color standard
  • Supports the 21:9 cinema aspect ratio
  • Supports SA-CD, DVD-Audio, DTS-HD Master Audio, Dolby TrueHD, and other highde inition audio standards
  • Audio Return Channel
  • Auto Lip Sync
  • Supports up to 32 audio channels and a 1536 kHz audio sampling rate
  • Dynamic sound synchronization
  • Supports extended CEC (Consumer Electronics Control) commands and functions
  • the HDMI Ethernet Channel, and the Audio Return Channel features
  • Fully assembled with 19 pins connected
  • High quality HDMI A connector, 15um gold min. in contact area for high reliability
  • and professional use
  • 99,9% pure copper wires for lossless picture transmission
  • Triple shielded cable and extra shielding in the connector
  • High Flexibility ensuring small bending radius
  • Low Smoke & Zero Halogen
Pro HDMI Cable LSZH 7.5m

High Performance and High Speed HDMI 2.0 18Gbit Cable with Ethernet.

Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC
Ultra flexible.

Low Smoke & Zero Halogen.

Features
Quantity per pack 1 pc(s)
Plug and Play Yes
Colour depth 16 bit
Cable jacket material Low smoke zero halogen (LSZH)
Cable material Copper-Clad Aluminium (CCA)
Connector contacts plating Gold
AWG wire size 26
Maximum refresh rate 60 Hz
Maximum resolution 4096 x 2160 pixels
Supported digital audio channels (uncompressed) 32
High Dynamic Range (HDR) technology High Dynamic Range 10 (HDR10)
High Dynamic Range (HDR) supported Yes
Data transfer rate 18 Gbit/s
RGB support 4:4:4
HDCP version 2.2
HDCP Yes
HDMI Ethernet channel Yes
Audio Return Channel (ARC) Yes
Dolby technologies DTS-HD Master Audio
Supported video modes 2160p
Supported graphics resolutions 4096 x 2160
3D Yes
HDMI version 2.0
Product colour Black
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 HDMI Type A (Standard)
Connector 1 HDMI Type A (Standard)
Cable length 7.5 m
Operational conditions
Operating temperature (T-T) -20 - 60 °C
Weight & dimensions
Package weight 510 g
Package height 75 mm
Package depth 158 mm
Package width 187 mm
Weight 410 g
Cable diameter 8 mm
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84733080
