VivoLink

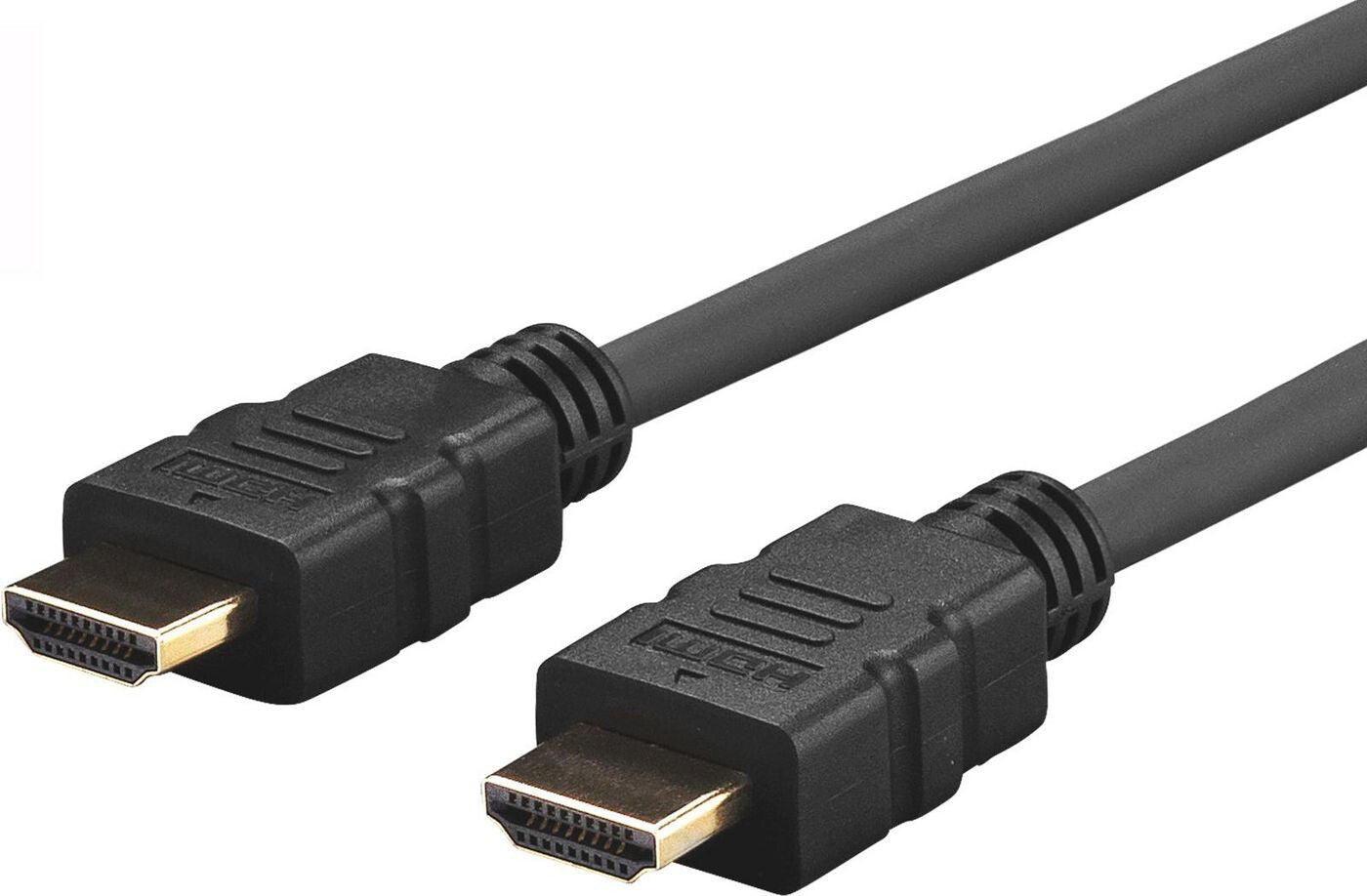

Vivolink PRO HDMI LSZH

Vivolink PRO HDMI LSZH

Regular price £8.69 GBP
Regular price Sale price £8.69 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:PROHDMIHDLSZH0.5

17 in stock

  • All HDMI resolutions up to 4K (4096x2160p @60Hz), including 3D video
  • Support sample rate 4:4:4
  • High Dynamic Range (HDR)
  • Transfer speed 18 Gbit/s
  • HDCP 2.2
  • Supports Deep Color, up to 16-bits per channel, including x.v.Color standard
  • Supports the 21:9 cinema aspect ratio
  • Supports SA-CD, DVD-Audio, DTS-HD Master Audio, Dolby TrueHD, and other highde inition audio standards
  • Audio Return Channel
  • Auto Lip Sync
  • Supports up to 32 audio channels and a 1536 kHz audio sampling rate
  • Dynamic sound synchronization
  • Supports extended CEC (Consumer Electronics Control) commands and functions
  • the HDMI Ethernet Channel, and the Audio Return Channel features
  • Fully assembled with 19 pins connected
  • High quality HDMI A connector, 15um gold min. in contact area for high reliability
  • and professional use
  • 99,9% pure copper wires for lossless picture transmission
  • Triple shielded cable and extra shielding in the connector
  • High Flexibility ensuring small bending radius
  • Low Smoke & Zero Halogen
Pro HDMI Cable LSZH 0.5m

High Performance and High Speed HDMI 2.0 18Gbit Cable with Ethernet.

Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC
Ultra flexible.

Low Smoke & Zero Halogen.

Features
Quantity per pack 1 pc(s)
Plug and Play Yes
Colour depth 16 bit
Cable jacket material Low smoke zero halogen (LSZH)
Cable material Copper
Connector contacts plating Gold
AWG wire size 28
Maximum refresh rate 60 Hz
Maximum resolution 4096 x 2160 pixels
Supported digital audio channels (uncompressed) 32
High Dynamic Range (HDR) technology High Dynamic Range 10 (HDR10)
High Dynamic Range (HDR) supported Yes
Data transfer rate 18 Gbit/s
RGB support 4:4:4
HDCP version 2.2
HDCP Yes
HDMI Ethernet channel Yes
Audio Return Channel (ARC) Yes
Dolby technologies DTS-HD Master Audio
Supported video modes 2160p
Supported graphics resolutions 4096 x 2160
3D Yes
HDMI version 2.0
Product colour Black
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 HDMI Type A (Standard)
Connector 1 HDMI Type A (Standard)
Cable length 0.5 m
Operational conditions
Operating temperature (T-T) -20 - 60 °C
Weight & dimensions
Package weight 58 g
Package height 34 mm
Package depth 142 mm
Package width 191 mm
Weight 50 g
Cable diameter 7.3 mm
Other features
Cable colour Black
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84733080
