VivoLink

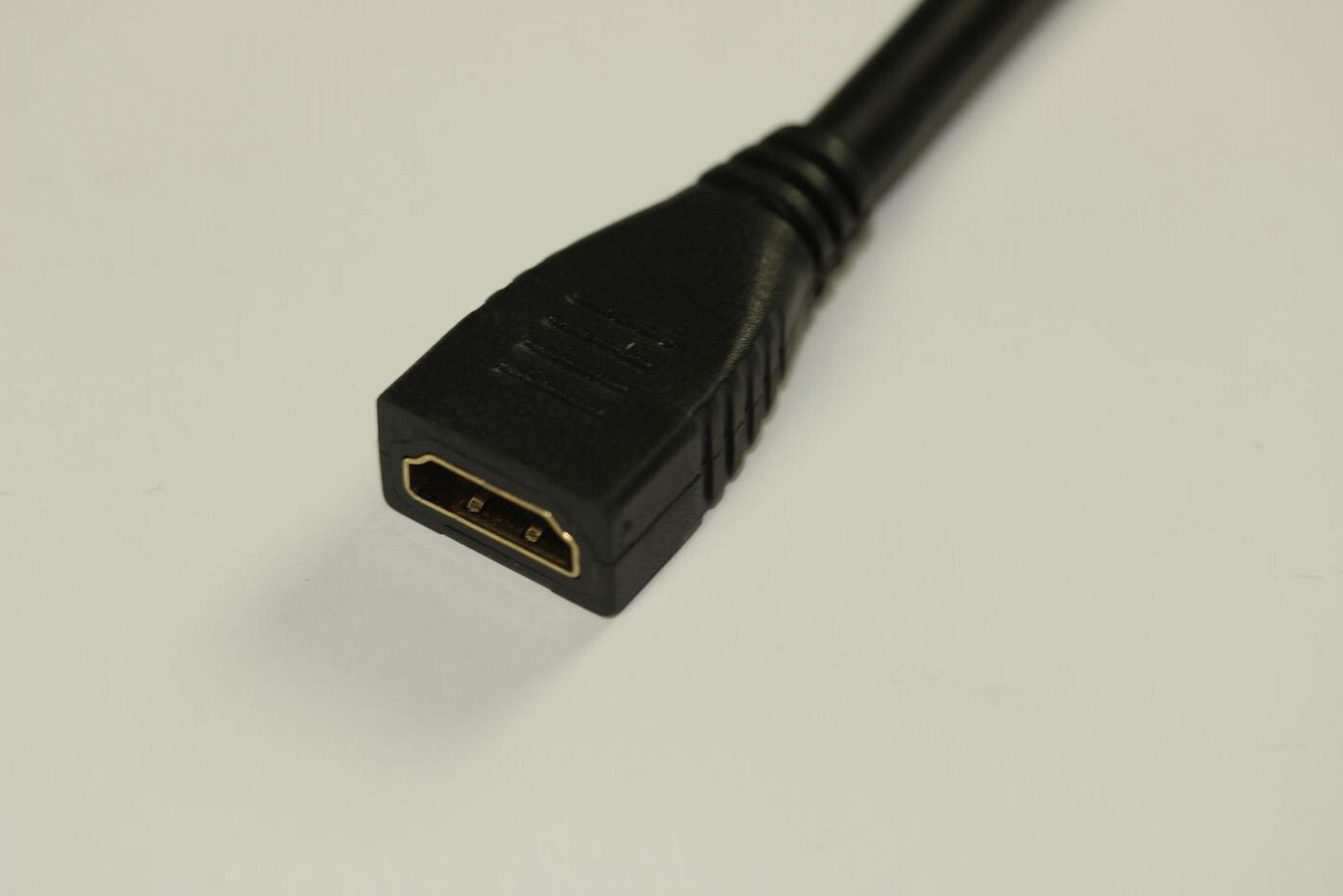

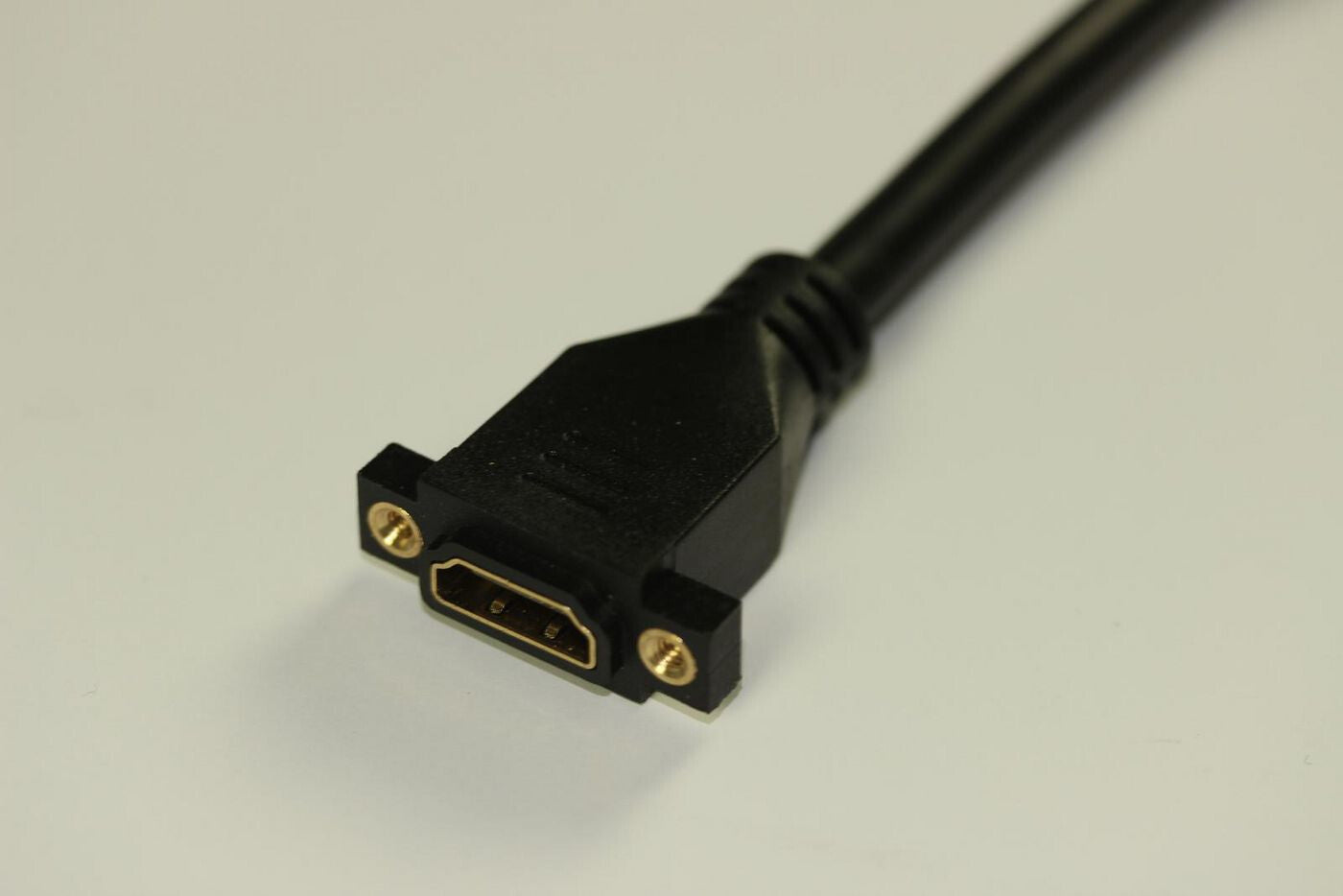

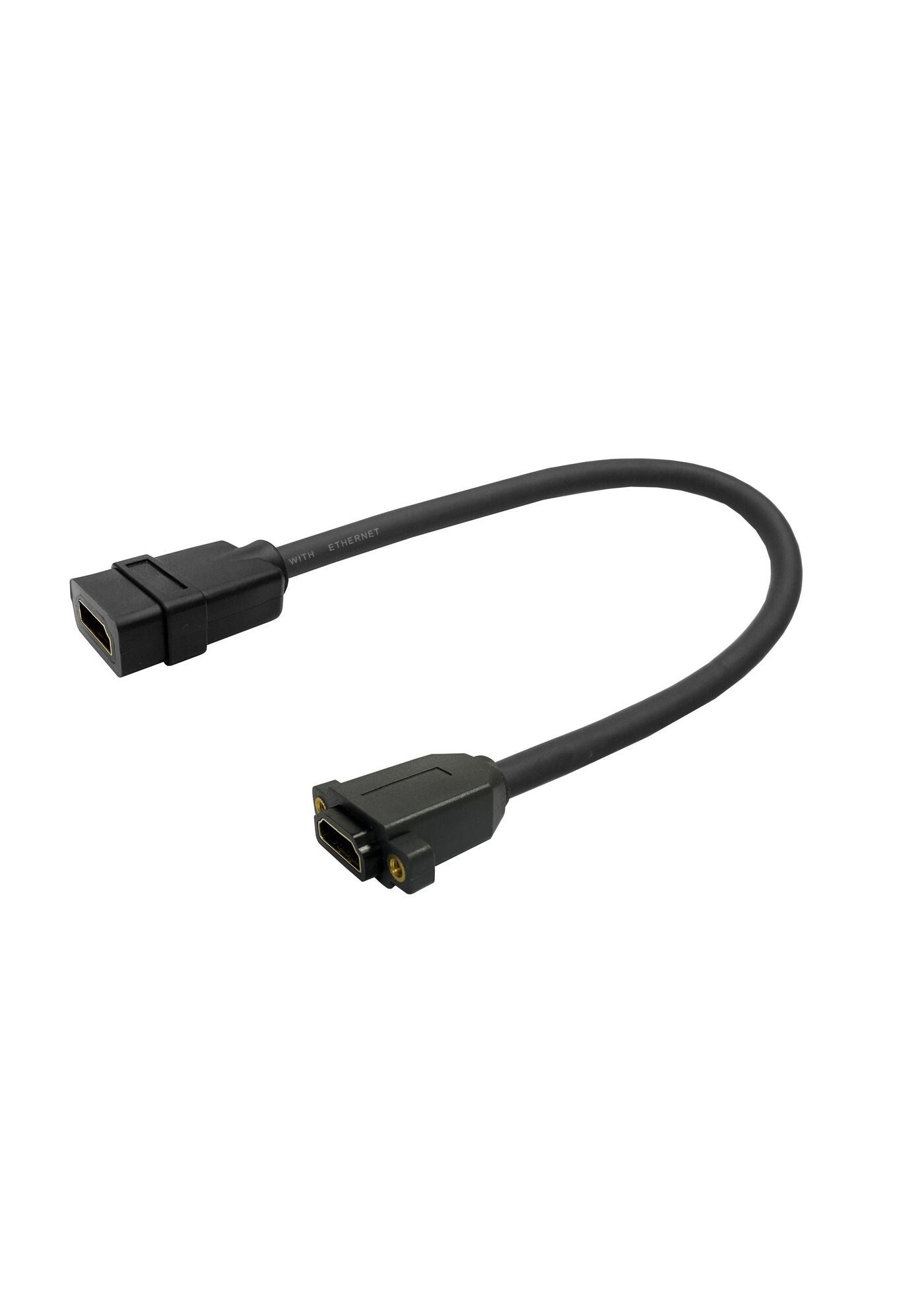

Vivolink Pro HDMI Cable F/F for wallplate

Vivolink Pro HDMI Cable F/F for wallplate

Regular price £11.42 GBP
Regular price Sale price £11.42 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:PROHDMIHDFFWP

550 in stock

  • All HDMI resolutions up to 4K (4096x2160p @60Hz), including 3D video
  • Support sample rate 4:4:4
  • High Dynamic Range (HDR)
  • Transfer speed 18 Gbit/s
  • HDCP 2.2
  • Supports Deep Color, up to 16-bits per channel, including x.v.Color standard
  • Supports the 21:9 cinema aspect ratio
  • Supports SA-CD, DVD-Audio, DTS-HD Master Audio, Dolby TrueHD, and other highde inition audio standards
  • Audio Return Channel
  • Auto Lip Sync
  • Supports up to 32 audio channels and a 1536 kHz audio sampling rate
  • Dynamic sound synchronization
  • Supports extended CEC (Consumer Electronics Control) commands and functions
  • the HDMI Ethernet Channel, and the Audio Return Channel features
  • Fully assembled with 19 pins connected
  • High quality HDMI A connector, 15um gold min. in contact area for high reliability
  • and professional use
  • 99,9% pure copper wires for lossless picture transmission
  • Triple shielded cable and extra shielding in the connector
  • High Flexibility ensuring small bending radius
HDMI Cable F/F for wall plate

15cm with mount for wal plate high performance Professional AV, 1920*1080 & 4K*2K, HDCP, CEC, ultra flexible
Distance between screw holes 25mm (screws is not included thread is 3mm)

Features
Cable length 0.25 m
Connector 1 gender Female
Connector 2 gender Female
Connector 1 form factor Straight
Connector 2 form factor Straight
Product colour Black
HDMI version 2.0
3D Yes
Supported graphics resolutions 4096 x 2160
Supported video modes 2160p
Dolby technologies DTS-HD Master Audio
Audio Return Channel (ARC) Yes
HDMI Ethernet channel Yes
HDCP Yes
HDCP version 2.2
Data transfer rate 18 Gbit/s
High Dynamic Range (HDR) supported Yes
High Dynamic Range (HDR) technology High Dynamic Range 10 (HDR10)
Maximum resolution 4096 x 2160 pixels
Maximum refresh rate 60 Hz
AWG wire size 30
Connector contacts plating Copper
Cable material Copper
Cable jacket material Polyvinyl chloride (PVC)
Colour depth 16 bit
Plug and Play Yes
Quantity per pack 1 pc(s)
Operational conditions
Operating temperature (T-T) -20 - 60 °C
Weight & dimensions
Cable diameter 6 mm
Weight 30 g
Package width 49 mm
Package depth 40 mm
Package height 25 mm
Package weight 40 g
