Vivolink PRO HDMI ARMOURED CABLE
Vivolink PRO HDMI ARMOURED CABLE
Regular price
£45.80 GBP
Regular price
Sale price
£45.80 GBP
Unit price
/
per
SKU:PROHDMIAM7.5
14 in stock
- All HDMI resolutions up to 4K (4096x2160p @60Hz), including 3D video
- Support sample rate 4:4:4
- High Dynamic Range (HDR)
- Transfer speed 18 Gbit/s
- HDCP 2.2
- Supports Deep Color, up to 16-bits per channel, including x.v.Color standard
- Supports the 21:9 cinema aspect ratio
- Supports SA-CD, DVD-Audio, DTS-HD Master Audio, Dolby TrueHD, and other highde inition audio standards
- Audio Return Channel
- Auto Lip Sync
- Supports up to 32 audio channels and a 1536 kHz audio sampling rate
- Dynamic sound synchronization
- Supports extended CEC (Consumer Electronics Control) commands and functions
- the HDMI Ethernet Channel, and the Audio Return Channel features
- Fully assembled with 19 pins connected
- High quality HDMI A connector, 15um gold min. in contact area for high reliability
- and professional use
- 99,9% pure copper wires for lossless picture transmission
- Triple shielded cable and extra shielding in the connector
- High Flexibility ensuring small bending radius
- Armoured

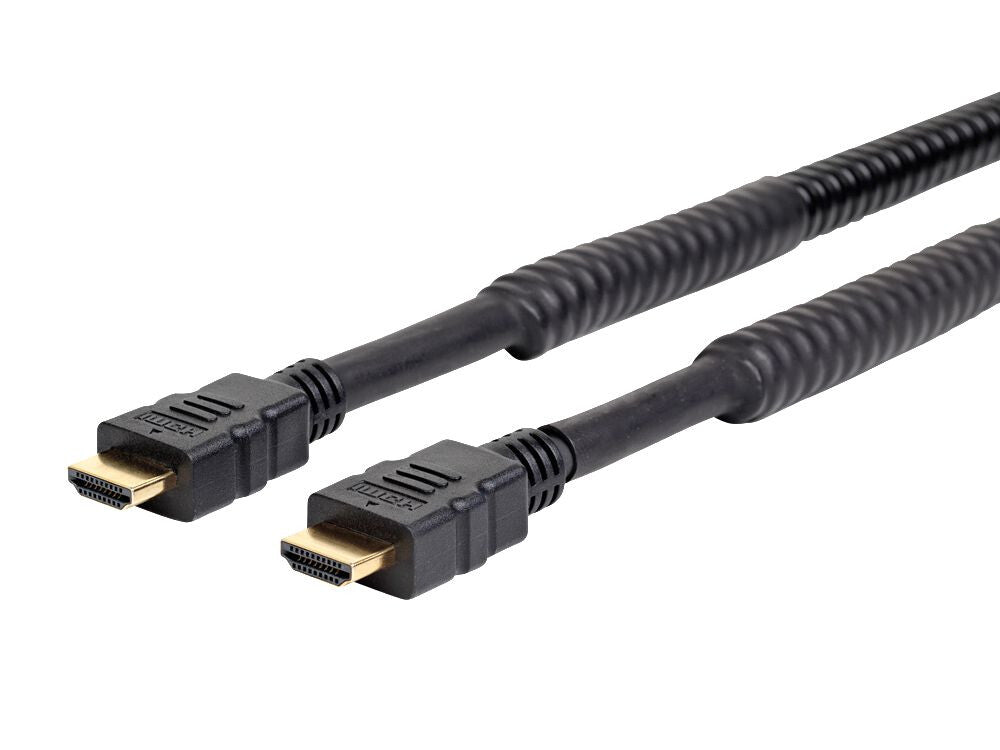

Pro HDMI Armouring cable, UHD, 7.5m, Black
High Performance Armoured HDMI Cables are designed specifically for rough environments. The external
armouring can withstand high pressure and protects the cable from damage. Furthermore, the
cables are humidity-proof, corrosion-proof, and perfect for outdoor installations and applications.
Features | |
---|---|
Quantity per pack | 1 pc(s) |
Plug and Play | Yes |
Colour depth | 16 bit |
Cable jacket material | Polyvinyl chloride (PVC) |
Cable material | Copper |
Connector contacts plating | Gold |
AWG wire size | 26 |
Maximum refresh rate | 60 Hz |
Maximum resolution | 3840 x 2160 pixels |
High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
High Dynamic Range (HDR) supported | Yes |
Data transfer rate | 18 Gbit/s |
HDCP version | 2.2 |
HDCP | Yes |
HDMI Ethernet channel | Yes |
Audio Return Channel (ARC) | Yes |
Dolby technologies | DTS-HD Master Audio |
Supported video modes | 2160p |
Supported graphics resolutions | 1920 x 1080 (HD 1080) |
3D | Yes |
HDMI version | 2.0 |
Product colour | Black |
Connector 2 form factor | Straight |
Connector 1 form factor | Straight |
Connector 2 gender | Male |
Connector 1 gender | Male |
Connector 2 | HDMI Type A (Standard) |
Connector 1 | HDMI Type A (Standard) |
Cable length | 7.5 m |
Operational conditions | |
---|---|
Operating temperature (T-T) | -20 - 60 °C |
Weight & dimensions | |
---|---|
Package weight | 1.24 kg |
Package height | 108 mm |
Package depth | 234 mm |
Package width | 238 mm |
Weight | 500 g |
Cable diameter | 8 mm |
Technical details | |
---|---|
Compliance certificates | RoHS |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
