VivoLink

Vivolink PRO HDMI ARMOURED CABLE

Vivolink PRO HDMI ARMOURED CABLE

Regular price £33.74 GBP
Regular price Sale price £33.74 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:PROHDMIAM5

45 in stock

  • All HDMI resolutions up to 4K (4096x2160p @60Hz), including 3D video
  • Support sample rate 4:4:4
  • High Dynamic Range (HDR)
  • Transfer speed 18 Gbit/s
  • HDCP 2.2
  • Supports Deep Color, up to 16-bits per channel, including x.v.Color standard
  • Supports the 21:9 cinema aspect ratio
  • Supports SA-CD, DVD-Audio, DTS-HD Master Audio, Dolby TrueHD, and other highde inition audio standards
  • Audio Return Channel
  • Auto Lip Sync
  • Supports up to 32 audio channels and a 1536 kHz audio sampling rate
  • Dynamic sound synchronization
  • Supports extended CEC (Consumer Electronics Control) commands and functions
  • the HDMI Ethernet Channel, and the Audio Return Channel features
  • Fully assembled with 19 pins connected
  • High quality HDMI A connector, 15um gold min. in contact area for high reliability
  • and professional use
  • 99,9% pure copper wires for lossless picture transmission
  • Triple shielded cable and extra shielding in the connector
  • High Flexibility ensuring small bending radius
  • Armoured

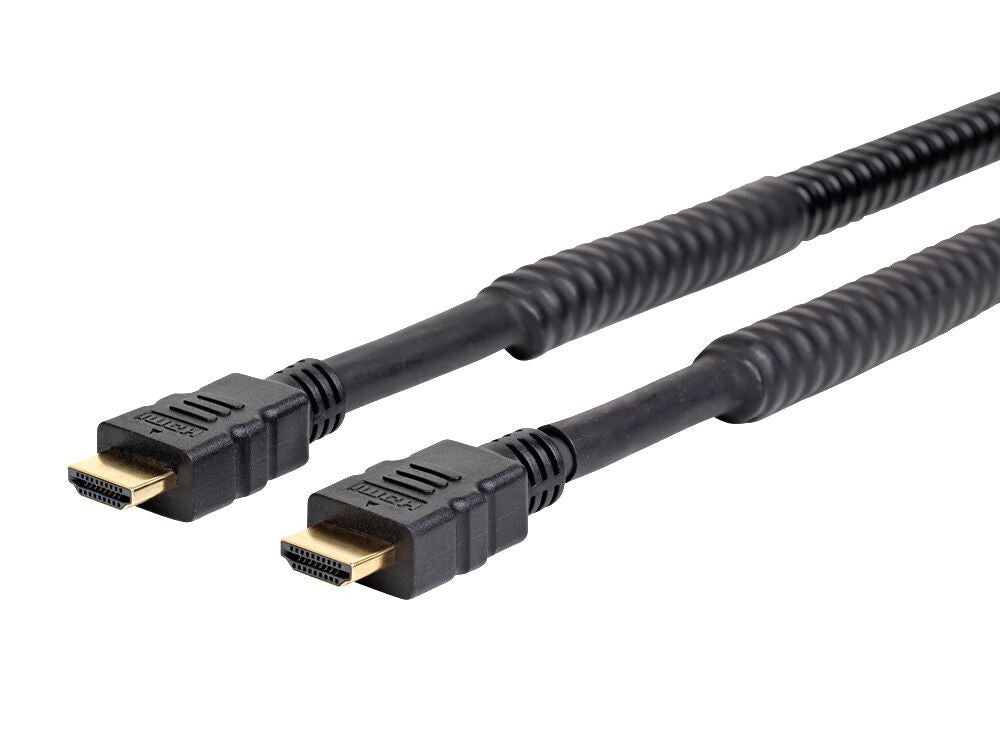

Pro HDMI Armouring cable, UHD, 5m, Black

High Performance Armoured HDMI Cables are designed specifically for rough environments. The external
armouring can withstand high pressure and protects the cable from damage. Furthermore, the
cables are humidity-proof, corrosion-proof, and perfect for outdoor installations and applications.

Features
Quantity per pack 1 pc(s)
Plug and Play Yes
Colour depth 16 bit
Cable material Copper
Connector contacts plating Gold
AWG wire size 26
Maximum refresh rate 60 Hz
Maximum resolution 3840 x 2160 pixels
High Dynamic Range (HDR) technology High Dynamic Range 10 (HDR10)
High Dynamic Range (HDR) supported Yes
Data transfer rate 18 Gbit/s
HDCP version 2.2
HDCP Yes
HDMI Ethernet channel Yes
Audio Return Channel (ARC) Yes
Dolby technologies DTS-HD Master Audio
Supported video modes 2160p
Supported graphics resolutions 1920 x 1080 (HD 1080)
3D Yes
HDMI version 2.0
Product colour Black
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 HDMI Type A (Standard)
Connector 1 HDMI Type A (Standard)
Cable length 5 m
Operational conditions
Operating temperature (T-T) -20 - 60 °C
Weight & dimensions
Package weight 850 g
Package height 66 mm
Package depth 259 mm
Package width 267 mm
Weight 500 g
Cable diameter 8 mm
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84733080
